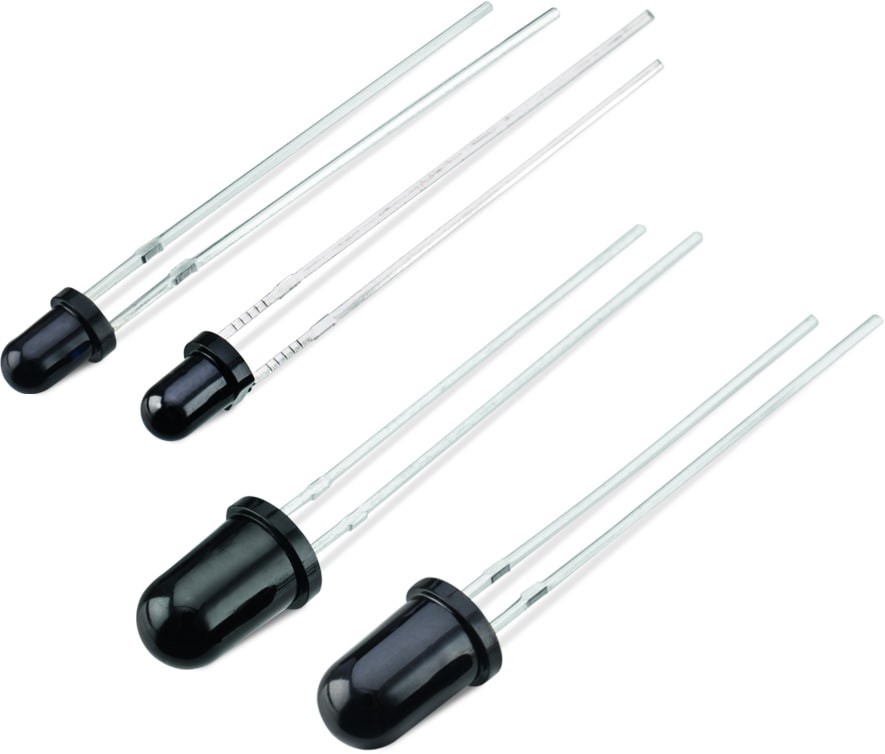

WL-TTRB THT Phototransistor Round Black

Characteristics

Standard THT package
Wide viewing angle
High photo sensivity
With daylight filter
Perfect match with IR LEDs

Applications

Smoke detectors
Counter and encoder
Heart rate monitoring
Cleaning robot
Touch screens
Automatic switches ( e.g. water syphons)

Products

All

3 mm - without stopper

5 mm - without stopper

Order Code	Datasheet	Downloads	Status	λ_{Peak typ.} (nm)	λ_min. (nm)	λ_max. (nm)	Test Condition I_CE.P	I_{CE.P typ.} (mA)	I_{CE.P min.} (mA)	Test Condition I_CEO.Dark	I_{CEO.Dark max.} (nA)	Chip Technology	2θ_{50% typ.} (°)	Samples
1540031NC6090	SPEC	5 files EDA models: Components ZIP ALT Altium_WL-TTRB (rev22b).IntLib \| 45.5 KB CDS Cadence_WL-TTRB (rev20a).zip \| 237.6 KB EAG Eagle_WL-TTRB (rev20b).lbr \| 18.6 KB CAD files ZIP IGS Downloads_IGS_1540031NC6090 (rev1).igs \| 233.8 KB STP Download_STEP_1540031NC6090 (rev1).stp \| 48.5 KB Download all 5 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	940	700	1100	V_CE = 5 V Ee = 1 mW/cm² λ = 940 nm	7	0.5	V_CE = 20 V Ee = 0 mW/cm²	300	Si	60
1540051NC2590	SPEC	5 files EDA models: Components ZIP ALT Altium_WL-TTRB (rev22b).IntLib \| 45.5 KB CDS Cadence_WL-TTRB (rev20a).zip \| 237.6 KB EAG Eagle_WL-TTRB (rev20b).lbr \| 18.6 KB CAD files ZIP IGS Download_IGS_1540051NC2590 (rev1).igs \| 233.2 KB STP Download_STEP_1540051NC2590 (rev1).stp \| 48.6 KB Download all 5 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	940	700	1100	V_CE = 5 V Ee = 1 mW/cm² λ = 940 nm	10	1.5	V_CE = 20 V Ee = 0 mW/cm²	100	Si	25

Order Code	Datasheet
1540031NC6090	SPEC
1540051NC2590	SPEC

Samples

Order Code	Datasheet	Downloads	Status	λ_{Peak typ.} (nm)	λ_min. (nm)	λ_max. (nm)	Test Condition I_CE.P	I_{CE.P typ.} (mA)	I_{CE.P min.} (mA)	Test Condition I_CEO.Dark	I_{CEO.Dark max.} (nA)	Chip Technology	2θ_{50% typ.} (°)	Samples
