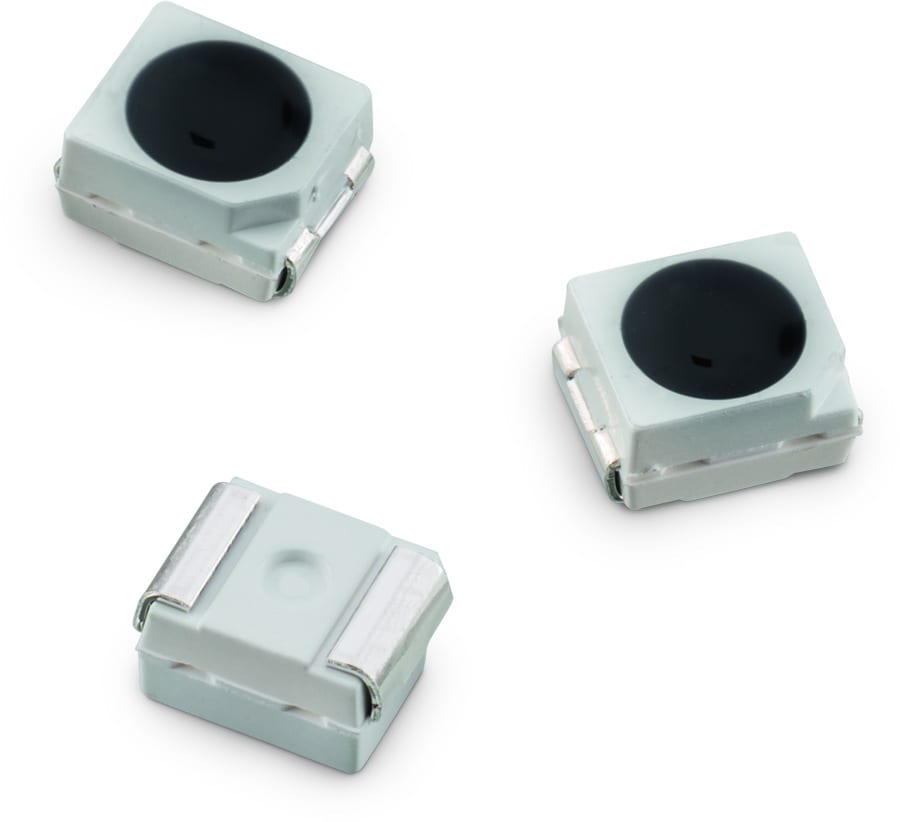

WL-STTB SMT Phototransistor Top Black

Size	Dimensions	L (mm)	W (mm)	H (mm)	Mount
3528		3.5	2.8	1.9	SMT

LTSpice files

LT
LTspice_WL-STTB (rev24a).zip
|
1.8 KB

Characteristics

High sensitivity
Fast response time
Perfect match with IR emitter
compatible with automatic placement machines
High reliability
Standard PLCC 2 package
Integrated daylight filter

Applications

Light sensors
Position sensors
Counters
Miniature switch
Encoder
Photo interrupter

Products

3528

Filter article data

show article in 1 product lines

article in 1 product lines

Order Code	Datasheet	Simulation	Downloads	Status	λ_{Peak typ.}(nm)	λ_min.(nm)	λ_max.(nm)	I_{CE.P min.}(mA)	I_{CE.P typ.}(mA)	I_{CEO.Dark max.}(nA)	Chip Technology	2θ_{50% typ.}(°)	SamplesAvailability & Sample
1541411NEA210	SPEC940 nm, 700 nm, 1100 nm PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	Simulation	Availability –	Downloads7 files EDA models: Components ZIP ALT Altium_WL-STTB (rev22a).IntLib \| 46 KB CDS Cadence_WL-STTB (rev19a).zip \| 146.1 KB EAG Eagle_WL-STTB (rev20b).lbr \| 14.5 KB KIC KiCad_WL-STTB (rev26a).zip \| 32 KB CAD files ZIP IGS Download_IGS_1541411NEA210 (rev1).igs \| 537.3 KB STP Download_STP_1541411NEA210 (rev1).stp \| 121.6 KB Electric models ZIP PSP PSpice_WL-STTB (rev24a).zip \| 3.1 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Wavelength of Peak Sensitivity [typ.]940 nm	Range of Spectral Bandwidth [min.]700 nm	Range of Spectral Bandwidth [max.]1100 nm	Collector Current [min.]0.6 mA	Collector Current [typ.]2.8 mA	Collector-Emitter Dark Current [max.]100 nA	Chip TechnologySi	Viewing Angle Phi 0° [typ.]120 °	–Check availability
