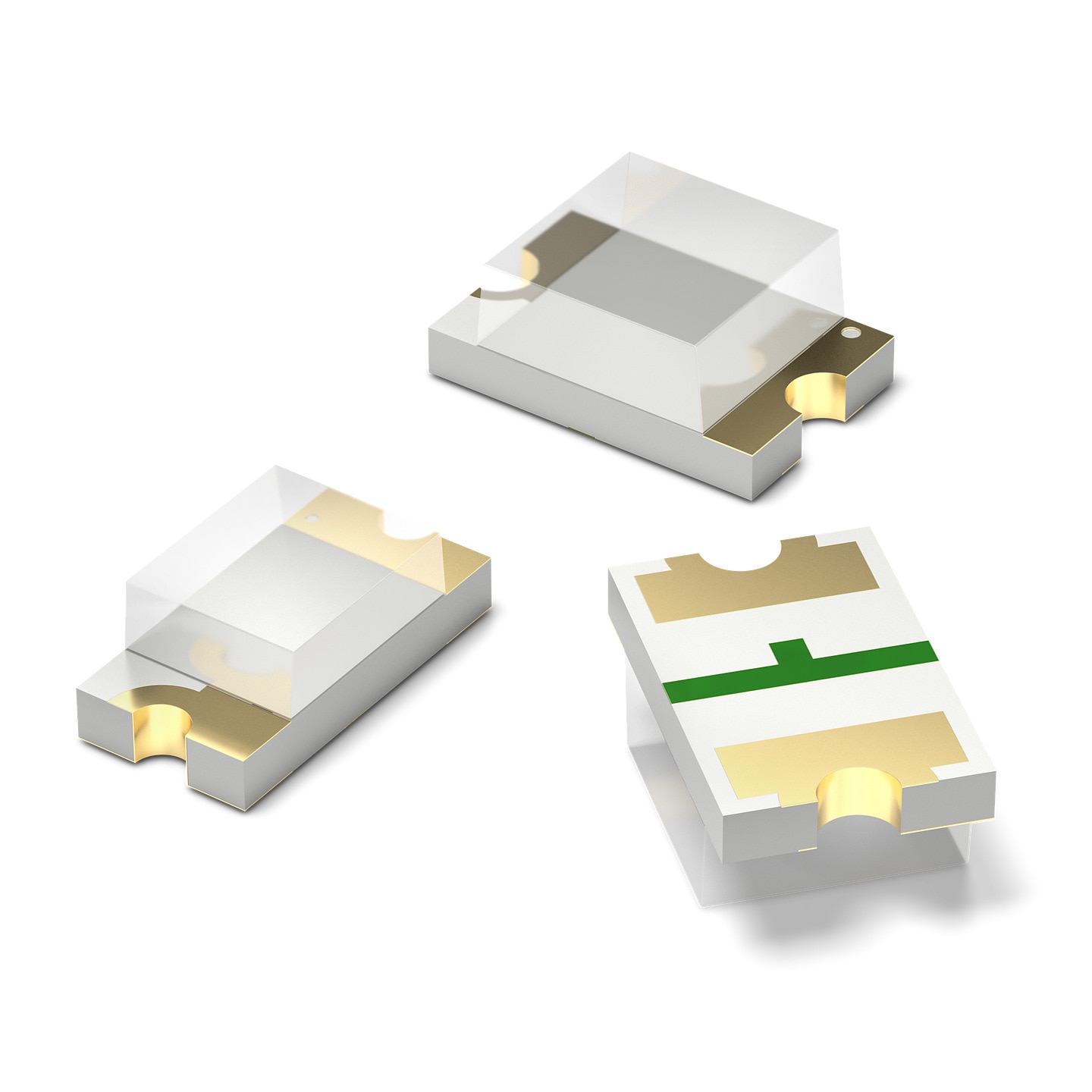

WL-STCW SMT Phototransistor Chip Waterclear

Size	Dimensions	L (mm)	W (mm)	H (mm)	Mount
0603		1.6	0.8	0.8	SMT
0805		2	1.3	0.8	-
1206		3.2	1.6	1.1	-

Characteristics

Small standard package size
Perfect match to IR and visible emitter
High reliability
High sensitivity

Applications

Security systems
Counters
IR Data transmission
Encoder

Products

All

0603

0805

1206

	Order Code	Datasheet	Simulation	Downloads	Status	λ_{Peak typ.} (nm)	λ_min. (nm)	λ_max. (nm)	I_{CE.P min.} (mA)	I_{CE.P typ.} (mA)	I_{CEO.Dark max.} (nA)	Chip Technology	2θ_{50% typ.} (°)	Samples
	1540601NBA500	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document		5 files EDA models: Components ZIP ALT Altium_WL-STCW (rev22b).IntLib \| 132 KB CDS Cadence_WL-STCW (rev20a).zip \| 546.1 KB EAG Eagle_WL-STCW (rev22a).lbr \| 21.4 KB CAD files ZIP IGS Download_IGS_1540601NBA500 (rev1).igs \| 574.3 KB STP Download_STP_1540601NBA500 (rev1).stp \| 175.8 KB Download all 5 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	940	400	1100	0.9	1.6	100	Si	150
	1541201NBA300	SPEC		5 files EDA models: Components ZIP ALT Altium_WL-STCW (rev22b).IntLib \| 132 KB CDS Cadence_WL-STCW (rev20a).zip \| 546.1 KB EAG Eagle_WL-STCW (rev22a).lbr \| 21.4 KB CAD files ZIP IGS Downloads_IGS_1541201NBA300 (rev1).igs \| 942.9 KB STP Download_STEP_1541201NBA300 (rev1).stp \| 238.8 KB Download all 5 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	940	400	1100	0.1	1	100	Si	130
	1540801NBA300	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document		5 files EDA models: Components ZIP ALT Altium_WL-STCW (rev22b).IntLib \| 132 KB CDS Cadence_WL-STCW (rev20a).zip \| 546.1 KB EAG Eagle_WL-STCW (rev22a).lbr \| 21.4 KB CAD files ZIP IGS Download_IGS_1540801NBA300 (rev1).igs \| 876.8 KB STP Download_STEP_1540801NBA300 (rev1).stp \| 249.2 KB Download all 5 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	940	400	1100	0.1	1	100	Si	130

	Order Code	Datasheet	Simulation
	1540601NBA500	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
	1541201NBA300	SPEC
	1540801NBA300	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document

Samples

	Order Code	Datasheet	Simulation	Downloads	Status	λ_{Peak typ.} (nm)	λ_min. (nm)	λ_max. (nm)	I_{CE.P min.} (mA)	I_{CE.P typ.} (mA)	I_{CEO.Dark max.} (nA)	Chip Technology	2θ_{50% typ.} (°)	Samples

Suitable for

WL-SICW SMT Chip LED Infrared Waterclear
