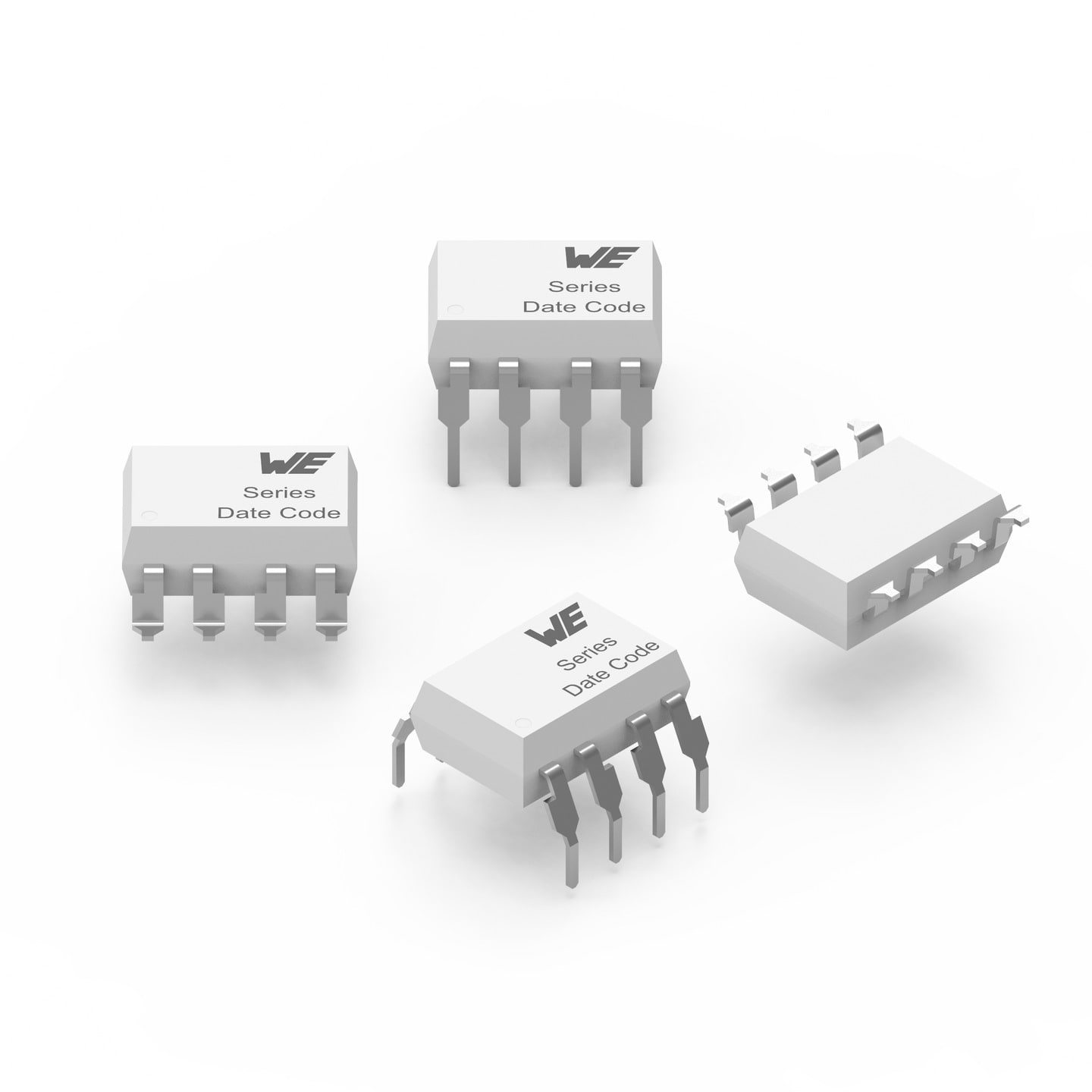

WL-OCPT DIP-8 | Optoelectronic Components | Würth Elektronik Product Catalog

WL-OCPT DIP-8. High isolation voltage. Different CTR binnings available. Fast switching times.

Datasheet

SPEC
Seriesdatasheet_WL-OCPT DIP-8 Series 827_V2 (rev1).pdf
|
3.2 MB

LTSpice files

LT
LTSpice_WL-OCPT (rev25a).zip
|
149.3 KB

Characteristics

DIP-8 series 827
High isolation voltage
Good stability of inner isolation
Stable CTR in full operation temperature range
Different CTR binnings available
High Collector-Emitter voltage
Fast switching times
Reference Designs
RD022 GB PoE+-Ethernet-USB“ adapter for industrial use with an EMC perspective

Applications

Power supplies and chargers
Computer and microprocessors
Office equipment
Instrumental applications and machines
Ammeter, Smart Meter

Application Notes

Products

Filter article data

show article in 0 product lines

article in 0 product lines

Order Code	Datasheet	Downloads	Status	Package	Input	V_{CE max.}(V)	I_{F max.}(mA)	Test Condition CTR	CTR _min.(%)	CTR _max.(%)	V_ISO(V (RMS))	Operating Temperature	SamplesAvailability & Sample
140827180010	SPECDIP 8, Standard, DC, 80 V	Availability –	Downloads8 files EDA models: Components ZIP ALT Altium_WL-OCPT (rev25a).IntLib \| 1 MB CDS Cadence_WL-OCPT (rev25a).zip \| 4.6 MB EAG Eagle_WL-OCPT (rev25b).lbr \| 172.5 KB KIC KiCad_WL-OCPT (rev25a).zip \| 1.9 MB CAD files ZIP 3D Downloads_3D_WL-OCPT_827_Standard (rev1).pdf \| 181.3 KB IGS Downloads_IGS_WL-OCPT_827_Standard (rev1).igs \| 2.2 MB STP Downloads_STP_WL-OCPT_827_Standard (rev1).stp \| 615.3 KB Electric models ZIP PSP Pspice_WL-OCPT (rev25a).zip \| 137.6 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	PackageDIP 8, Standard	InputDC	Collector Emitter Voltage80 V	Forward Current60 mA	I_F = 5 mA V_CE = 5 V	Current Transfer Ratio [min.]130 %	Current Transfer Ratio [max.]400 %	Isolation Voltage5000 V (RMS)	Operating Temperature -55 °C up to +110 °C	–Check availability
140827181010	SPECDIP 8, M-Type, DC, 80 V	Availability –	Downloads8 files EDA models: Components ZIP ALT Altium_WL-OCPT (rev25a).IntLib \| 1 MB CDS Cadence_WL-OCPT (rev25a).zip \| 4.6 MB EAG Eagle_WL-OCPT (rev25b).lbr \| 172.5 KB KIC KiCad_WL-OCPT (rev25a).zip \| 1.9 MB CAD files ZIP 3D Downloads_3D_WL-OCPT_827_M-Type (rev1).pdf \| 184.2 KB IGS Downloads_IGS_WL-OCPT_827_M-Type (rev1).igs \| 2.2 MB STP Downloads_STP_WL-OCPT_827_M-Type (rev1).stp \| 634.3 KB Electric models ZIP PSP Pspice_WL-OCPT (rev25a).zip \| 137.6 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	PackageDIP 8, M-Type	InputDC	Collector Emitter Voltage80 V	Forward Current60 mA	I_F = 5 mA V_CE = 5 V	Current Transfer Ratio [min.]130 %	Current Transfer Ratio [max.]400 %	Isolation Voltage5000 V (RMS)	Operating Temperature -55 °C up to +110 °C	–Check availability
140827182000	SPECDIP 8, S-Type, DC, 80 V	Availability –	Downloads8 files EDA models: Components ZIP ALT Altium_WL-OCPT (rev25a).IntLib \| 1 MB CDS Cadence_WL-OCPT (rev25a).zip \| 4.6 MB EAG Eagle_WL-OCPT (rev25b).lbr \| 172.5 KB KIC KiCad_WL-OCPT (rev25a).zip \| 1.9 MB CAD files ZIP 3D Downloads_3D_WL-OCPT_827_S-Type (rev1).pdf \| 190.3 KB IGS Downloads_IGS_WL-OCPT_827_S-Type (rev1).igs \| 2.2 MB STP Downloads_STP_WL-OCPT_827_S-Type (rev1).stp \| 629.3 KB Electric models ZIP PSP Pspice_WL-OCPT (rev25a).zip \| 137.6 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	PackageDIP 8, S-Type	InputDC	Collector Emitter Voltage80 V	Forward Current60 mA	I_F = 5 mA V_CE = 5 V	Current Transfer Ratio [min.]130 %	Current Transfer Ratio [max.]400 %	Isolation Voltage5000 V (RMS)	Operating Temperature -55 °C up to +110 °C	–Check availability
140827183000	SPECDIP 8, SL-Type, DC, 80 V	Availability –	Downloads9 files EDA models: Components ZIP ALT Altium_WL-OCPT (rev25a).IntLib \| 1 MB CDS Cadence_WL-OCPT (rev25a).zip \| 4.6 MB EAG Eagle_WL-OCPT (rev25b).lbr \| 172.5 KB KIC KiCad_WL-OCPT (rev25a).zip \| 1.9 MB CAD files ZIP 3D Downloads_3D_WL-OCPT_827_SL-Type (rev1).pdf \| 190.1 KB 3D Downloads_3D_WL-OCPT_827_Standard (rev1).pdf \| 181.3 KB IGS Downloads_IGS_WL-OCPT_827_SL-Type (rev1).igs \| 2.2 MB STP Downloads_STP_WL-OCPT_827_SL-Type (rev1).stp \| 630.5 KB Electric models ZIP PSP Pspice_WL-OCPT (rev25a).zip \| 137.6 KB Download all 9 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	PackageDIP 8, SL-Type	InputDC	Collector Emitter Voltage80 V	Forward Current60 mA	I_F = 5 mA V_CE = 5 V	Current Transfer Ratio [min.]130 %	Current Transfer Ratio [max.]400 %	Isolation Voltage5000 V (RMS)	Operating Temperature -55 °C up to +110 °C	–Check availability
