WE-SL5 HC SMT Common Mode Line Filter

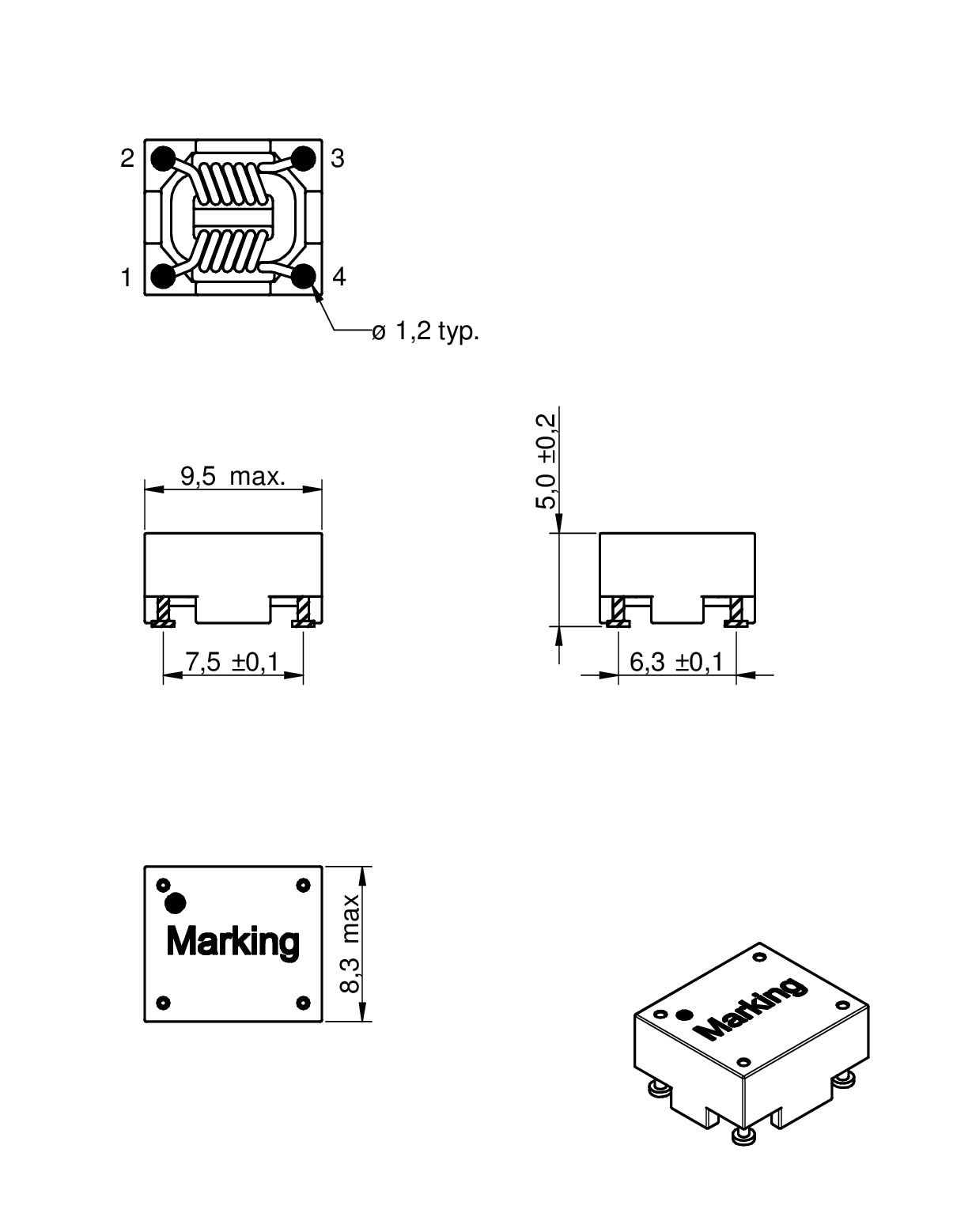

Size	Dimensions	L (mm)	W (mm)	H (mm)	Mount
WE-SL5-HC		9.5	8.3	5	SMT

LTSpice files

LT
LTSpice_WE-SL5-HC (rev22a).zip
|
2.8 KB

Characteristics

Low profile, only 5.3 mm
High Impedance up to 2200 Ohm
High current up to 5 A
Rated voltage: 80 VDC (42 VAC)
Flammability corresponding to UL 94 V-0
Climatic category 40/125/21

Applications

Current compensated choke for data and signal lines
Power supply system
Signal and sensor lines
Suppression of common mode noise

Application Notes

ANP044 Impact of the layout, components, and filters on the EMC of modern DC/DC switching controllers
PDF
FA002 Challenges and advantages of high-bandwidth uncompressed video connectivity for medical diagnostic equipment
PDF

Products

WE-SL5-HC

Reset all

Filter article data

show article in 1 product lines

article in 1 product lines

Reset all

Order Code	Datasheet	Simulation	Downloads	Status	Winding Style	Number of windings	L₁(µH)	Z(Ω)	I_R(mA)	R_{DC max.}(Ω)	V_R(V)	Design Kit
744273501	sectional, 2, 5 µH	Simulation	Downloads10 files EDA models: Components ZIP ALT WE-SL5_HC (rev22a).IntLib \| 252.5 KB CDS Cadence_WE-SL5_HC (rev18a).zip \| 968.2 KB EAG Eagle_WE-SL5-HC (rev21a).lbr KIC KiCad_WE-SL5HC (rev25b).zip \| 1.7 MB ZUK Cadstar_WE-SL5-HC (rev19a).zip \| 5.3 KB CAD files ZIP 3D 744273xxx_3D (rev1).pdf \| 1.5 MB IGS WE-SL5_HC_744273 (rev1).igs \| 3.7 MB STP WE-SL5_HC_744273 (rev1).stp \| 976.9 KB Electric models ZIP PSP PSpice_WE-SL5HC (rev22a).zip \| 4.4 KB S S-PARAMETER_WE-SL5HC (rev20a).zip \| 486.1 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Winding Stylesectional	Number of windings2	Inductance [1]5 µH	Impedance500 Ω	Rated Current5000 mA	DC Resistance [1]0.0055 Ω	Rated Voltage80 V	Design Kit 744725
744273801	sectional, 2, 9 µH	Simulation	Downloads10 files EDA models: Components ZIP ALT WE-SL5_HC (rev22a).IntLib \| 252.5 KB CDS Cadence_WE-SL5_HC (rev18a).zip \| 968.2 KB EAG Eagle_WE-SL5-HC (rev21a).lbr KIC KiCad_WE-SL5HC (rev25b).zip \| 1.7 MB ZUK Cadstar_WE-SL5-HC (rev19a).zip \| 5.3 KB CAD files ZIP 3D 744273xxx_3D (rev1).pdf \| 1.5 MB IGS WE-SL5_HC_744273 (rev1).igs \| 3.7 MB STP WE-SL5_HC_744273 (rev1).stp \| 976.9 KB Electric models ZIP PSP PSpice_WE-SL5HC (rev22a).zip \| 4.4 KB S S-PARAMETER_WE-SL5HC (rev20a).zip \| 486.1 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Winding Stylesectional	Number of windings2	Inductance [1]9 µH	Impedance800 Ω	Rated Current3500 mA	DC Resistance [1]0.011 Ω	Rated Voltage80 V	Design Kit –
744273102	sectional, 2, 11 µH	Simulation	Downloads10 files EDA models: Components ZIP ALT WE-SL5_HC (rev22a).IntLib \| 252.5 KB CDS Cadence_WE-SL5_HC (rev18a).zip \| 968.2 KB EAG Eagle_WE-SL5-HC (rev21a).lbr KIC KiCad_WE-SL5HC (rev25b).zip \| 1.7 MB ZUK Cadstar_WE-SL5-HC (rev19a).zip \| 5.3 KB CAD files ZIP 3D 744273xxx_3D (rev1).pdf \| 1.5 MB IGS WE-SL5_HC_744273 (rev1).igs \| 3.7 MB STP WE-SL5_HC_744273 (rev1).stp \| 976.9 KB Electric models ZIP PSP PSpice_WE-SL5HC (rev22a).zip \| 4.4 KB S S-PARAMETER_WE-SL5HC (rev20a).zip \| 486.1 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Winding Stylesectional	Number of windings2	Inductance [1]11 µH	Impedance1000 Ω	Rated Current2500 mA	DC Resistance [1]0.03 Ω	Rated Voltage80 V	Design Kit –
744273222	sectional, 2, 30 µH	Simulation	Downloads10 files EDA models: Components ZIP ALT WE-SL5_HC (rev22a).IntLib \| 252.5 KB CDS Cadence_WE-SL5_HC (rev18a).zip \| 968.2 KB EAG Eagle_WE-SL5-HC (rev21a).lbr KIC KiCad_WE-SL5HC (rev25b).zip \| 1.7 MB ZUK Cadstar_WE-SL5-HC (rev19a).zip \| 5.3 KB CAD files ZIP 3D 744273xxx_3D (rev1).pdf \| 1.5 MB IGS WE-SL5_HC_744273 (rev1).igs \| 3.7 MB STP WE-SL5_HC_744273 (rev1).stp \| 976.9 KB Electric models ZIP PSP PSpice_WE-SL5HC (rev22a).zip \| 4.4 KB S S-PARAMETER_WE-SL5HC (rev20a).zip \| 486.1 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Winding Stylesectional	Number of windings2	Inductance [1]30 µH	Impedance2200 Ω	Rated Current1400 mA	DC Resistance [1]0.06 Ω	Rated Voltage80 V	Design Kit 744725
