WE-RFI SMT Wirewound Ferrite Bead

	Size	L (mm)	W (mm)	H (mm)	Mount
NEW	0402	1	0.55	0.55	SMT
NEW	0603	1.65	1.1	0.9	SMT

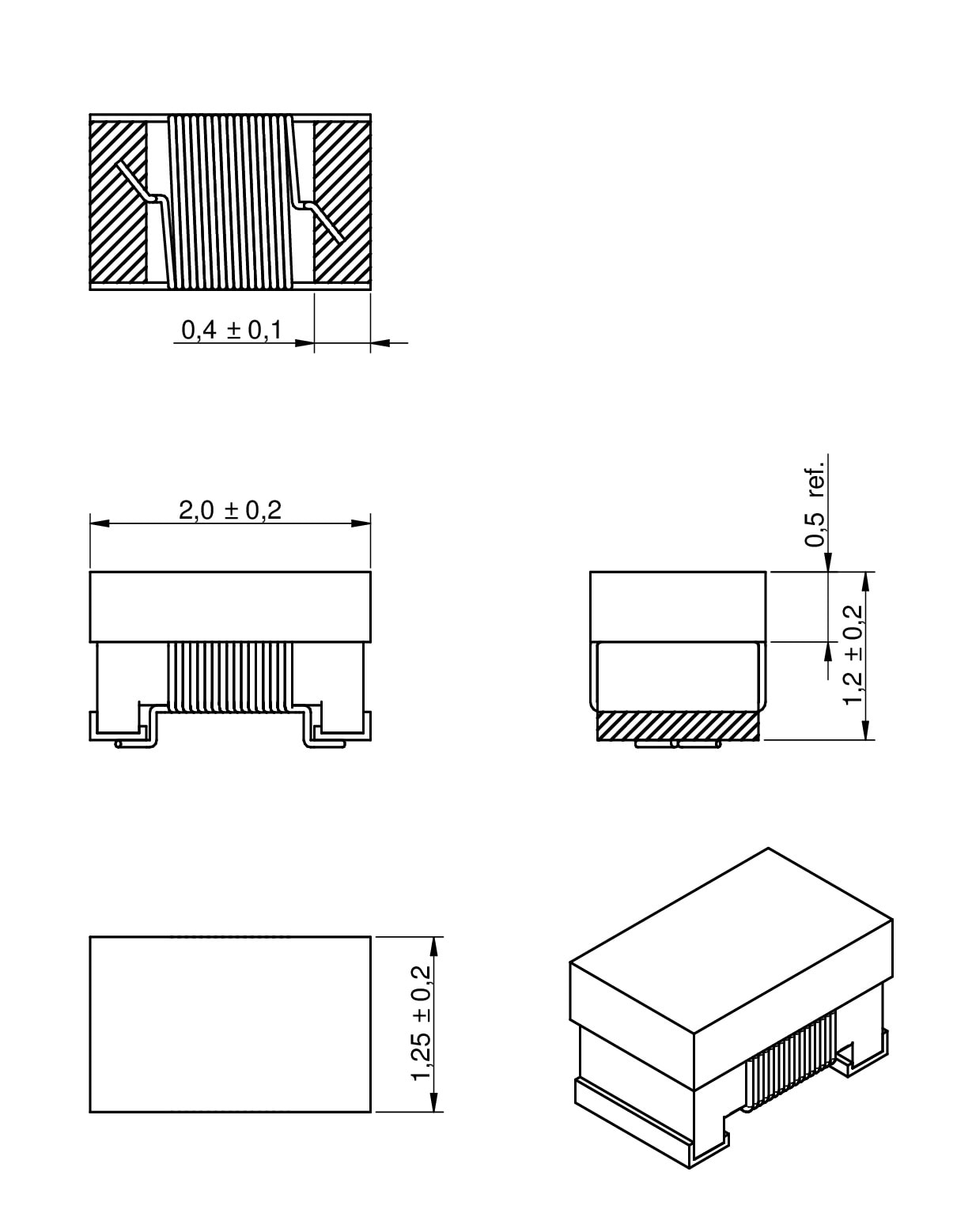

	0805	2	1.25	1.2	SMT

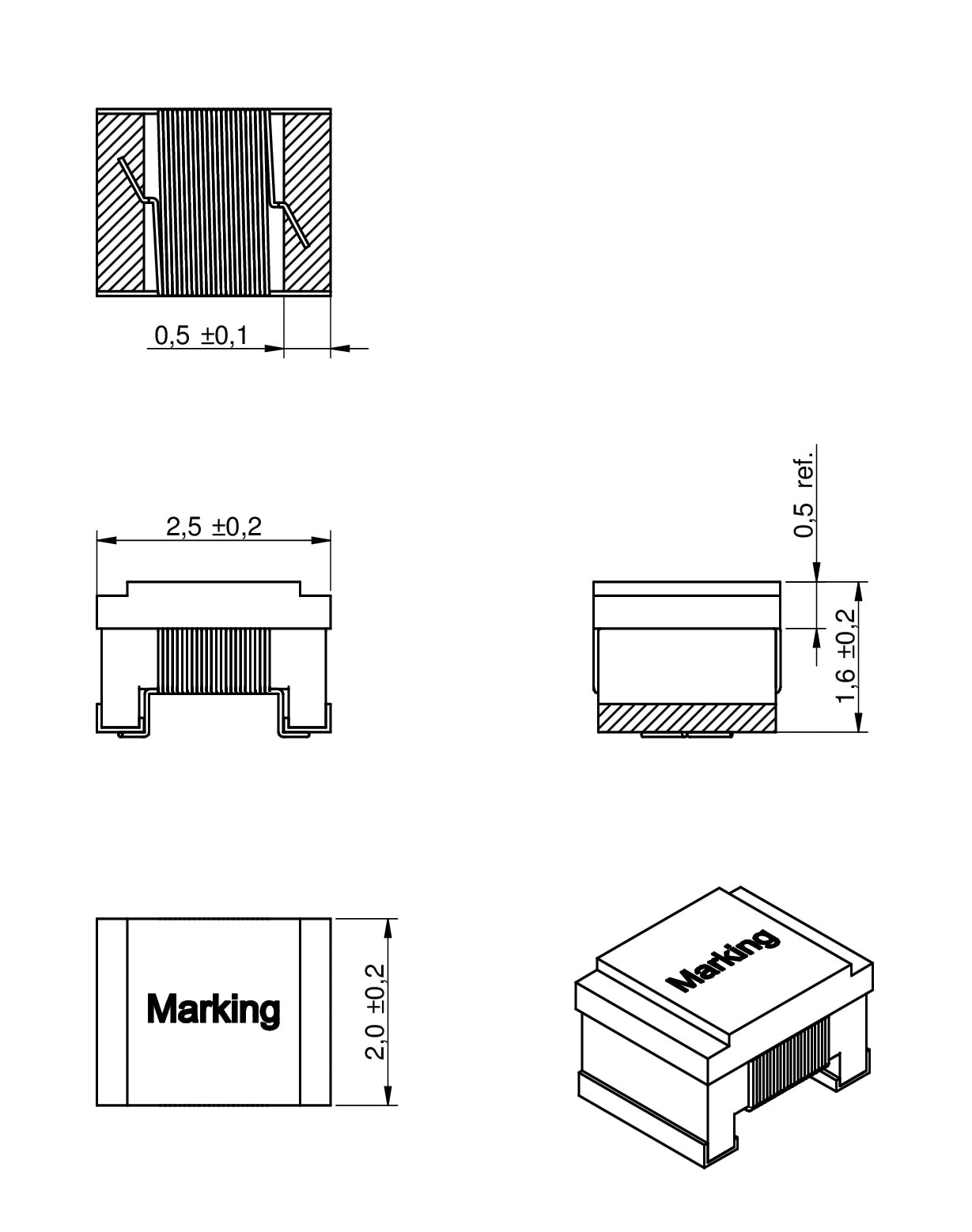

	1008	2.5	2	1.6	SMT

LTSpice files

LT
LTSpice_WE-RFI (rev24a).zip
|
8.1 KB

Characteristics

High performance ferrite beads
High impedance over a broad bandwidth
High current ratings
No core saturation
Very low R_DC
Recommended soldering: Reflow
Custom designs on request
AEC-Q200 Grade 3 (−40°C to +85°C)
Operating temperature: –40 °C to +85 °C

Applications

Low pass filters to eliminate high frequency noise
Perfect as data line filter and for uncoupling of distribution voltage

Products

All

0402

0603

0805

1008

	Order Code	Datasheet	Downloads	Z @ 10 MHz (Ω)	Z @ 25 MHz (Ω)	Z @ 100 MHz (Ω)	Z_max (Ω)	Test Condition Z_max	I_{R 2} (mA)	R_{DC max.} (Ω)	Design Kit
	744760247A	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB ANS ANSYS_744760247A (rev23a).a3dcomp \| 722.6 KB ZUK Cadstar_WE-RFI (rev19a).zip \| 6.1 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP IGS WE-RFI_0805A_RFI (rev1).igs \| 3.7 MB STP WE-RFI_0805A_RFI (rev1).stp \| 750.3 KB Electric models ZIP S S-Parameter_744760247A (rev23a).s2p \| 84.1 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 9 files as zip archive ZIP	–	–	280	4725	700 MHz	650	0.5	744762A/RFI
	744760256A	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB ANS ANSYS_744760256A (rev23a).a3dcomp \| 722.7 KB ZUK Cadstar_WE-RFI (rev19a).zip \| 6.1 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP IGS WE-RFI_0805A_RFI (rev1).igs \| 3.7 MB STP WE-RFI_0805A_RFI (rev1).stp \| 750.3 KB Electric models ZIP S S-Parameter_744760256A (rev23a).s2p \| 83.9 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 9 files as zip archive ZIP	–	–	350	5570	600 MHz	620	0.55	744762A/RFI
	744760268A	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB ANS ANSYS_744760268A (rev23a).a3dcomp \| 723.2 KB ZUK Cadstar_WE-RFI (rev19a).zip \| 6.1 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP IGS WE-RFI_0805A_RFI (rev1).igs \| 3.7 MB STP WE-RFI_0805A_RFI (rev1).stp \| 750.3 KB Electric models ZIP S S-Parameter_744760268A (rev23a).s2p \| 83.9 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 9 files as zip archive ZIP	–	–	420	6860	550 MHz	560	0.85	744762A/RFI
	744760282A	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB ANS ANSYS_744760282A (rev23a).a3dcomp \| 723 KB ZUK Cadstar_WE-RFI (rev19a).zip \| 6.1 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP IGS WE-RFI_0805A_RFI (rev1).igs \| 3.7 MB STP WE-RFI_0805A_RFI (rev1).stp \| 750.3 KB Electric models ZIP S S-Parameter_744760282A (rev23a).s2p \| 83.8 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 9 files as zip archive ZIP	–	–	520	8500	500 MHz	450	1.05	744762A/RFI
	744760310A	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB ANS ANSYS_744760310A (rev23a).a3dcomp \| 723.2 KB ZUK Cadstar_WE-RFI (rev19a).zip \| 6.1 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP IGS WE-RFI_0805A_RFI (rev1).igs \| 3.7 MB STP WE-RFI_0805A_RFI (rev1).stp \| 750.3 KB Electric models ZIP S S-Parameter_744760310A (rev23a).s2p \| 83.9 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 9 files as zip archive ZIP	–	–	620	9665	450 MHz	430	1.05	744762A/RFI
	744760312A	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB ANS ANSYS_744760312A (rev23a).a3dcomp \| 723.2 KB ZUK Cadstar_WE-RFI (rev19a).zip \| 6.1 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP IGS WE-RFI_0805A_RFI (rev1).igs \| 3.7 MB STP WE-RFI_0805A_RFI (rev1).stp \| 750.3 KB Electric models ZIP S S-Parameter_744760312A (rev23a).s2p \| 83.9 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 9 files as zip archive ZIP	–	–	730	12500	440 MHz	380	1.2	744762A/RFI
	744760315A	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB ANS ANSYS_744760315A (rev23a).a3dcomp \| 723.1 KB ZUK Cadstar_WE-RFI (rev19a).zip \| 6.1 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP IGS WE-RFI_0805A_RFI (rev1).igs \| 3.7 MB STP WE-RFI_0805A_RFI (rev1).stp \| 750.3 KB Electric models ZIP S S-Parameter_744760315A (rev23a).s2p \| 84 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 9 files as zip archive ZIP	–	–	950	15100	390 MHz	330	1.45	744762A/RFI
	744760318A	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB ANS ANSYS_744760318A (rev23a).a3dcomp \| 723.2 KB ZUK Cadstar_WE-RFI (rev19a).zip \| 6.1 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP IGS WE-RFI_0805A_RFI (rev1).igs \| 3.7 MB STP WE-RFI_0805A_RFI (rev1).stp \| 750.3 KB Electric models ZIP S S-Parameter_744760318A (rev23a).s2p \| 84.1 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 9 files as zip archive ZIP	–	–	1160	19700	340 MHz	310	2	744762A/RFI
	744760322A	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB ANS ANSYS_744760322A (rev23a).a3dcomp \| 718.9 KB ZUK Cadstar_WE-RFI (rev19a).zip \| 6.1 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP IGS WE-RFI_0805A_RFI (rev1).igs \| 3.7 MB STP WE-RFI_0805A_RFI (rev1).stp \| 750.3 KB Electric models ZIP S S-Parameter_744760322A (rev23a).s2p \| 88.2 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 9 files as zip archive ZIP	–	–	1300	11600	300 MHz	300	1.75	744762A/RFI
	744760327A	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB ANS ANSYS_744760327A (rev23a).a3dcomp \| 719.2 KB ZUK Cadstar_WE-RFI (rev19a).zip \| 6.1 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP IGS WE-RFI_0805A_RFI (rev1).igs \| 3.7 MB STP WE-RFI_0805A_RFI (rev1).stp \| 750.3 KB Electric models ZIP S S-Parameter_744760327A (rev23a).s2p \| 83.9 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 9 files as zip archive ZIP	–	–	1650	14870	290 MHz	275	1.75	744762A/RFI
	744760333A	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB ANS ANSYS_744760333A (rev23a).a3dcomp \| 719.1 KB ZUK Cadstar_WE-RFI (rev19a).zip \| 6.1 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP IGS WE-RFI_0805A_RFI (rev1).igs \| 3.7 MB STP WE-RFI_0805A_RFI (rev1).stp \| 750.3 KB Electric models ZIP S S-Parameter_744760333A (rev23a).s2p \| 84 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 9 files as zip archive ZIP	–	–	1980	18140	250 MHz	285	2	744762A/RFI
	744760339A	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB ANS ANSYS_744760339A (rev23a).a3dcomp \| 1.4 MB ZUK Cadstar_WE-RFI (rev19a).zip \| 6.1 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP IGS WE-RFI_0805A_RFI (rev1).igs \| 3.7 MB STP WE-RFI_0805A_RFI (rev1).stp \| 750.3 KB Electric models ZIP S S-Parameter_744760339A (rev23a).s2p \| 88.5 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 9 files as zip archive ZIP	–	–	2300	20360	250 MHz	265	2.15	744762A/RFI
	744760347A	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB ANS ANSYS_744760347A (rev23a).a3dcomp \| 1.4 MB ZUK Cadstar_WE-RFI (rev19a).zip \| 6.1 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP IGS WE-RFI_0805A_RFI (rev1).igs \| 3.7 MB STP WE-RFI_0805A_RFI (rev1).stp \| 750.3 KB Electric models ZIP S S-Parameter_744760347A (rev23a).s2p \| 84 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 9 files as zip archive ZIP	–	730	–	16780	140 MHz	260	1.9	–
	744760356A	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB ANS ANSYS_744760356A (rev23a).a3dcomp \| 1.4 MB ZUK Cadstar_WE-RFI (rev19a).zip \| 6.1 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP IGS WE-RFI_0805A_RFI (rev1).igs \| 3.7 MB STP WE-RFI_0805A_RFI (rev1).stp \| 750.3 KB Electric models ZIP S S-Parameter_744760356A (rev23a).s2p \| 84 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 9 files as zip archive ZIP	–	830	–	17920	110 MHz	260	2.2	744762A/RFI
	744760382A	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB ANS ANSYS_744760382A (rev23a).a3dcomp \| 1.4 MB ZUK Cadstar_WE-RFI (rev19a).zip \| 6.1 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP IGS WE-RFI_0805A_RFI (rev1).igs \| 3.7 MB STP WE-RFI_0805A_RFI (rev1).stp \| 750.3 KB Electric models ZIP S S-Parameter_744760382A (rev23a).s2p \| 84.2 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 9 files as zip archive ZIP	–	1180	–	25220	105 MHz	250	2.4	744762A/RFI
	744760410A	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB ANS ANSYS_744760410A (rev23a).a3dcomp \| 1.4 MB ZUK Cadstar_WE-RFI (rev19a).zip \| 6.1 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP IGS WE-RFI_0805A_RFI (rev1).igs \| 3.7 MB STP WE-RFI_0805A_RFI (rev1).stp \| 750.3 KB Electric models ZIP S S-Parameter_744760410A (rev23a).s2p \| 84.4 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 9 files as zip archive ZIP	–	1490	–	31920	105 MHz	190	3.6	744762A/RFI
	744762312A	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB ANS ANSYS_744762312A (rev23a).a3dcomp \| 722 KB ZUK Cadstar_WE-RFI (rev19a).zip \| 6.1 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP IGS WE-RFI_1008A_RFI (rev1).igs \| 4.6 MB STP WE-RFI_1008A_RFI (rev1).stp \| 943.7 KB Electric models ZIP S S-Parameter_744762312A (rev23a).s2p \| 83.9 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 9 files as zip archive ZIP	–	–	780	32000	385 MHz	350	1.3	744762A/RFI
	744762315A	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB ANS ANSYS_744762315A (rev23a).a3dcomp \| 722.1 KB ZUK Cadstar_WE-RFI (rev19a).zip \| 6.1 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP IGS WE-RFI_1008A_RFI (rev1).igs \| 4.6 MB STP WE-RFI_1008A_RFI (rev1).stp \| 943.7 KB Electric models ZIP S S-Parameter_744762315A (rev23a).s2p \| 84 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 9 files as zip archive ZIP	–	–	1000	65000	350 MHz	285	1.65	744762A/RFI
	744762318A	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB ANS ANSYS_744762318A (rev23a).a3dcomp \| 722 KB ZUK Cadstar_WE-RFI (rev19a).zip \| 6.1 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP IGS WE-RFI_1008A_RFI (rev1).igs \| 4.6 MB STP WE-RFI_1008A_RFI (rev1).stp \| 943.7 KB Electric models ZIP S S-Parameter_744762318A (rev23a).s2p \| 84 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 9 files as zip archive ZIP	–	–	1200	95000	310 MHz	265	2.2	744762A/RFI
	744762322A	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB ANS ANSYS_744762322A (rev23a).a3dcomp \| 722.1 KB ZUK Cadstar_WE-RFI (rev19a).zip \| 6.1 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP IGS WE-RFI_1008A_RFI (rev1).igs \| 4.6 MB STP WE-RFI_1008A_RFI (rev1).stp \| 943.7 KB Electric models ZIP S S-Parameter_744762322A (rev23a).s2p \| 84.1 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 9 files as zip archive ZIP	–	–	1550	105000	270 MHz	260	2.35	744762A/RFI
	744762327A	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB ANS ANSYS_744762327A (rev23a).a3dcomp \| 716 KB ZUK Cadstar_WE-RFI (rev19a).zip \| 6.1 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP IGS WE-RFI_1008A_RFI (rev1).igs \| 4.6 MB STP WE-RFI_1008A_RFI (rev1).stp \| 943.7 KB Electric models ZIP S S-Parameter_744762327A (rev23a).s2p \| 84 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 9 files as zip archive ZIP	–	450	–	40000	150 MHz	250	2.6	744762A/RFI
	744762333A	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB ANS ANSYS_744762333A (rev23a).a3dcomp \| 1.4 MB ZUK Cadstar_WE-RFI (rev19a).zip \| 6.1 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP IGS WE-RFI_1008A_RFI (rev1).igs \| 4.6 MB STP WE-RFI_1008A_RFI (rev1).stp \| 943.7 KB Electric models ZIP S S-Parameter_744762333A (rev23a).s2p \| 83.9 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 9 files as zip archive ZIP	–	550	–	38000	120 MHz	210	2.85	744762A/RFI
	744762339A	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB ANS ANSYS_744762339A (rev23a).a3dcomp \| 1.4 MB ZUK Cadstar_WE-RFI (rev19a).zip \| 6.1 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP IGS WE-RFI_1008A_RFI (rev1).igs \| 4.6 MB STP WE-RFI_1008A_RFI (rev1).stp \| 943.7 KB Electric models ZIP S S-Parameter_744762339A (rev23a).s2p \| 83.9 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 9 files as zip archive ZIP	–	650	–	35000	95 MHz	200	4	744762A/RFI
	744762347A	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB ANS ANSYS_744762347A (rev23a).a3dcomp \| 1.4 MB ZUK Cadstar_WE-RFI (rev19a).zip \| 6.1 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP IGS WE-RFI_1008A_RFI (rev1).igs \| 4.6 MB STP WE-RFI_1008A_RFI (rev1).stp \| 943.7 KB Electric models ZIP S S-Parameter_744762347A (rev23a).s2p \| 84.1 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 9 files as zip archive ZIP	–	800	–	38000	85 MHz	190	4.3	744762A/RFI
	744762356A	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB ANS ANSYS_744762356A (rev23a).a3dcomp \| 1.3 MB ZUK Cadstar_WE-RFI (rev19a).zip \| 6.1 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP IGS WE-RFI_1008A_RFI (rev1).igs \| 4.6 MB STP WE-RFI_1008A_RFI (rev1).stp \| 943.7 KB Electric models ZIP S S-Parameter_744762356A (rev23a).s2p \| 84.1 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 9 files as zip archive ZIP	–	1000	–	38000	110 MHz	260	2.6	–
	744762368A	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB ANS ANSYS_744762368A (rev23a).a3dcomp \| 1.3 MB ZUK Cadstar_WE-RFI (rev19a).zip \| 6.1 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP IGS WE-RFI_1008A_RFI (rev1).igs \| 4.6 MB STP WE-RFI_1008A_RFI (rev1).stp \| 943.7 KB Electric models ZIP S S-Parameter_744762368A (rev23a).s2p \| 88.6 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 9 files as zip archive ZIP	–	1200	–	37000	85 MHz	240	2.8	–
	744762382A	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB ANS ANSYS_744762382A (rev23a).a3dcomp \| 1.4 MB ZUK Cadstar_WE-RFI (rev19a).zip \| 6.1 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP IGS WE-RFI_1008A_RFI (rev1).igs \| 4.6 MB STP WE-RFI_1008A_RFI (rev1).stp \| 943.7 KB Electric models ZIP S S-Parameter_744762382A (rev23a).s2p \| 84.1 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 9 files as zip archive ZIP	–	1600	–	35000	65 MHz	230	3.05	–
	744762415A	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB ANS ANSYS_744762415A (rev23a).a3dcomp \| 1.4 MB ZUK Cadstar_WE-RFI (rev19a).zip \| 6.1 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP IGS WE-RFI_1008A_RFI (rev1).igs \| 4.6 MB STP WE-RFI_1008A_RFI (rev1).stp \| 943.7 KB Electric models ZIP S S-Parameter_744762415A (rev23a).s2p \| 84.3 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 9 files as zip archive ZIP	950	–	–	70000	70 MHz	200	4	744762A/RFI
	744762418A	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB ANS ANSYS_744762418A (rev23a).a3dcomp \| 1.4 MB ZUK Cadstar_WE-RFI (rev19a).zip \| 6.1 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP IGS WE-RFI_1008A_RFI (rev1).igs \| 4.6 MB STP WE-RFI_1008A_RFI (rev1).stp \| 943.7 KB Electric models ZIP S S-Parameter_744762418A (rev23a).s2p \| 83.9 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 9 files as zip archive ZIP	1300	–	–	35000	30 MHz	195	4.5	744762A/RFI
	744762422A	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB ANS ANSYS_744762422A (rev23a).a3dcomp \| 1.4 MB ZUK Cadstar_WE-RFI (rev19a).zip \| 6.1 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP IGS WE-RFI_1008A_RFI (rev1).igs \| 4.6 MB STP WE-RFI_1008A_RFI (rev1).stp \| 943.7 KB Electric models ZIP S S-Parameter_744762422A (rev23a).s2p \| 84.5 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 9 files as zip archive ZIP	1400	–	–	70000	50 MHz	200	5	744762A/RFI
	744762447A	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB ANS ANSYS_744762447A (rev23a).a3dcomp \| 1.4 MB ZUK Cadstar_WE-RFI (rev19a).zip \| 6.1 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP IGS WE-RFI_1008A_RFI (rev1).igs \| 4.6 MB STP WE-RFI_1008A_RFI (rev1).stp \| 943.7 KB Electric models ZIP S S-Parameter_744762447A (rev23a).s2p \| 84.9 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 9 files as zip archive ZIP	3400	–	–	125000	30 MHz	110	14	744762A/RFI
	744762427A	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB ANS ANSYS_744762427A (rev23a).a3dcomp \| 1.4 MB ZUK Cadstar_WE-RFI (rev19a).zip \| 6.1 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP IGS WE-RFI_1008A_RFI (rev1).igs \| 4.6 MB STP WE-RFI_1008A_RFI (rev1).stp \| 943.7 KB Electric models ZIP S S-Parameter_744762427A (rev23a).s2p \| 84.6 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 9 files as zip archive ZIP	1900	–	–	86000	45 MHz	165	6	744762A/RFI
	744762433A	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB ANS ANSYS_744762433A (rev23a).a3dcomp \| 1.4 MB ZUK Cadstar_WE-RFI (rev19a).zip \| 6.1 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP IGS WE-RFI_1008A_RFI (rev1).igs \| 4.6 MB STP WE-RFI_1008A_RFI (rev1).stp \| 943.7 KB Electric models ZIP S S-Parameter_744762433A (rev23a).s2p \| 84.5 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 9 files as zip archive ZIP	2500	–	–	75000	30 MHz	160	6.5	744762A/RFI
	744762439A	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB ANS ANSYS_744762439A (rev23a).a3dcomp \| 1.4 MB ZUK Cadstar_WE-RFI (rev19a).zip \| 6.1 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP IGS WE-RFI_1008A_RFI (rev1).igs \| 4.6 MB STP WE-RFI_1008A_RFI (rev1).stp \| 943.7 KB Electric models ZIP S S-Parameter_744762439A (rev23a).s2p \| 84.8 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 9 files as zip archive ZIP	2900	–	–	90000	30 MHz	145	8.5	744762A/RFI
	744762410A	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB ANS ANSYS_744762410A (rev23a).a3dcomp \| 1.4 MB ZUK Cadstar_WE-RFI (rev19a).zip \| 6.1 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP IGS WE-RFI_1008A_RFI (rev1).igs \| 4.6 MB STP WE-RFI_1008A_RFI (rev1).stp \| 943.7 KB Electric models ZIP S S-Parameter_744762410A (rev23a).s2p \| 84 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 9 files as zip archive ZIP	670	–	–	32000	55 MHz	230	3.5	–
NEW	7447610139	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP 3D 3D_WE-RFI-0603 (rev1).pdf \| 809.3 KB IGS IGS_WE-RFI-0603 (rev1).igs \| 2.4 MB STP STP_WE-RFI-0603 (rev1).stp \| 604.8 KB Electric models ZIP S S-Parameter_7447610139 (rev24a).s2p \| 44.4 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 8 files as zip archive ZIP	–	–	20	160	2320 MHz	1910	0.042	–
NEW	7447610168	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP 3D 3D_WE-RFI-0603 (rev1).pdf \| 809.3 KB IGS IGS_WE-RFI-0603 (rev1).igs \| 2.4 MB STP STP_WE-RFI-0603 (rev1).stp \| 604.8 KB Electric models ZIP S S-Parameter_7447610168 (rev24a).s2p \| 44.3 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 8 files as zip archive ZIP	–	–	35	265	1925 MHz	1650	0.05	–
NEW	7447610211	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP 3D 3D_WE-RFI-0603 (rev1).pdf \| 809.3 KB IGS IGS_WE-RFI-0603 (rev1).igs \| 2.4 MB STP STP_WE-RFI-0603 (rev1).stp \| 604.8 KB Electric models ZIP S S-Parameter_7447610211 (rev24a).s2p \| 44.1 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 8 files as zip archive ZIP	–	–	60	540	1925 MHz	1230	0.078	–
NEW	7447610215	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP 3D 3D_WE-RFI-0603 (rev1).pdf \| 809.3 KB IGS IGS_WE-RFI-0603 (rev1).igs \| 2.4 MB STP STP_WE-RFI-0603 (rev1).stp \| 604.8 KB Electric models ZIP S S-Parameter_7447610215 (rev24a).s2p \| 44.1 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 8 files as zip archive ZIP	–	–	80	705	1885 MHz	1170	0.09	–
NEW	7447610220	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP 3D 3D_WE-RFI-0603 (rev1).pdf \| 809.3 KB IGS IGS_WE-RFI-0603 (rev1).igs \| 2.4 MB STP STP_WE-RFI-0603 (rev1).stp \| 604.8 KB Electric models ZIP S S-Parameter_7447610220 (rev24a).s2p \| 44.1 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 8 files as zip archive ZIP	–	–	105	860	1730 MHz	1100	0.105	–
NEW	7447610224	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP 3D 3D_WE-RFI-0603 (rev1).pdf \| 809.3 KB IGS IGS_WE-RFI-0603 (rev1).igs \| 2.4 MB STP STP_WE-RFI-0603 (rev1).stp \| 604.8 KB Electric models ZIP S S-Parameter_7447610224 (rev24a).s2p \| 44.1 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 8 files as zip archive ZIP	–	–	125	1215	1345 MHz	810	0.18	–
NEW	7447610227	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP 3D 3D_WE-RFI-0603 (rev1).pdf \| 809.3 KB IGS IGS_WE-RFI-0603 (rev1).igs \| 2.4 MB STP STP_WE-RFI-0603 (rev1).stp \| 604.8 KB Electric models ZIP S S-Parameter_7447610227 (rev24a).s2p \| 44.1 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 8 files as zip archive ZIP	–	–	140	1255	1540 MHz	790	0.165	–
NEW	7447610236	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP 3D 3D_WE-RFI-0603 (rev1).pdf \| 809.3 KB IGS IGS_WE-RFI-0603 (rev1).igs \| 2.4 MB STP STP_WE-RFI-0603 (rev1).stp \| 604.8 KB Electric models ZIP S S-Parameter_7447610236 (rev24a).s2p \| 44.1 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 8 files as zip archive ZIP	–	–	190	1840	1040 MHz	770	0.185	–
NEW	7447610242	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP 3D 3D_WE-RFI-0603 (rev1).pdf \| 809.3 KB IGS IGS_WE-RFI-0603 (rev1).igs \| 2.4 MB STP STP_WE-RFI-0603 (rev1).stp \| 604.8 KB Electric models ZIP S S-Parameter_7447610242 (rev24a).s2p \| 44.1 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 8 files as zip archive ZIP	–	–	220	2000	1110 MHz	670	0.255	–
NEW	7447610256	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP 3D 3D_WE-RFI-0603 (rev1).pdf \| 809.3 KB IGS IGS_WE-RFI-0603 (rev1).igs \| 2.4 MB STP STP_WE-RFI-0603 (rev1).stp \| 604.8 KB Electric models ZIP S S-Parameter_7447610256 (rev24a).s2p \| 44.1 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 8 files as zip archive ZIP	–	–	320	2820	915 MHz	640	0.27	–
NEW	7447610260	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP 3D 3D_WE-RFI-0603 (rev1).pdf \| 809.3 KB IGS IGS_WE-RFI-0603 (rev1).igs \| 2.4 MB STP STP_WE-RFI-0603 (rev1).stp \| 604.8 KB Electric models ZIP S S-Parameter_7447610260 (rev24a).s2p \| 44.1 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 8 files as zip archive ZIP	–	–	320	2700	1000 MHz	545	0.38	–
NEW	7447610282	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP 3D 3D_WE-RFI-0603 (rev1).pdf \| 809.3 KB IGS IGS_WE-RFI-0603 (rev1).igs \| 2.4 MB STP STP_WE-RFI-0603 (rev1).stp \| 604.8 KB Electric models ZIP S S-Parameter_7447610282 (rev24a).s2p \| 44.1 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 8 files as zip archive ZIP	–	–	440	3590	830 MHz	470	0.45	–
NEW	7447610310	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP 3D 3D_WE-RFI-0603 (rev1).pdf \| 809.3 KB IGS IGS_WE-RFI-0603 (rev1).igs \| 2.4 MB STP STP_WE-RFI-0603 (rev1).stp \| 604.8 KB Electric models ZIP S S-Parameter_7447610310 (rev24a).s2p \| 44.1 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 8 files as zip archive ZIP	–	–	535	4670	680 MHz	375	0.7	–
NEW	7447610315	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP 3D 3D_WE-RFI-0603 (rev1).pdf \| 809.3 KB IGS IGS_WE-RFI-0603 (rev1).igs \| 2.4 MB STP STP_WE-RFI-0603 (rev1).stp \| 604.8 KB Electric models ZIP S S-Parameter_7447610315 (rev24a).s2p \| 44.1 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 8 files as zip archive ZIP	–	–	830	6910	605 MHz	240	1.07	–
NEW	7447610322	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP 3D 3D_WE-RFI-0603 (rev1).pdf \| 809.3 KB IGS IGS_WE-RFI-0603 (rev1).igs \| 2.4 MB STP STP_WE-RFI-0603 (rev1).stp \| 604.8 KB Electric models ZIP S S-Parameter_7447610322 (rev24a).s2p \| 44.1 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 8 files as zip archive ZIP	130	–	–	6380	110 MHz	575	0.4	–
NEW	7447610333	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP 3D 3D_WE-RFI-0603 (rev1).pdf \| 809.3 KB IGS IGS_WE-RFI-0603 (rev1).igs \| 2.4 MB STP STP_WE-RFI-0603 (rev1).stp \| 604.8 KB Electric models ZIP S S-Parameter_7447610333 (rev24a).s2p \| 44.1 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 8 files as zip archive ZIP	190	–	–	10250	110 MHz	350	0.95	–
NEW	7447610347	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP 3D 3D_WE-RFI-0603 (rev1).pdf \| 809.3 KB IGS IGS_WE-RFI-0603 (rev1).igs \| 2.4 MB STP STP_WE-RFI-0603 (rev1).stp \| 604.8 KB Electric models ZIP S S-Parameter_7447610347 (rev24a).s2p \| 44.1 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 8 files as zip archive ZIP	280	–	–	11100	67 MHz	300	1.125	–
NEW	7447610356	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP 3D 3D_WE-RFI-0603 (rev1).pdf \| 809.3 KB IGS IGS_WE-RFI-0603 (rev1).igs \| 2.4 MB STP STP_WE-RFI-0603 (rev1).stp \| 604.8 KB Electric models ZIP S S-Parameter_7447610356 (rev24a).s2p \| 44.1 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 8 files as zip archive ZIP	325	–	–	12080	62 MHz	315	1.055	–
NEW	7447610368	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP 3D 3D_WE-RFI-0603 (rev1).pdf \| 809.3 KB IGS IGS_WE-RFI-0603 (rev1).igs \| 2.4 MB STP STP_WE-RFI-0603 (rev1).stp \| 604.8 KB Electric models ZIP S S-Parameter_7447610368 (rev24a).s2p \| 44.1 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 8 files as zip archive ZIP	400	–	–	13300	52 MHz	280	1.38	–
NEW	7447610382	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP 3D 3D_WE-RFI-0603 (rev1).pdf \| 809.3 KB IGS IGS_WE-RFI-0603 (rev1).igs \| 2.4 MB STP STP_WE-RFI-0603 (rev1).stp \| 604.8 KB Electric models ZIP S S-Parameter_7447610382 (rev24a).s2p \| 44.1 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 8 files as zip archive ZIP	490	–	–	14390	46 MHz	250	1.55	–
NEW	7447610410	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP 3D 3D_WE-RFI-0603 (rev1).pdf \| 809.3 KB IGS IGS_WE-RFI-0603 (rev1).igs \| 2.4 MB STP STP_WE-RFI-0603 (rev1).stp \| 604.8 KB Electric models ZIP S S-Parameter_7447610410 (rev24a).s2p \| 44.1 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 8 files as zip archive ZIP	580	–	–	15450	40 MHz	260	1.7	–
NEW	7447610415	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP 3D 3D_WE-RFI-0603 (rev1).pdf \| 809.3 KB IGS IGS_WE-RFI-0603 (rev1).igs \| 2.4 MB STP STP_WE-RFI-0603 (rev1).stp \| 604.8 KB Electric models ZIP S S-Parameter_7447610415 (rev24a).s2p \| 44.1 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 8 files as zip archive ZIP	950	–	–	22410	30 MHz	155	3.9	–
NEW	7447650120	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP 3D 3D_WE-RFI-0402 (rev1).pdf \| 967.8 KB IGS IGS_WE-RFI-0402 (rev1).igs \| 2.4 MB STP STP_WE-RFI-0402 (rev1).stp \| 607.2 KB Electric models ZIP S S-Parameter_7447650120 (rev24a).s2p \| 44.2 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 8 files as zip archive ZIP	–	–	11	187	7720 MHz	1770	0.025	–
NEW	7447650130	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP 3D 3D_WE-RFI-0402 (rev1).pdf \| 967.8 KB IGS IGS_WE-RFI-0402 (rev1).igs \| 2.4 MB STP STP_WE-RFI-0402 (rev1).stp \| 607.2 KB Electric models ZIP S S-Parameter_7447650130 (rev24a).s2p \| 44.2 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 8 files as zip archive ZIP	–	–	16	261	3800 MHz	1470	0.035	–
NEW	7447650133	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP 3D 3D_WE-RFI-0402 (rev1).pdf \| 967.8 KB IGS IGS_WE-RFI-0402 (rev1).igs \| 2.4 MB STP STP_WE-RFI-0402 (rev1).stp \| 607.2 KB Electric models ZIP S S-Parameter_7447650133 (rev24a).s2p \| 44.2 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 8 files as zip archive ZIP	–	–	18	327	3875 MHz	1470	0.035	–
NEW	7447650136	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP 3D 3D_WE-RFI-0402 (rev1).pdf \| 967.8 KB IGS IGS_WE-RFI-0402 (rev1).igs \| 2.4 MB STP STP_WE-RFI-0402 (rev1).stp \| 607.2 KB Electric models ZIP S S-Parameter_7447650136 (rev24a).s2p \| 44.2 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 8 files as zip archive ZIP	–	–	20	380	3875 MHz	1380	0.04	–
NEW	7447650177	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP 3D 3D_WE-RFI-0402 (rev1).pdf \| 967.8 KB IGS IGS_WE-RFI-0402 (rev1).igs \| 2.4 MB STP STP_WE-RFI-0402 (rev1).stp \| 607.2 KB Electric models ZIP S S-Parameter_7447650177 (rev24a).s2p \| 44.2 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 8 files as zip archive ZIP	–	–	42	802	2980 MHz	1030	0.09	–
NEW	7447650210	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP 3D 3D_WE-RFI-0402 (rev1).pdf \| 967.8 KB IGS IGS_WE-RFI-0402 (rev1).igs \| 2.4 MB STP STP_WE-RFI-0402 (rev1).stp \| 607.2 KB Electric models ZIP S S-Parameter_7447650210 (rev24a).s2p \| 44.2 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 8 files as zip archive ZIP	–	–	55	1184	2955 MHz	890	0.13	–
NEW	7447650212	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP 3D 3D_WE-RFI-0402 (rev1).pdf \| 967.8 KB IGS IGS_WE-RFI-0402 (rev1).igs \| 2.4 MB STP STP_WE-RFI-0402 (rev1).stp \| 607.2 KB Electric models ZIP S S-Parameter_7447650212 (rev24a).s2p \| 44.2 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 8 files as zip archive ZIP	–	–	65	1160	2955 MHz	940	0.11	–
NEW	7447650215	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP 3D 3D_WE-RFI-0402 (rev1).pdf \| 967.8 KB IGS IGS_WE-RFI-0402 (rev1).igs \| 2.4 MB STP STP_WE-RFI-0402 (rev1).stp \| 607.2 KB Electric models ZIP S S-Parameter_7447650215 (rev24a).s2p \| 44.2 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 8 files as zip archive ZIP	–	–	84	2063	2590 MHz	885	0.13	–
NEW	7447650218	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP 3D 3D_WE-RFI-0402 (rev1).pdf \| 967.8 KB IGS IGS_WE-RFI-0402 (rev1).igs \| 2.4 MB STP STP_WE-RFI-0402 (rev1).stp \| 607.2 KB Electric models ZIP S S-Parameter_7447650218 (rev24a).s2p \| 44.2 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 8 files as zip archive ZIP	–	–	100	1836	2955 MHz	765	0.16	–
NEW	7447650222	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP 3D 3D_WE-RFI-0402 (rev1).pdf \| 967.8 KB IGS IGS_WE-RFI-0402 (rev1).igs \| 2.4 MB STP STP_WE-RFI-0402 (rev1).stp \| 607.2 KB Electric models ZIP S S-Parameter_7447650222 (rev24a).s2p \| 44.2 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 8 files as zip archive ZIP	–	–	120	2318	2170 MHz	640	0.22	–
NEW	7447650227	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP 3D 3D_WE-RFI-0402 (rev1).pdf \| 967.8 KB IGS IGS_WE-RFI-0402 (rev1).igs \| 2.4 MB STP STP_WE-RFI-0402 (rev1).stp \| 607.2 KB Electric models ZIP S S-Parameter_7447650227 (rev24a).s2p \| 44.2 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 8 files as zip archive ZIP	–	–	150	2883	2015 MHz	600	0.26	–
NEW	7447650236	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP 3D 3D_WE-RFI-0402 (rev1).pdf \| 967.8 KB IGS IGS_WE-RFI-0402 (rev1).igs \| 2.4 MB STP STP_WE-RFI-0402 (rev1).stp \| 607.2 KB Electric models ZIP S S-Parameter_7447650236 (rev24a).s2p \| 44.2 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 8 files as zip archive ZIP	–	–	200	4418	1565 MHz	515	0.375	–
NEW	7447650242	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP 3D 3D_WE-RFI-0402 (rev1).pdf \| 967.8 KB IGS IGS_WE-RFI-0402 (rev1).igs \| 2.4 MB STP STP_WE-RFI-0402 (rev1).stp \| 607.2 KB Electric models ZIP S S-Parameter_7447650242 (rev24a).s2p \| 44.2 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 8 files as zip archive ZIP	–	–	235	4888	1810 MHz	440	0.46	–
NEW	7447650247	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP 3D 3D_WE-RFI-0402 (rev1).pdf \| 967.8 KB IGS IGS_WE-RFI-0402 (rev1).igs \| 2.4 MB STP STP_WE-RFI-0402 (rev1).stp \| 607.2 KB Electric models ZIP S S-Parameter_7447650247 (rev24a).s2p \| 44.2 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 8 files as zip archive ZIP	–	–	260	4790	1600 MHz	430	0.51	–
NEW	7447650253	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP 3D 3D_WE-RFI-0402 (rev1).pdf \| 967.8 KB IGS IGS_WE-RFI-0402 (rev1).igs \| 2.4 MB STP STP_WE-RFI-0402 (rev1).stp \| 607.2 KB Electric models ZIP S S-Parameter_7447650253 (rev24a).s2p \| 44.2 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 8 files as zip archive ZIP	–	–	300	6050	1600 MHz	370	0.615	–
NEW	7447650259	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP 3D 3D_WE-RFI-0402 (rev1).pdf \| 967.8 KB IGS IGS_WE-RFI-0402 (rev1).igs \| 2.4 MB STP STP_WE-RFI-0402 (rev1).stp \| 607.2 KB Electric models ZIP S S-Parameter_7447650259 (rev24a).s2p \| 44.2 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 8 files as zip archive ZIP	–	–	330	6260	1370 MHz	360	0.67	–
NEW	7447650270	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP 3D 3D_WE-RFI-0402 (rev1).pdf \| 967.8 KB IGS IGS_WE-RFI-0402 (rev1).igs \| 2.4 MB STP STP_WE-RFI-0402 (rev1).stp \| 607.2 KB Electric models ZIP S S-Parameter_7447650270 (rev24a).s2p \| 44.2 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 8 files as zip archive ZIP	–	–	400	7130	1565 MHz	260	1.125	–
NEW	7447650277	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-RFI (rev24a).IntLib \| 799.5 KB CDS Cadence_WE-RFI (rev24a).zip \| 2.8 MB EAG Eagle_WE-RFI (rev24a).lbr \| 57.8 KB CAD files ZIP 3D 3D_WE-RFI-0402 (rev1).pdf \| 967.8 KB IGS IGS_WE-RFI-0402 (rev1).igs \| 2.4 MB STP STP_WE-RFI-0402 (rev1).stp \| 607.2 KB Electric models ZIP S S-Parameter_7447650277 (rev24a).s2p \| 44.2 KB PSP PSpice_WE-RFI (rev24a).zip \| 19.8 KB Download all 8 files as zip archive ZIP	–	–	430	8900	1240 MHz	240	1.25	–

	Order Code	Datasheet
	744760247A	SPEC
	744760256A	SPEC
	744760268A	SPEC
	744760282A	SPEC
	744760310A	SPEC
	744760312A	SPEC
	744760315A	SPEC
	744760318A	SPEC
	744760322A	SPEC
	744760327A	SPEC
	744760333A	SPEC
	744760339A	SPEC
	744760347A	SPEC
	744760356A	SPEC
	744760382A	SPEC
	744760410A	SPEC
	744762312A	SPEC
	744762315A	SPEC
	744762318A	SPEC
	744762322A	SPEC
	744762327A	SPEC
	744762333A	SPEC
	744762339A	SPEC
	744762347A	SPEC
	744762356A	SPEC
	744762368A	SPEC
	744762382A	SPEC
	744762415A	SPEC
	744762418A	SPEC
	744762422A	SPEC
	744762447A	SPEC
	744762427A	SPEC
	744762433A	SPEC
	744762439A	SPEC
	744762410A	SPEC
NEW	7447610139	SPEC
NEW	7447610168	SPEC
NEW	7447610211	SPEC
NEW	7447610215	SPEC
NEW	7447610220	SPEC
NEW	7447610224	SPEC
NEW	7447610227	SPEC
NEW	7447610236	SPEC
NEW	7447610242	SPEC
NEW	7447610256	SPEC
NEW	7447610260	SPEC
NEW	7447610282	SPEC
NEW	7447610310	SPEC
NEW	7447610315	SPEC
NEW	7447610322	SPEC
NEW	7447610333	SPEC
NEW	7447610347	SPEC
NEW	7447610356	SPEC
NEW	7447610368	SPEC
NEW	7447610382	SPEC
NEW	7447610410	SPEC
NEW	7447610415	SPEC
NEW	7447650120	SPEC
NEW	7447650130	SPEC
NEW	7447650133	SPEC
NEW	7447650136	SPEC
NEW	7447650177	SPEC
NEW	7447650210	SPEC
NEW	7447650212	SPEC
NEW	7447650215	SPEC
NEW	7447650218	SPEC
NEW	7447650222	SPEC
NEW	7447650227	SPEC
NEW	7447650236	SPEC
NEW	7447650242	SPEC
NEW	7447650247	SPEC
NEW	7447650253	SPEC
NEW	7447650259	SPEC
NEW	7447650270	SPEC
NEW	7447650277	SPEC

Samples

		Order Code	Datasheet	Simulation	Downloads	Z @ 10 MHz (Ω)	Z @ 25 MHz (Ω)	Z @ 100 MHz (Ω)	Z_max (Ω)	Test Condition Z_max	I_{R 2} (mA)	R_{DC max.} (Ω)	Design Kit	Samples

Würth Elektronik offers several product series with different construction technology

WE-CBF EMI Suppression Ferrite Bead

Rated current up to 12000 mA (∆T = 40 K)
Impedance @ 100 MHz up to 2700 Ω
Wide resonance frequency range
Applications: Attenuation of RF currents

Impedance @ 100 MHz up to 2300 Ω
No DC-Bias in contrast to multilayer ferrites
Narrow resonance frequency range
Applications: High frequency decoupling, sharp filter, attenuation of RF currents

WE-KI SMT Wire Wound Ceramic Inductor

Very high self resonance frequency from 188 MHz – 16000 MHz
Narrow resonance frequency range
Q factor up to 60
Applications: RF filter and resonant circuits

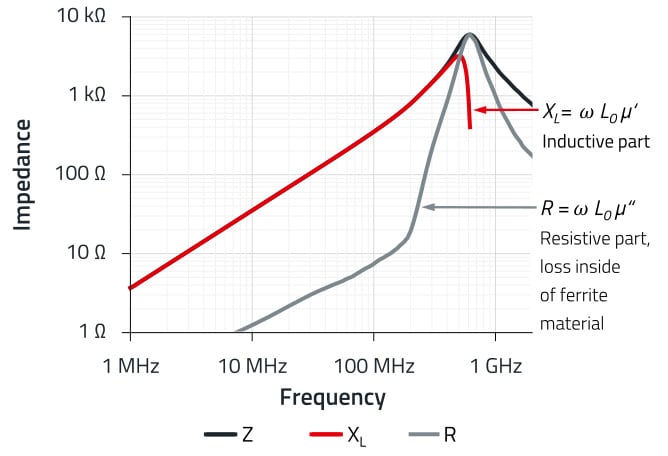

Impedance behavior

In the range of the highest impedance, i.e. the resonance range, the gray curve, which corresponds to the resistive ("ohmic") component of the impedance, has its maximum. The resistive component is only found in inductors with a ferrite core and represents the losses of the ferrite material over the frequency.

In case of choke applications in which inductors (with and without ferrite) are used, the best signal blocking occurs shortly below the self resonance frequency (SRF), where the impedance is very high and thus the attenuation reaches its maximum.

For filter or impedance-matching applications, it is more important to have constant inductance in the relevant frequency range, which means the SRF of the inductor should be well above the operating frequency of the circuit.

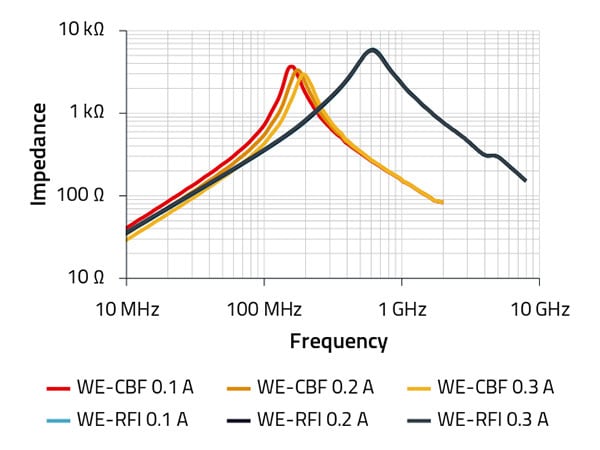

DC-Bias

For inductors, factors like DC bias current have less impact on the preservation of impedance until the inductors are used beyond the saturation current.

In contrast, DC bias has a prominent influence on multilayer ferrite (e.g. WE-CBF) and the current flowing through the component changes the impedance over a specific frequency range.

Multilayer ferrite saturate as a function of the flowing bias current, changing the impedance curve in the lower frequency (<100 MHz) at the same time, shifting the self resonant frequency higher in frequency.

Assortments

Articles from this product series can be found in the following assortments:

Design Kit WE-RFI SMT Wire Wound Ferrite Inductor 0805/1008 - ±5% Tol.
