WE-PPTI Push-Pull Transformers | Passive Components | Würth Elektronik Product Catalog

Size	L (mm)	W (mm)	H (mm)	Mount

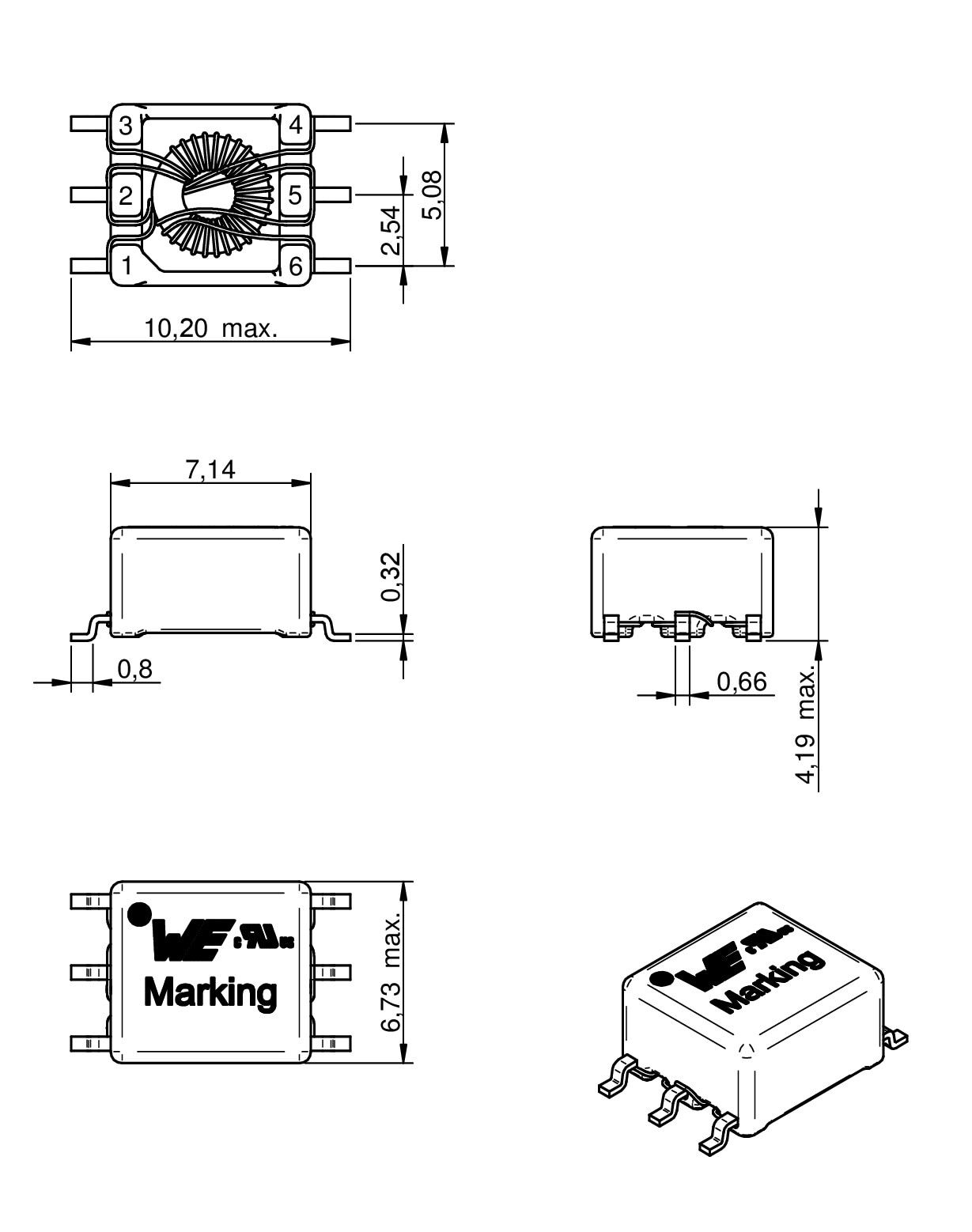

1006	6.73	10.2	-	SMT

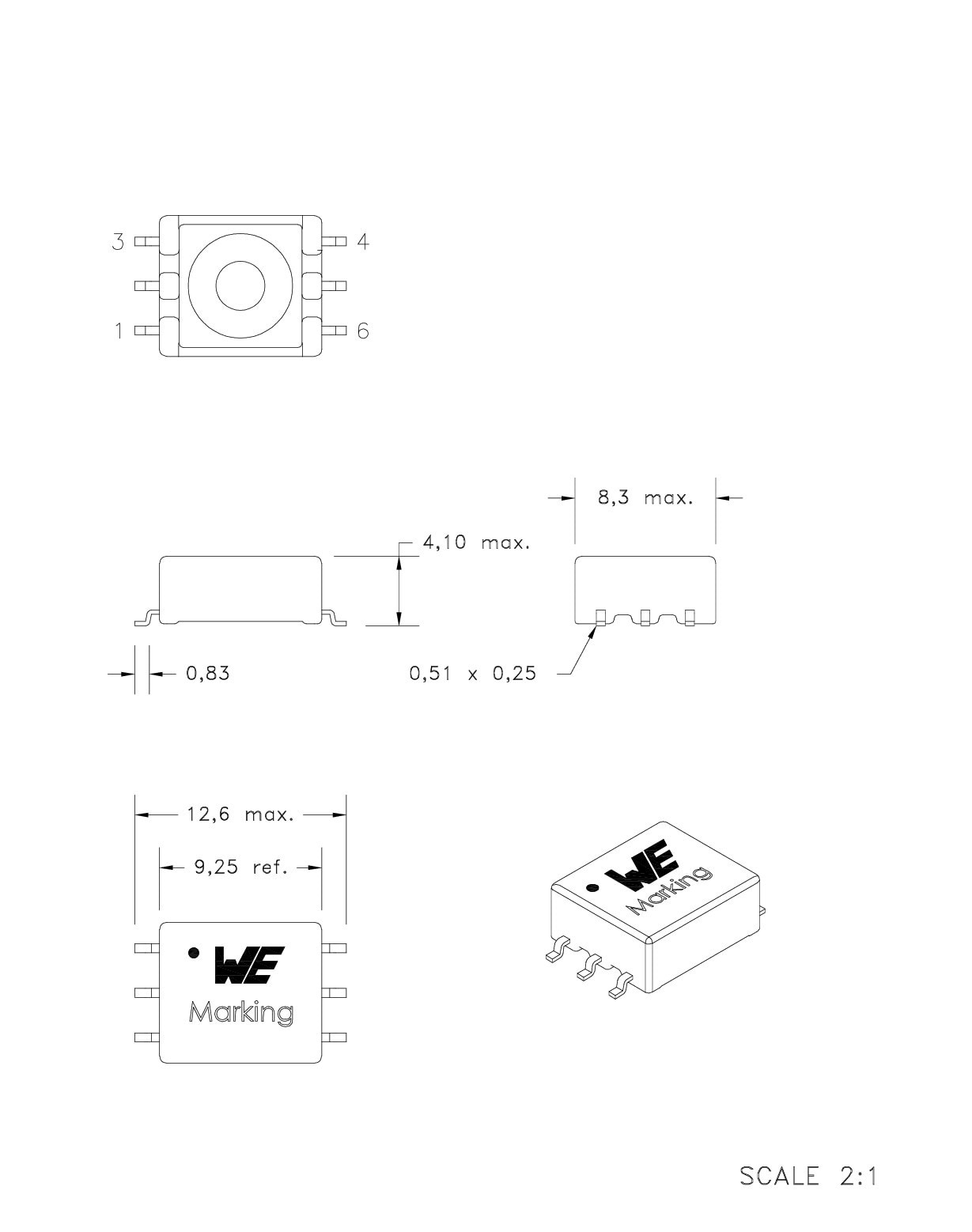

1208	8.3	12.6	4.1	SMT

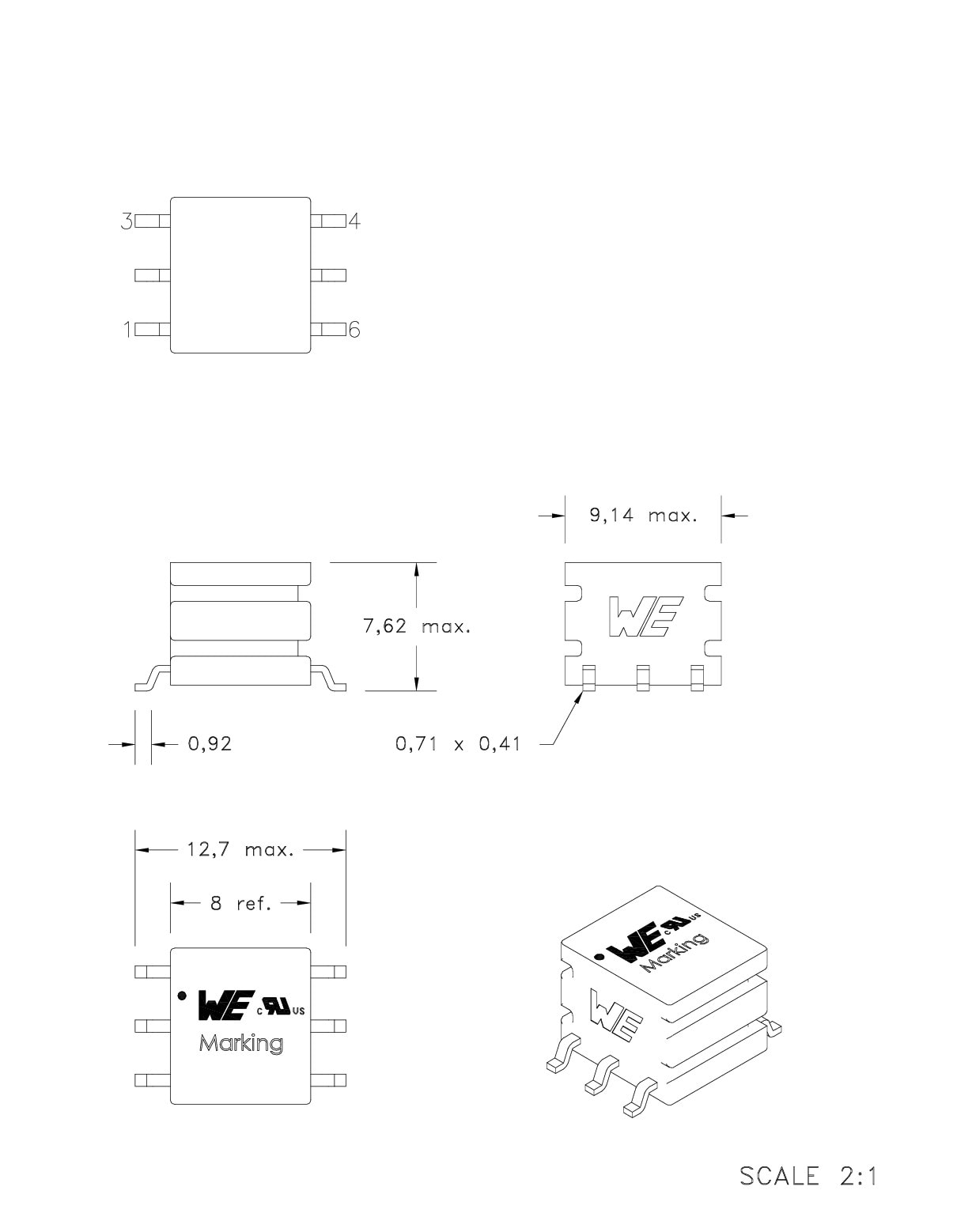

1209	9.14	12.7	7.62	SMT

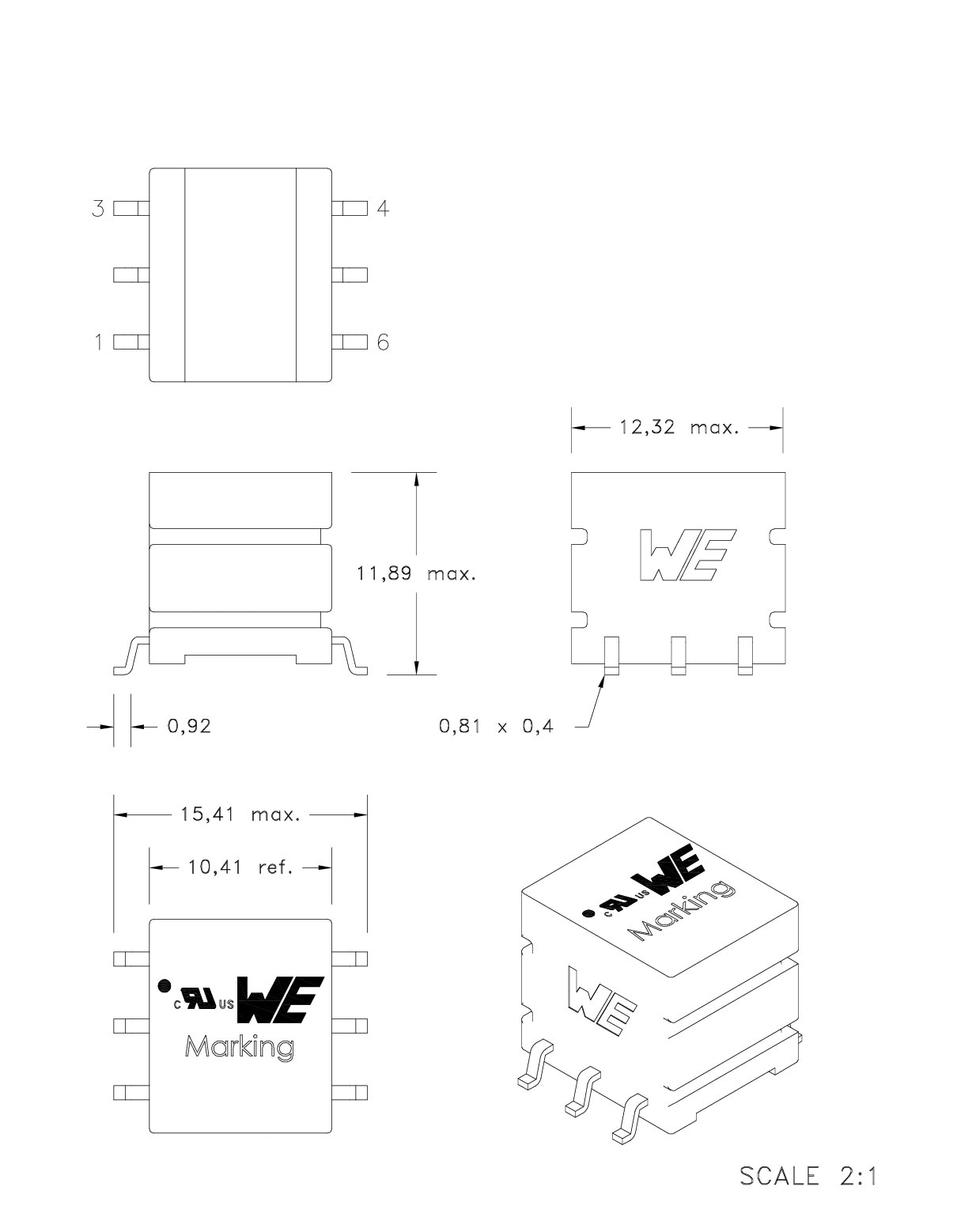

1512	12.32	15.41	11.89	SMT

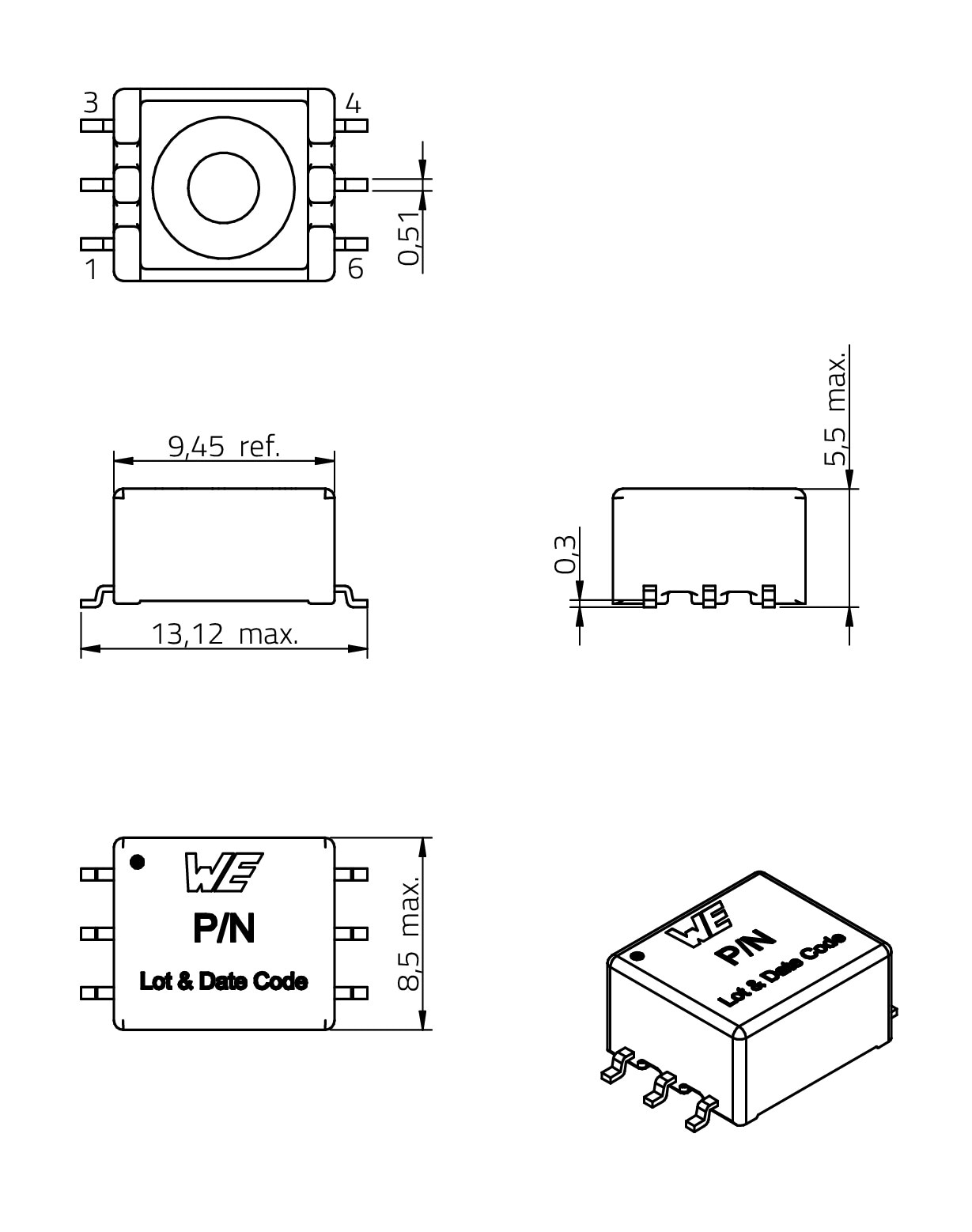

NEW 1308	8.5	13.12	5.5	SMT

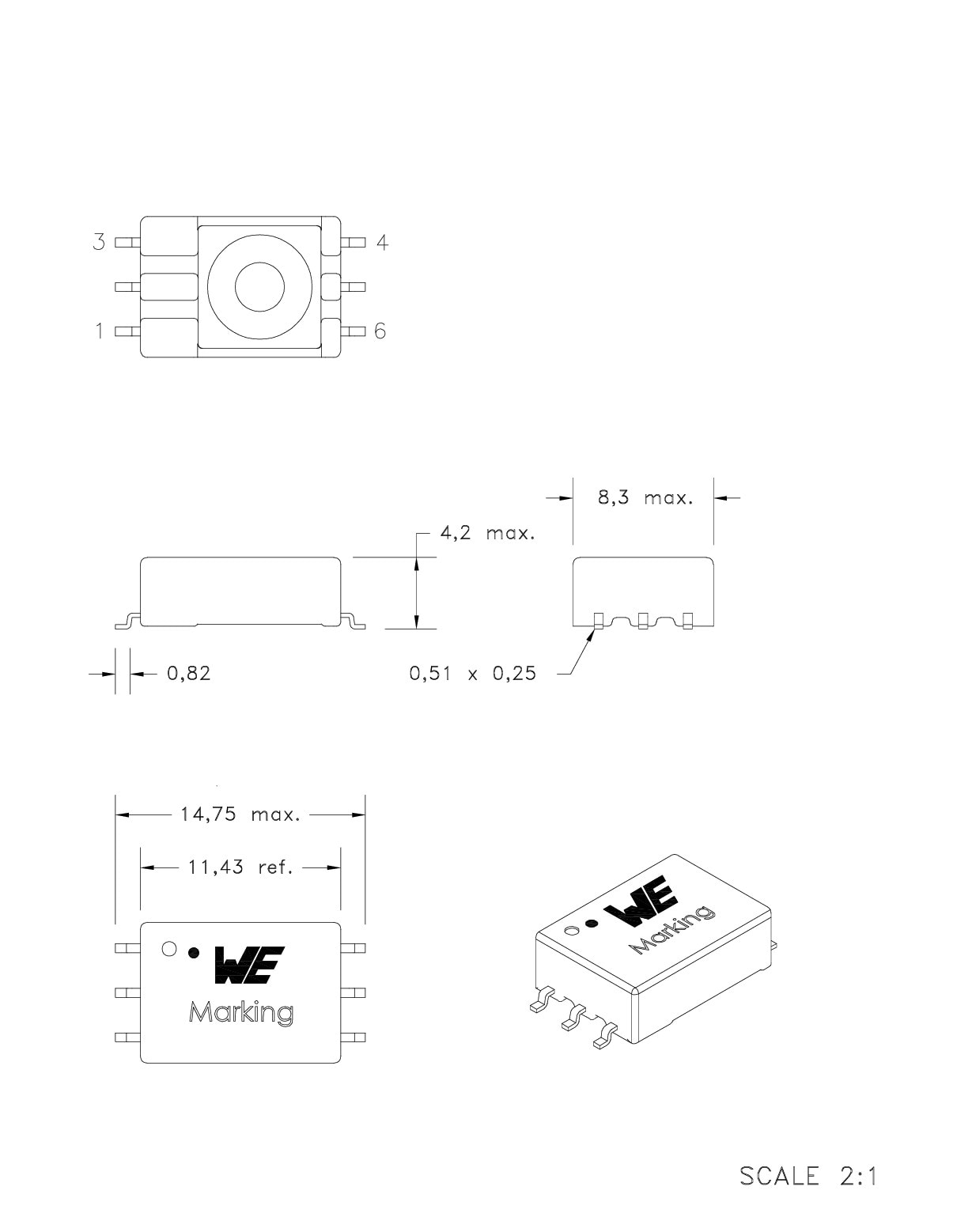

1408	8.3	14.75	4.2	SMT

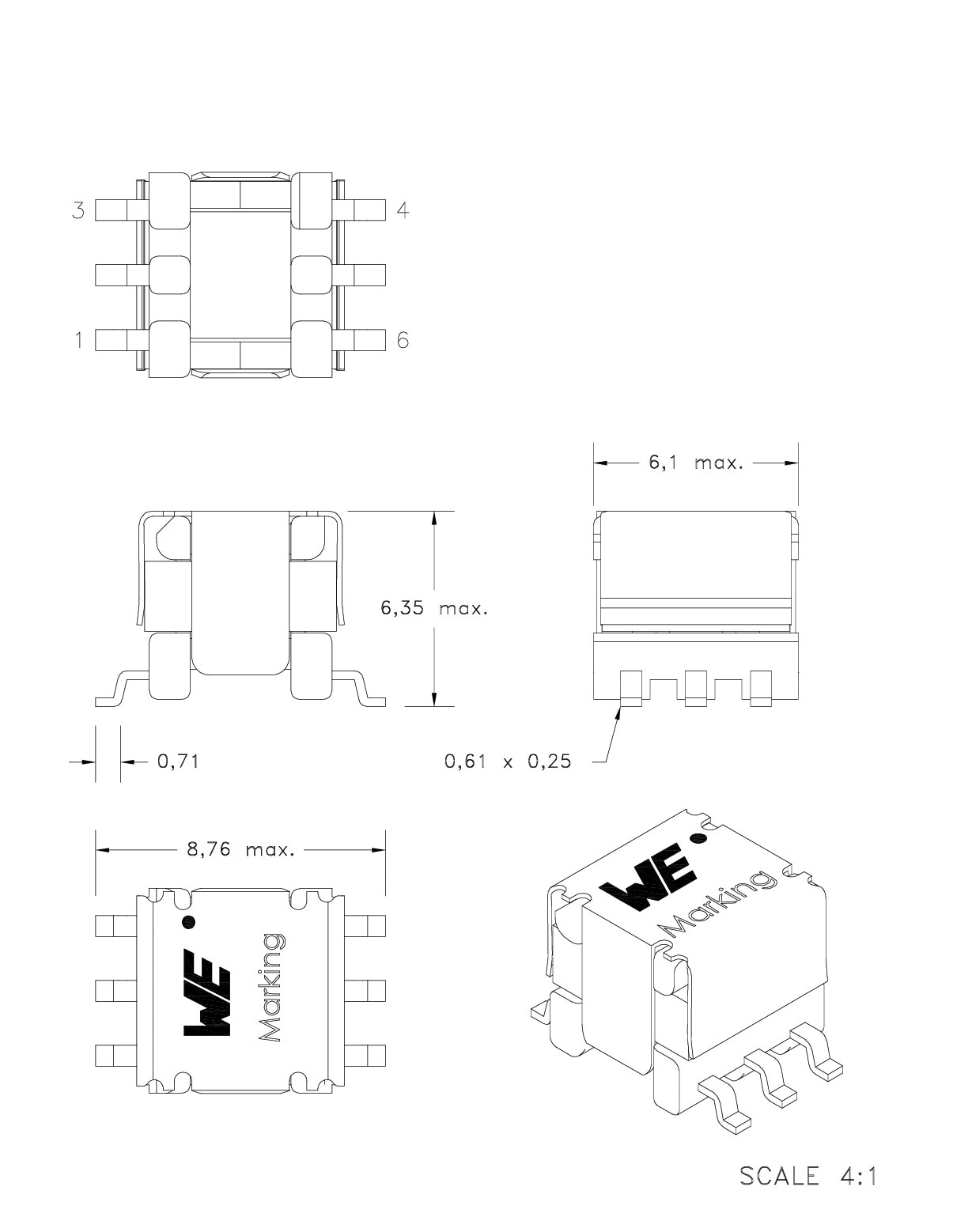

EE5	6.1	8.76	6.35	SMT

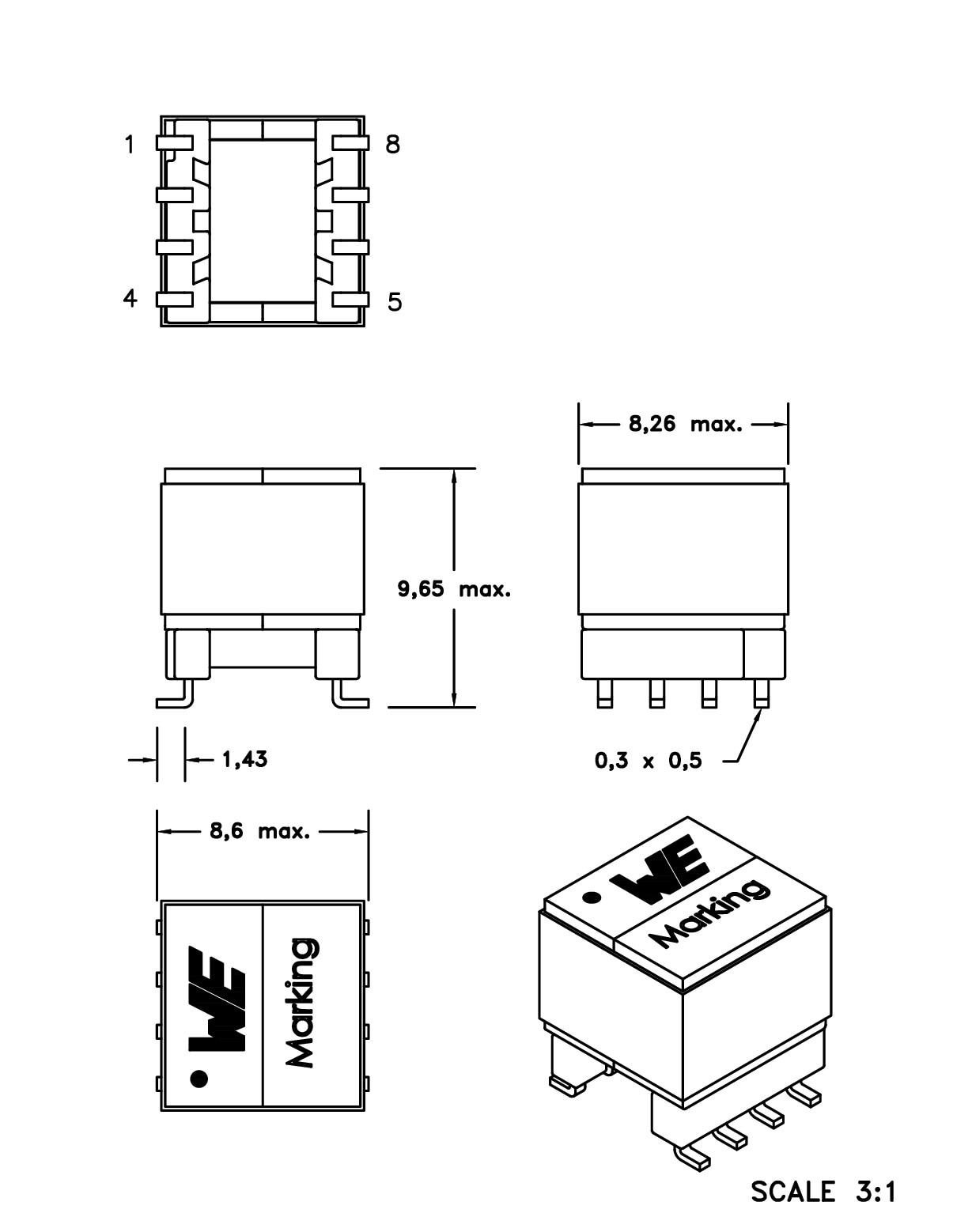

EP5	-	-	-	SMT

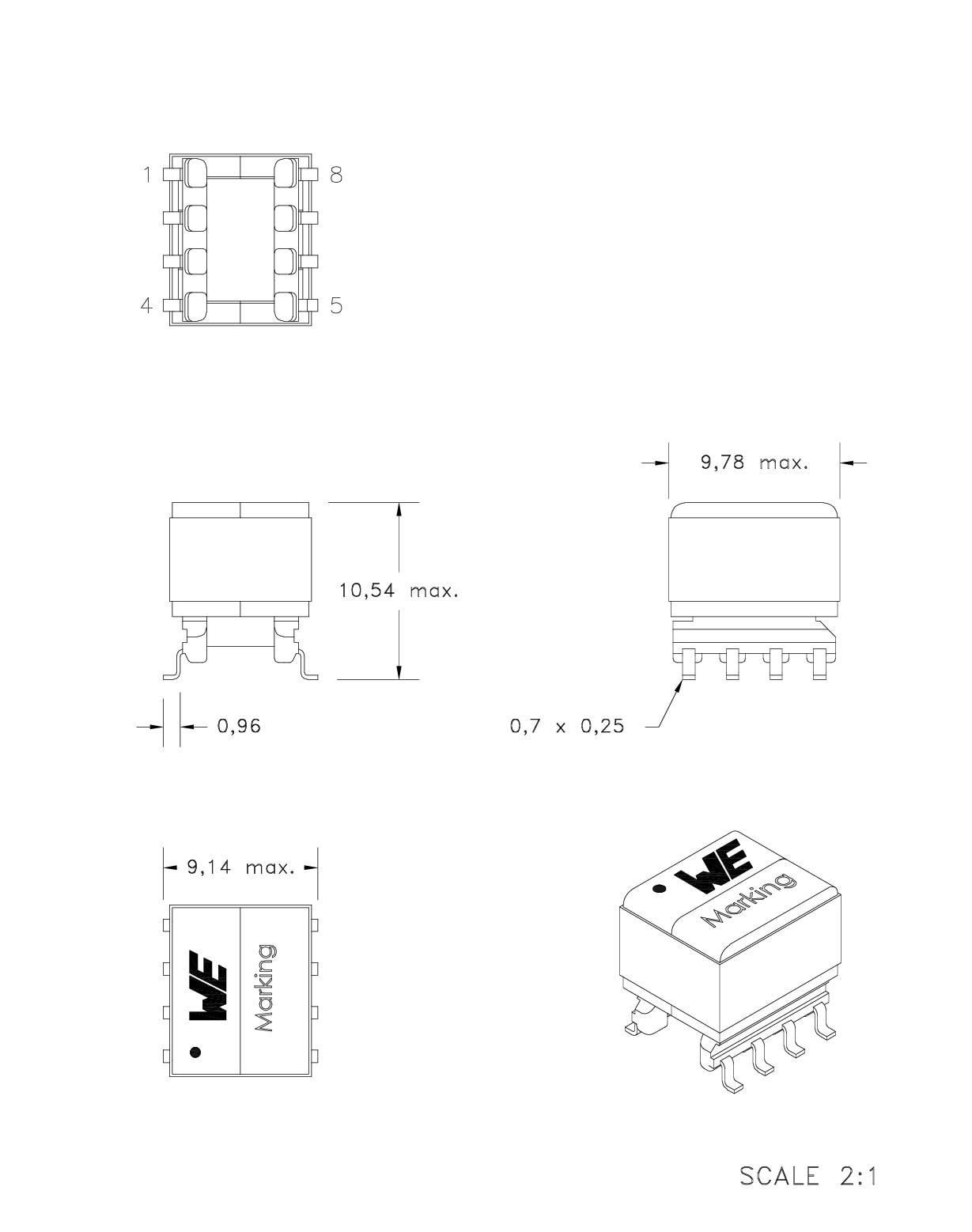

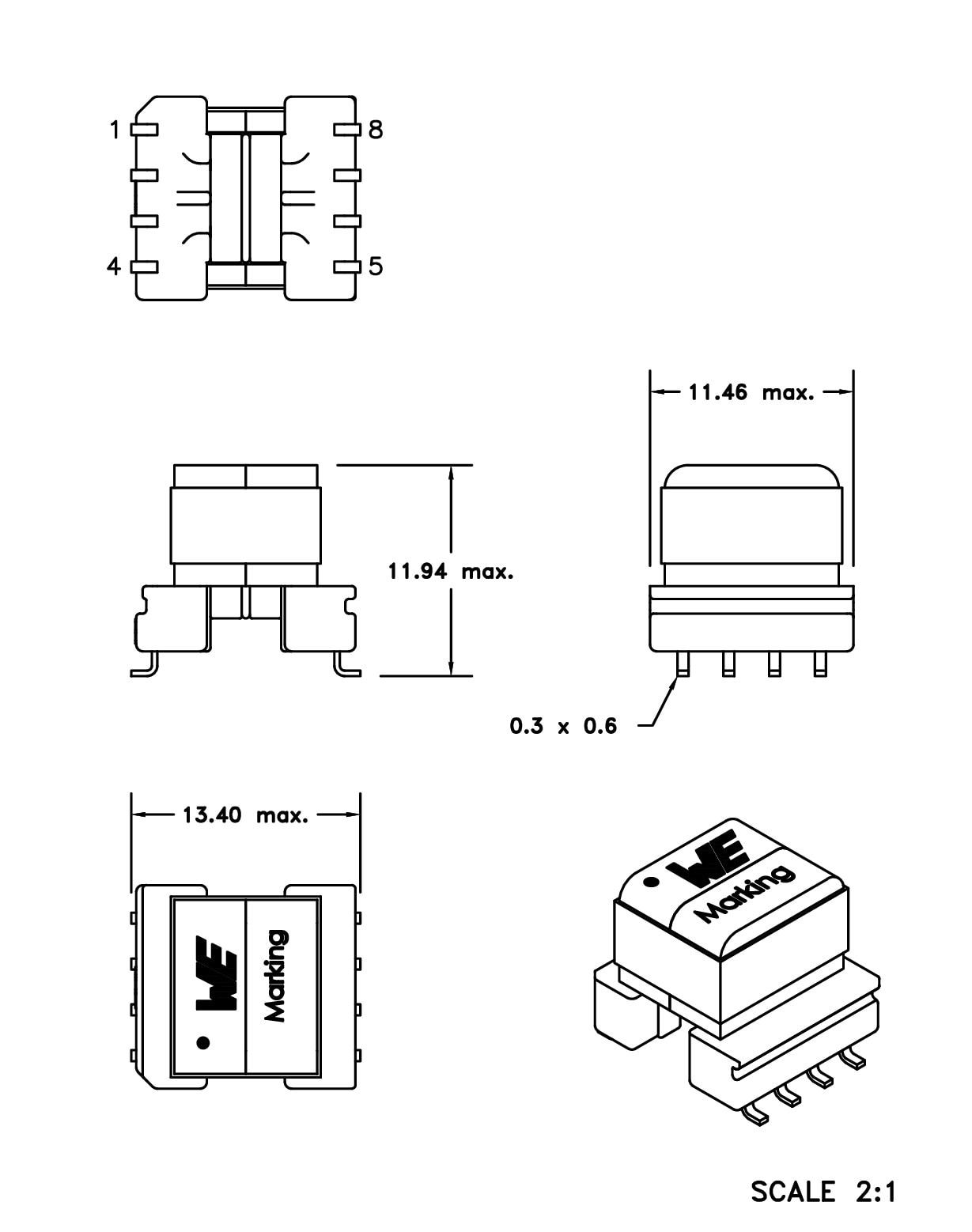

EP7	9.78	9.14	10.54	SMT

LTSpice files

LT

LTspice_WE-PPTI (rev25c).zip

|

29.6 KB

Characteristics

Small size
Surface mount
Low profile
Operating temp: -40°C to 125°C
Functional or Reinforced Insulation
Approved for SN65xx, MAX25x and NXF65xx controllers among others

Applications

Isolated interface power supply for CAN, RS-485, RS-422, RS-232, SPI, I2C, lower-power LAN
Industrial automation
Process control
Medical equipment
PLC analog and digital I/O modules
Isolated gate driver power supplies
AC motor drives
Uninterruptible power supplies (UPS)
Solar inverters
Polyphase energy meters
Protection relays and IEDs

Can’t find the suitable product?

We will be glad to help you! We will take your specifications and work to find a solution that fits your needs. Simply fill out our inquiry form with your specifications.

Find your custom solution

Products

All

1006

1208

1209

1512

1308

1408

EE5

EP5

EP7

Reset all

Filter article data

show article in 9 product lines

article in 9 product lines

Reset all

Order Code	Datasheet	Downloads	Status	V_IN	V_Out1 (V (DC))	I_Out1 (mA)	Type of Insulation	f_switch (kHz)	∫Udt (Vµs)	N_PRI : N_SEC	L (µH)	V_T (V (AC))	L (mm)	W (mm)	H (mm)	Mount

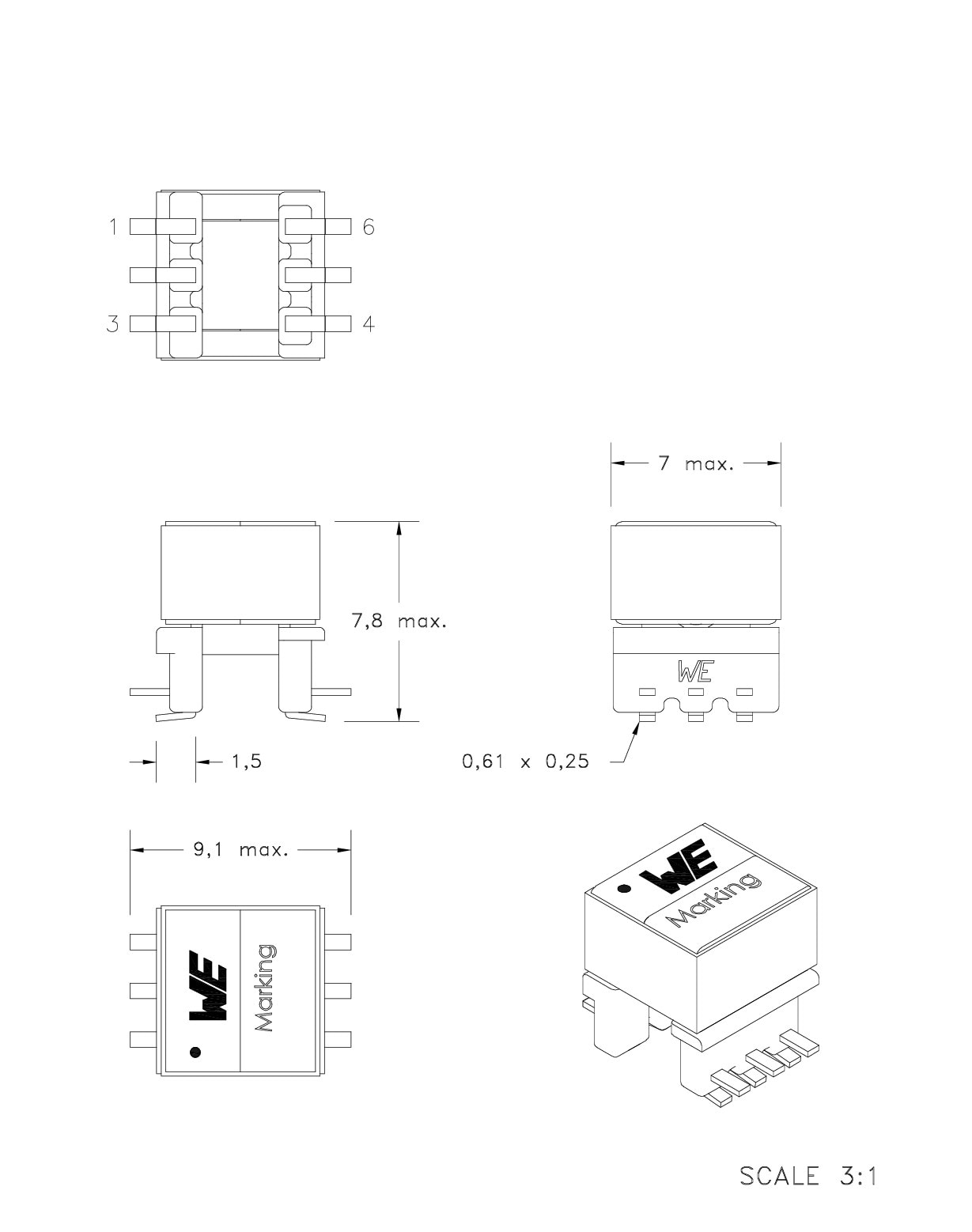

750315090	3.3 V (DC), 3.3 V (DC), 600 mA	Downloads 8 files EDA models: Components ZIP ALT Altium_WE-PPTI (rev25a).IntLib \| 1.3 MB CDS Cadence_WE-PPTI (rev25a).zip \| 4.7 MB EAG Eagle_WE-PPTI (rev26a).lbr \| 153 KB KIC KiCad_WE-PPTI (rev25b).zip \| 2.9 MB CAD files ZIP IGS Download_IGS_070-6279 (rev1).IGS \| 1.7 MB STP Download_STEP_070-6279 (rev1).STEP \| 835.9 KB Electric models ZIP LT LTspice_WE-PPTI (rev25c).zip \| 29.6 KB PSP Pspice_WE-PPTI (rev25d).zip \| 26.3 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Input Voltage 3.3 V (DC)	Output Voltage 1 3.3 V (DC)	Output Current 1 600 mA	Type of Insulation Functional	Switching Frequency 100 - 500	Voltage-µSecond 27 Vµs	Turns Ratio 1:1	Inductance 270 µH	Insulation Test Voltage 2500 V (AC)	Length 7 mm	Width 9.1 mm	Height 7.8 mm	Mount SMT
750314706	3.3 V (DC), 5 V (DC), 300 mA	Downloads 8 files EDA models: Components ZIP ALT Altium_WE-PPTI (rev25a).IntLib \| 1.3 MB CDS Cadence_WE-PPTI (rev25a).zip \| 4.7 MB EAG Eagle_WE-PPTI (rev26a).lbr \| 153 KB KIC KiCad_WE-PPTI (rev25b).zip \| 2.9 MB CAD files ZIP IGS Download_IGS_070-6279 (rev1).IGS \| 1.7 MB STP Download_STEP_070-6279 (rev1).STEP \| 835.9 KB Electric models ZIP LT LTspice_WE-PPTI (rev25c).zip \| 29.6 KB PSP Pspice_WE-PPTI (rev25d).zip \| 26.3 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Input Voltage 3.3 V (DC)	Output Voltage 1 5 V (DC)	Output Current 1 300 mA	Type of Insulation Functional	Switching Frequency 100 - 500	Voltage-µSecond 27 Vµs	Turns Ratio 1:1.8	Inductance 250 µH	Insulation Test Voltage 2500 V (AC)	Length 7 mm	Width 9.1 mm	Height 7.8 mm	Mount SMT
760390013	3.3 V (DC), 5 V (DC), 500 mA	Downloads 8 files EDA models: Components ZIP ALT Altium_WE-PPTI (rev25a).IntLib \| 1.3 MB CDS Cadence_WE-PPTI (rev25a).zip \| 4.7 MB EAG Eagle_WE-PPTI (rev26a).lbr \| 153 KB KIC KiCad_WE-PPTI (rev25b).zip \| 2.9 MB CAD files ZIP IGS 250-1109 (rev1).IGS \| 1.3 MB STP 250-1109 (rev1).STEP \| 619.6 KB Electric models ZIP LT LTspice_WE-PPTI (rev25c).zip \| 29.6 KB PSP Pspice_WE-PPTI (rev25d).zip \| 26.3 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Input Voltage 3.3 V (DC)	Output Voltage 1 5 V (DC)	Output Current 1 500 mA	Type of Insulation Functional	Switching Frequency 250 - 550	Voltage-µSecond 11 Vµs	Turns Ratio 1:1.7	Inductance 475 µH	Insulation Test Voltage 2500 V (AC)	Length 6.73 mm	Width 10.2 mm	Height 4.19 mm	Mount SMT
760390015	3.3 V (DC), 5 V (DC), 450 mA	Downloads 8 files EDA models: Components ZIP ALT Altium_WE-PPTI (rev25a).IntLib \| 1.3 MB CDS Cadence_WE-PPTI (rev25a).zip \| 4.7 MB EAG Eagle_WE-PPTI (rev26a).lbr \| 153 KB KIC KiCad_WE-PPTI (rev25b).zip \| 2.9 MB CAD files ZIP IGS 250-1109 (rev1).IGS \| 1.3 MB STP 250-1109 (rev1).STEP \| 619.6 KB Electric models ZIP LT LTspice_WE-PPTI (rev25c).zip \| 29.6 KB PSP Pspice_WE-PPTI (rev25d).zip \| 26.3 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Input Voltage 3.3 V (DC)	Output Voltage 1 5 V (DC)	Output Current 1 450 mA	Type of Insulation Functional	Switching Frequency 250 - 550	Voltage-µSecond 11 Vµs	Turns Ratio 1:2	Inductance 475 µH	Insulation Test Voltage 2500 V (AC)	Length 6.73 mm	Width 10.2 mm	Height 4.19 mm	Mount SMT
750313769	3.3 V (DC), 5 V (DC), 600 mA	Downloads 8 files EDA models: Components ZIP ALT Altium_WE-PPTI (rev25a).IntLib \| 1.3 MB CDS Cadence_WE-PPTI (rev25a).zip \| 4.7 MB EAG Eagle_WE-PPTI (rev26a).lbr \| 153 KB KIC KiCad_WE-PPTI (rev25b).zip \| 2.9 MB CAD files ZIP IGS 250-1123 (rev1).IGS \| 971.3 KB STP 250-1123 (rev1).STEP \| 477.6 KB Electric models ZIP LT LTspice_WE-PPTI (rev25c).zip \| 29.6 KB PSP Pspice_WE-PPTI (rev25d).zip \| 26.3 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Input Voltage 3.3 V (DC)	Output Voltage 1 5 V (DC)	Output Current 1 600 mA	Type of Insulation Reinforced	Switching Frequency 250 - 550	Voltage-µSecond 10 Vµs	Turns Ratio 1:1.7	Inductance 340 µH	Insulation Test Voltage 5000 V (AC)	Length 9.14 mm	Width 12.7 mm	Height 7.62 mm	Mount SMT
750313626	3.3 V (DC), 5 V (DC), 500 mA	Downloads 8 files EDA models: Components ZIP ALT Altium_WE-PPTI (rev25a).IntLib \| 1.3 MB CDS Cadence_WE-PPTI (rev25a).zip \| 4.7 MB EAG Eagle_WE-PPTI (rev26a).lbr \| 153 KB KIC KiCad_WE-PPTI (rev25b).zip \| 2.9 MB CAD files ZIP IGS 250-1123 (rev1).IGS \| 971.3 KB STP 250-1123 (rev1).STEP \| 477.6 KB Electric models ZIP LT LTspice_WE-PPTI (rev25c).zip \| 29.6 KB PSP Pspice_WE-PPTI (rev25d).zip \| 26.3 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Input Voltage 3.3 V (DC)	Output Voltage 1 5 V (DC)	Output Current 1 500 mA	Type of Insulation Reinforced	Switching Frequency 250 - 550	Voltage-µSecond 10 Vµs	Turns Ratio 1:2	Inductance 340 µH	Insulation Test Voltage 5000 V (AC)	Length 9.14 mm	Width 12.7 mm	Height 7.62 mm	Mount SMT
750315225	3.3 V (DC), 3.6 V (DC), 900 mA	Downloads 8 files EDA models: Components ZIP ALT Altium_WE-PPTI (rev25a).IntLib \| 1.3 MB CDS Cadence_WE-PPTI (rev25a).zip \| 4.7 MB EAG Eagle_WE-PPTI (rev26a).lbr \| 153 KB KIC KiCad_WE-PPTI (rev25b).zip \| 2.9 MB CAD files ZIP IGS 250-1109 (rev1).IGS \| 1.3 MB STP 250-1109 (rev1).STEP \| 619.6 KB Electric models ZIP LT LTspice_WE-PPTI (rev25c).zip \| 29.6 KB PSP Pspice_WE-PPTI (rev25d).zip \| 26.3 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Input Voltage 3.3 V (DC)	Output Voltage 1 3.6 V (DC)	Output Current 1 900 mA	Type of Insulation Functional	Switching Frequency 350 - 550	Voltage-µSecond 8.5 Vµs	Turns Ratio 1:1.1	Inductance 388 µH	Insulation Test Voltage 2750 V (AC)	Length 6.73 mm	Width 10.2 mm	Height 4.19 mm	Mount SMT
750315227	3.3 V (DC), 5.6 V (DC), 700 mA	Downloads 8 files EDA models: Components ZIP ALT Altium_WE-PPTI (rev25a).IntLib \| 1.3 MB CDS Cadence_WE-PPTI (rev25a).zip \| 4.7 MB EAG Eagle_WE-PPTI (rev26a).lbr \| 153 KB KIC KiCad_WE-PPTI (rev25b).zip \| 2.9 MB CAD files ZIP IGS 250-1109 (rev1).IGS \| 1.3 MB STP 250-1109 (rev1).STEP \| 619.6 KB Electric models ZIP LT LTspice_WE-PPTI (rev25c).zip \| 29.6 KB PSP Pspice_WE-PPTI (rev25d).zip \| 26.3 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Input Voltage 3.3 V (DC)	Output Voltage 1 5.6 V (DC)	Output Current 1 700 mA	Type of Insulation Functional	Switching Frequency 350 - 550	Voltage-µSecond 8.5 Vµs	Turns Ratio 1:1.7	Inductance 388 µH	Insulation Test Voltage 2750 V (AC)	Length 6.73 mm	Width 10.2 mm	Height 4.19 mm	Mount SMT
750315231	3.3 V (DC), 5.4 V (DC), 550 mA	Downloads 8 files EDA models: Components ZIP ALT Altium_WE-PPTI (rev25a).IntLib \| 1.3 MB CDS Cadence_WE-PPTI (rev25a).zip \| 4.7 MB EAG Eagle_WE-PPTI (rev26a).lbr \| 153 KB KIC KiCad_WE-PPTI (rev25b).zip \| 2.9 MB CAD files ZIP IGS 250-1123 (rev1).IGS \| 971.3 KB STP 250-1123 (rev1).STEP \| 477.6 KB Electric models ZIP LT LTspice_WE-PPTI (rev25c).zip \| 29.6 KB PSP Pspice_WE-PPTI (rev25d).zip \| 26.3 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Input Voltage 3.3 V (DC)	Output Voltage 1 5.4 V (DC)	Output Current 1 550 mA	Type of Insulation Reinforced	Switching Frequency 350 - 550	Voltage-µSecond 8.8 Vµs	Turns Ratio 1:1.6	Inductance 384 µH	Insulation Test Voltage 5000 V (AC)	Length 9.14 mm	Width 12.7 mm	Height 7.62 mm	Mount SMT
750315226	3.3 V (DC), 4.3 V (DC), 850 mA	Downloads 8 files EDA models: Components ZIP ALT Altium_WE-PPTI (rev25a).IntLib \| 1.3 MB CDS Cadence_WE-PPTI (rev25a).zip \| 4.7 MB EAG Eagle_WE-PPTI (rev26a).lbr \| 153 KB KIC KiCad_WE-PPTI (rev25b).zip \| 2.9 MB CAD files ZIP IGS 250-1109 (rev1).IGS \| 1.3 MB STP 250-1109 (rev1).STEP \| 619.6 KB Electric models ZIP LT LTspice_WE-PPTI (rev25c).zip \| 29.6 KB PSP Pspice_WE-PPTI (rev25d).zip \| 26.3 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Input Voltage 3.3 V (DC)	Output Voltage 1 4.3 V (DC)	Output Current 1 850 mA	Type of Insulation Functional	Switching Frequency 350 - 550	Voltage-µSecond 8.5 Vµs	Turns Ratio 1:1.3	Inductance 388 µH	Insulation Test Voltage 2750 V (AC)	Length 6.73 mm	Width 10.2 mm	Height 4.19 mm	Mount SMT
750315228	3.3 V (DC), 6.6 V (DC), 500 mA	Downloads 8 files EDA models: Components ZIP ALT Altium_WE-PPTI (rev25a).IntLib \| 1.3 MB CDS Cadence_WE-PPTI (rev25a).zip \| 4.7 MB EAG Eagle_WE-PPTI (rev26a).lbr \| 153 KB KIC KiCad_WE-PPTI (rev25b).zip \| 2.9 MB CAD files ZIP IGS 250-1109 (rev1).IGS \| 1.3 MB STP 250-1109 (rev1).STEP \| 619.6 KB Electric models ZIP LT LTspice_WE-PPTI (rev25c).zip \| 29.6 KB PSP Pspice_WE-PPTI (rev25d).zip \| 26.3 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Input Voltage 3.3 V (DC)	Output Voltage 1 6.6 V (DC)	Output Current 1 500 mA	Type of Insulation Functional	Switching Frequency 350 - 550	Voltage-µSecond 8.5 Vµs	Turns Ratio 1:2	Inductance 388 µH	Insulation Test Voltage 2750 V (AC)	Length 6.73 mm	Width 10.2 mm	Height 4.19 mm	Mount SMT
750315232	3.3 V (DC), 6.6 V (DC), 450 mA	Downloads 8 files EDA models: Components ZIP ALT Altium_WE-PPTI (rev25a).IntLib \| 1.3 MB CDS Cadence_WE-PPTI (rev25a).zip \| 4.7 MB EAG Eagle_WE-PPTI (rev26a).lbr \| 153 KB KIC KiCad_WE-PPTI (rev25b).zip \| 2.9 MB CAD files ZIP IGS 250-1123 (rev1).IGS \| 971.3 KB STP 250-1123 (rev1).STEP \| 477.6 KB Electric models ZIP LT LTspice_WE-PPTI (rev25c).zip \| 29.6 KB PSP Pspice_WE-PPTI (rev25d).zip \| 26.3 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Input Voltage 3.3 V (DC)	Output Voltage 1 6.6 V (DC)	Output Current 1 450 mA	Type of Insulation Reinforced	Switching Frequency 350 - 550	Voltage-µSecond 8.8 Vµs	Turns Ratio 1:2	Inductance 384 µH	Insulation Test Voltage 5000 V (AC)	Length 9.14 mm	Width 12.7 mm	Height 7.62 mm	Mount SMT
750316028	3.3 V (DC), 3.3 V (DC), 800 mA	Downloads 8 files EDA models: Components ZIP ALT Altium_WE-PPTI (rev25a).IntLib \| 1.3 MB CDS Cadence_WE-PPTI (rev25a).zip \| 4.7 MB EAG Eagle_WE-PPTI (rev26a).lbr \| 153 KB KIC KiCad_WE-PPTI (rev25b).zip \| 2.9 MB CAD files ZIP IGS Download_IGS_250-1201 (rev1).IGS \| 1.3 MB STP STP_250-1201 (rev1).STEP \| 583.9 KB Electric models ZIP LT LTspice_WE-PPTI (rev25c).zip \| 29.6 KB PSP Pspice_WE-PPTI (rev25d).zip \| 26.3 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Input Voltage 3.3 V (DC)	Output Voltage 1 3.3 V (DC)	Output Current 1 800 mA	Type of Insulation Functional	Switching Frequency 400 - 700	Voltage-µSecond 13 Vµs	Turns Ratio 1:1.75	Inductance 86 µH	Insulation Test Voltage 2500 V (AC)	Length 8.3 mm	Width 12.6 mm	Height 4.1 mm	Mount SMT
750316029	3.3 V (DC), 5 V (DC), 600 mA	Downloads 8 files EDA models: Components ZIP ALT Altium_WE-PPTI (rev25a).IntLib \| 1.3 MB CDS Cadence_WE-PPTI (rev25a).zip \| 4.7 MB EAG Eagle_WE-PPTI (rev26a).lbr \| 153 KB KIC KiCad_WE-PPTI (rev25b).zip \| 2.9 MB CAD files ZIP IGS Download_IGS_250-1201 (rev1).IGS \| 1.3 MB STP STP_250-1201 (rev1).STEP \| 583.9 KB Electric models ZIP LT LTspice_WE-PPTI (rev25c).zip \| 29.6 KB PSP Pspice_WE-PPTI (rev25d).zip \| 26.3 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Input Voltage 3.3 V (DC)	Output Voltage 1 5 V (DC)	Output Current 1 600 mA	Type of Insulation Functional	Switching Frequency 400 - 700	Voltage-µSecond 8.9 Vµs	Turns Ratio 1:2.1	Inductance 72 µH	Insulation Test Voltage 2500 V (AC)	Length 8.3 mm	Width 12.6 mm	Height 4.1 mm	Mount SMT
750316031	3.3 V (DC), 3.3 V (DC), 900 mA	Downloads 8 files EDA models: Components ZIP ALT Altium_WE-PPTI (rev25a).IntLib \| 1.3 MB CDS Cadence_WE-PPTI (rev25a).zip \| 4.7 MB EAG Eagle_WE-PPTI (rev26a).lbr \| 153 KB KIC KiCad_WE-PPTI (rev25b).zip \| 2.9 MB CAD files ZIP IGS Download_IGS_250-1243 (rev1).IGS \| 1000.9 KB STP Download_STP_250-1243 (rev1).STEP \| 491.7 KB Electric models ZIP LT LTspice_WE-PPTI (rev25c).zip \| 29.6 KB PSP Pspice_WE-PPTI (rev25d).zip \| 26.3 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Input Voltage 3.3 V (DC)	Output Voltage 1 3.3 V (DC)	Output Current 1 900 mA	Type of Insulation Reinforced	Switching Frequency 150 - 700	Voltage-µSecond 40 Vµs	Turns Ratio 1:1.75	Inductance 370 µH	Insulation Test Voltage 5000 V (AC)	Length 12.32 mm	Width 15.41 mm	Height 11.89 mm	Mount SMT
750316032	3.3 V (DC), 5 V (DC), 900 mA	Downloads 8 files EDA models: Components ZIP ALT Altium_WE-PPTI (rev25a).IntLib \| 1.3 MB CDS Cadence_WE-PPTI (rev25a).zip \| 4.7 MB EAG Eagle_WE-PPTI (rev26a).lbr \| 153 KB KIC KiCad_WE-PPTI (rev25b).zip \| 2.9 MB CAD files ZIP IGS Download_IGS_250-1243 (rev1).IGS \| 1000.9 KB STP Download_STP_250-1243 (rev1).STEP \| 491.7 KB Electric models ZIP LT LTspice_WE-PPTI (rev25c).zip \| 29.6 KB PSP Pspice_WE-PPTI (rev25d).zip \| 26.3 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Input Voltage 3.3 V (DC)	Output Voltage 1 5 V (DC)	Output Current 1 900 mA	Type of Insulation Reinforced	Switching Frequency 150 - 700	Voltage-µSecond 40 Vµs	Turns Ratio 1:2	Inductance 370 µH	Insulation Test Voltage 5000 V (AC)	Length 12.32 mm	Width 15.41 mm	Height 11.89 mm	Mount SMT
750316855	3.3 V (DC), 23 V (DC), 85 mA	Downloads 8 files EDA models: Components ZIP ALT Altium_WE-PPTI (rev25a).IntLib \| 1.3 MB CDS Cadence_WE-PPTI (rev25a).zip \| 4.7 MB EAG Eagle_WE-PPTI (rev26a).lbr \| 153 KB KIC KiCad_WE-PPTI (rev25b).zip \| 2.9 MB CAD files ZIP IGS Download_IGS_250-1268 (rev1).IGS \| 1.3 MB STP Download_STP_250-1268 (rev1).STEP \| 581.8 KB Electric models ZIP LT LTspice_WE-PPTI (rev25c).zip \| 29.6 KB PSP Pspice_WE-PPTI (rev25d).zip \| 26.3 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Input Voltage 3.3 V (DC)	Output Voltage 1 23 V (DC)	Output Current 1 85 mA	Type of Insulation Supplementary	Switching Frequency 200 - 600	Voltage-µSecond 15 Vµs	Turns Ratio 1:7	Inductance 200 µH	Insulation Test Voltage 2500 V (AC)	Length 8.3 mm	Width 14.75 mm	Height 4.2 mm	Mount SMT
750316887	3.3 V (DC), 5 V (DC), 700 mA	Downloads 8 files EDA models: Components ZIP ALT Altium_WE-PPTI (rev25a).IntLib \| 1.3 MB CDS Cadence_WE-PPTI (rev25a).zip \| 4.7 MB EAG Eagle_WE-PPTI (rev26a).lbr \| 153 KB KIC KiCad_WE-PPTI (rev25b).zip \| 2.9 MB CAD files ZIP IGS Download_IGS_250-1268 (rev1).IGS \| 1.3 MB STP Download_STP_250-1268 (rev1).STEP \| 581.8 KB Electric models ZIP LT LTspice_WE-PPTI (rev25c).zip \| 29.6 KB PSP Pspice_WE-PPTI (rev25d).zip \| 26.3 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Input Voltage 3.3 V (DC)	Output Voltage 1 5 V (DC)	Output Current 1 700 mA	Type of Insulation Supplementary	Switching Frequency 200 - 600	Voltage-µSecond 15 Vµs	Turns Ratio 1:1.67	Inductance 200 µH	Insulation Test Voltage 2500 V (AC)	Length 8.3 mm	Width 14.75 mm	Height 4.2 mm	Mount SMT
750316853	3.3 V (DC), 12 V (DC), 165 mA	Downloads 8 files EDA models: Components ZIP ALT Altium_WE-PPTI (rev25a).IntLib \| 1.3 MB CDS Cadence_WE-PPTI (rev25a).zip \| 4.7 MB EAG Eagle_WE-PPTI (rev26a).lbr \| 153 KB KIC KiCad_WE-PPTI (rev25b).zip \| 2.9 MB CAD files ZIP IGS Download_IGS_250-1268 (rev1).IGS \| 1.3 MB STP Download_STP_250-1268 (rev1).STEP \| 581.8 KB Electric models ZIP LT LTspice_WE-PPTI (rev25c).zip \| 29.6 KB PSP Pspice_WE-PPTI (rev25d).zip \| 26.3 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Input Voltage 3.3 V (DC)	Output Voltage 1 12 V (DC)	Output Current 1 165 mA	Type of Insulation Supplementary	Switching Frequency 200 - 600	Voltage-µSecond 15 Vµs	Turns Ratio 1:4	Inductance 200 µH	Insulation Test Voltage 2500 V (AC)	Length 8.3 mm	Width 14.75 mm	Height 4.2 mm	Mount SMT
750317072	3.3 V (DC), 20 V (DC), 125 mA	Downloads 8 files EDA models: Components ZIP ALT Altium_WE-PPTI (rev25a).IntLib \| 1.3 MB CDS Cadence_WE-PPTI (rev25a).zip \| 4.7 MB EAG Eagle_WE-PPTI (rev26a).lbr \| 153 KB KIC KiCad_WE-PPTI (rev25b).zip \| 2.9 MB CAD files ZIP IGS Download_IGS_250-1268 (rev1).IGS \| 1.3 MB STP Download_STP_250-1268 (rev1).STEP \| 581.8 KB Electric models ZIP LT LTspice_WE-PPTI (rev25c).zip \| 29.6 KB PSP Pspice_WE-PPTI (rev25d).zip \| 26.3 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Input Voltage 3.3 V (DC)	Output Voltage 1 20 V (DC)	Output Current 1 125 mA	Type of Insulation Supplementary	Switching Frequency 200 - 600	Voltage-µSecond 15 Vµs	Turns Ratio 1:6.17	Inductance 200 µH	Insulation Test Voltage 2500 V (AC)	Length 8.3 mm	Width 14.75 mm	Height 4.2 mm	Mount SMT
750319845	3.3 V (DC), 5 V (DC), 650 mA	Downloads 8 files EDA models: Components ZIP ALT Altium_WE-PPTI (rev25a).IntLib \| 1.3 MB CDS Cadence_WE-PPTI (rev25a).zip \| 4.7 MB EAG Eagle_WE-PPTI (rev26a).lbr \| 153 KB KIC KiCad_WE-PPTI (rev25b).zip \| 2.9 MB CAD files ZIP IGS 250-1123 (rev1).IGS \| 971.3 KB STP 250-1123 (rev1).STEP \| 477.6 KB Electric models ZIP LT LTspice_WE-PPTI (rev25c).zip \| 29.6 KB PSP Pspice_WE-PPTI (rev25d).zip \| 26.3 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Input Voltage 3.3 V (DC)	Output Voltage 1 5 V (DC)	Output Current 1 650 mA	Type of Insulation Reinforced	Switching Frequency 250 - 550	Voltage-µSecond 11 Vµs	Turns Ratio 1:1.56	Inductance 340 µH	Insulation Test Voltage 5000 V (AC)	Length 9.14 mm	Width 12.7 mm	Height 7.62 mm	Mount SMT
750315371	4.5 - 5.5 V (DC), 5 V (DC), 1000 mA	Downloads 8 files EDA models: Components ZIP ALT Altium_WE-PPTI (rev25a).IntLib \| 1.3 MB CDS Cadence_WE-PPTI (rev25a).zip \| 4.7 MB EAG Eagle_WE-PPTI (rev26a).lbr \| 153 KB KIC KiCad_WE-PPTI (rev25b).zip \| 2.9 MB CAD files ZIP IGS Download_IGS_250-1201 (rev1).IGS \| 1.3 MB STP STP_250-1201 (rev1).STEP \| 583.9 KB Electric models ZIP LT LTspice_WE-PPTI (rev25c).zip \| 29.6 KB PSP Pspice_WE-PPTI (rev25d).zip \| 26.3 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Input Voltage 4.5 - 5.5 V (DC)	Output Voltage 1 5 V (DC)	Output Current 1 1000 mA	Type of Insulation Functional	Switching Frequency 400 - 700	Voltage-µSecond 8.6 Vµs	Turns Ratio 1:1.1	Inductance 72 µH	Insulation Test Voltage 2500 V (AC)	Length 8.3 mm	Width 12.6 mm	Height 4.1 mm	Mount SMT
750316030	4.5 - 5.5 V (DC), 3.3 V (DC), 1200 mA	Downloads 8 files EDA models: Components ZIP ALT Altium_WE-PPTI (rev25a).IntLib \| 1.3 MB CDS Cadence_WE-PPTI (rev25a).zip \| 4.7 MB EAG Eagle_WE-PPTI (rev26a).lbr \| 153 KB KIC KiCad_WE-PPTI (rev25b).zip \| 2.9 MB CAD files ZIP IGS Download_IGS_250-1201 (rev1).IGS \| 1.3 MB STP STP_250-1201 (rev1).STEP \| 583.9 KB Electric models ZIP LT LTspice_WE-PPTI (rev25c).zip \| 29.6 KB PSP Pspice_WE-PPTI (rev25d).zip \| 26.3 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Input Voltage 4.5 - 5.5 V (DC)	Output Voltage 1 3.3 V (DC)	Output Current 1 1200 mA	Type of Insulation Functional	Switching Frequency 400 - 700	Voltage-µSecond 10.2 Vµs	Turns Ratio 1.3:1	Inductance 94 µH	Insulation Test Voltage 2500 V (AC)	Length 8.3 mm	Width 12.6 mm	Height 4.1 mm	Mount SMT
750316033	4.5 - 5 V (DC), 3.3 V (DC), 1000 mA	Downloads 8 files EDA models: Components ZIP ALT Altium_WE-PPTI (rev25a).IntLib \| 1.3 MB CDS Cadence_WE-PPTI (rev25a).zip \| 4.7 MB EAG Eagle_WE-PPTI (rev26a).lbr \| 153 KB KIC KiCad_WE-PPTI (rev25b).zip \| 2.9 MB CAD files ZIP IGS Download_IGS_250-1243 (rev1).IGS \| 1000.9 KB STP Download_STP_250-1243 (rev1).STEP \| 491.7 KB Electric models ZIP LT LTspice_WE-PPTI (rev25c).zip \| 29.6 KB PSP Pspice_WE-PPTI (rev25d).zip \| 26.3 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Input Voltage 4.5 - 5 V (DC)	Output Voltage 1 3.3 V (DC)	Output Current 1 1000 mA	Type of Insulation Reinforced	Switching Frequency 150 - 800	Voltage-µSecond 40 Vµs	Turns Ratio 1.3:1	Inductance 370 µH	Insulation Test Voltage 5000 V (AC)	Length 12.32 mm	Width 15.41 mm	Height 11.89 mm	Mount SMT
750319927	4.5 V (DC), 2.5 V (DC), 1700 mA	Downloads 8 files EDA models: Components ZIP ALT Altium_WE-PPTI (rev25a).IntLib \| 1.3 MB CDS Cadence_WE-PPTI (rev25a).zip \| 4.7 MB EAG Eagle_WE-PPTI (rev26a).lbr \| 153 KB KIC KiCad_WE-PPTI (rev25b).zip \| 2.9 MB CAD files ZIP IGS Download_IGS_250-1243 (rev1).IGS \| 1000.9 KB STP Download_STP_250-1243 (rev1).STEP \| 491.7 KB Electric models ZIP LT LTspice_WE-PPTI (rev25c).zip \| 29.6 KB PSP Pspice_WE-PPTI (rev25d).zip \| 26.3 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Input Voltage 4.5 V (DC)	Output Voltage 1 2.5 V (DC)	Output Current 1 1700 mA	Type of Insulation Reinforced	Switching Frequency 150 - 700	Voltage-µSecond 50 Vµs	Turns Ratio 2:1	Inductance 570 µH	Insulation Test Voltage 5000 V (AC)	Length 12.32 mm	Width 15.41 mm	Height 11.89 mm	Mount SMT
750315089	5 V (DC), 5 V (DC), 330 mA	Downloads 8 files EDA models: Components ZIP ALT Altium_WE-PPTI (rev25a).IntLib \| 1.3 MB CDS Cadence_WE-PPTI (rev25a).zip \| 4.7 MB EAG Eagle_WE-PPTI (rev26a).lbr \| 153 KB KIC KiCad_WE-PPTI (rev25b).zip \| 2.9 MB CAD files ZIP IGS Download_IGS_070-6279 (rev1).IGS \| 1.7 MB STP Download_STEP_070-6279 (rev1).STEP \| 835.9 KB Electric models ZIP LT LTspice_WE-PPTI (rev25c).zip \| 29.6 KB PSP Pspice_WE-PPTI (rev25d).zip \| 26.3 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Input Voltage 5 V (DC)	Output Voltage 1 5 V (DC)	Output Current 1 330 mA	Type of Insulation Functional	Switching Frequency 100 - 500	Voltage-µSecond 42 Vµs	Turns Ratio 1:1	Inductance 635 µH	Insulation Test Voltage 2500 V (AC)	Length 7 mm	Width 9.1 mm	Height 7.8 mm	Mount SMT
750315072	5 V (DC), 3.3 V (DC), 600 mA	Downloads 8 files EDA models: Components ZIP ALT Altium_WE-PPTI (rev25a).IntLib \| 1.3 MB CDS Cadence_WE-PPTI (rev25a).zip \| 4.7 MB EAG Eagle_WE-PPTI (rev26a).lbr \| 153 KB KIC KiCad_WE-PPTI (rev25b).zip \| 2.9 MB CAD files ZIP IGS Download_IGS_070-6279 (rev1).IGS \| 1.7 MB STP Download_STEP_070-6279 (rev1).STEP \| 835.9 KB Electric models ZIP LT LTspice_WE-PPTI (rev25c).zip \| 29.6 KB PSP Pspice_WE-PPTI (rev25d).zip \| 26.3 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Input Voltage 5 V (DC)	Output Voltage 1 3.3 V (DC)	Output Current 1 600 mA	Type of Insulation Functional	Switching Frequency 100 - 500	Voltage-µSecond 42 Vµs	Turns Ratio 1.53:1	Inductance 635 µH	Insulation Test Voltage 2500 V (AC)	Length 7 mm	Width 9.1 mm	Height 7.8 mm	Mount SMT
760390012	5 V (DC), 5 V (DC), 750 mA	Downloads 8 files EDA models: Components ZIP ALT Altium_WE-PPTI (rev25a).IntLib \| 1.3 MB CDS Cadence_WE-PPTI (rev25a).zip \| 4.7 MB EAG Eagle_WE-PPTI (rev26a).lbr \| 153 KB KIC KiCad_WE-PPTI (rev25b).zip \| 2.9 MB CAD files ZIP IGS 250-1109 (rev1).IGS \| 1.3 MB STP 250-1109 (rev1).STEP \| 619.6 KB Electric models ZIP LT LTspice_WE-PPTI (rev25c).zip \| 29.6 KB PSP Pspice_WE-PPTI (rev25d).zip \| 26.3 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Input Voltage 5 V (DC)	Output Voltage 1 5 V (DC)	Output Current 1 750 mA	Type of Insulation Functional	Switching Frequency 300 - 620	Voltage-µSecond 11 Vµs	Turns Ratio 1:1.1	Inductance 475 µH	Insulation Test Voltage 2500 V (AC)	Length 6.73 mm	Width 10.2 mm	Height 4.19 mm	Mount SMT
760390014	5 V (DC), 5 V (DC), 600 mA	Downloads 8 files EDA models: Components ZIP ALT Altium_WE-PPTI (rev25a).IntLib \| 1.3 MB CDS Cadence_WE-PPTI (rev25a).zip \| 4.7 MB EAG Eagle_WE-PPTI (rev26a).lbr \| 153 KB KIC KiCad_WE-PPTI (rev25b).zip \| 2.9 MB CAD files ZIP IGS 250-1109 (rev1).IGS \| 1.3 MB STP 250-1109 (rev1).STEP \| 619.6 KB Electric models ZIP LT LTspice_WE-PPTI (rev25c).zip \| 29.6 KB PSP Pspice_WE-PPTI (rev25d).zip \| 26.3 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Input Voltage 5 V (DC)	Output Voltage 1 5 V (DC)	Output Current 1 600 mA	Type of Insulation Functional	Switching Frequency 300 - 620	Voltage-µSecond 11 Vµs	Turns Ratio 1:1.3	Inductance 475 µH	Insulation Test Voltage 2500 V (AC)	Length 6.73 mm	Width 10.2 mm	Height 4.19 mm	Mount SMT
750313734	5 V (DC), 5 V (DC), 800 mA	Downloads 8 files EDA models: Components ZIP ALT Altium_WE-PPTI (rev25a).IntLib \| 1.3 MB CDS Cadence_WE-PPTI (rev25a).zip \| 4.7 MB EAG Eagle_WE-PPTI (rev26a).lbr \| 153 KB KIC KiCad_WE-PPTI (rev25b).zip \| 2.9 MB CAD files ZIP IGS 250-1123 (rev1).IGS \| 971.3 KB STP 250-1123 (rev1).STEP \| 477.6 KB Electric models ZIP LT LTspice_WE-PPTI (rev25c).zip \| 29.6 KB PSP Pspice_WE-PPTI (rev25d).zip \| 26.3 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Input Voltage 5 V (DC)	Output Voltage 1 5 V (DC)	Output Current 1 800 mA	Type of Insulation Reinforced	Switching Frequency 300 - 620	Voltage-µSecond 10 Vµs	Turns Ratio 1:1.1	Inductance 340 µH	Insulation Test Voltage 5000 V (AC)	Length 9.14 mm	Width 12.7 mm	Height 7.62 mm	Mount SMT
750313638	5 V (DC), 5 V (DC), 650 mA	Downloads 8 files EDA models: Components ZIP ALT Altium_WE-PPTI (rev25a).IntLib \| 1.3 MB CDS Cadence_WE-PPTI (rev25a).zip \| 4.7 MB EAG Eagle_WE-PPTI (rev26a).lbr \| 153 KB KIC KiCad_WE-PPTI (rev25b).zip \| 2.9 MB CAD files ZIP IGS 250-1123 (rev1).IGS \| 971.3 KB STP 250-1123 (rev1).STEP \| 477.6 KB Electric models ZIP LT LTspice_WE-PPTI (rev25c).zip \| 29.6 KB PSP Pspice_WE-PPTI (rev25d).zip \| 26.3 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Input Voltage 5 V (DC)	Output Voltage 1 5 V (DC)	Output Current 1 650 mA	Type of Insulation Reinforced	Switching Frequency 300 - 620	Voltage-µSecond 10 Vµs	Turns Ratio 1:1.3	Inductance 340 µH	Insulation Test Voltage 5000 V (AC)	Length 9.14 mm	Width 12.7 mm	Height 7.62 mm	Mount SMT
750313710	5 V (DC), 3.3 V (DC), 650 mA	Downloads 8 files EDA models: Components ZIP ALT Altium_WE-PPTI (rev25a).IntLib \| 1.3 MB CDS Cadence_WE-PPTI (rev25a).zip \| 4.7 MB EAG Eagle_WE-PPTI (rev26a).lbr \| 153 KB KIC KiCad_WE-PPTI (rev25b).zip \| 2.9 MB CAD files ZIP IGS 250-1109 (rev1).IGS \| 1.3 MB STP 250-1109 (rev1).STEP \| 619.6 KB Electric models ZIP LT LTspice_WE-PPTI (rev25c).zip \| 29.6 KB PSP Pspice_WE-PPTI (rev25d).zip \| 26.3 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Input Voltage 5 V (DC)	Output Voltage 1 3.3 V (DC)	Output Current 1 650 mA	Type of Insulation Functional	Switching Frequency 250 - 620	Voltage-µSecond 11 Vµs	Turns Ratio 1.23:1	Inductance 475 µH	Insulation Test Voltage 2500 V (AC)	Length 6.73 mm	Width 10.2 mm	Height 4.19 mm	Mount SMT
750315229	5 V (DC), 5.8 V (DC), 900 mA	Downloads 8 files EDA models: Components ZIP ALT Altium_WE-PPTI (rev25a).IntLib \| 1.3 MB CDS Cadence_WE-PPTI (rev25a).zip \| 4.7 MB EAG Eagle_WE-PPTI (rev26a).lbr \| 153 KB KIC KiCad_WE-PPTI (rev25b).zip \| 2.9 MB CAD files ZIP IGS 250-1123 (rev1).IGS \| 971.3 KB STP 250-1123 (rev1).STEP \| 477.6 KB Electric models ZIP LT LTspice_WE-PPTI (rev25c).zip \| 29.6 KB PSP Pspice_WE-PPTI (rev25d).zip \| 26.3 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Input Voltage 5 V (DC)	Output Voltage 1 5.8 V (DC)	Output Current 1 900 mA	Type of Insulation Reinforced	Switching Frequency 350 - 550	Voltage-µSecond 8.8 Vµs	Turns Ratio 1:1.1	Inductance 384 µH	Insulation Test Voltage 5000 V (AC)	Length 9.14 mm	Width 12.7 mm	Height 7.62 mm	Mount SMT
750315240	5 V (DC), 5 V (DC), 1000 mA	Downloads 8 files EDA models: Components ZIP ALT Altium_WE-PPTI (rev25a).IntLib \| 1.3 MB CDS Cadence_WE-PPTI (rev25a).zip \| 4.7 MB EAG Eagle_WE-PPTI (rev26a).lbr \| 153 KB KIC KiCad_WE-PPTI (rev25b).zip \| 2.9 MB CAD files ZIP IGS Download_IGS_250-1243 (rev1).IGS \| 1000.9 KB STP Download_STP_250-1243 (rev1).STEP \| 491.7 KB Electric models ZIP LT LTspice_WE-PPTI (rev25c).zip \| 29.6 KB PSP Pspice_WE-PPTI (rev25d).zip \| 26.3 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Input Voltage 5 V (DC)	Output Voltage 1 5 V (DC)	Output Current 1 1000 mA	Type of Insulation Reinforced	Switching Frequency 150 - 800	Voltage-µSecond 46 Vµs	Turns Ratio 1:1.1	Inductance 440 µH	Insulation Test Voltage 5000 V (AC)	Length 12.32 mm	Width 15.41 mm	Height 11.89 mm	Mount SMT
750342879	5 V (DC), 17 V (DC), 250 mA	Downloads 8 files EDA models: Components ZIP ALT Altium_WE-PPTI (rev25a).IntLib \| 1.3 MB CDS Cadence_WE-PPTI (rev25a).zip \| 4.7 MB EAG Eagle_WE-PPTI (rev26a).lbr \| 153 KB KIC KiCad_WE-PPTI (rev25b).zip \| 2.9 MB CAD files ZIP IGS 250-1123 (rev1).IGS \| 971.3 KB STP 250-1123 (rev1).STEP \| 477.6 KB Electric models ZIP LT LTspice_WE-PPTI (rev25c).zip \| 29.6 KB PSP Pspice_WE-PPTI (rev25d).zip \| 26.3 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Input Voltage 5 V (DC)	Output Voltage 1 17 V (DC)	Output Current 1 250 mA	Type of Insulation Reinforced	Switching Frequency 420 - 700	Voltage-µSecond 9 Vµs	Turns Ratio 1:3.5	Inductance 200 µH	Insulation Test Voltage 5000 V (AC)	Length 9.14 mm	Width 12.7 mm	Height 7.62 mm	Mount SMT
750315230	5 V (DC), 6.9 V (DC), 750 mA	Downloads 8 files EDA models: Components ZIP ALT Altium_WE-PPTI (rev25a).IntLib \| 1.3 MB CDS Cadence_WE-PPTI (rev25a).zip \| 4.7 MB EAG Eagle_WE-PPTI (rev26a).lbr \| 153 KB KIC KiCad_WE-PPTI (rev25b).zip \| 2.9 MB CAD files ZIP IGS 250-1123 (rev1).IGS \| 971.3 KB STP 250-1123 (rev1).STEP \| 477.6 KB Electric models ZIP LT LTspice_WE-PPTI (rev25c).zip \| 29.6 KB PSP Pspice_WE-PPTI (rev25d).zip \| 26.3 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Input Voltage 5 V (DC)	Output Voltage 1 6.9 V (DC)	Output Current 1 750 mA	Type of Insulation Reinforced	Switching Frequency 350 - 550	Voltage-µSecond 8.8 Vµs	Turns Ratio 1:1.4	Inductance 384 µH	Insulation Test Voltage 5000 V (AC)	Length 9.14 mm	Width 12.7 mm	Height 7.62 mm	Mount SMT
750343341	5 V (DC), 12.5 V (DC), 350 mA	Downloads 8 files EDA models: Components ZIP ALT Altium_WE-PPTI (rev25a).IntLib \| 1.3 MB CDS Cadence_WE-PPTI (rev25a).zip \| 4.7 MB EAG Eagle_WE-PPTI (rev26a).lbr \| 153 KB KIC KiCad_WE-PPTI (rev25b).zip \| 2.9 MB CAD files ZIP IGS 250-1123 (rev1).IGS \| 971.3 KB STP 250-1123 (rev1).STEP \| 477.6 KB Electric models ZIP LT LTspice_WE-PPTI (rev25c).zip \| 29.6 KB PSP Pspice_WE-PPTI (rev25d).zip \| 26.3 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Input Voltage 5 V (DC)	Output Voltage 1 12.5 V (DC)	Output Current 1 350 mA	Type of Insulation Reinforced	Switching Frequency 400 - 700	Voltage-µSecond 7.8 Vµs	Turns Ratio 1:2.6	Inductance 152 µH	Insulation Test Voltage 5000 V (AC)	Length 9.14 mm	Width 12.7 mm	Height 7.62 mm	Mount SMT
750316854	5 V (DC), 12 V (DC), 380 mA	Downloads 8 files EDA models: Components ZIP ALT Altium_WE-PPTI (rev25a).IntLib \| 1.3 MB CDS Cadence_WE-PPTI (rev25a).zip \| 4.7 MB EAG Eagle_WE-PPTI (rev26a).lbr \| 153 KB KIC KiCad_WE-PPTI (rev25b).zip \| 2.9 MB CAD files ZIP IGS Download_IGS_250-1268 (rev1).IGS \| 1.3 MB STP Download_STP_250-1268 (rev1).STEP \| 581.8 KB Electric models ZIP LT LTspice_WE-PPTI (rev25c).zip \| 29.6 KB PSP Pspice_WE-PPTI (rev25d).zip \| 26.3 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Input Voltage 5 V (DC)	Output Voltage 1 12 V (DC)	Output Current 1 380 mA	Type of Insulation Supplementary	Switching Frequency 200 - 600	Voltage-µSecond 15 Vµs	Turns Ratio 1:2.5	Inductance 200 µH	Insulation Test Voltage 2500 V (AC)	Length 8.3 mm	Width 14.75 mm	Height 4.2 mm	Mount SMT
750316856	5 V (DC), 23 V (DC), 180 mA	Downloads 8 files EDA models: Components ZIP ALT Altium_WE-PPTI (rev25a).IntLib \| 1.3 MB CDS Cadence_WE-PPTI (rev25a).zip \| 4.7 MB EAG Eagle_WE-PPTI (rev26a).lbr \| 153 KB KIC KiCad_WE-PPTI (rev25b).zip \| 2.9 MB CAD files ZIP IGS Download_IGS_250-1268 (rev1).IGS \| 1.3 MB STP Download_STP_250-1268 (rev1).STEP \| 581.8 KB Electric models ZIP LT LTspice_WE-PPTI (rev25c).zip \| 29.6 KB PSP Pspice_WE-PPTI (rev25d).zip \| 26.3 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Input Voltage 5 V (DC)	Output Voltage 1 23 V (DC)	Output Current 1 180 mA	Type of Insulation Supplementary	Switching Frequency 200 - 600	Voltage-µSecond 15 Vµs	Turns Ratio 1:4.67	Inductance 200 µH	Insulation Test Voltage 2500 V (AC)	Length 8.3 mm	Width 14.75 mm	Height 4.2 mm	Mount SMT
750316886	5 V (DC), 5 V (DC), 950 mA	Downloads 8 files EDA models: Components ZIP ALT Altium_WE-PPTI (rev25a).IntLib \| 1.3 MB CDS Cadence_WE-PPTI (rev25a).zip \| 4.7 MB EAG Eagle_WE-PPTI (rev26a).lbr \| 153 KB KIC KiCad_WE-PPTI (rev25b).zip \| 2.9 MB CAD files ZIP IGS Download_IGS_250-1268 (rev1).IGS \| 1.3 MB STP Download_STP_250-1268 (rev1).STEP \| 581.8 KB Electric models ZIP LT LTspice_WE-PPTI (rev25c).zip \| 29.6 KB PSP Pspice_WE-PPTI (rev25d).zip \| 26.3 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Input Voltage 5 V (DC)	Output Voltage 1 5 V (DC)	Output Current 1 950 mA	Type of Insulation Supplementary	Switching Frequency 200 - 400	Voltage-µSecond 15 Vµs	Turns Ratio 1:1.17	Inductance 200 µH	Insulation Test Voltage 2500 V (AC)	Length 8.3 mm	Width 14.75 mm	Height 4.2 mm	Mount SMT
750316888	5 V (DC), 3.3 V (DC), 1100 mA	Downloads 8 files EDA models: Components ZIP ALT Altium_WE-PPTI (rev25a).IntLib \| 1.3 MB CDS Cadence_WE-PPTI (rev25a).zip \| 4.7 MB EAG Eagle_WE-PPTI (rev26a).lbr \| 153 KB KIC KiCad_WE-PPTI (rev25b).zip \| 2.9 MB CAD files ZIP IGS Download_IGS_250-1268 (rev1).IGS \| 1.3 MB STP Download_STP_250-1268 (rev1).STEP \| 581.8 KB Electric models ZIP LT LTspice_WE-PPTI (rev25c).zip \| 29.6 KB PSP Pspice_WE-PPTI (rev25d).zip \| 26.3 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Input Voltage 5 V (DC)	Output Voltage 1 3.3 V (DC)	Output Current 1 1100 mA	Type of Insulation Supplementary	Switching Frequency 200 - 600	Voltage-µSecond 15 Vµs	Turns Ratio 1.2:1	Inductance 200 µH	Insulation Test Voltage 2500 V (AC)	Length 8.3 mm	Width 14.75 mm	Height 4.2 mm	Mount SMT
750311542	5 V (DC), 12 V (DC), 450 mA	Downloads 8 files EDA models: Components ZIP ALT Altium_WE-PPTI (rev25a).IntLib \| 1.3 MB CDS Cadence_WE-PPTI (rev25a).zip \| 4.7 MB EAG Eagle_WE-PPTI (rev26a).lbr \| 153 KB KIC KiCad_WE-PPTI (rev25b).zip \| 2.9 MB CAD files ZIP IGS 070-4426 (rev1).IGS \| 1.3 MB STP 070-4426 (rev1).STEP \| 654.2 KB Electric models ZIP LT LTspice_WE-PPTI (rev25c).zip \| 29.6 KB PSP Pspice_WE-PPTI (rev25d).zip \| 26.3 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Input Voltage 5 V (DC)	Output Voltage 1 12 V (DC)	Output Current 1 450 mA	Type of Insulation Functional	Switching Frequency 100 - 500	Voltage-µSecond 9 Vµs	Turns Ratio 1:2.73	Inductance 500 µH	Insulation Test Voltage 1000 V (AC)	Length 6.6 mm	Width 8.26 mm	Height 5.59 mm	Mount SMT
750031160	5 V (DC), 12 V (DC), 350 mA	Downloads 8 files EDA models: Components ZIP ALT Altium_WE-PPTI (rev25a).IntLib \| 1.3 MB CDS Cadence_WE-PPTI (rev25a).zip \| 4.7 MB EAG Eagle_WE-PPTI (rev26a).lbr \| 153 KB KIC KiCad_WE-PPTI (rev25b).zip \| 2.9 MB CAD files ZIP IGS Download_IGS_070-4215 (rev1).IGS \| 1.5 MB STP Download_STP_070-4215_0166 (rev1).STEP \| 768 KB Electric models ZIP LT LTspice_WE-PPTI (rev25c).zip \| 29.6 KB PSP Pspice_WE-PPTI (rev25d).zip \| 26.3 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Input Voltage 5 V (DC)	Output Voltage 1 12 V (DC)	Output Current 1 350 mA	Type of Insulation Functional	Switching Frequency 100 - 500	Voltage-µSecond 9 Vµs	Turns Ratio 1:2.7	Inductance 500 µH	Insulation Test Voltage 1000 V (AC)	Length 6.1 mm	Width 8.76 mm	Height 6.35 mm	Mount SMT
750316819	5 V (DC), 12 V (DC), 460 mA	Downloads 8 files EDA models: Components ZIP ALT Altium_WE-PPTI (rev25a).IntLib \| 1.3 MB CDS Cadence_WE-PPTI (rev25a).zip \| 4.7 MB EAG Eagle_WE-PPTI (rev26a).lbr \| 153 KB KIC KiCad_WE-PPTI (rev25b).zip \| 2.9 MB CAD files ZIP IGS Download_IGS_250-1201 (rev1).IGS \| 1.3 MB STP STP_250-1201 (rev1).STEP \| 583.9 KB Electric models ZIP LT LTspice_WE-PPTI (rev25c).zip \| 29.6 KB PSP Pspice_WE-PPTI (rev25d).zip \| 26.3 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Input Voltage 5 V (DC)	Output Voltage 1 12 V (DC)	Output Current 1 460 mA	Type of Insulation Functional	Switching Frequency 400 - 700	Voltage-µSecond 9 Vµs	Turns Ratio 1:2.88	Inductance 86 µH	Insulation Test Voltage 2500 V (AC)	Length 8.3 mm	Width 12.6 mm	Height 4.1 mm	Mount SMT
750316818	5 V (DC), 17 V (DC), 380 mA	Downloads 8 files EDA models: Components ZIP ALT Altium_WE-PPTI (rev25a).IntLib \| 1.3 MB CDS Cadence_WE-PPTI (rev25a).zip \| 4.7 MB EAG Eagle_WE-PPTI (rev26a).lbr \| 153 KB KIC KiCad_WE-PPTI (rev25b).zip \| 2.9 MB CAD files ZIP IGS Download_IGS_250-1201 (rev1).IGS \| 1.3 MB STP STP_250-1201 (rev1).STEP \| 583.9 KB Electric models ZIP LT LTspice_WE-PPTI (rev25c).zip \| 29.6 KB PSP Pspice_WE-PPTI (rev25d).zip \| 26.3 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Input Voltage 5 V (DC)	Output Voltage 1 17 V (DC)	Output Current 1 380 mA	Type of Insulation Functional	Switching Frequency 400 - 700	Voltage-µSecond 9 Vµs	Turns Ratio 1:3.5	Inductance 86 µH	Insulation Test Voltage 2500 V (AC)	Length 8.3 mm	Width 12.6 mm	Height 4.1 mm	Mount SMT
750316769	5 V (DC), 15 V (DC), 250 mA	Downloads 8 files EDA models: Components ZIP ALT Altium_WE-PPTI (rev25a).IntLib \| 1.3 MB CDS Cadence_WE-PPTI (rev25a).zip \| 4.7 MB EAG Eagle_WE-PPTI (rev26a).lbr \| 153 KB KIC KiCad_WE-PPTI (rev25b).zip \| 2.9 MB CAD files ZIP IGS 250-1109 (rev1).IGS \| 1.3 MB STP 250-1109 (rev1).STEP \| 619.6 KB Electric models ZIP LT LTspice_WE-PPTI (rev25c).zip \| 29.6 KB PSP Pspice_WE-PPTI (rev25d).zip \| 26.3 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Input Voltage 5 V (DC)	Output Voltage 1 15 V (DC)	Output Current 1 250 mA	Type of Insulation Functional	Switching Frequency 300 - 620	Voltage-µSecond 9 Vµs	Turns Ratio 1:3.45	Inductance 350 µH	Insulation Test Voltage 2500 V (AC)	Length 6.73 mm	Width 10.2 mm	Height 4.19 mm	Mount SMT
750316770	5 V (DC), 12 V (DC), 280 mA	Downloads 8 files EDA models: Components ZIP ALT Altium_WE-PPTI (rev25a).IntLib \| 1.3 MB CDS Cadence_WE-PPTI (rev25a).zip \| 4.7 MB EAG Eagle_WE-PPTI (rev26a).lbr \| 153 KB KIC KiCad_WE-PPTI (rev25b).zip \| 2.9 MB CAD files ZIP IGS 250-1109 (rev1).IGS \| 1.3 MB STP 250-1109 (rev1).STEP \| 619.6 KB Electric models ZIP LT LTspice_WE-PPTI (rev25c).zip \| 29.6 KB PSP Pspice_WE-PPTI (rev25d).zip \| 26.3 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Input Voltage 5 V (DC)	Output Voltage 1 12 V (DC)	Output Current 1 280 mA	Type of Insulation Functional	Switching Frequency 300 - 620	Voltage-µSecond 9 Vµs	Turns Ratio 1:2.91	Inductance 350 µH	Insulation Test Voltage 2500 V (AC)	Length 6.73 mm	Width 10.2 mm	Height 4.19 mm	Mount SMT
750343725	5 V (DC), 19.5 V (DC), 250 mA	Downloads 8 files EDA models: Components ZIP ALT Altium_WE-PPTI (rev25a).IntLib \| 1.3 MB CDS Cadence_WE-PPTI (rev25a).zip \| 4.7 MB EAG Eagle_WE-PPTI (rev26a).lbr \| 153 KB KIC KiCad_WE-PPTI (rev25b).zip \| 2.9 MB CAD files ZIP IGS 250-1123 (rev1).IGS \| 971.3 KB STP 250-1123 (rev1).STEP \| 477.6 KB Electric models ZIP LT LTspice_WE-PPTI (rev25c).zip \| 29.6 KB PSP Pspice_WE-PPTI (rev25d).zip \| 26.3 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Input Voltage 5 V (DC)	Output Voltage 1 19.5 V (DC)	Output Current 1 250 mA	Type of Insulation Reinforced	Switching Frequency 420 - 700	Voltage-µSecond 9 Vµs	Turns Ratio 1:3.9	Inductance 250 µH	Insulation Test Voltage 5000 V (AC)	Length 9.14 mm	Width 12.7 mm	Height 7.62 mm	Mount SMT
750317722	5 V (DC), 19 V (DC), 225 mA	Downloads 8 files EDA models: Components ZIP ALT Altium_WE-PPTI (rev25a).IntLib \| 1.3 MB CDS Cadence_WE-PPTI (rev25a).zip \| 4.7 MB EAG Eagle_WE-PPTI (rev26a).lbr \| 153 KB KIC KiCad_WE-PPTI (rev25b).zip \| 2.9 MB CAD files ZIP IGS 250-1109 (rev1).IGS \| 1.3 MB STP 250-1109 (rev1).STEP \| 619.6 KB Electric models ZIP LT LTspice_WE-PPTI (rev25c).zip \| 29.6 KB PSP Pspice_WE-PPTI (rev25d).zip \| 26.3 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Input Voltage 5 V (DC)	Output Voltage 1 19 V (DC)	Output Current 1 225 mA	Type of Insulation Functional	Switching Frequency 350 - 500	Voltage-µSecond 10 Vµs	Turns Ratio 1:3.91	Inductance 320 µH	Insulation Test Voltage 2500 V (AC)	Length 6.73 mm	Width 10.2 mm	Height 4.19 mm	Mount SMT
750320340	5 V (DC), 17 V (DC), 250 mA	Downloads 8 files EDA models: Components ZIP ALT Altium_WE-PPTI (rev25a).IntLib \| 1.3 MB CDS Cadence_WE-PPTI (rev25a).zip \| 4.7 MB EAG Eagle_WE-PPTI (rev26a).lbr \| 153 KB KIC KiCad_WE-PPTI (rev25b).zip \| 2.9 MB CAD files ZIP IGS 250-1123 (rev1).IGS \| 971.3 KB STP 250-1123 (rev1).STEP \| 477.6 KB Electric models ZIP LT LTspice_WE-PPTI (rev25c).zip \| 29.6 KB PSP Pspice_WE-PPTI (rev25d).zip \| 26.3 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Input Voltage 5 V (DC)	Output Voltage 1 17 V (DC)	Output Current 1 250 mA	Type of Insulation Reinforced	Switching Frequency 220 - 700	Voltage-µSecond 16 Vµs	Turns Ratio 1:3.5	Inductance 200 µH	Insulation Test Voltage 6000 V (AC)	Length 9.14 mm	Width 12.7 mm	Height 7.62 mm	Mount SMT
750314781	10 - 15 V (DC), 12 V (DC), 500 mA	Downloads 8 files EDA models: Components ZIP ALT Altium_WE-PPTI (rev25a).IntLib \| 1.3 MB CDS Cadence_WE-PPTI (rev25a).zip \| 4.7 MB EAG Eagle_WE-PPTI (rev26a).lbr \| 153 KB KIC KiCad_WE-PPTI (rev25b).zip \| 2.9 MB CAD files ZIP IGS 070-4436 (rev1).IGS \| 1.6 MB STP 070-4436 (rev1).STEP \| 793 KB Electric models ZIP LT LTspice_WE-PPTI (rev25c).zip \| 29.6 KB PSP Pspice_WE-PPTI (rev25d).zip \| 26.3 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Input Voltage 10 - 15 V (DC)	Output Voltage 1 12 V (DC)	Output Current 1 500 mA	Type of Insulation Functional	Switching Frequency 1000 - 1500	Voltage-µSecond 68 Vµs	Turns Ratio 1:2	Inductance 160 µH	Insulation Test Voltage 1000 V (AC)	Length 9.78 mm	Width 9.14 mm	Height 10.54 mm	Mount SMT
750317829	12 V (DC), 12 V (DC), 300 mA	Downloads 8 files EDA models: Components ZIP ALT Altium_WE-PPTI (rev25a).IntLib \| 1.3 MB CDS Cadence_WE-PPTI (rev25a).zip \| 4.7 MB EAG Eagle_WE-PPTI (rev26a).lbr \| 153 KB KIC KiCad_WE-PPTI (rev25b).zip \| 2.9 MB CAD files ZIP IGS Download_IGS_250-1410 (rev1).IGS \| 1.1 MB STP Download_STP_250-1410 (rev1).STEP \| 476.7 KB Electric models ZIP LT LTspice_WE-PPTI (rev25c).zip \| 29.6 KB PSP Pspice_WE-PPTI (rev25d).zip \| 26.3 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Input Voltage 12 V (DC)	Output Voltage 1 12 V (DC)	Output Current 1 300 mA	Type of Insulation Functional	Switching Frequency 300 - 620	Voltage-µSecond 24 Vµs	Turns Ratio 1:1.05	Inductance 1920 µH	Insulation Test Voltage 2500 V (AC)	Length 6.73 mm	Width 10.2 mm	Height 4.67 mm	Mount SMT
750317830	12 V (DC), 5 V (DC), 700 mA	Downloads 8 files EDA models: Components ZIP ALT Altium_WE-PPTI (rev25a).IntLib \| 1.3 MB CDS Cadence_WE-PPTI (rev25a).zip \| 4.7 MB EAG Eagle_WE-PPTI (rev26a).lbr \| 153 KB KIC KiCad_WE-PPTI (rev25b).zip \| 2.9 MB CAD files ZIP IGS Download_IGS_250-1410 (rev1).IGS \| 1.1 MB STP Download_STP_250-1410 (rev1).STEP \| 476.7 KB Electric models ZIP LT LTspice_WE-PPTI (rev25c).zip \| 29.6 KB PSP Pspice_WE-PPTI (rev25d).zip \| 26.3 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Input Voltage 12 V (DC)	Output Voltage 1 5 V (DC)	Output Current 1 700 mA	Type of Insulation Functional	Switching Frequency 300 - 620	Voltage-µSecond 24 Vµs	Turns Ratio 2.2:1	Inductance 1920 µH	Insulation Test Voltage 2500 V (AC)	Length 6.73 mm	Width 10.2 mm	Height 4.67 mm	Mount SMT
750319692	12 V (DC), 15 V (DC), 400 mA	Downloads 8 files EDA models: Components ZIP ALT Altium_WE-PPTI (rev25a).IntLib \| 1.3 MB CDS Cadence_WE-PPTI (rev25a).zip \| 4.7 MB EAG Eagle_WE-PPTI (rev26a).lbr \| 153 KB KIC KiCad_WE-PPTI (rev25b).zip \| 2.9 MB CAD files ZIP IGS IGS_WE-PPTI_1308 (rev1).igs \| 3.3 MB STP STP_WE-PPTI_1308 (rev1).STEP \| 633.3 KB Electric models ZIP LT LTspice_WE-PPTI (rev25c).zip \| 29.6 KB PSP Pspice_WE-PPTI (rev25d).zip \| 26.3 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Input Voltage 12 V (DC)	Output Voltage 1 15 V (DC)	Output Current 1 400 mA	Type of Insulation Functional	Switching Frequency 400 - 600	Voltage-µSecond 23 Vµs	Turns Ratio 1:1.33	Inductance 260 µH	Insulation Test Voltage 2500 V (AC)	Length 8.5 mm	Width 13.12 mm	Height 5.5 mm	Mount SMT
750319949	12 V (DC), 30 V (DC), 250 mA	Downloads 8 files EDA models: Components ZIP ALT Altium_WE-PPTI (rev25a).IntLib \| 1.3 MB CDS Cadence_WE-PPTI (rev25a).zip \| 4.7 MB EAG Eagle_WE-PPTI (rev26a).lbr \| 153 KB KIC KiCad_WE-PPTI (rev25b).zip \| 2.9 MB CAD files ZIP IGS IGS_WE-PPTI_1308 (rev1).igs \| 3.3 MB STP STP_WE-PPTI_1308 (rev1).STEP \| 633.3 KB Electric models ZIP LT LTspice_WE-PPTI (rev25c).zip \| 29.6 KB PSP Pspice_WE-PPTI (rev25d).zip \| 26.3 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Input Voltage 12 V (DC)	Output Voltage 1 30 V (DC)	Output Current 1 250 mA	Type of Insulation Functional	Switching Frequency 400 - 600	Voltage-µSecond 30 Vµs	Turns Ratio 1:2.75	Inductance 350 µH	Insulation Test Voltage 2500 V (AC)	Length 8.5 mm	Width 13.12 mm	Height 5.5 mm	Mount SMT
750319690	12 V (DC), 5 V (DC), 700 mA	Downloads 8 files EDA models: Components ZIP ALT Altium_WE-PPTI (rev25a).IntLib \| 1.3 MB CDS Cadence_WE-PPTI (rev25a).zip \| 4.7 MB EAG Eagle_WE-PPTI (rev26a).lbr \| 153 KB KIC KiCad_WE-PPTI (rev25b).zip \| 2.9 MB CAD files ZIP IGS IGS_WE-PPTI_1308 (rev1).igs \| 3.3 MB STP STP_WE-PPTI_1308 (rev1).STEP \| 633.3 KB Electric models ZIP LT LTspice_WE-PPTI (rev25c).zip \| 29.6 KB PSP Pspice_WE-PPTI (rev25d).zip \| 26.3 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Input Voltage 12 V (DC)	Output Voltage 1 5 V (DC)	Output Current 1 700 mA	Type of Insulation Functional	Switching Frequency 400 - 600	Voltage-µSecond 18 Vµs	Turns Ratio 1.75:1	Inductance 100 µH	Insulation Test Voltage 2500 V (AC)	Length 8.5 mm	Width 13.12 mm	Height 5.5 mm	Mount SMT
750319691	12 V (DC), 12 V (DC), 500 mA	Downloads 8 files EDA models: Components ZIP ALT Altium_WE-PPTI (rev25a).IntLib \| 1.3 MB CDS Cadence_WE-PPTI (rev25a).zip \| 4.7 MB EAG Eagle_WE-PPTI (rev26a).lbr \| 153 KB KIC KiCad_WE-PPTI (rev25b).zip \| 2.9 MB CAD files ZIP IGS IGS_WE-PPTI_1308 (rev1).igs \| 3.3 MB STP STP_WE-PPTI_1308 (rev1).STEP \| 633.3 KB Electric models ZIP LT LTspice_WE-PPTI (rev25c).zip \| 29.6 KB PSP Pspice_WE-PPTI (rev25d).zip \| 26.3 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Input Voltage 12 V (DC)	Output Voltage 1 12 V (DC)	Output Current 1 500 mA	Type of Insulation Functional	Switching Frequency 400 - 600	Voltage-µSecond 18 Vµs	Turns Ratio 1:1.14	Inductance 100 µH	Insulation Test Voltage 2500 V (AC)	Length 8.5 mm	Width 13.12 mm	Height 5.5 mm	Mount SMT
750319693	12 V (DC), 24 V (DC), 400 mA	Downloads 8 files EDA models: Components ZIP ALT Altium_WE-PPTI (rev25a).IntLib \| 1.3 MB CDS Cadence_WE-PPTI (rev25a).zip \| 4.7 MB EAG Eagle_WE-PPTI (rev26a).lbr \| 153 KB KIC KiCad_WE-PPTI (rev25b).zip \| 2.9 MB CAD files ZIP IGS IGS_WE-PPTI_1308 (rev1).igs \| 3.3 MB STP STP_WE-PPTI_1308 (rev1).STEP \| 633.3 KB Electric models ZIP LT LTspice_WE-PPTI (rev25c).zip \| 29.6 KB PSP Pspice_WE-PPTI (rev25d).zip \| 26.3 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Input Voltage 12 V (DC)	Output Voltage 1 24 V (DC)	Output Current 1 400 mA	Type of Insulation Functional	Switching Frequency 400 - 600	Voltage-µSecond 18 Vµs	Turns Ratio 1:2.29	Inductance 100 µH	Insulation Test Voltage 2500 V (AC)	Length 8.5 mm	Width 13.12 mm	Height 5.5 mm	Mount SMT
750320324	12 V (DC), 3.3 V (DC), 1100 mA	Downloads 8 files EDA models: Components ZIP ALT Altium_WE-PPTI (rev25a).IntLib \| 1.3 MB CDS Cadence_WE-PPTI (rev25a).zip \| 4.7 MB EAG Eagle_WE-PPTI (rev26a).lbr \| 153 KB KIC KiCad_WE-PPTI (rev25b).zip \| 2.9 MB CAD files ZIP IGS IGS_WE-PPTI_1308 (rev1).igs \| 3.3 MB STP STP_WE-PPTI_1308 (rev1).STEP \| 633.3 KB Electric models ZIP LT LTspice_WE-PPTI (rev25c).zip \| 29.6 KB PSP Pspice_WE-PPTI (rev25d).zip \| 26.3 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Input Voltage 12 V (DC)	Output Voltage 1 3.3 V (DC)	Output Current 1 1100 mA	Type of Insulation Functional	Switching Frequency 400 - 600	Voltage-µSecond 30 Vµs	Turns Ratio 2.4:1	Inductance 450 µH	Insulation Test Voltage 2500 V (AC)	Length 8.5 mm	Width 13.12 mm	Height 5.5 mm	Mount SMT
750315213	24 V (DC), 24 V (DC), 600 mA	Downloads 8 files EDA models: Components ZIP ALT Altium_WE-PPTI (rev25a).IntLib \| 1.3 MB CDS Cadence_WE-PPTI (rev25a).zip \| 4.7 MB EAG Eagle_WE-PPTI (rev26a).lbr \| 153 KB KIC KiCad_WE-PPTI (rev25b).zip \| 2.9 MB CAD files ZIP IGS 070-4436 (rev1).IGS \| 1.6 MB STP 070-4436 (rev1).STEP \| 793 KB Electric models ZIP LT LTspice_WE-PPTI (rev25c).zip \| 29.6 KB PSP Pspice_WE-PPTI (rev25d).zip \| 26.3 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Input Voltage 24 V (DC)	Output Voltage 1 24 V (DC)	Output Current 1 600 mA	Type of Insulation Functional	Switching Frequency 150 - 500	Voltage-µSecond 100 Vµs	Turns Ratio 1:1	Inductance 563 µH	Insulation Test Voltage 3125 V (AC)	Length 9.78 mm	Width 9.14 mm	Height 10.54 mm	Mount SMT
750315214	24 V (DC), 5 V (DC), 2000 mA	Downloads 8 files EDA models: Components ZIP ALT Altium_WE-PPTI (rev25a).IntLib \| 1.3 MB CDS Cadence_WE-PPTI (rev25a).zip \| 4.7 MB EAG Eagle_WE-PPTI (rev26a).lbr \| 153 KB KIC KiCad_WE-PPTI (rev25b).zip \| 2.9 MB CAD files ZIP IGS 070-4436 (rev1).IGS \| 1.6 MB STP 070-4436 (rev1).STEP \| 793 KB Electric models ZIP LT LTspice_WE-PPTI (rev25c).zip \| 29.6 KB PSP Pspice_WE-PPTI (rev25d).zip \| 26.3 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Input Voltage 24 V (DC)	Output Voltage 1 5 V (DC)	Output Current 1 2000 mA	Type of Insulation Functional	Switching Frequency 150 - 500	Voltage-µSecond 100 Vµs	Turns Ratio 4:1	Inductance 563 µH	Insulation Test Voltage 3125 V (AC)	Length 9.78 mm	Width 9.14 mm	Height 10.54 mm	Mount SMT
750317331	24 V (DC), 12 V (DC), 500 mA	Downloads 8 files EDA models: Components ZIP ALT Altium_WE-PPTI (rev25a).IntLib \| 1.3 MB CDS Cadence_WE-PPTI (rev25a).zip \| 4.7 MB EAG Eagle_WE-PPTI (rev26a).lbr \| 153 KB KIC KiCad_WE-PPTI (rev25b).zip \| 2.9 MB CAD files ZIP IGS Download_IGS_250-1410 (rev1).IGS \| 1.1 MB STP Download_STP_250-1410 (rev1).STEP \| 476.7 KB Electric models ZIP LT LTspice_WE-PPTI (rev25c).zip \| 29.6 KB PSP Pspice_WE-PPTI (rev25d).zip \| 26.3 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Input Voltage 24 V (DC)	Output Voltage 1 12 V (DC)	Output Current 1 500 mA	Type of Insulation Functional	Switching Frequency 350 - 620	Voltage-µSecond 41 Vµs	Turns Ratio 1.94:1	Inductance 4000 µH	Insulation Test Voltage 2500 V (AC)	Length 6.73 mm	Width 10.2 mm	Height 4.67 mm	Mount SMT
750317828	24 V (DC), 5 V (DC), 800 mA	Downloads 8 files EDA models: Components ZIP ALT Altium_WE-PPTI (rev25a).IntLib \| 1.3 MB CDS Cadence_WE-PPTI (rev25a).zip \| 4.7 MB EAG Eagle_WE-PPTI (rev26a).lbr \| 153 KB KIC KiCad_WE-PPTI (rev25b).zip \| 2.9 MB CAD files ZIP IGS Download_IGS_250-1410 (rev1).IGS \| 1.1 MB STP Download_STP_250-1410 (rev1).STEP \| 476.7 KB Electric models ZIP LT LTspice_WE-PPTI (rev25c).zip \| 29.6 KB PSP Pspice_WE-PPTI (rev25d).zip \| 26.3 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Input Voltage 24 V (DC)	Output Voltage 1 5 V (DC)	Output Current 1 800 mA	Type of Insulation Functional	Switching Frequency 350 - 620	Voltage-µSecond 41 Vµs	Turns Ratio 4.43:1	Inductance 4000 µH	Insulation Test Voltage 2500 V (AC)	Length 6.73 mm	Width 10.2 mm	Height 4.67 mm	Mount SMT
750319696	24 V (DC), 15 V (DC), 400 mA	Downloads 8 files EDA models: Components ZIP ALT Altium_WE-PPTI (rev25a).IntLib \| 1.3 MB CDS Cadence_WE-PPTI (rev25a).zip \| 4.7 MB EAG Eagle_WE-PPTI (rev26a).lbr \| 153 KB KIC KiCad_WE-PPTI (rev25b).zip \| 2.9 MB CAD files ZIP IGS IGS_WE-PPTI_1308 (rev1).igs \| 3.3 MB STP STP_WE-PPTI_1308 (rev1).STEP \| 633.3 KB Electric models ZIP LT LTspice_WE-PPTI (rev25c).zip \| 29.6 KB PSP Pspice_WE-PPTI (rev25d).zip \| 26.3 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Input Voltage 24 V (DC)	Output Voltage 1 15 V (DC)	Output Current 1 400 mA	Type of Insulation Functional	Switching Frequency 400 - 600	Voltage-µSecond 36 Vµs	Turns Ratio 1.4:1	Inductance 500 µH	Insulation Test Voltage 2500 V (AC)	Length 8.5 mm	Width 13.12 mm	Height 5.5 mm	Mount SMT
750319948	24 V (DC), 30 V (DC), 200 mA	Downloads 8 files EDA models: Components ZIP ALT Altium_WE-PPTI (rev25a).IntLib \| 1.3 MB CDS Cadence_WE-PPTI (rev25a).zip \| 4.7 MB EAG Eagle_WE-PPTI (rev26a).lbr \| 153 KB KIC KiCad_WE-PPTI (rev25b).zip \| 2.9 MB CAD files ZIP IGS IGS_WE-PPTI_1308 (rev1).igs \| 3.3 MB STP STP_WE-PPTI_1308 (rev1).STEP \| 633.3 KB Electric models ZIP LT LTspice_WE-PPTI (rev25c).zip \| 29.6 KB PSP Pspice_WE-PPTI (rev25d).zip \| 26.3 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Input Voltage 24 V (DC)	Output Voltage 1 30 V (DC)	Output Current 1 200 mA	Type of Insulation Functional	Switching Frequency 400 - 600	Voltage-µSecond 36 Vµs	Turns Ratio 1:1.36	Inductance 600 µH	Insulation Test Voltage 2500 V (AC)	Length 8.5 mm	Width 13.12 mm	Height 5.5 mm	Mount SMT
750319694	24 V (DC), 5 V (DC), 750 mA	Downloads 8 files EDA models: Components ZIP ALT Altium_WE-PPTI (rev25a).IntLib \| 1.3 MB CDS Cadence_WE-PPTI (rev25a).zip \| 4.7 MB EAG Eagle_WE-PPTI (rev26a).lbr \| 153 KB KIC KiCad_WE-PPTI (rev25b).zip \| 2.9 MB CAD files ZIP IGS IGS_WE-PPTI_1308 (rev1).igs \| 3.3 MB STP STP_WE-PPTI_1308 (rev1).STEP \| 633.3 KB Electric models ZIP LT LTspice_WE-PPTI (rev25c).zip \| 29.6 KB PSP Pspice_WE-PPTI (rev25d).zip \| 26.3 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Input Voltage 24 V (DC)	Output Voltage 1 5 V (DC)	Output Current 1 750 mA	Type of Insulation Functional	Switching Frequency 400 - 600	Voltage-µSecond 40 Vµs	Turns Ratio 4:1	Inductance 600 µH	Insulation Test Voltage 2500 V (AC)	Length 8.5 mm	Width 13.12 mm	Height 5.5 mm	Mount SMT
750319695	24 V (DC), 12 V (DC), 500 mA	Downloads 8 files EDA models: Components ZIP ALT Altium_WE-PPTI (rev25a).IntLib \| 1.3 MB CDS Cadence_WE-PPTI (rev25a).zip \| 4.7 MB EAG Eagle_WE-PPTI (rev26a).lbr \| 153 KB KIC KiCad_WE-PPTI (rev25b).zip \| 2.9 MB CAD files ZIP IGS IGS_WE-PPTI_1308 (rev1).igs \| 3.3 MB STP STP_WE-PPTI_1308 (rev1).STEP \| 633.3 KB Electric models ZIP LT LTspice_WE-PPTI (rev25c).zip \| 29.6 KB PSP Pspice_WE-PPTI (rev25d).zip \| 26.3 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Input Voltage 24 V (DC)	Output Voltage 1 12 V (DC)	Output Current 1 500 mA	Type of Insulation Functional	Switching Frequency 400 - 600	Voltage-µSecond 36 Vµs	Turns Ratio 1.75:1	Inductance 600 µH	Insulation Test Voltage 2500 V (AC)	Length 8.5 mm	Width 13.12 mm	Height 5.5 mm	Mount SMT
750319697	24 V (DC), 24 V (DC), 250 mA	Downloads 8 files EDA models: Components ZIP ALT Altium_WE-PPTI (rev25a).IntLib \| 1.3 MB CDS Cadence_WE-PPTI (rev25a).zip \| 4.7 MB EAG Eagle_WE-PPTI (rev26a).lbr \| 153 KB KIC KiCad_WE-PPTI (rev25b).zip \| 2.9 MB CAD files ZIP IGS IGS_WE-PPTI_1308 (rev1).igs \| 3.3 MB STP STP_WE-PPTI_1308 (rev1).STEP \| 633.3 KB Electric models ZIP LT LTspice_WE-PPTI (rev25c).zip \| 29.6 KB PSP Pspice_WE-PPTI (rev25d).zip \| 26.3 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Input Voltage 24 V (DC)	Output Voltage 1 24 V (DC)	Output Current 1 250 mA	Type of Insulation Functional	Switching Frequency 400 - 600	Voltage-µSecond 36 Vµs	Turns Ratio 1:1.07	Inductance 500 µH	Insulation Test Voltage 2500 V (AC)	Length 8.5 mm	Width 13.12 mm	Height 5.5 mm	Mount SMT
750320325	24 V (DC), 3.3 V (DC), 1000 mA	Downloads 8 files EDA models: Components ZIP ALT Altium_WE-PPTI (rev25a).IntLib \| 1.3 MB CDS Cadence_WE-PPTI (rev25a).zip \| 4.7 MB EAG Eagle_WE-PPTI (rev26a).lbr \| 153 KB KIC KiCad_WE-PPTI (rev25b).zip \| 2.9 MB CAD files ZIP IGS IGS_WE-PPTI_1308 (rev1).igs \| 3.3 MB STP STP_WE-PPTI_1308 (rev1).STEP \| 633.3 KB Electric models ZIP LT LTspice_WE-PPTI (rev25c).zip \| 29.6 KB PSP Pspice_WE-PPTI (rev25d).zip \| 26.3 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Input Voltage 24 V (DC)	Output Voltage 1 3.3 V (DC)	Output Current 1 1000 mA	Type of Insulation Functional	Switching Frequency 400 - 600	Voltage-µSecond 40 Vµs	Turns Ratio 5.33:1	Inductance 700 µH	Insulation Test Voltage 2500 V (AC)	Length 8.5 mm	Width 13.12 mm	Height 5.5 mm	Mount SMT
