Characteristics

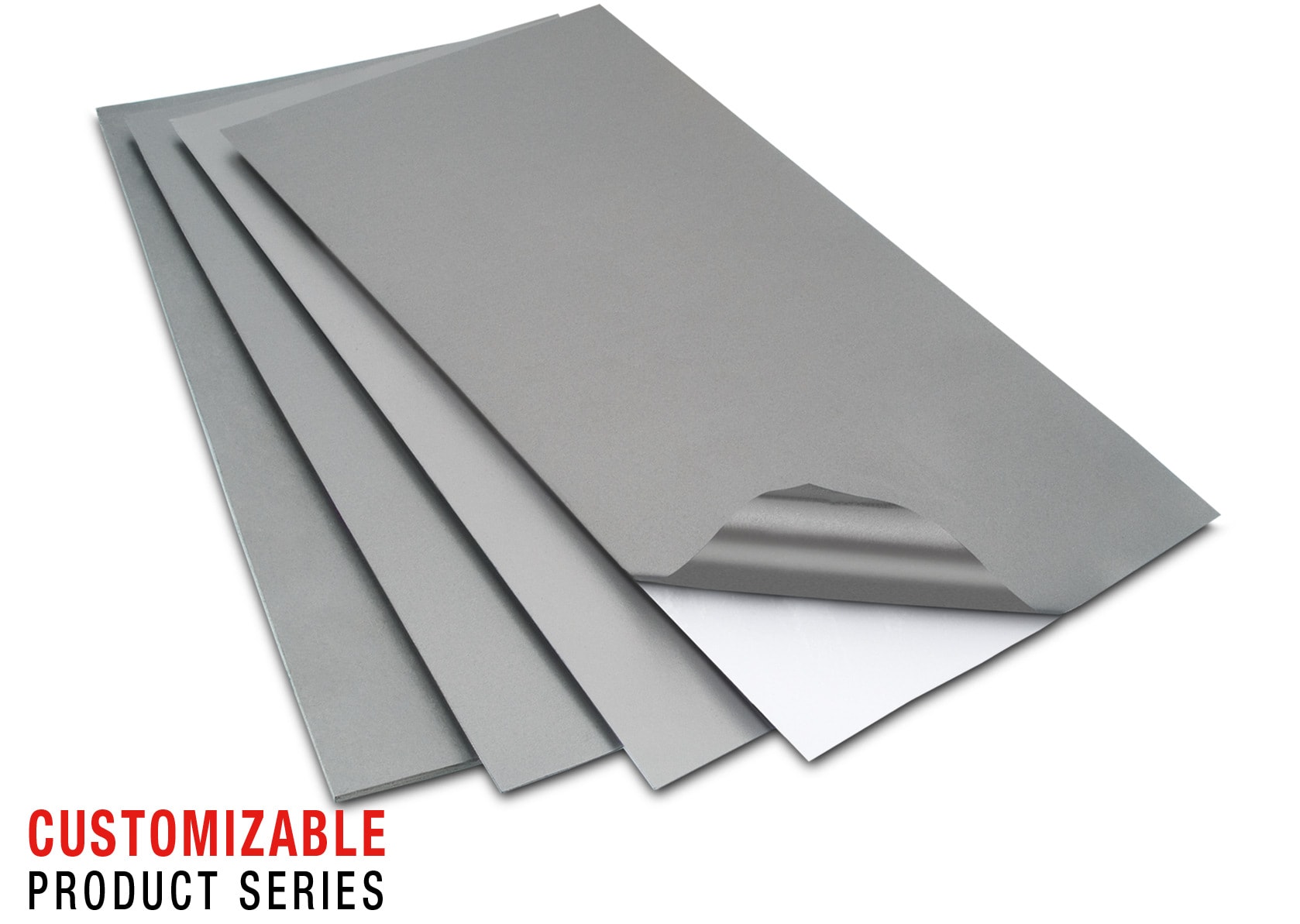

- Customizable Product Series:
Dimensions
Shape
Adhensive - High Permeability
- Wide frequency range 1MHz up to 6GHz
- Extremely flexible
- Thickness since 0,1 mm (0.05 mm for the 3441 Series)
- High Surface Resistance
- Include adhesive backing for easy installation
- Operating temperature: –20 ºC to +90 ºC
- Material: UL94-V0
- Easy to process
- Custom designs on request
- Do you wish an individual offer for WE-FAS? Request for customized components WE-FAS
Applications
- EMC noise suppression
- SAR reduction
- EMC shielding
- Blocking undesired magnetic coupling
- Avoiding cavity resonances
- Prevention of Electro Static Discharge
- Housing and openings between PCB's, on IC's, processors and controllers, on cables which need high flexibility and LCD/LED monitors.
- Useful for digital devices: laptops, CD-/DVD- Player, digital cameras, handhelds, mobiles, GPS receivers and many more.
Products
| Order Code | Datasheet | Simulation | Downloads | Status | µʹ @ 1 MHz | L (mm) | W (mm) | H (mm) | RS (MΩ/ square) | Design Kit | Samples |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 30403S | SPEC | 1 files | Active i| Production is active. Expected lifetime: >10 years. | 23 | 330 | 210 | 0.3 | 10 | – | ||
| 30405S | SPEC | 1 files | Active i| Production is active. Expected lifetime: >10 years. | 23 | 330 | 210 | 0.5 | 10 | – | ||
| 30410S | SPEC | 1 files | Active i| Production is active. Expected lifetime: >10 years. | 23 | 330 | 210 | 1 | 10 | – | ||
| 32401S | SPEC | 1 files | Active i| Production is active. Expected lifetime: >10 years. | 39 | 297 | 210 | 0.1 | 10 | – | ||
| 32402S | SPEC | 1 files | Active i| Production is active. Expected lifetime: >10 years. | 39 | 297 | 210 | 0.2 | 10 | – | ||
| 32403S | SPEC | 1 files | Active i| Production is active. Expected lifetime: >10 years. | 39 | 297 | 210 | 0.3 | 10 | – | ||
| 32405S | SPEC | 1 files | Active i| Production is active. Expected lifetime: >10 years. | 39 | 297 | 210 | 0.5 | 10 | – | ||
| 324075S | SPEC | 1 files | Active i| Production is active. Expected lifetime: >10 years. | 39 | 297 | 210 | 0.75 | 10 | – | ||
| 32410S | SPEC | 1 files | Active i| Production is active. Expected lifetime: >10 years. | 39 | 297 | 210 | 1 | 10 | – | ||
| 34401 | SPEC | – | Active i| Production is active. Expected lifetime: >10 years. | 100 | 297 | 210 | 0.1 | 10 | 304999 | ||
| 34402 | SPEC | – | Active i| Production is active. Expected lifetime: >10 years. | 100 | 297 | 210 | 0.2 | 10 | 304999 | ||
| 34403 | SPEC | – | Active i| Production is active. Expected lifetime: >10 years. | 100 | 297 | 210 | 0.3 | 10 | – | ||
| 34411 | SPEC | 3 files | Active i| Production is active. Expected lifetime: >10 years. | 200 | 297 | 210 | 0.1 | 10 | – | ||
| 34412 | SPEC | 3 files | Active i| Production is active. Expected lifetime: >10 years. | 200 | 297 | 210 | 0.2 | 10 | – | ||
| 34413 | SPEC | 3 files | Active i| Production is active. Expected lifetime: >10 years. | 200 | 297 | 210 | 0.3 | 10 | – | ||
| 34415 | SPEC | 3 files | Active i| Production is active. Expected lifetime: >10 years. | 200 | 297 | 210 | 0.5 | 10 | – | ||
| 344105001 | SPEC | 1 files | Active i| Production is active. Expected lifetime: >10 years. | 200 | 60 | 60 | 0.05 | 10 | 304999 | ||
| 344105002 | SPEC | 1 files | Active i| Production is active. Expected lifetime: >10 years. | 200 | 20 | 20 | 0.05 | 10 | – | ||
| 344105A7 | SPEC | 1 files | Active i| Production is active. Expected lifetime: >10 years. | 200 | 74 | 105 | 0.05 | 10 | – | ||
| 34411A7 | SPEC | 1 files | Active i| Production is active. Expected lifetime: >10 years. | 200 | 74 | 105 | 0.1 | 10 | – | ||
| 34412001 | SPEC | 1 files | Active i| Production is active. Expected lifetime: >10 years. | 200 | 60 | 60 | 0.2 | 10 | – | ||
| 34412002 | SPEC | 1 files | Active i| Production is active. Expected lifetime: >10 years. | 200 | 20 | 20 | 0.2 | 10 | – | ||
| 34413001 | SPEC | 1 files | Active i| Production is active. Expected lifetime: >10 years. | 200 | 60 | 60 | 0.3 | 10 | 304999 | ||
| 34413002 | SPEC | 1 files | Active i| Production is active. Expected lifetime: >10 years. | 200 | 20 | 20 | 0.3 | 10 | – | ||
| 34413A7 | SPEC | 1 files | Active i| Production is active. Expected lifetime: >10 years. | 200 | 74 | 105 | 0.3 | 10 | – | ||
| 34415001 | SPEC | 1 files | Active i| Production is active. Expected lifetime: >10 years. | 200 | 60 | 60 | 0.5 | 10 | 304999 | ||
| 34415002 | SPEC | 1 files | Active i| Production is active. Expected lifetime: >10 years. | 200 | 20 | 20 | 0.3 | 10 | – | ||
| 34415A7 | SPEC | 1 files | Active i| Production is active. Expected lifetime: >10 years. | 200 | 74 | 105 | 0.5 | 10 | – | ||
| 344105 | SPEC | 1 files | Active i| Production is active. Expected lifetime: >10 years. | 200 | 297 | 210 | 0.05 | 10 | – |
| Order Code | Datasheet | Simulation |
|---|---|---|
| 30403S | SPEC | |
| 30405S | SPEC | |
| 30410S | SPEC | |
| 32401S | SPEC | |
| 32402S | SPEC | |
| 32403S | SPEC | |
| 32405S | SPEC | |
| 324075S | SPEC | |
| 32410S | SPEC | |
| 34401 | SPEC | |
| 34402 | SPEC | |
| 34403 | SPEC | |
| 34411 | SPEC | |
| 34412 | SPEC | |
| 34413 | SPEC | |
| 34415 | SPEC | |
| 344105001 | SPEC | |
| 344105002 | SPEC | |
| 344105A7 | SPEC | |
| 34411A7 | SPEC | |
| 34412001 | SPEC | |
| 34412002 | SPEC | |
| 34413001 | SPEC | |
| 34413002 | SPEC | |
| 34413A7 | SPEC | |
| 34415001 | SPEC | |
| 34415002 | SPEC | |
| 34415A7 | SPEC | |
| 344105 | SPEC |
| Samples |
|---|
| Order Code | Datasheet | Simulation | Downloads | Status | µʹ @ 1 MHz | L (mm) | W (mm) | H (mm) | RS (MΩ/ square) | Design Kit | Samples |
|---|
