WE-CMBNC Common Mode Power Line Choke Nanocrystalline

WE-CMBNC Common Mode Power Line Choke Nanocrystalline. Very high permeability nanocrystalline core material. Frequency range: 1 kHz-300 MHz. Small size.

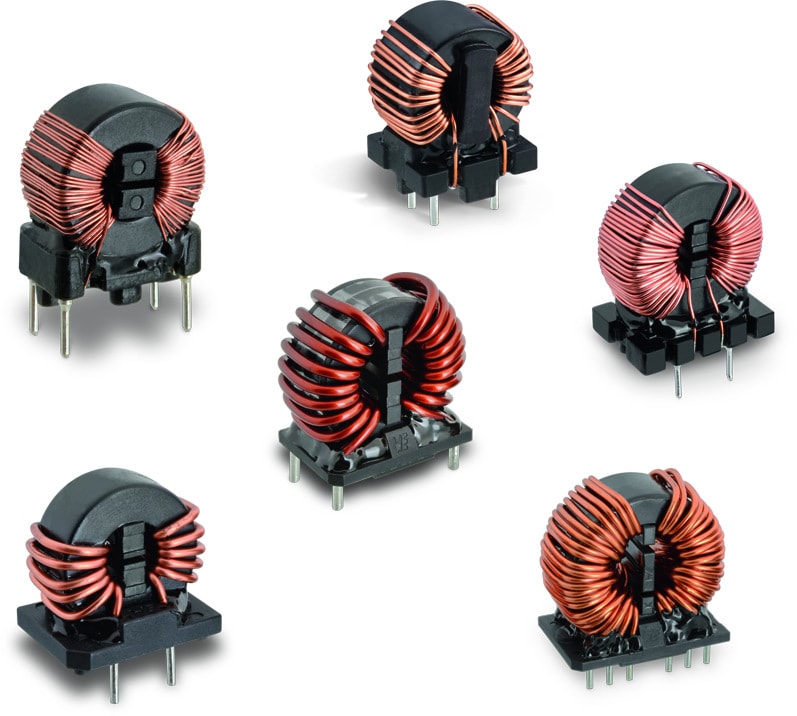

Size	W (mm)	H (mm)	Material	Mount
Type XS	7.5	16	Nanocrystalline	THT
Type S	14	22	Nanocrystalline	THT
Type M	-	-	Nanocrystalline	THT
Type L	-	32	Nanocrystalline	THT
Type XL	-	-	Nanocrystalline	THT
Type XXL	-	46	Nanocrystalline	THT

LTSpice files

LT

LTSpice_WE-CMBNC (rev25a).zip

|

11.4 KB

Characteristics

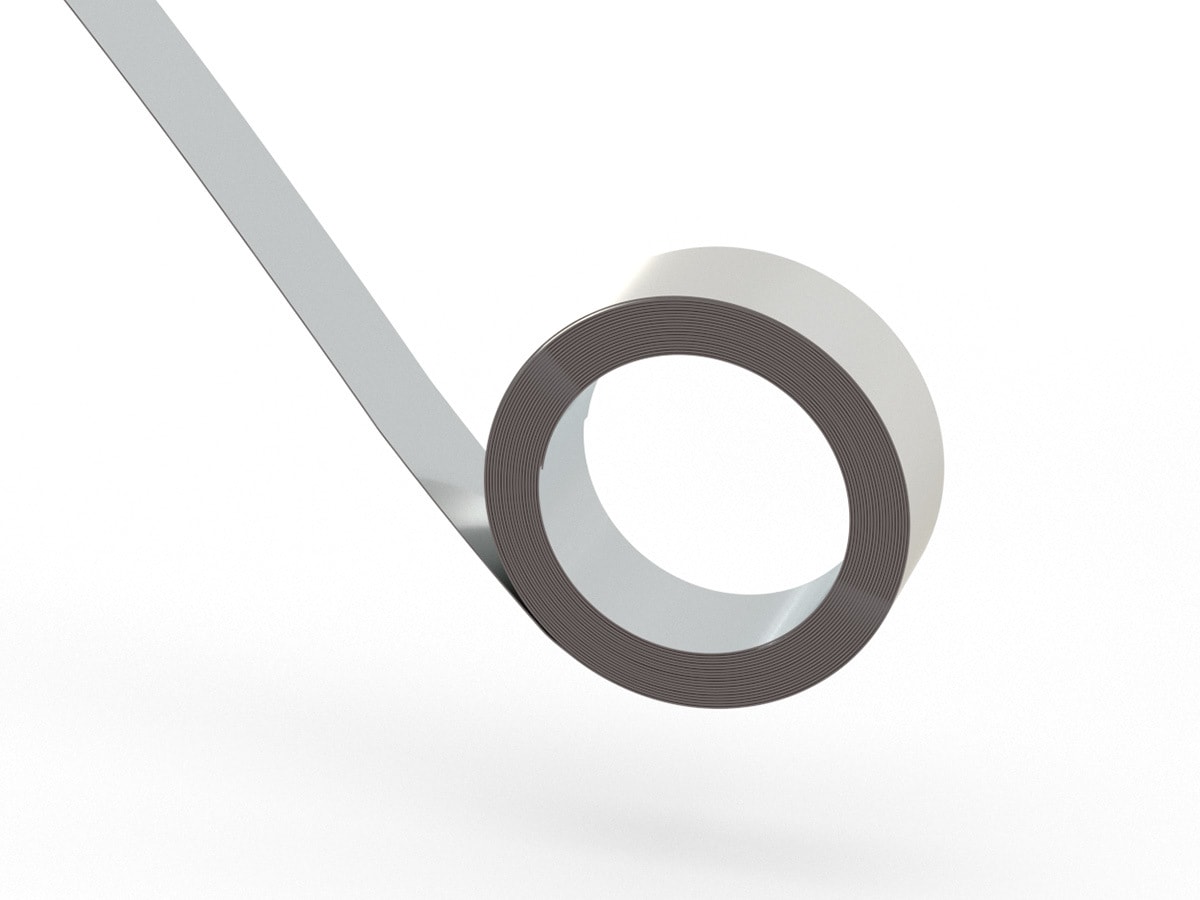

Very high permeability nanocrystalline core material

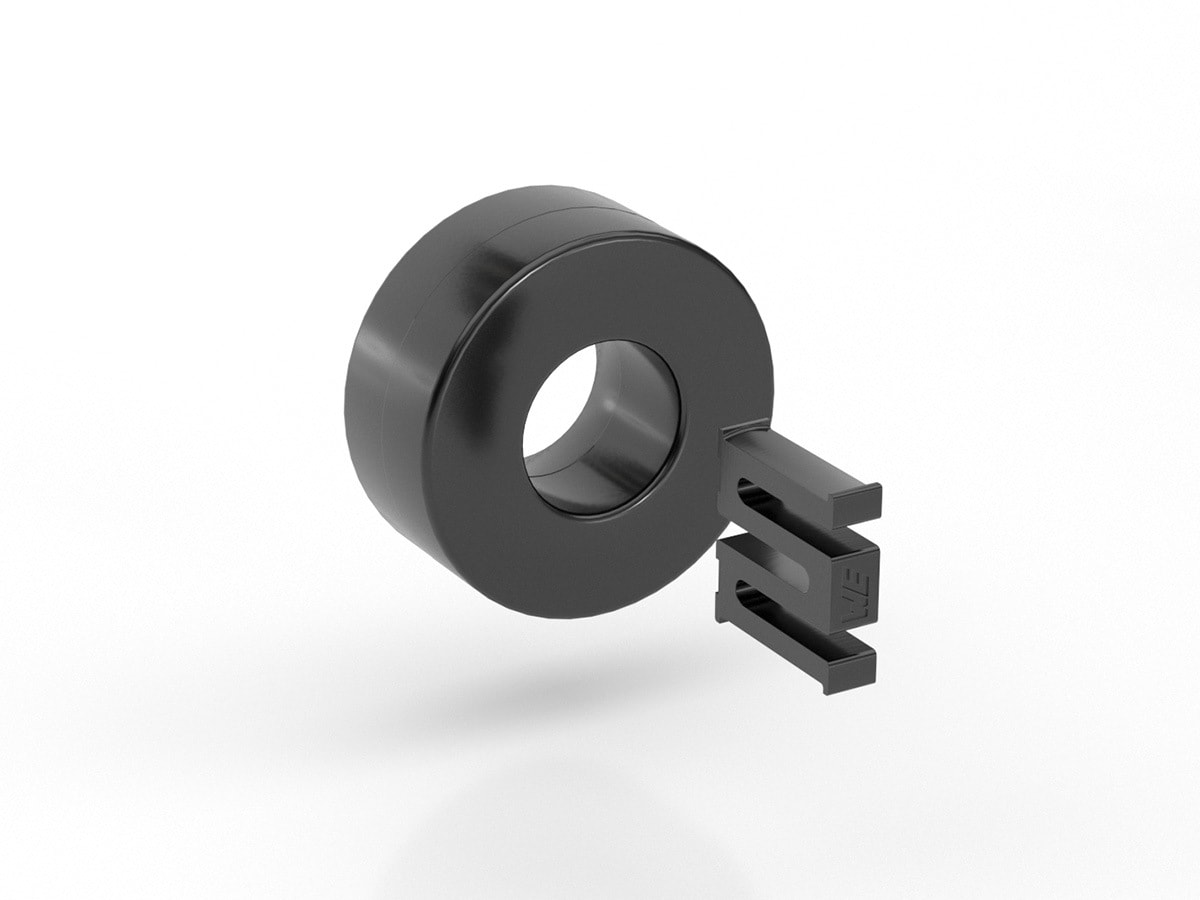

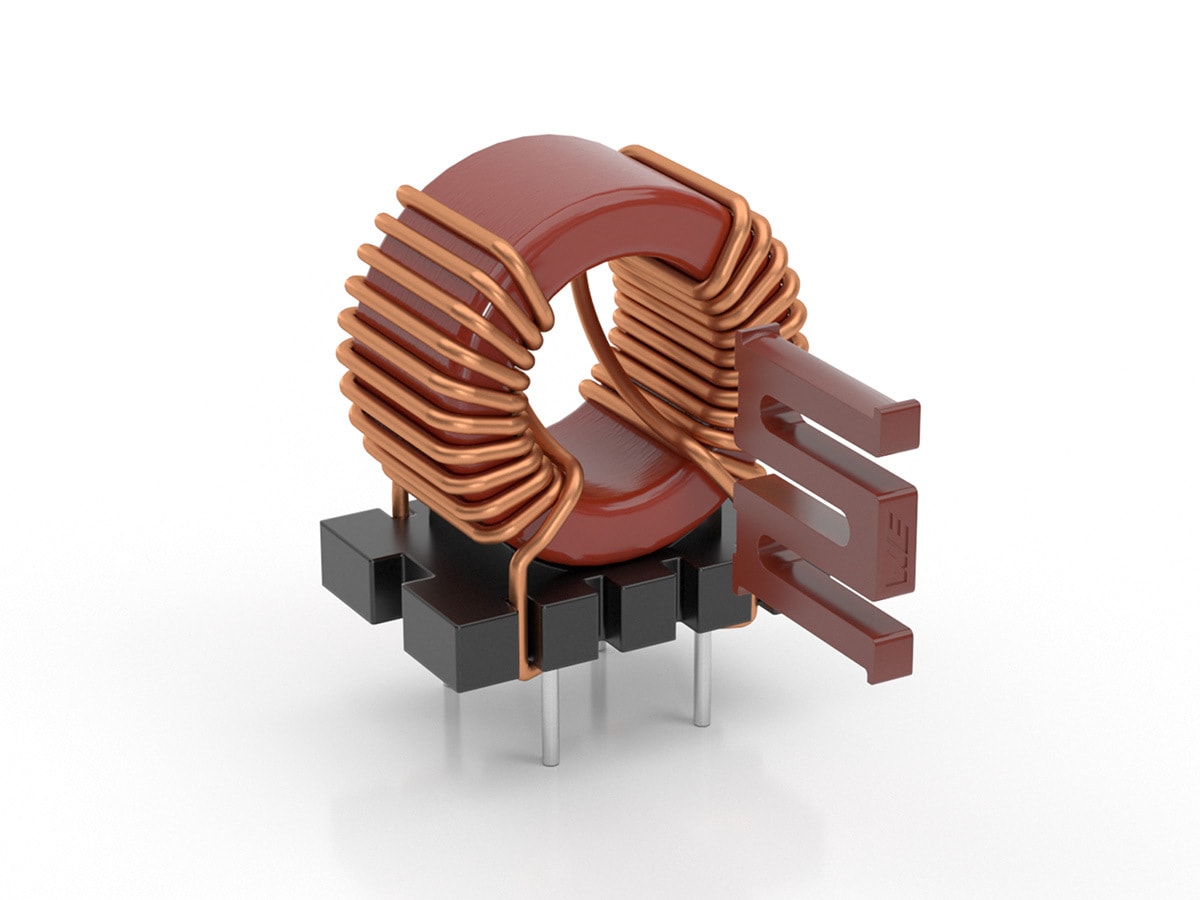

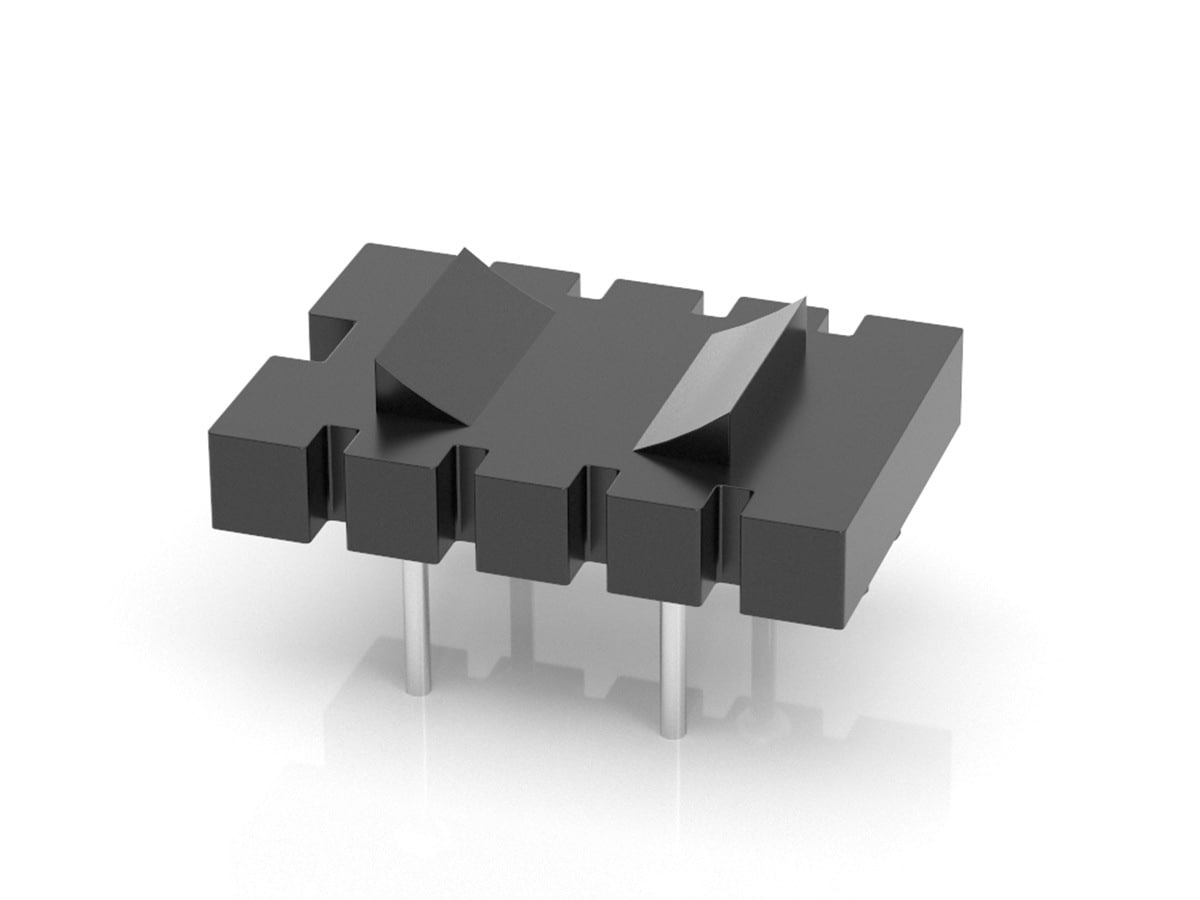

Improved isolation through plastic case and winding spacer

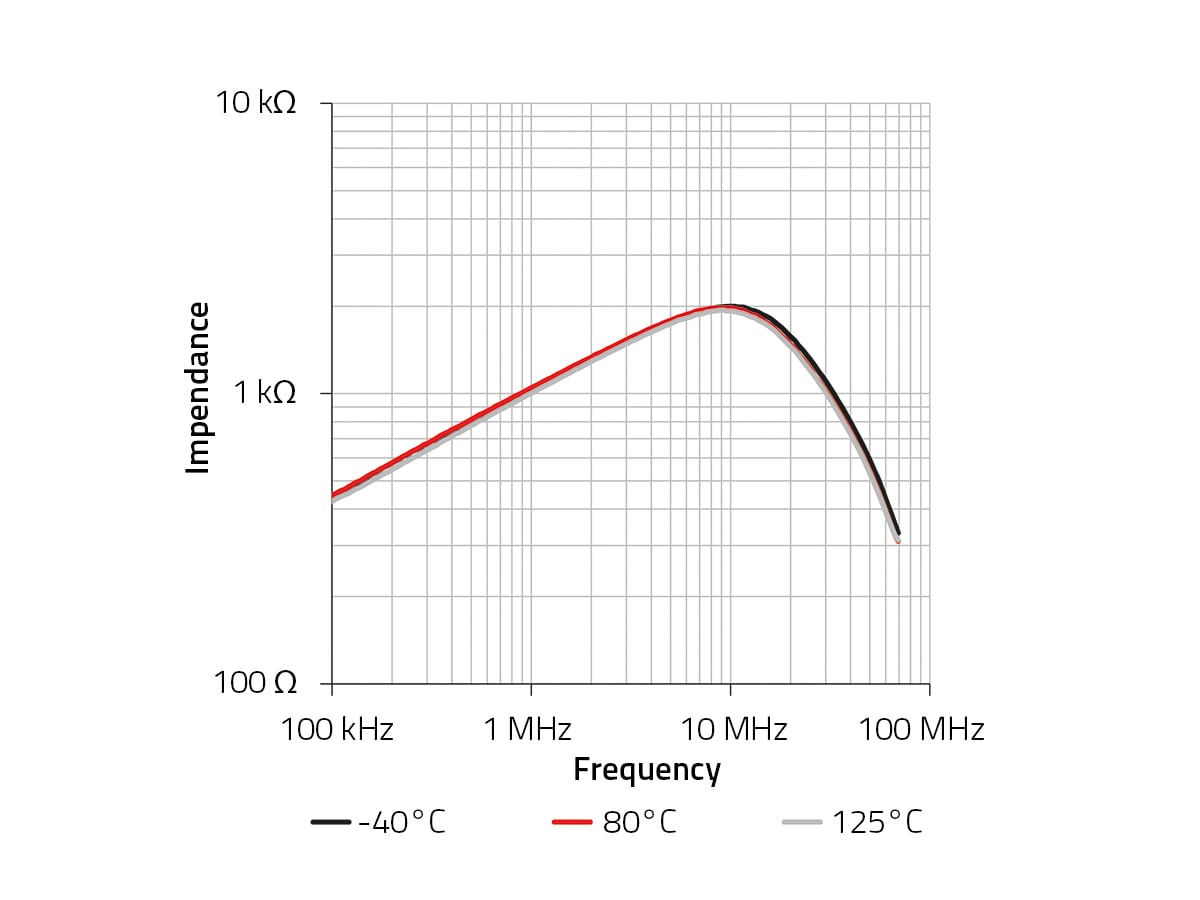

High and stable inductance values up to 150 °C

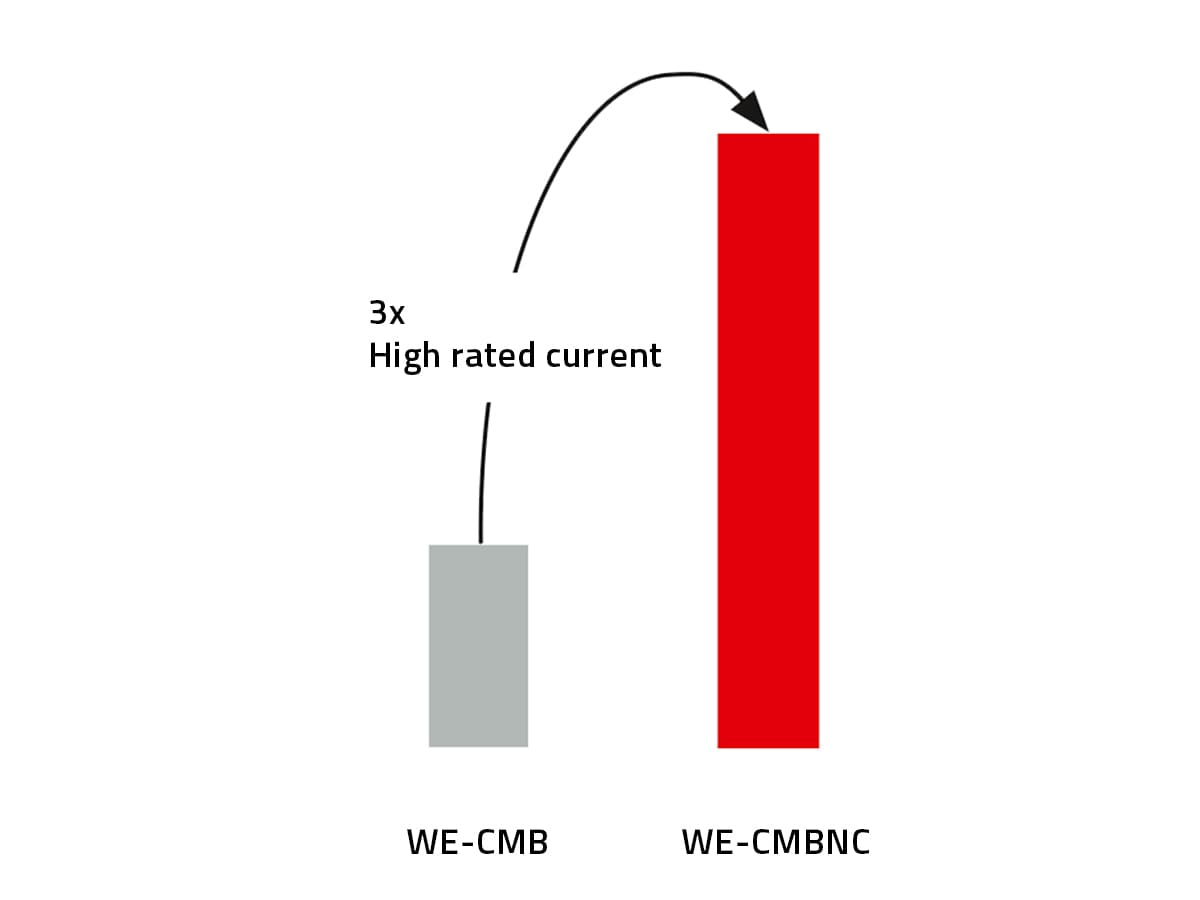

High rated currents

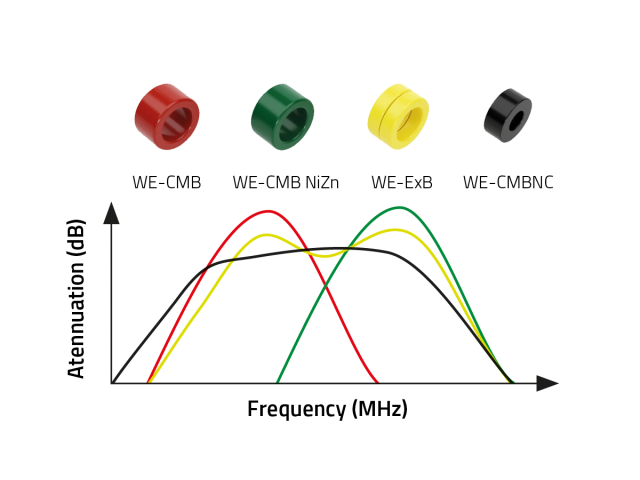

Broadband suppression

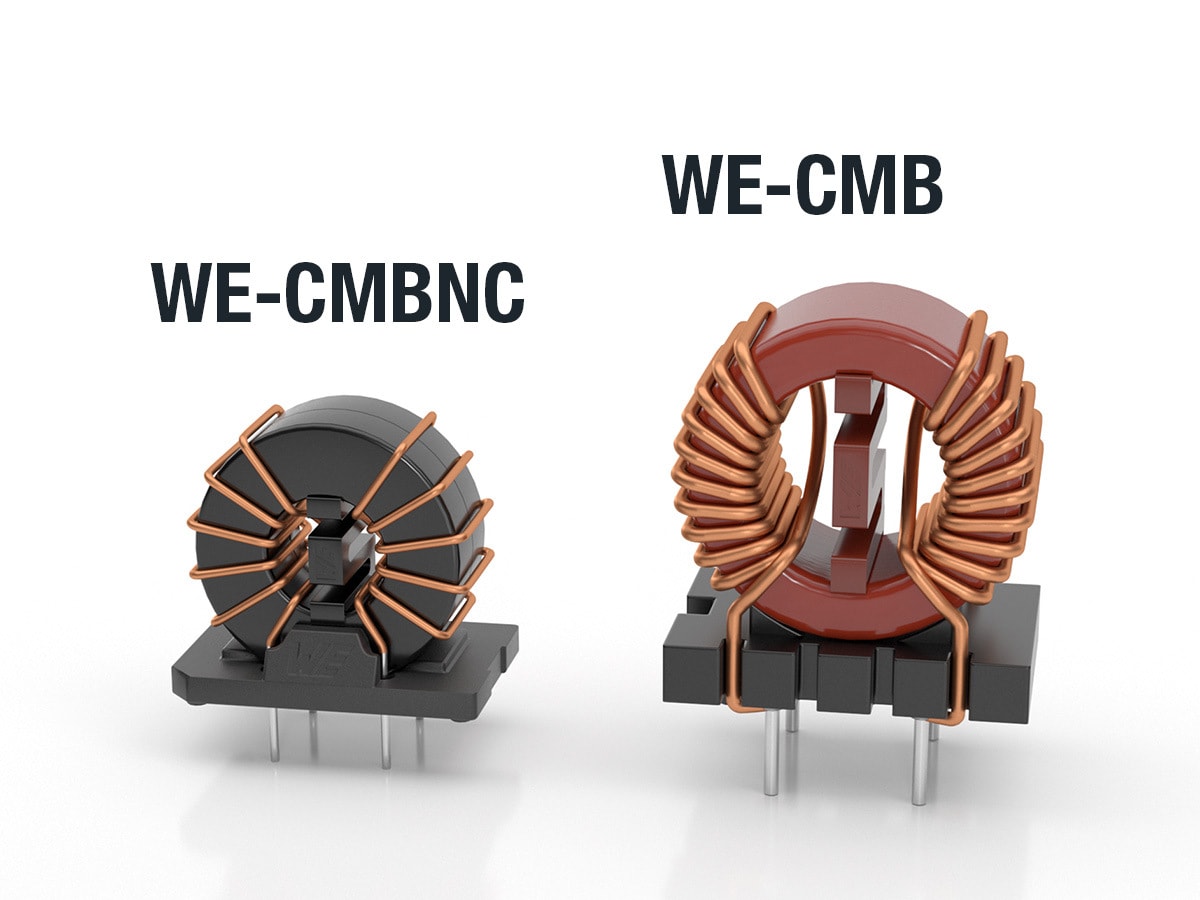

Small size
Frequency range: 1 kHz-300 MHz

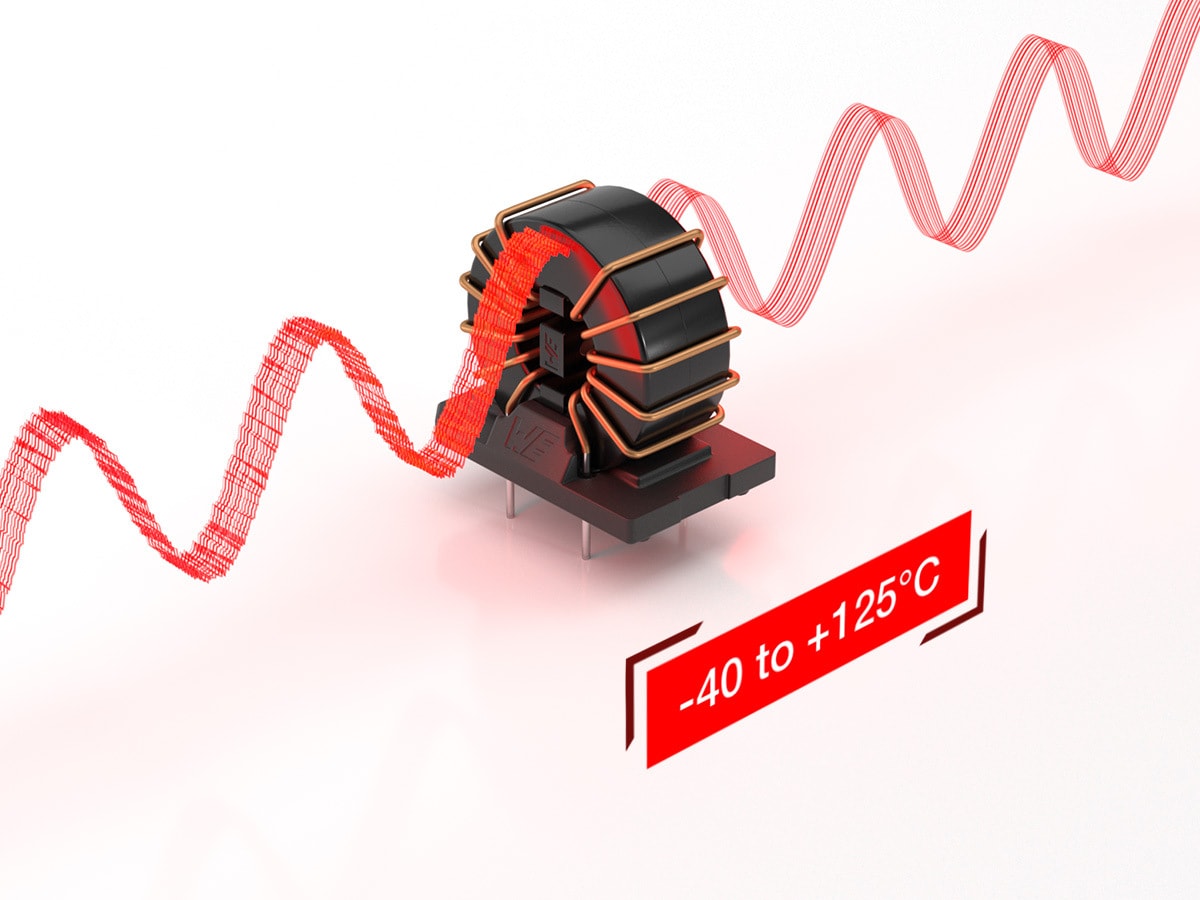

Operating temperature: -55°C to +125°C
Flammability corresponding to UL 94 V-0
Climatic category: 55/125/21

Applications

Power electronics
Power line in- and output filter
Radio interference suppression in motors
Suppression for common mode noise

Application Notes

ANP044 Impact of the layout, components, and filters on the EMC of modern DC/DC switching controllers
PDF

Products

All

Type XS

Type S

Type M

Type L

Type XL

Type XXL

Reset all

Filter article data

show article in 6 product lines

article in 6 product lines

Reset all

Order Code	Datasheet	Simulation	Downloads	Status	I_R (A)	L (mH)	R_{DC max.} (mΩ)	V_R (V (AC))	V_T (V (AC))	Material	L (mm)	W (mm)	H (mm)	Mount	Design Kit
7448010911	0.9 A, 11 mH, 430 mΩ	Simulation	Downloads 11 files EDA models: Components ZIP ALT WE-CMBNC (rev24a).IntLib \| 33.5 MB CDS Cadence_WE-CMBNC (rev25a).zip \| 143.6 MB EAG Eagle_WE-CMBNC (rev24a).lbr \| 150.3 KB KIC KiCad_WE-CMBNC (rev25b).zip \| 61.5 MB ZUK Cadstar_WE-CMBNC (rev20a).zip \| 23.3 KB CAD files ZIP 3D 3D_WE-CMBNC_7448010911 (rev1).pdf \| 5 MB IGS 7448010911 (rev1).igs \| 11.7 MB STP 7448010911 (rev1).stp \| 3.9 MB Electric models ZIP ADS ADS_WE-CMBNC (rev24a).zip \| 14 MB PSP PSpice_WE-CMBNC (rev25a).zip \| 21.2 KB S S-Parameter_7448010911 (rev20a).s4p \| 312 KB	Status Active i \| Production is active. Expected lifetime: >10 years.	Rated Current 0.9 A	Inductance 11 mH	DC Resistance 430 mΩ	Rated Voltage 300 V (AC)	Insulation Test Voltage 2100 V (AC)	Material Nanocrystalline	Length 14 mm	Width 7.5 mm	Height 16 mm	Mount THT	Design Kit 744800
7448011008	1 A, 8 mH, 330 mΩ	Simulation	Downloads 11 files EDA models: Components ZIP ALT WE-CMBNC (rev24a).IntLib \| 33.5 MB CDS Cadence_WE-CMBNC (rev25a).zip \| 143.6 MB EAG Eagle_WE-CMBNC (rev24a).lbr \| 150.3 KB KIC KiCad_WE-CMBNC (rev25b).zip \| 61.5 MB ZUK Cadstar_WE-CMBNC (rev20a).zip \| 23.3 KB CAD files ZIP 3D 3D_WE-CMBNC_7448011008 (rev1).pdf \| 4.5 MB IGS 7448011008 (rev1).igs \| 10.8 MB STP 7448011008 (rev1).stp \| 3.5 MB Electric models ZIP ADS ADS_WE-CMBNC (rev24a).zip \| 14 MB PSP PSpice_WE-CMBNC (rev25a).zip \| 21.2 KB S S-Parameter_7448011008 (rev20a).s4p \| 311.6 KB	Status Active i \| Production is active. Expected lifetime: >10 years.	Rated Current 1 A	Inductance 8 mH	DC Resistance 330 mΩ	Rated Voltage 300 V (AC)	Insulation Test Voltage 2100 V (AC)	Material Nanocrystalline	Length 14 mm	Width 7.5 mm	Height 16 mm	Mount THT	Design Kit –
7448011305	1.3 A, 5 mH, 200 mΩ	Simulation	Downloads 11 files EDA models: Components ZIP ALT WE-CMBNC (rev24a).IntLib \| 33.5 MB CDS Cadence_WE-CMBNC (rev25a).zip \| 143.6 MB EAG Eagle_WE-CMBNC (rev24a).lbr \| 150.3 KB KIC KiCad_WE-CMBNC (rev25b).zip \| 61.5 MB ZUK Cadstar_WE-CMBNC (rev20a).zip \| 23.3 KB CAD files ZIP 3D 3D_WE-CMBNC_7448011305 (rev1).pdf \| 3.6 MB IGS 7448011305 (rev1).igs \| 9.2 MB STP 7448011305 (rev1).stp \| 3 MB Electric models ZIP ADS ADS_WE-CMBNC (rev24a).zip \| 14 MB PSP PSpice_WE-CMBNC (rev25a).zip \| 21.2 KB S S-Parameter_7448011305 (rev20a).s4p \| 310.4 KB	Status Active i \| Production is active. Expected lifetime: >10 years.	Rated Current 1.3 A	Inductance 5 mH	DC Resistance 200 mΩ	Rated Voltage 300 V (AC)	Insulation Test Voltage 2100 V (AC)	Material Nanocrystalline	Length 14 mm	Width 7.5 mm	Height 16 mm	Mount THT	Design Kit 744800
7448012002	2 A, 1.6 mH, 90 mΩ	Simulation	Downloads 11 files EDA models: Components ZIP ALT WE-CMBNC (rev24a).IntLib \| 33.5 MB CDS Cadence_WE-CMBNC (rev25a).zip \| 143.6 MB EAG Eagle_WE-CMBNC (rev24a).lbr \| 150.3 KB KIC KiCad_WE-CMBNC (rev25b).zip \| 61.5 MB ZUK Cadstar_WE-CMBNC (rev20a).zip \| 23.3 KB CAD files ZIP 3D 3D_WE-CMBNC_7448012002 (rev1).pdf \| 2.3 MB IGS 7448012002 (rev1).igs \| 7.1 MB STP 7448012002 (rev1).stp \| 2 MB Electric models ZIP ADS ADS_WE-CMBNC (rev24a).zip \| 14 MB PSP PSpice_WE-CMBNC (rev25a).zip \| 21.2 KB S S-Parameter_7448012002 (rev20a).s4p \| 310.4 KB	Status Active i \| Production is active. Expected lifetime: >10 years.	Rated Current 2 A	Inductance 1.6 mH	DC Resistance 90 mΩ	Rated Voltage 300 V (AC)	Insulation Test Voltage 2100 V (AC)	Material Nanocrystalline	Length 14 mm	Width 7.5 mm	Height 16 mm	Mount THT	Design Kit –
7448012501	2.5 A, 1 mH, 55 mΩ	Simulation	Downloads 11 files EDA models: Components ZIP ALT WE-CMBNC (rev24a).IntLib \| 33.5 MB CDS Cadence_WE-CMBNC (rev25a).zip \| 143.6 MB EAG Eagle_WE-CMBNC (rev24a).lbr \| 150.3 KB KIC KiCad_WE-CMBNC (rev25b).zip \| 61.5 MB ZUK Cadstar_WE-CMBNC (rev20a).zip \| 23.3 KB CAD files ZIP 3D 3D_WE-CMBNC_7448012501 (rev1).pdf \| 1.7 MB IGS 7448012501 (rev1).igs \| 6.2 MB STP 7448012501 (rev1).stp \| 1.8 MB Electric models ZIP ADS ADS_WE-CMBNC (rev24a).zip \| 14 MB PSP PSpice_WE-CMBNC (rev25a).zip \| 21.2 KB S S-Parameter_7448012501 (rev20a).s4p \| 309.8 KB	Status Active i \| Production is active. Expected lifetime: >10 years.	Rated Current 2.5 A	Inductance 1 mH	DC Resistance 55 mΩ	Rated Voltage 300 V (AC)	Insulation Test Voltage 2100 V (AC)	Material Nanocrystalline	Length 14 mm	Width 7.5 mm	Height 16 mm	Mount THT	Design Kit –
7448013501	3.5 A, 0.5 mH, 33 mΩ	Simulation	Downloads 11 files EDA models: Components ZIP ALT WE-CMBNC (rev24a).IntLib \| 33.5 MB CDS Cadence_WE-CMBNC (rev25a).zip \| 143.6 MB EAG Eagle_WE-CMBNC (rev24a).lbr \| 150.3 KB KIC KiCad_WE-CMBNC (rev25b).zip \| 61.5 MB ZUK Cadstar_WE-CMBNC (rev20a).zip \| 23.3 KB CAD files ZIP 3D 3D_IndCMBNC_XS_7448013501 (rev1).pdf \| 1.5 MB IGS 7448013501 (rev1).igs \| 6.1 MB STP 7448013501 (rev1).stp \| 1.6 MB Electric models ZIP ADS ADS_WE-CMBNC (rev24a).zip \| 14 MB PSP PSpice_WE-CMBNC (rev25a).zip \| 21.2 KB S S-Parameter_7448013501 (rev20a).s4p \| 310.3 KB	Status Active i \| Production is active. Expected lifetime: >10 years.	Rated Current 3.5 A	Inductance 0.5 mH	DC Resistance 33 mΩ	Rated Voltage 300 V (AC)	Insulation Test Voltage 2100 V (AC)	Material Nanocrystalline	Length 15 mm	Width 7.5 mm	Height 16 mm	Mount THT	Design Kit –
7448014501	4.5 A, 0.4 mH, 22 mΩ	Simulation	Downloads 11 files EDA models: Components ZIP ALT WE-CMBNC (rev24a).IntLib \| 33.5 MB CDS Cadence_WE-CMBNC (rev25a).zip \| 143.6 MB EAG Eagle_WE-CMBNC (rev24a).lbr \| 150.3 KB KIC KiCad_WE-CMBNC (rev25b).zip \| 61.5 MB ZUK Cadstar_WE-CMBNC (rev20a).zip \| 23.3 KB CAD files ZIP 3D 3D_IndCMBNC_XS_7448014501 (rev1).pdf \| 1.5 MB IGS 7448014501 (rev1).igs \| 6.4 MB STP 7448014501 (rev1).stp \| 1.8 MB Electric models ZIP ADS ADS_WE-CMBNC (rev24a).zip \| 14 MB PSP PSpice_WE-CMBNC (rev25a).zip \| 21.2 KB S S-Parameter_7448014501 (rev20a).s4p \| 310.5 KB	Status Active i \| Production is active. Expected lifetime: >10 years.	Rated Current 4.5 A	Inductance 0.4 mH	DC Resistance 22 mΩ	Rated Voltage 300 V (AC)	Insulation Test Voltage 2100 V (AC)	Material Nanocrystalline	Length 15 mm	Width 7.5 mm	Height 16 mm	Mount THT	Design Kit 744800
7448020680	0.6 A, 80 mH, 1000 mΩ	Simulation	Downloads 11 files EDA models: Components ZIP ALT WE-CMBNC (rev24a).IntLib \| 33.5 MB CDS Cadence_WE-CMBNC (rev25a).zip \| 143.6 MB EAG Eagle_WE-CMBNC (rev24a).lbr \| 150.3 KB KIC KiCad_WE-CMBNC (rev25b).zip \| 61.5 MB ZUK Cadstar_WE-CMBNC (rev20a).zip \| 23.3 KB CAD files ZIP 3D 3D_WE-CMBNC_7448020680 (rev1).pdf \| 7.2 MB IGS Download_IGS_WE-CMBNC-TypeS (rev1).igs \| 5.1 MB STP Download_STP_WE-CMBNC-TypeS (rev1).stp \| 1.4 MB Electric models ZIP ADS ADS_WE-CMBNC (rev24a).zip \| 14 MB PSP PSpice_WE-CMBNC (rev25a).zip \| 21.2 KB S S-Parameter_7448020680 (rev20a).s4p \| 315.2 KB	Status Active i \| Production is active. Expected lifetime: >10 years.	Rated Current 0.6 A	Inductance 80 mH	DC Resistance 1000 mΩ	Rated Voltage 300 V (AC)	Insulation Test Voltage 2100 V (AC)	Material Nanocrystalline	Length 18 mm	Width 14 mm	Height 22 mm	Mount THT	Design Kit –
7448021230	1.2 A, 30 mH, 280 mΩ	Simulation	Downloads 11 files EDA models: Components ZIP ALT WE-CMBNC (rev24a).IntLib \| 33.5 MB CDS Cadence_WE-CMBNC (rev25a).zip \| 143.6 MB EAG Eagle_WE-CMBNC (rev24a).lbr \| 150.3 KB KIC KiCad_WE-CMBNC (rev25b).zip \| 61.5 MB ZUK Cadstar_WE-CMBNC (rev20a).zip \| 23.3 KB CAD files ZIP 3D 3D_WE-CMBNC-S_7448021230 (rev1).pdf \| 4.5 MB IGS Download_IGS_WE-CMBNC-TypeS (rev1).igs \| 5.1 MB STP Download_STP_WE-CMBNC-TypeS (rev1).stp \| 1.4 MB Electric models ZIP ADS ADS_WE-CMBNC (rev24a).zip \| 14 MB PSP PSpice_WE-CMBNC (rev25a).zip \| 21.2 KB S S-Parameter_7448021230 (rev20a).s4p \| 313.5 KB	Status Active i \| Production is active. Expected lifetime: >10 years.	Rated Current 1.2 A	Inductance 30 mH	DC Resistance 280 mΩ	Rated Voltage 300 V (AC)	Insulation Test Voltage 2100 V (AC)	Material Nanocrystalline	Length 18 mm	Width 14 mm	Height 22 mm	Mount THT	Design Kit –
7448022010	2 A, 10 mH, 85 mΩ	Simulation	Downloads 11 files EDA models: Components ZIP ALT WE-CMBNC (rev24a).IntLib \| 33.5 MB CDS Cadence_WE-CMBNC (rev25a).zip \| 143.6 MB EAG Eagle_WE-CMBNC (rev24a).lbr \| 150.3 KB KIC KiCad_WE-CMBNC (rev25b).zip \| 61.5 MB ZUK Cadstar_WE-CMBNC (rev20a).zip \| 23.3 KB CAD files ZIP 3D 3D_WE-CMBNC-S_7448022010 (rev1).pdf \| 3.3 MB IGS Download_IGS_WE-CMBNC-TypeS (rev1).igs \| 5.1 MB STP Download_STP_WE-CMBNC-TypeS (rev1).stp \| 1.4 MB Electric models ZIP ADS ADS_WE-CMBNC (rev24a).zip \| 14 MB PSP PSpice_WE-CMBNC (rev25a).zip \| 21.2 KB S S-Parameter_7448022010 (rev20a).s4p \| 311.2 KB	Status Active i \| Production is active. Expected lifetime: >10 years.	Rated Current 2 A	Inductance 10 mH	DC Resistance 85 mΩ	Rated Voltage 300 V (AC)	Insulation Test Voltage 2100 V (AC)	Material Nanocrystalline	Length 18 mm	Width 14 mm	Height 22 mm	Mount THT	Design Kit –
7448023005	3 A, 5 mH, 40 mΩ	Simulation	Downloads 11 files EDA models: Components ZIP ALT WE-CMBNC (rev24a).IntLib \| 33.5 MB CDS Cadence_WE-CMBNC (rev25a).zip \| 143.6 MB EAG Eagle_WE-CMBNC (rev24a).lbr \| 150.3 KB KIC KiCad_WE-CMBNC (rev25b).zip \| 61.5 MB ZUK Cadstar_WE-CMBNC (rev20a).zip \| 23.3 KB CAD files ZIP 3D 3D_WE-CMBNC-S_7448023005 (rev1).pdf \| 2.3 MB IGS Download_IGS_WE-CMBNC-TypeS (rev1).igs \| 5.1 MB STP Download_STP_WE-CMBNC-TypeS (rev1).stp \| 1.4 MB Electric models ZIP ADS ADS_WE-CMBNC (rev24a).zip \| 14 MB PSP PSpice_WE-CMBNC (rev25a).zip \| 21.2 KB S S-Parameter_7448023005 (rev20a).s4p \| 311 KB	Status Active i \| Production is active. Expected lifetime: >10 years.	Rated Current 3 A	Inductance 5 mH	DC Resistance 40 mΩ	Rated Voltage 300 V (AC)	Insulation Test Voltage 2100 V (AC)	Material Nanocrystalline	Length 18 mm	Width 14 mm	Height 22 mm	Mount THT	Design Kit –
7448024503	4.5 A, 3 mH, 22 mΩ	Simulation	Downloads 11 files EDA models: Components ZIP ALT WE-CMBNC (rev24a).IntLib \| 33.5 MB CDS Cadence_WE-CMBNC (rev25a).zip \| 143.6 MB EAG Eagle_WE-CMBNC (rev24a).lbr \| 150.3 KB KIC KiCad_WE-CMBNC (rev25b).zip \| 61.5 MB ZUK Cadstar_WE-CMBNC (rev20a).zip \| 23.3 KB CAD files ZIP 3D 3D_WE-CMBNC-S_7448024503 (rev1).pdf \| 1.6 MB IGS Download_IGS_WE-CMBNC-TypeS (rev1).igs \| 5.1 MB STP Download_STP_WE-CMBNC-TypeS (rev1).stp \| 1.4 MB Electric models ZIP ADS ADS_WE-CMBNC (rev24a).zip \| 14 MB PSP PSpice_WE-CMBNC (rev25a).zip \| 21.2 KB S S-Parameter_7448024503 (rev20a).s4p \| 310.1 KB	Status Active i \| Production is active. Expected lifetime: >10 years.	Rated Current 4.5 A	Inductance 3 mH	DC Resistance 22 mΩ	Rated Voltage 300 V (AC)	Insulation Test Voltage 2100 V (AC)	Material Nanocrystalline	Length 18 mm	Width 14 mm	Height 22 mm	Mount THT	Design Kit –
7448025003	5 A, 2.5 mH, 15 mΩ	Simulation	Downloads 11 files EDA models: Components ZIP ALT WE-CMBNC (rev24a).IntLib \| 33.5 MB CDS Cadence_WE-CMBNC (rev25a).zip \| 143.6 MB EAG Eagle_WE-CMBNC (rev24a).lbr \| 150.3 KB KIC KiCad_WE-CMBNC (rev25b).zip \| 61.5 MB ZUK Cadstar_WE-CMBNC (rev20a).zip \| 23.3 KB CAD files ZIP 3D 3D_WE-CMBNC-S_7448025003 (rev1).pdf \| 1.9 MB IGS Download_IGS_WE-CMBNC-TypeS (rev1).igs \| 5.1 MB STP Download_STP_WE-CMBNC-TypeS (rev1).stp \| 1.4 MB Electric models ZIP ADS ADS_WE-CMBNC (rev24a).zip \| 14 MB PSP PSpice_WE-CMBNC (rev25a).zip \| 21.2 KB S S-Parameter_7448025003 (rev20a).s4p \| 347.7 KB	Status Active i \| Production is active. Expected lifetime: >10 years.	Rated Current 5 A	Inductance 2.5 mH	DC Resistance 15 mΩ	Rated Voltage 300 V (AC)	Insulation Test Voltage 2100 V (AC)	Material Nanocrystalline	Length 18 mm	Width 14 mm	Height 22 mm	Mount THT	Design Kit –
7448026002	6 A, 1.5 mH, 8 mΩ	Simulation	Downloads 11 files EDA models: Components ZIP ALT WE-CMBNC (rev24a).IntLib \| 33.5 MB CDS Cadence_WE-CMBNC (rev25a).zip \| 143.6 MB EAG Eagle_WE-CMBNC (rev24a).lbr \| 150.3 KB KIC KiCad_WE-CMBNC (rev25b).zip \| 61.5 MB ZUK Cadstar_WE-CMBNC (rev20a).zip \| 23.3 KB CAD files ZIP 3D 3D_WE-CMBNC-S_7448026002 (rev1).pdf \| 1.5 MB IGS Download_IGS_WE-CMBNC-TypeS (rev1).igs \| 5.1 MB STP Download_STP_WE-CMBNC-TypeS (rev1).stp \| 1.4 MB Electric models ZIP ADS ADS_WE-CMBNC (rev24a).zip \| 14 MB PSP PSpice_WE-CMBNC (rev25a).zip \| 21.2 KB S S-Parameter_7448026002 (rev20a).s4p \| 308.9 KB	Status Active i \| Production is active. Expected lifetime: >10 years.	Rated Current 6 A	Inductance 1.5 mH	DC Resistance 8 mΩ	Rated Voltage 300 V (AC)	Insulation Test Voltage 2100 V (AC)	Material Nanocrystalline	Length 19 mm	Width 14 mm	Height 22 mm	Mount THT	Design Kit –
7448027001	7 A, 1 mH, 6 mΩ	Simulation	Downloads 11 files EDA models: Components ZIP ALT WE-CMBNC (rev24a).IntLib \| 33.5 MB CDS Cadence_WE-CMBNC (rev25a).zip \| 143.6 MB EAG Eagle_WE-CMBNC (rev24a).lbr \| 150.3 KB KIC KiCad_WE-CMBNC (rev25b).zip \| 61.5 MB ZUK Cadstar_WE-CMBNC (rev20a).zip \| 23.3 KB CAD files ZIP 3D 3D_WE-CMBNC-S_7448027001 (rev1).pdf \| 1.3 MB IGS Download_IGS_WE-CMBNC-TypeS (rev1).igs \| 5.1 MB STP Download_STP_WE-CMBNC-TypeS (rev1).stp \| 1.4 MB Electric models ZIP ADS ADS_WE-CMBNC (rev24a).zip \| 14 MB PSP PSpice_WE-CMBNC (rev25a).zip \| 21.2 KB S S-Parameter_7448027001 (rev20a).s4p \| 309 KB	Status Active i \| Production is active. Expected lifetime: >10 years.	Rated Current 7 A	Inductance 1 mH	DC Resistance 6 mΩ	Rated Voltage 300 V (AC)	Insulation Test Voltage 2100 V (AC)	Material Nanocrystalline	Length 19 mm	Width 14 mm	Height 22 mm	Mount THT	Design Kit –
7448030333	2.5 A, 33 mH, 94 mΩ	Simulation	Downloads 12 files EDA models: Components ZIP ALT WE-CMBNC (rev24a).IntLib \| 33.5 MB CDS Cadence_WE-CMBNC (rev25a).zip \| 143.6 MB EAG Eagle_WE-CMBNC (rev24a).lbr \| 150.3 KB KIC KiCad_WE-CMBNC (rev25b).zip \| 61.5 MB ZUK Cadstar_WE-CMBNC (rev20a).zip \| 23.3 KB CAD files ZIP 3D 3D_WE-CMBNC-M_7448030333 (rev1).pdf \| 4.2 MB 3D 7448030333_3D (rev1).pdf \| 4 MB IGS 7448030333 (rev1).igs \| 10.7 MB STP 7448030333 (rev1).stp \| 3.1 MB Electric models ZIP ADS ADS_WE-CMBNC (rev24a).zip \| 14 MB PSP PSpice_WE-CMBNC (rev25a).zip \| 21.2 KB S S-Parameter_7448030333 (rev20a).s4p \| 311.9 KB	Status Active i \| Production is active. Expected lifetime: >10 years.	Rated Current 2.5 A	Inductance 33 mH	DC Resistance 94 mΩ	Rated Voltage 300 V (AC)	Insulation Test Voltage 2100 V (AC)	Material Nanocrystalline	Length 23 mm	Width 13.5 mm	Height 26 mm	Mount THT	Design Kit 744800
7448030417	4 A, 17 mH, 52 mΩ	Simulation	Downloads 11 files EDA models: Components ZIP ALT WE-CMBNC (rev24a).IntLib \| 33.5 MB CDS Cadence_WE-CMBNC (rev25a).zip \| 143.6 MB EAG Eagle_WE-CMBNC (rev24a).lbr \| 150.3 KB KIC KiCad_WE-CMBNC (rev25b).zip \| 61.5 MB ZUK Cadstar_WE-CMBNC (rev20a).zip \| 23.3 KB CAD files ZIP 3D 3D_WE-CMBNC-M_7448030417 (rev1).pdf \| 3.3 MB IGS 7448030417 (rev1).igs \| 8.2 MB STP 7448030417 (rev1).stp \| 2.5 MB Electric models ZIP ADS ADS_WE-CMBNC (rev24a).zip \| 14 MB PSP PSpice_WE-CMBNC (rev25a).zip \| 21.2 KB S S-Parameter_7448030417 (rev20a).s4p \| 311.6 KB	Status Active i \| Production is active. Expected lifetime: >10 years.	Rated Current 4 A	Inductance 17 mH	DC Resistance 52 mΩ	Rated Voltage 300 V (AC)	Insulation Test Voltage 2100 V (AC)	Material Nanocrystalline	Length 23 mm	Width 13.5 mm	Height 26 mm	Mount THT	Design Kit –
7448030509	5 A, 9 mH, 32 mΩ	Simulation	Downloads 11 files EDA models: Components ZIP ALT WE-CMBNC (rev24a).IntLib \| 33.5 MB CDS Cadence_WE-CMBNC (rev25a).zip \| 143.6 MB EAG Eagle_WE-CMBNC (rev24a).lbr \| 150.3 KB KIC KiCad_WE-CMBNC (rev25b).zip \| 61.5 MB ZUK Cadstar_WE-CMBNC (rev20a).zip \| 23.3 KB CAD files ZIP 3D 3D_WE-CMBNC-M_7448030509 (rev1).pdf \| 3.4 MB IGS 7448030509 (rev1).igs \| 7.6 MB STP 7448030509 (rev1).stp \| 2.5 MB Electric models ZIP ADS ADS_WE-CMBNC (rev24a).zip \| 14 MB PSP PSpice_WE-CMBNC (rev25a).zip \| 21.2 KB S S-Parameter_7448030509 (rev20a).s4p \| 310.6 KB	Status Active i \| Production is active. Expected lifetime: >10 years.	Rated Current 5 A	Inductance 9 mH	DC Resistance 32 mΩ	Rated Voltage 300 V (AC)	Insulation Test Voltage 2100 V (AC)	Material Nanocrystalline	Length 23 mm	Width 13.5 mm	Height 26 mm	Mount THT	Design Kit 744800 744998
7448031002	10 A, 2 mH, 6.3 mΩ	Simulation	Downloads 11 files EDA models: Components ZIP ALT WE-CMBNC (rev24a).IntLib \| 33.5 MB CDS Cadence_WE-CMBNC (rev25a).zip \| 143.6 MB EAG Eagle_WE-CMBNC (rev24a).lbr \| 150.3 KB KIC KiCad_WE-CMBNC (rev25b).zip \| 61.5 MB ZUK Cadstar_WE-CMBNC (rev20a).zip \| 23.3 KB CAD files ZIP 3D 3D_WE-CMBNC-M_7448031002 (rev1).pdf \| 1.3 MB IGS 7448031002 (rev1).igs \| 5.1 MB STP 7448031002 (rev1).stp \| 1.3 MB Electric models ZIP ADS ADS_WE-CMBNC (rev24a).zip \| 14 MB PSP PSpice_WE-CMBNC (rev25a).zip \| 21.2 KB S S-Parameter_7448031002 (rev20a).s4p \| 309.4 KB	Status Active i \| Production is active. Expected lifetime: >10 years.	Rated Current 10 A	Inductance 2 mH	DC Resistance 6.3 mΩ	Rated Voltage 300 V (AC)	Insulation Test Voltage 2100 V (AC)	Material Nanocrystalline	Length 24 mm	Width 17 mm	Height 25 mm	Mount THT	Design Kit –
7448031501	15 A, 1 mH, 3.2 mΩ	Simulation	Downloads 11 files EDA models: Components ZIP ALT WE-CMBNC (rev24a).IntLib \| 33.5 MB CDS Cadence_WE-CMBNC (rev25a).zip \| 143.6 MB EAG Eagle_WE-CMBNC (rev24a).lbr \| 150.3 KB KIC KiCad_WE-CMBNC (rev25b).zip \| 61.5 MB ZUK Cadstar_WE-CMBNC (rev20a).zip \| 23.3 KB CAD files ZIP 3D 3D_WE-CMBNC-M_7448031501 (rev1).pdf \| 1.1 MB IGS 7448031501 (rev1).igs \| 4.3 MB STP 7448031501 (rev1).stp \| 1.1 MB Electric models ZIP ADS ADS_WE-CMBNC (rev24a).zip \| 14 MB PSP PSpice_WE-CMBNC (rev25a).zip \| 21.2 KB S S-Parameter_7448031501 (rev20a).s4p \| 309.3 KB	Status Active i \| Production is active. Expected lifetime: >10 years.	Rated Current 15 A	Inductance 1 mH	DC Resistance 3.2 mΩ	Rated Voltage 300 V (AC)	Insulation Test Voltage 2100 V (AC)	Material Nanocrystalline	Length 24 mm	Width 17 mm	Height 25 mm	Mount THT	Design Kit 744800
7448040382	2.5 A, 82 mH, 170 mΩ	Simulation	Downloads 11 files EDA models: Components ZIP ALT WE-CMBNC (rev24a).IntLib \| 33.5 MB CDS Cadence_WE-CMBNC (rev25a).zip \| 143.6 MB EAG Eagle_WE-CMBNC (rev24a).lbr \| 150.3 KB KIC KiCad_WE-CMBNC (rev25b).zip \| 61.5 MB ZUK Cadstar_WE-CMBNC (rev20a).zip \| 23.3 KB CAD files ZIP 3D 3D_WE-CMBNC-L_7448040382 (rev1).pdf \| 7.1 MB IGS 7448040382 (rev1).igs \| 19 MB STP 7448040382 (rev1).stp \| 6.8 MB Electric models ZIP ADS ADS_WE-CMBNC (rev24a).zip \| 14 MB PSP PSpice_WE-CMBNC (rev25a).zip \| 21.2 KB S S-Parameter_7448040382 (rev20a).s4p \| 312.5 KB	Status Active i \| Production is active. Expected lifetime: >10 years.	Rated Current 2.5 A	Inductance 82 mH	DC Resistance 170 mΩ	Rated Voltage 300 V (AC)	Insulation Test Voltage 2100 V (AC)	Material Nanocrystalline	Length 27.5 mm	Width 18 mm	Height 32 mm	Mount THT	Design Kit 744800
7448040435	3.5 A, 35 mH, 80 mΩ	Simulation	Downloads 11 files EDA models: Components ZIP ALT WE-CMBNC (rev24a).IntLib \| 33.5 MB CDS Cadence_WE-CMBNC (rev25a).zip \| 143.6 MB EAG Eagle_WE-CMBNC (rev24a).lbr \| 150.3 KB KIC KiCad_WE-CMBNC (rev25b).zip \| 61.5 MB ZUK Cadstar_WE-CMBNC (rev20a).zip \| 23.3 KB CAD files ZIP 3D 3D_WE-CMBNC-L_7448040435 (rev1).pdf \| 4.8 MB IGS 7448040435 (rev1).igs \| 13.9 MB STP 7448040435 (rev1).stp \| 4.6 MB Electric models ZIP ADS ADS_WE-CMBNC (rev24a).zip \| 14 MB PSP PSpice_WE-CMBNC (rev25a).zip \| 21.2 KB S S-Parameter_7448040435 (rev20a).s4p \| 311.8 KB	Status Active i \| Production is active. Expected lifetime: >10 years.	Rated Current 3.5 A	Inductance 35 mH	DC Resistance 80 mΩ	Rated Voltage 300 V (AC)	Insulation Test Voltage 2100 V (AC)	Material Nanocrystalline	Length 27.5 mm	Width 18 mm	Height 32 mm	Mount THT	Design Kit 744824
7448040515	5 A, 15 mH, 40 mΩ	Simulation	Downloads 11 files EDA models: Components ZIP ALT WE-CMBNC (rev24a).IntLib \| 33.5 MB CDS Cadence_WE-CMBNC (rev25a).zip \| 143.6 MB EAG Eagle_WE-CMBNC (rev24a).lbr \| 150.3 KB KIC KiCad_WE-CMBNC (rev25b).zip \| 61.5 MB ZUK Cadstar_WE-CMBNC (rev20a).zip \| 23.3 KB CAD files ZIP 3D 3D_WE-CMBNC-L_7448040515 (rev1).pdf \| 3.6 MB IGS 7448040515 (rev1).igs \| 10.3 MB STP 7448040515 (rev1).stp \| 3.3 MB Electric models ZIP ADS ADS_WE-CMBNC (rev24a).zip \| 14 MB PSP PSpice_WE-CMBNC (rev25a).zip \| 21.2 KB S S-Parameter_7448040515 (rev20a).s4p \| 311 KB	Status Active i \| Production is active. Expected lifetime: >10 years.	Rated Current 5 A	Inductance 15 mH	DC Resistance 40 mΩ	Rated Voltage 300 V (AC)	Insulation Test Voltage 2100 V (AC)	Material Nanocrystalline	Length 28 mm	Width 19 mm	Height 32 mm	Mount THT	Design Kit 744824
7448040707	7 A, 7 mH, 22 mΩ	Simulation	Downloads 11 files EDA models: Components ZIP ALT WE-CMBNC (rev24a).IntLib \| 33.5 MB CDS Cadence_WE-CMBNC (rev25a).zip \| 143.6 MB EAG Eagle_WE-CMBNC (rev24a).lbr \| 150.3 KB KIC KiCad_WE-CMBNC (rev25b).zip \| 61.5 MB ZUK Cadstar_WE-CMBNC (rev20a).zip \| 23.3 KB CAD files ZIP 3D 3D_WE-CMBNC-L_7448040707 (rev1).pdf \| 2.2 MB IGS 7448040707 (rev1).igs \| 8.4 MB STP 7448040707 (rev1).stp \| 2.4 MB Electric models ZIP ADS ADS_WE-CMBNC (rev24a).zip \| 14 MB PSP PSpice_WE-CMBNC (rev25a).zip \| 21.2 KB S S-Parameter_7448040707 (rev20a).s4p \| 311.2 KB	Status Active i \| Production is active. Expected lifetime: >10 years.	Rated Current 7 A	Inductance 7 mH	DC Resistance 22 mΩ	Rated Voltage 300 V (AC)	Insulation Test Voltage 2100 V (AC)	Material Nanocrystalline	Length 29 mm	Width 19 mm	Height 32 mm	Mount THT	Design Kit 744800 744824 744998
7448041104	11 A, 4 mH, 8.8 mΩ	Simulation	Downloads 11 files EDA models: Components ZIP ALT WE-CMBNC (rev24a).IntLib \| 33.5 MB CDS Cadence_WE-CMBNC (rev25a).zip \| 143.6 MB EAG Eagle_WE-CMBNC (rev24a).lbr \| 150.3 KB KIC KiCad_WE-CMBNC (rev25b).zip \| 61.5 MB ZUK Cadstar_WE-CMBNC (rev20a).zip \| 23.3 KB CAD files ZIP 3D 3D_WE-CMBNC-L_7448041104 (rev1).pdf \| 1.7 MB IGS 7448041104 (rev1).igs \| 7.8 MB STP 7448041104 (rev1).stp \| 2.1 MB Electric models ZIP ADS ADS_WE-CMBNC (rev24a).zip \| 14 MB PSP PSpice_WE-CMBNC (rev25a).zip \| 21.2 KB S S-Parameter_7448041104 (rev20a).s4p \| 309.8 KB	Status Active i \| Production is active. Expected lifetime: >10 years.	Rated Current 11 A	Inductance 4 mH	DC Resistance 8.8 mΩ	Rated Voltage 300 V (AC)	Insulation Test Voltage 2100 V (AC)	Material Nanocrystalline	Length 29 mm	Width 19 mm	Height 32 mm	Mount THT	Design Kit 744824
7448041502	15 A, 2 mH, 5 mΩ	Simulation	Downloads 11 files EDA models: Components ZIP ALT WE-CMBNC (rev24a).IntLib \| 33.5 MB CDS Cadence_WE-CMBNC (rev25a).zip \| 143.6 MB EAG Eagle_WE-CMBNC (rev24a).lbr \| 150.3 KB KIC KiCad_WE-CMBNC (rev25b).zip \| 61.5 MB ZUK Cadstar_WE-CMBNC (rev20a).zip \| 23.3 KB CAD files ZIP 3D 3D_WE-CMBNC-L_7448041502 (rev1).pdf \| 1.5 MB IGS 7448041502 (rev1).igs \| 5.9 MB STP 7448041502 (rev1).stp \| 1.6 MB Electric models ZIP ADS ADS_WE-CMBNC (rev24a).zip \| 14 MB PSP PSpice_WE-CMBNC (rev25a).zip \| 21.2 KB S S-Parameter_7448041502 (rev20a).s4p \| 308.9 KB	Status Active i \| Production is active. Expected lifetime: >10 years.	Rated Current 15 A	Inductance 2 mH	DC Resistance 5 mΩ	Rated Voltage 300 V (AC)	Insulation Test Voltage 2100 V (AC)	Material Nanocrystalline	Length 29 mm	Width 19 mm	Height 32 mm	Mount THT	Design Kit 744824
7448041801	18 A, 1.5 mH, 3.2 mΩ	Simulation	Downloads 10 files EDA models: Components ZIP ALT WE-CMBNC (rev24a).IntLib \| 33.5 MB CDS Cadence_WE-CMBNC (rev25a).zip \| 143.6 MB EAG Eagle_WE-CMBNC (rev24a).lbr \| 150.3 KB KIC KiCad_WE-CMBNC (rev25b).zip \| 61.5 MB ZUK Cadstar_WE-CMBNC (rev20a).zip \| 23.3 KB CAD files ZIP IGS 7448041801 (rev1).igs \| 5.5 MB STP 7448041801 (rev1).stp \| 1.5 MB Electric models ZIP ADS ADS_WE-CMBNC (rev24a).zip \| 14 MB PSP PSpice_WE-CMBNC (rev25a).zip \| 21.2 KB S S-Parameter_7448041801 (rev20a).s4p \| 308.9 KB	Status Active i \| Production is active. Expected lifetime: >10 years.	Rated Current 18 A	Inductance 1.5 mH	DC Resistance 3.2 mΩ	Rated Voltage 300 V (AC)	Insulation Test Voltage 2100 V (AC)	Material Nanocrystalline	Length 30 mm	Width 19 mm	Height 32 mm	Mount THT	Design Kit –
7448042001	20 A, 1 mH, 2.4 mΩ	Simulation	Downloads 11 files EDA models: Components ZIP ALT WE-CMBNC (rev24a).IntLib \| 33.5 MB CDS Cadence_WE-CMBNC (rev25a).zip \| 143.6 MB EAG Eagle_WE-CMBNC (rev24a).lbr \| 150.3 KB KIC KiCad_WE-CMBNC (rev25b).zip \| 61.5 MB ZUK Cadstar_WE-CMBNC (rev20a).zip \| 23.3 KB CAD files ZIP 3D 3D_WE-CMBNC-L_7448042001 (rev1).pdf \| 1.3 MB IGS 7448042001 (rev1).igs \| 5.2 MB STP 7448042001 (rev1).stp \| 1.3 MB Electric models ZIP ADS ADS_WE-CMBNC (rev24a).zip \| 14 MB PSP PSpice_WE-CMBNC (rev25a).zip \| 21.2 KB S S-Parameter_7448042001 (rev20a).s4p \| 309 KB	Status Active i \| Production is active. Expected lifetime: >10 years.	Rated Current 20 A	Inductance 1 mH	DC Resistance 2.4 mΩ	Rated Voltage 300 V (AC)	Insulation Test Voltage 2100 V (AC)	Material Nanocrystalline	Length 30 mm	Width 19 mm	Height 32 mm	Mount THT	Design Kit 744800
7448050219	2 A, 190 mH, 310 mΩ	Simulation	Downloads 11 files EDA models: Components ZIP ALT WE-CMBNC (rev24a).IntLib \| 33.5 MB CDS Cadence_WE-CMBNC (rev25a).zip \| 143.6 MB EAG Eagle_WE-CMBNC (rev24a).lbr \| 150.3 KB KIC KiCad_WE-CMBNC (rev25b).zip \| 61.5 MB ZUK Cadstar_WE-CMBNC (rev20a).zip \| 23.3 KB CAD files ZIP 3D 3D_WE-CMBNC-XL_7448050219 (rev1).pdf \| 9.3 MB IGS 7448050219 (rev1).igs \| 13.2 MB STP 7448050219 (rev1).stp \| 8.9 MB Electric models ZIP ADS ADS_WE-CMBNC (rev24a).zip \| 14 MB PSP PSpice_WE-CMBNC (rev25a).zip \| 21.2 KB S S-Parameter_7448050219 (rev20a).s4p \| 315.1 KB	Status Active i \| Production is active. Expected lifetime: >10 years.	Rated Current 2 A	Inductance 190 mH	DC Resistance 310 mΩ	Rated Voltage 300 V (AC)	Insulation Test Voltage 2100 V (AC)	Material Nanocrystalline	Length 33 mm	Width 19 mm	Height 38 mm	Mount THT	Design Kit 744800
7448050490	3.5 A, 90 mH, 110 mΩ	Simulation	Downloads 10 files EDA models: Components ZIP ALT WE-CMBNC (rev24a).IntLib \| 33.5 MB CDS Cadence_WE-CMBNC (rev25a).zip \| 143.6 MB EAG Eagle_WE-CMBNC (rev24a).lbr \| 150.3 KB KIC KiCad_WE-CMBNC (rev25b).zip \| 61.5 MB ZUK Cadstar_WE-CMBNC (rev20a).zip \| 23.3 KB CAD files ZIP IGS 7448050490 (rev1).igs \| 7.5 MB STP 7448050490 (rev1).stp \| 3.1 MB Electric models ZIP ADS ADS_WE-CMBNC (rev24a).zip \| 14 MB PSP PSpice_WE-CMBNC (rev25a).zip \| 21.2 KB S S-Parameter_7448050490 (rev20a).s4p \| 313 KB	Status Active i \| Production is active. Expected lifetime: >10 years.	Rated Current 3.5 A	Inductance 90 mH	DC Resistance 110 mΩ	Rated Voltage 300 V (AC)	Insulation Test Voltage 2100 V (AC)	Material Nanocrystalline	Length 33 mm	Width 19 mm	Height 39 mm	Mount THT	Design Kit –
7448050530	5 A, 30 mH, 46 mΩ	Simulation	Downloads 11 files EDA models: Components ZIP ALT WE-CMBNC (rev24a).IntLib \| 33.5 MB CDS Cadence_WE-CMBNC (rev25a).zip \| 143.6 MB EAG Eagle_WE-CMBNC (rev24a).lbr \| 150.3 KB KIC KiCad_WE-CMBNC (rev25b).zip \| 61.5 MB ZUK Cadstar_WE-CMBNC (rev20a).zip \| 23.3 KB CAD files ZIP 3D 3D_WE-CMBNC-XL_7448050530 (rev1).pdf \| 3.8 MB IGS 7448050530 (rev1).igs \| 11.9 MB STP 7448050530 (rev1).stp \| 4.2 MB Electric models ZIP ADS ADS_WE-CMBNC (rev24a).zip \| 14 MB PSP PSpice_WE-CMBNC (rev25a).zip \| 21.2 KB S S-Parameter_7448050530 (rev20a).s4p \| 312 KB	Status Active i \| Production is active. Expected lifetime: >10 years.	Rated Current 5 A	Inductance 30 mH	DC Resistance 46 mΩ	Rated Voltage 300 V (AC)	Insulation Test Voltage 2100 V (AC)	Material Nanocrystalline	Length 33 mm	Width 23 mm	Height 34 mm	Mount THT	Design Kit –
7448051012	10 A, 12 mH, 15 mΩ	Simulation	Downloads 11 files EDA models: Components ZIP ALT WE-CMBNC (rev24a).IntLib \| 33.5 MB CDS Cadence_WE-CMBNC (rev25a).zip \| 143.6 MB EAG Eagle_WE-CMBNC (rev24a).lbr \| 150.3 KB KIC KiCad_WE-CMBNC (rev25b).zip \| 61.5 MB ZUK Cadstar_WE-CMBNC (rev20a).zip \| 23.3 KB CAD files ZIP 3D 3D_WE-CMBNC-XL_7448051012 (rev1).pdf \| 3 MB IGS 7448051012 (rev1).igs \| 9.8 MB STP 7448051012 (rev1).stp \| 3.4 MB Electric models ZIP ADS ADS_WE-CMBNC (rev24a).zip \| 14 MB PSP PSpice_WE-CMBNC (rev25a).zip \| 21.2 KB S S-Parameter_7448051012 (rev20a).s4p \| 310.3 KB	Status Active i \| Production is active. Expected lifetime: >10 years.	Rated Current 10 A	Inductance 12 mH	DC Resistance 15 mΩ	Rated Voltage 300 V (AC)	Insulation Test Voltage 2100 V (AC)	Material Nanocrystalline	Length 34 mm	Width 23 mm	Height 34 mm	Mount THT	Design Kit 744800
7448051307	13 A, 7 mH, 8 mΩ	Simulation	Downloads 11 files EDA models: Components ZIP ALT WE-CMBNC (rev24a).IntLib \| 33.5 MB CDS Cadence_WE-CMBNC (rev25a).zip \| 143.6 MB EAG Eagle_WE-CMBNC (rev24a).lbr \| 150.3 KB KIC KiCad_WE-CMBNC (rev25b).zip \| 61.5 MB ZUK Cadstar_WE-CMBNC (rev20a).zip \| 23.3 KB CAD files ZIP 3D 3D_7448051307 (rev1).pdf \| 2.7 MB IGS IGS_7448051307 (rev1).igs \| 8.3 MB STP STP_7448051307 (rev1).stp \| 3 MB Electric models ZIP ADS ADS_WE-CMBNC (rev24a).zip \| 14 MB PSP PSpice_WE-CMBNC (rev25a).zip \| 21.2 KB S S-Parameter_7448051307 (rev20a).s4p \| 309.6 KB	Status Active i \| Production is active. Expected lifetime: >10 years.	Rated Current 13 A	Inductance 7 mH	DC Resistance 8 mΩ	Rated Voltage 300 V (AC)	Insulation Test Voltage 2100 V (AC)	Material Nanocrystalline	Length 35.5 mm	Width 23 mm	Height 34.5 mm	Mount THT	Design Kit –
7448051804	18 A, 4.5 mH, 4.2 mΩ	Simulation	Downloads 11 files EDA models: Components ZIP ALT WE-CMBNC (rev24a).IntLib \| 33.5 MB CDS Cadence_WE-CMBNC (rev25a).zip \| 143.6 MB EAG Eagle_WE-CMBNC (rev24a).lbr \| 150.3 KB KIC KiCad_WE-CMBNC (rev25b).zip \| 61.5 MB ZUK Cadstar_WE-CMBNC (rev20a).zip \| 23.3 KB CAD files ZIP 3D 3D_WE-CMBNC-XL_7448051804 (rev1).pdf \| 2.8 MB IGS 7448051804 (rev1).igs \| 7.4 MB STP 7448051804 (rev1).stp \| 2.8 MB Electric models ZIP ADS ADS_WE-CMBNC (rev24a).zip \| 14 MB PSP PSpice_WE-CMBNC (rev25a).zip \| 21.2 KB S S-Parameter_7448051804 (rev20a).s4p \| 309.5 KB	Status Active i \| Production is active. Expected lifetime: >10 years.	Rated Current 18 A	Inductance 4.5 mH	DC Resistance 4.2 mΩ	Rated Voltage 300 V (AC)	Insulation Test Voltage 2100 V (AC)	Material Nanocrystalline	Length 36 mm	Width 23 mm	Height 34 mm	Mount THT	Design Kit –
7448052303	23 A, 3 mH, 3 mΩ	Simulation	Downloads 11 files EDA models: Components ZIP ALT WE-CMBNC (rev24a).IntLib \| 33.5 MB CDS Cadence_WE-CMBNC (rev25a).zip \| 143.6 MB EAG Eagle_WE-CMBNC (rev24a).lbr \| 150.3 KB KIC KiCad_WE-CMBNC (rev25b).zip \| 61.5 MB ZUK Cadstar_WE-CMBNC (rev20a).zip \| 23.3 KB CAD files ZIP 3D 3D_WE-CMBNC-XL_7448052303 (rev1).pdf \| 2.7 MB IGS 7448052303 (rev1).igs \| 9.2 MB STP 7448052303 (rev1).stp \| 3 MB Electric models ZIP ADS ADS_WE-CMBNC (rev24a).zip \| 14 MB PSP PSpice_WE-CMBNC (rev25a).zip \| 21.2 KB S S-Parameter_7448052303 (rev20a).s4p \| 309.2 KB	Status Active i \| Production is active. Expected lifetime: >10 years.	Rated Current 23 A	Inductance 3 mH	DC Resistance 3 mΩ	Rated Voltage 300 V (AC)	Insulation Test Voltage 2100 V (AC)	Material Nanocrystalline	Length 36 mm	Width 23 mm	Height 33 mm	Mount THT	Design Kit –
7448052502	25 A, 2.5 mH, 2.2 mΩ	Simulation	Downloads 11 files EDA models: Components ZIP ALT WE-CMBNC (rev24a).IntLib \| 33.5 MB CDS Cadence_WE-CMBNC (rev25a).zip \| 143.6 MB EAG Eagle_WE-CMBNC (rev24a).lbr \| 150.3 KB KIC KiCad_WE-CMBNC (rev25b).zip \| 61.5 MB ZUK Cadstar_WE-CMBNC (rev20a).zip \| 23.3 KB CAD files ZIP 3D 3D_WE-CMBNC-XL_7448052502 (rev1).pdf \| 2.6 MB IGS 7448052502 (rev1).igs \| 8.3 MB STP 7448052502 (rev1).stp \| 2.7 MB Electric models ZIP ADS ADS_WE-CMBNC (rev24a).zip \| 14 MB PSP PSpice_WE-CMBNC (rev25a).zip \| 21.2 KB S S-Parameter_7448052502 (rev20a).s4p \| 309.1 KB	Status Active i \| Production is active. Expected lifetime: >10 years.	Rated Current 25 A	Inductance 2.5 mH	DC Resistance 2.2 mΩ	Rated Voltage 300 V (AC)	Insulation Test Voltage 2100 V (AC)	Material Nanocrystalline	Length 36 mm	Width 23 mm	Height 34 mm	Mount THT	Design Kit –

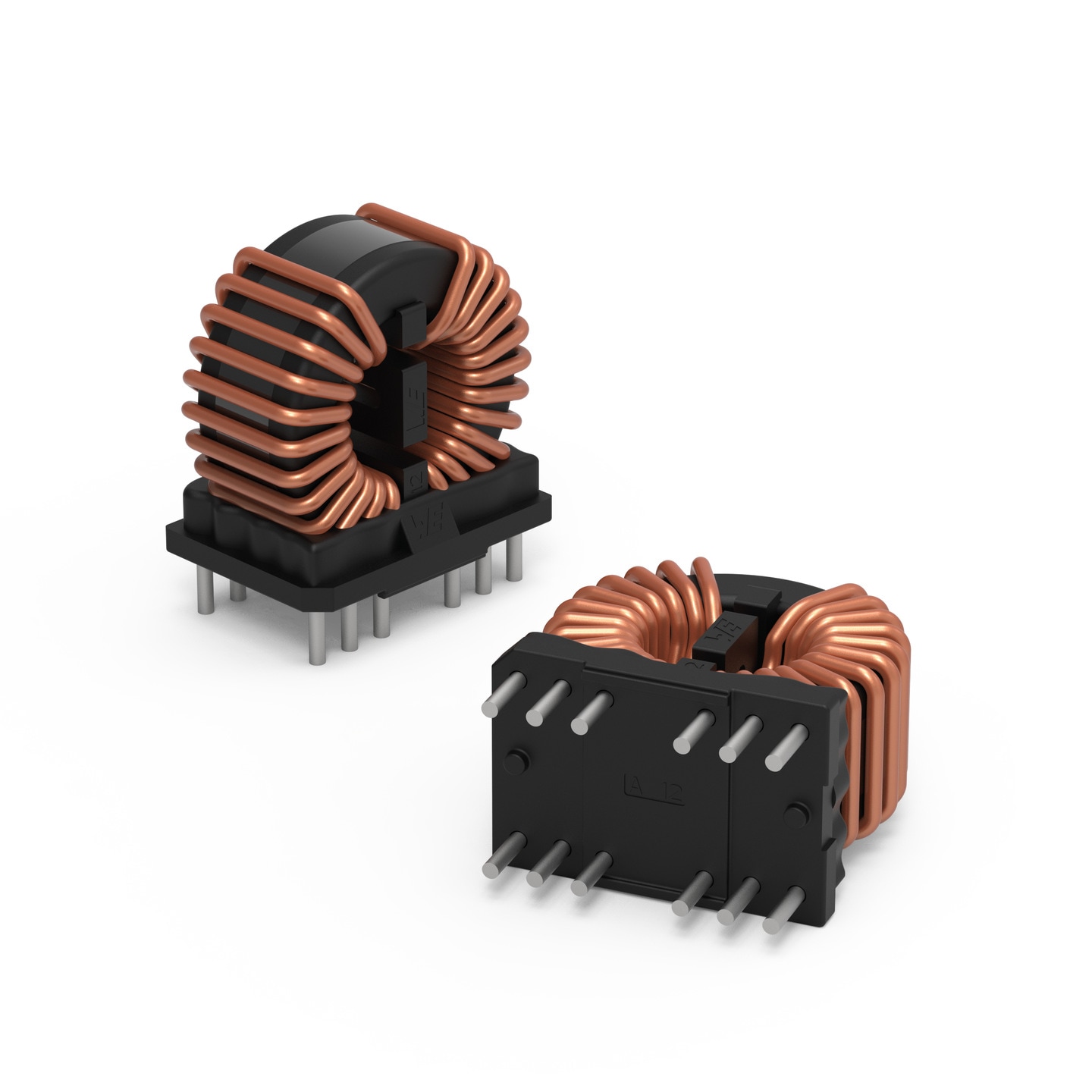

7448053201	32 A, 0.9 mH, 1.1 mΩ	Simulation	Downloads 11 files EDA models: Components ZIP ALT WE-CMBNC (rev24a).IntLib \| 33.5 MB CDS Cadence_WE-CMBNC (rev25a).zip \| 143.6 MB EAG Eagle_WE-CMBNC (rev24a).lbr \| 150.3 KB KIC KiCad_WE-CMBNC (rev25b).zip \| 61.5 MB ZUK Cadstar_WE-CMBNC (rev20a).zip \| 23.3 KB CAD files ZIP 3D 3D_WE-CMBNC-XL_7448053201 (rev1).pdf \| 2.7 MB IGS 7448053201 (rev1).igs \| 8.4 MB STP 7448053201 (rev1).stp \| 2 MB Electric models ZIP ADS ADS_WE-CMBNC (rev24a).zip \| 14 MB PSP PSpice_WE-CMBNC (rev25a).zip \| 21.2 KB S S-Parameter_7448053201 (rev20a).s4p \| 309 KB	Status Active i \| Production is active. Expected lifetime: >10 years.	Rated Current 32 A	Inductance 0.9 mH	DC Resistance 1.1 mΩ	Rated Voltage 300 V (AC)	Insulation Test Voltage 2100 V (AC)	Material Nanocrystalline	Length 37 mm	Width 23 mm	Height 34 mm	Mount THT	Design Kit 744800
7448060535	5 A, 35 mH, 90 mΩ	Simulation	Downloads 11 files EDA models: Components ZIP ALT WE-CMBNC (rev24a).IntLib \| 33.5 MB CDS Cadence_WE-CMBNC (rev25a).zip \| 143.6 MB EAG Eagle_WE-CMBNC (rev24a).lbr \| 150.3 KB KIC KiCad_WE-CMBNC (rev25b).zip \| 61.5 MB ZUK Cadstar_WE-CMBNC (rev20a).zip \| 23.3 KB CAD files ZIP 3D 3D_WE-CMBNC-XXL_7448060535 (rev1).pdf \| 6.4 MB IGS 7448060535 (rev1).igs \| 24.8 MB STP 7448060535 (rev1).stp \| 8 MB Electric models ZIP ADS ADS_WE-CMBNC (rev24a).zip \| 14 MB PSP PSpice_WE-CMBNC (rev25a).zip \| 21.2 KB S S-Parameter_7448060535 (rev20a).s4p \| 312.8 KB	Status Active i \| Production is active. Expected lifetime: >10 years.	Rated Current 5 A	Inductance 35 mH	DC Resistance 90 mΩ	Rated Voltage 300 V (AC)	Insulation Test Voltage 2100 V (AC)	Material Nanocrystalline	Length 43 mm	Width 27 mm	Height 46 mm	Mount THT	Design Kit 744800
7448060620	6 A, 20 mH, 45 mΩ	Simulation	Downloads 11 files EDA models: Components ZIP ALT WE-CMBNC (rev24a).IntLib \| 33.5 MB CDS Cadence_WE-CMBNC (rev25a).zip \| 143.6 MB EAG Eagle_WE-CMBNC (rev24a).lbr \| 150.3 KB KIC KiCad_WE-CMBNC (rev25b).zip \| 61.5 MB ZUK Cadstar_WE-CMBNC (rev20a).zip \| 23.3 KB CAD files ZIP 3D 3D_WE-CMBNC-XXL_7448060620 (rev1).pdf \| 5.1 MB IGS 7448060620 (rev1).igs \| 15.2 MB STP 7448060620 (rev1).stp \| 5.1 MB Electric models ZIP ADS ADS_WE-CMBNC (rev24a).zip \| 14 MB PSP PSpice_WE-CMBNC (rev25a).zip \| 21.2 KB S S-Parameter_7448060620 (rev20a).s4p \| 311.1 KB	Status Active i \| Production is active. Expected lifetime: >10 years.	Rated Current 6 A	Inductance 20 mH	DC Resistance 45 mΩ	Rated Voltage 300 V (AC)	Insulation Test Voltage 2100 V (AC)	Material Nanocrystalline	Length 43 mm	Width 27 mm	Height 46 mm	Mount THT	Design Kit –
7448060814	8 A, 14 mH, 27 mΩ	Simulation	Downloads 11 files EDA models: Components ZIP ALT WE-CMBNC (rev24a).IntLib \| 33.5 MB CDS Cadence_WE-CMBNC (rev25a).zip \| 143.6 MB EAG Eagle_WE-CMBNC (rev24a).lbr \| 150.3 KB KIC KiCad_WE-CMBNC (rev25b).zip \| 61.5 MB ZUK Cadstar_WE-CMBNC (rev20a).zip \| 23.3 KB CAD files ZIP 3D 3D_WE-CMBNC-XXL_7448060814 (rev1).pdf \| 4.3 MB IGS 7448060814 (rev1).igs \| 13.8 MB STP 7448060814 (rev1).stp \| 4.2 MB Electric models ZIP ADS ADS_WE-CMBNC (rev24a).zip \| 14 MB PSP PSpice_WE-CMBNC (rev25a).zip \| 21.2 KB S S-Parameter_7448060814 (rev20a).s4p \| 310.9 KB	Status Active i \| Production is active. Expected lifetime: >10 years.	Rated Current 8 A	Inductance 14 mH	DC Resistance 27 mΩ	Rated Voltage 300 V (AC)	Insulation Test Voltage 2100 V (AC)	Material Nanocrystalline	Length 43.5 mm	Width 27 mm	Height 46 mm	Mount THT	Design Kit –
7448061309	13 A, 9 mH, 15 mΩ	Simulation	Downloads 11 files EDA models: Components ZIP ALT WE-CMBNC (rev24a).IntLib \| 33.5 MB CDS Cadence_WE-CMBNC (rev25a).zip \| 143.6 MB EAG Eagle_WE-CMBNC (rev24a).lbr \| 150.3 KB KIC KiCad_WE-CMBNC (rev25b).zip \| 61.5 MB ZUK Cadstar_WE-CMBNC (rev20a).zip \| 23.3 KB CAD files ZIP 3D 3D_WE-CMBNC-XXL_7448061309 (rev1).pdf \| 3.9 MB IGS 7448061309 (rev1).igs \| 11.6 MB STP 7448061309 (rev1).stp \| 4.8 MB Electric models ZIP ADS ADS_WE-CMBNC (rev24a).zip \| 14 MB PSP PSpice_WE-CMBNC (rev25a).zip \| 21.2 KB S S-Parameter_7448061309 (rev20a).s4p \| 310.1 KB	Status Active i \| Production is active. Expected lifetime: >10 years.	Rated Current 13 A	Inductance 9 mH	DC Resistance 15 mΩ	Rated Voltage 300 V (AC)	Insulation Test Voltage 2100 V (AC)	Material Nanocrystalline	Length 45 mm	Width 27 mm	Height 46 mm	Mount THT	Design Kit 744800
7448061507	15 A, 7 mH, 9.5 mΩ	Simulation	Downloads 11 files EDA models: Components ZIP ALT WE-CMBNC (rev24a).IntLib \| 33.5 MB CDS Cadence_WE-CMBNC (rev25a).zip \| 143.6 MB EAG Eagle_WE-CMBNC (rev24a).lbr \| 150.3 KB KIC KiCad_WE-CMBNC (rev25b).zip \| 61.5 MB ZUK Cadstar_WE-CMBNC (rev20a).zip \| 23.3 KB CAD files ZIP 3D 3D_WE-CMBNC-XXL_7448061507 (rev1).pdf \| 3.6 MB IGS 7448061507 (rev1).igs \| 10.9 MB STP 7448061507 (rev1).stp \| 4.5 MB Electric models ZIP ADS ADS_WE-CMBNC (rev24a).zip \| 14 MB PSP PSpice_WE-CMBNC (rev25a).zip \| 21.2 KB S S-Parameter_7448061507 (rev20a).s4p \| 309.5 KB	Status Active i \| Production is active. Expected lifetime: >10 years.	Rated Current 15 A	Inductance 7 mH	DC Resistance 9.5 mΩ	Rated Voltage 300 V (AC)	Insulation Test Voltage 2100 V (AC)	Material Nanocrystalline	Length 46.5 mm	Width 27.5 mm	Height 46 mm	Mount THT	Design Kit –
7448062105	21 A, 5 mH, 6.5 mΩ	Simulation	Downloads 11 files EDA models: Components ZIP ALT WE-CMBNC (rev24a).IntLib \| 33.5 MB CDS Cadence_WE-CMBNC (rev25a).zip \| 143.6 MB EAG Eagle_WE-CMBNC (rev24a).lbr \| 150.3 KB KIC KiCad_WE-CMBNC (rev25b).zip \| 61.5 MB ZUK Cadstar_WE-CMBNC (rev20a).zip \| 23.3 KB CAD files ZIP 3D 3D_WE-CMBNC-XXL_7448062105 (rev1).pdf \| 3 MB IGS 7448062105 (rev1).igs \| 11.8 MB STP 7448062105 (rev1).stp \| 3.5 MB Electric models ZIP ADS ADS_WE-CMBNC (rev24a).zip \| 14 MB PSP PSpice_WE-CMBNC (rev25a).zip \| 21.2 KB S S-Parameter_7448062105 (rev20a).s4p \| 309 KB	Status Active i \| Production is active. Expected lifetime: >10 years.	Rated Current 21 A	Inductance 5 mH	DC Resistance 6.5 mΩ	Rated Voltage 300 V (AC)	Insulation Test Voltage 2100 V (AC)	Material Nanocrystalline	Length 46.5 mm	Width 27.5 mm	Height 46 mm	Mount THT	Design Kit –
7448062603	26 A, 3 mH, 4.5 mΩ	Simulation	Downloads 11 files EDA models: Components ZIP ALT WE-CMBNC (rev24a).IntLib \| 33.5 MB CDS Cadence_WE-CMBNC (rev25a).zip \| 143.6 MB EAG Eagle_WE-CMBNC (rev24a).lbr \| 150.3 KB KIC KiCad_WE-CMBNC (rev25b).zip \| 61.5 MB ZUK Cadstar_WE-CMBNC (rev20a).zip \| 23.3 KB CAD files ZIP 3D 3D_WE-CMBNC-XXL_7448062603 (rev1).pdf \| 2.7 MB IGS 7448062603 (rev1).igs \| 8.9 MB STP 7448062603 (rev1).stp \| 3.1 MB Electric models ZIP ADS ADS_WE-CMBNC (rev24a).zip \| 14 MB PSP PSpice_WE-CMBNC (rev25a).zip \| 21.2 KB S S-Parameter_7448062603 (rev20a).s4p \| 308.8 KB	Status Active i \| Production is active. Expected lifetime: >10 years.	Rated Current 26 A	Inductance 3 mH	DC Resistance 4.5 mΩ	Rated Voltage 300 V (AC)	Insulation Test Voltage 2100 V (AC)	Material Nanocrystalline	Length 47 mm	Width 27.5 mm	Height 46 mm	Mount THT	Design Kit –
7448063801	38 A, 1.5 mH, 2.3 mΩ	Simulation	Downloads 11 files EDA models: Components ZIP ALT WE-CMBNC (rev24a).IntLib \| 33.5 MB CDS Cadence_WE-CMBNC (rev25a).zip \| 143.6 MB EAG Eagle_WE-CMBNC (rev24a).lbr \| 150.3 KB KIC KiCad_WE-CMBNC (rev25b).zip \| 61.5 MB ZUK Cadstar_WE-CMBNC (rev20a).zip \| 23.3 KB CAD files ZIP 3D 3D_WE-CMBNC-XXL_7448063801 (rev1).pdf \| 4.8 MB IGS 7448063801 (rev1).igs \| 15.5 MB STP 7448063801 (rev1).stp \| 5.8 MB Electric models ZIP ADS ADS_WE-CMBNC (rev24a).zip \| 14 MB PSP PSpice_WE-CMBNC (rev25a).zip \| 21.2 KB S S-Parameter_7448063801 (rev20a).s4p \| 308.2 KB	Status Active i \| Production is active. Expected lifetime: >10 years.	Rated Current 38 A	Inductance 1.5 mH	DC Resistance 2.3 mΩ	Rated Voltage 300 V (AC)	Insulation Test Voltage 2100 V (AC)	Material Nanocrystalline	Length 48 mm	Width 27.5 mm	Height 46 mm	Mount THT	Design Kit 744800

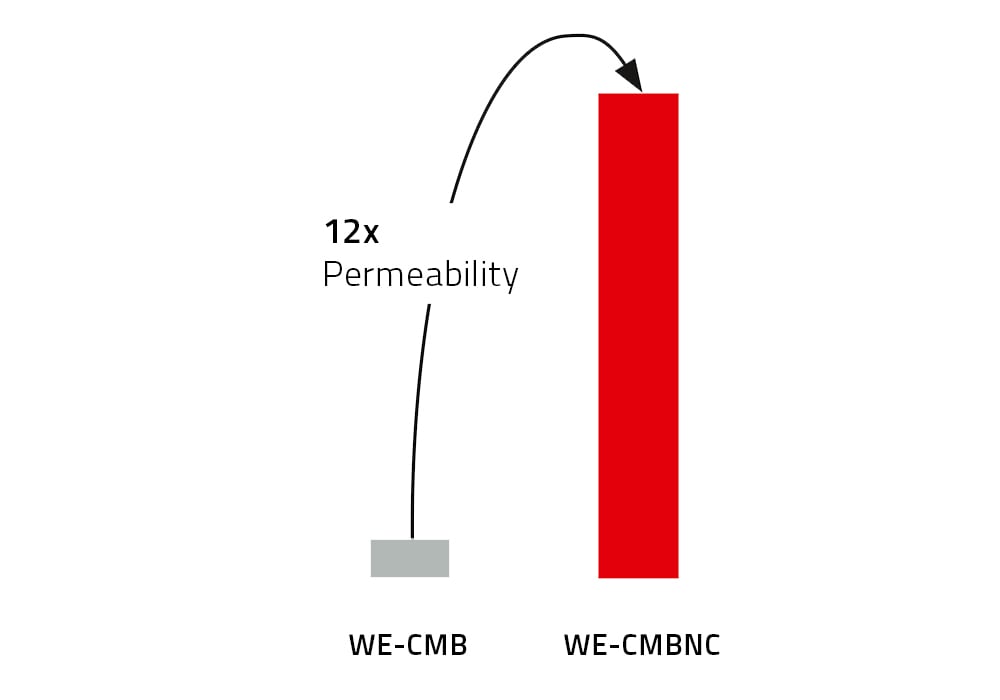

High permeability nanocrystalline core material

Crystal clear frequencies!

High permeability nanocrystalline core material

Crystal clear frequencies!

The WE-CMBNC is a VDE certified series of common mode chokes with a highly permeable nanocrystalline core material. Despite the small size, it delivers oustanding broadband attenuation performance, high rated currents and low DC resistance values.

Low profile and high voltage ratings can also be realized by the common mode chokes of the WE-CMB family.
