WCAP-PHGP Aluminum Polymer Capacitors

LTSpice files

LT
LTSpice_WCAP-PHGP (rev22a).zip
|
2.1 KB

Characteristics

General purpose product series with max. operating temperature of +105 °C
High ripple current capability
Low profile

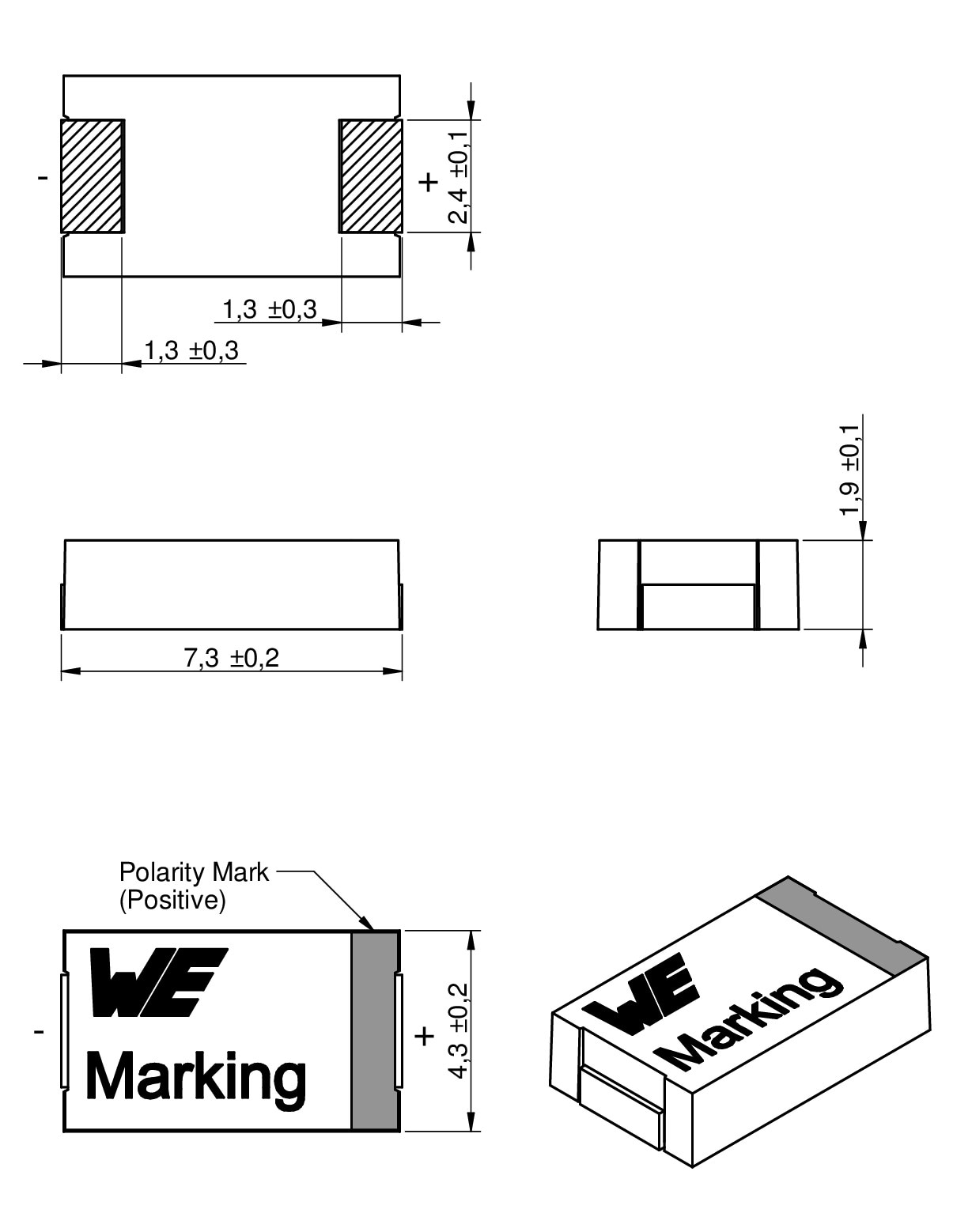

Mounting style: H-Chip SMT
Recommended soldering: Reflow soldering

Applications

Noise suppression
Input and output capacitor for DC/DC converter
USB Charger, Smart Meter, Compact Designs

Application Notes

ANP071 Aluminum Electrolytic vs. Aluminum Polymer Capacitor and how its benefits are used properly
PDF
ANP109 Impedance Spectra of Different Capacitor Technologies
PDF
ANP117 Impact of output capacitor on feedback loop stability of a power supply
PDF

Products

Filter article data

show article in 0 product lines

article in 0 product lines

Reset all

Order Code	Datasheet	Simulation	Downloads	Status	C	V_R(V (DC))	Endurance(h)	Operating Temperature	I_RIPPLE(mA)	R_ESR(mΩ)	I_Leak(µA)	DF(%)	L(mm)	W(mm)	H(mm)	Packaging
875015119003	100 µF, 6.3 V (DC), 2000	Simulation	Downloads9 files EDA models: Components ZIP ALT Altium_WCAP-PHGP (rev22c).IntLib \| 87 KB CDS Cadence_WCAP-PHGP (rev22a).zip \| 207 KB EAG Eagle_WCAP-PHGP (rev21a).lbr \| 23.5 KB KIC KiCad_WCAP-PHGP (rev25b).zip \| 69.5 KB ZUK Cadstar_WCAP-PHGP (rev21a).zip \| 5.1 KB CAD files ZIP 3D WCAP-PHGP_7,3x4,3x1,9_3D (rev1).pdf \| 78.9 KB IGS Download_IGS_WCAP-PHGP_xxx (rev1).igs \| 920.7 KB STP WCAP-PHGP_7,3x4,3x1,9 (rev1).stp \| 296.3 KB Electric models ZIP PSP PSpice_WCAP-PHGP (rev22a).zip \| 4.8 KB Download all 9 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance100 µF	Rated Voltage6.3 V (DC)	Endurance 2000	Operating Temperature -55 °C up to +105 °C	Ripple Current5100 mA	ESR15 mΩ	Leakage Current63 µA	Dissipation Factor6 %	Length7.3 mm	Width4.3 mm	Height1.9 mm	Packaging13" Tape & Reel
875015119004	150 µF, 6.3 V (DC), 2000	Simulation	Downloads9 files EDA models: Components ZIP ALT Altium_WCAP-PHGP (rev22c).IntLib \| 87 KB CDS Cadence_WCAP-PHGP (rev22a).zip \| 207 KB EAG Eagle_WCAP-PHGP (rev21a).lbr \| 23.5 KB KIC KiCad_WCAP-PHGP (rev25b).zip \| 69.5 KB ZUK Cadstar_WCAP-PHGP (rev21a).zip \| 5.1 KB CAD files ZIP 3D WCAP-PHGP_7,3x4,3x1,9_3D (rev1).pdf \| 78.9 KB IGS Download_IGS_WCAP-PHGP_xxx (rev1).igs \| 920.7 KB STP WCAP-PHGP_7,3x4,3x1,9 (rev1).stp \| 296.3 KB Electric models ZIP PSP PSpice_WCAP-PHGP (rev22a).zip \| 4.8 KB Download all 9 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance150 µF	Rated Voltage6.3 V (DC)	Endurance 2000	Operating Temperature -55 °C up to +105 °C	Ripple Current5600 mA	ESR12 mΩ	Leakage Current94.5 µA	Dissipation Factor6 %	Length7.3 mm	Width4.3 mm	Height1.9 mm	Packaging13" Tape & Reel
875015019003	180 µF, 4 V (DC), 2000	Simulation	Downloads9 files EDA models: Components ZIP ALT Altium_WCAP-PHGP (rev22c).IntLib \| 87 KB CDS Cadence_WCAP-PHGP (rev22a).zip \| 207 KB EAG Eagle_WCAP-PHGP (rev21a).lbr \| 23.5 KB KIC KiCad_WCAP-PHGP (rev25b).zip \| 69.5 KB ZUK Cadstar_WCAP-PHGP (rev21a).zip \| 5.1 KB CAD files ZIP 3D WCAP-PHGP_7,3x4,3x1,9_3D (rev1).pdf \| 78.9 KB IGS Download_IGS_WCAP-PHGP_xxx (rev1).igs \| 920.7 KB STP WCAP-PHGP_7,3x4,3x1,9 (rev1).stp \| 296.3 KB Electric models ZIP PSP PSpice_WCAP-PHGP (rev22a).zip \| 4.8 KB Download all 9 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance180 µF	Rated Voltage4 V (DC)	Endurance 2000	Operating Temperature -55 °C up to +105 °C	Ripple Current5600 mA	ESR12 mΩ	Leakage Current72 µA	Dissipation Factor6 %	Length7.3 mm	Width4.3 mm	Height1.9 mm	Packaging13" Tape & Reel
875015119005	180 µF, 6.3 V (DC), 2000	Simulation	Downloads9 files EDA models: Components ZIP ALT Altium_WCAP-PHGP (rev22c).IntLib \| 87 KB CDS Cadence_WCAP-PHGP (rev22a).zip \| 207 KB EAG Eagle_WCAP-PHGP (rev21a).lbr \| 23.5 KB KIC KiCad_WCAP-PHGP (rev25b).zip \| 69.5 KB ZUK Cadstar_WCAP-PHGP (rev21a).zip \| 5.1 KB CAD files ZIP 3D WCAP-PHGP_7,3x4,3x1,9_3D (rev1).pdf \| 78.9 KB IGS Download_IGS_WCAP-PHGP_xxx (rev1).igs \| 920.7 KB STP WCAP-PHGP_7,3x4,3x1,9 (rev1).stp \| 296.3 KB Electric models ZIP PSP PSpice_WCAP-PHGP (rev22a).zip \| 4.8 KB Download all 9 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance180 µF	Rated Voltage6.3 V (DC)	Endurance 2000	Operating Temperature -55 °C up to +105 °C	Ripple Current5100 mA	ESR15 mΩ	Leakage Current113.4 µA	Dissipation Factor6 %	Length7.3 mm	Width4.3 mm	Height1.9 mm	Packaging13" Tape & Reel
875015019004	220 µF, 4 V (DC), 2000	Simulation	Downloads9 files EDA models: Components ZIP ALT Altium_WCAP-PHGP (rev22c).IntLib \| 87 KB CDS Cadence_WCAP-PHGP (rev22a).zip \| 207 KB EAG Eagle_WCAP-PHGP (rev21a).lbr \| 23.5 KB KIC KiCad_WCAP-PHGP (rev25b).zip \| 69.5 KB ZUK Cadstar_WCAP-PHGP (rev21a).zip \| 5.1 KB CAD files ZIP 3D WCAP-PHGP_7,3x4,3x1,9_3D (rev1).pdf \| 78.9 KB IGS Download_IGS_WCAP-PHGP_xxx (rev1).igs \| 920.7 KB STP WCAP-PHGP_7,3x4,3x1,9 (rev1).stp \| 296.3 KB Electric models ZIP PSP PSpice_WCAP-PHGP (rev22a).zip \| 4.8 KB Download all 9 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance220 µF	Rated Voltage4 V (DC)	Endurance 2000	Operating Temperature -55 °C up to +105 °C	Ripple Current5600 mA	ESR12 mΩ	Leakage Current88 µA	Dissipation Factor6 %	Length7.3 mm	Width4.3 mm	Height1.9 mm	Packaging13" Tape & Reel
875015119006	220 µF, 6.3 V (DC), 2000	Simulation	Downloads9 files EDA models: Components ZIP ALT Altium_WCAP-PHGP (rev22c).IntLib \| 87 KB CDS Cadence_WCAP-PHGP (rev22a).zip \| 207 KB EAG Eagle_WCAP-PHGP (rev21a).lbr \| 23.5 KB KIC KiCad_WCAP-PHGP (rev25b).zip \| 69.5 KB ZUK Cadstar_WCAP-PHGP (rev21a).zip \| 5.1 KB CAD files ZIP 3D WCAP-PHGP_7,3x4,3x1,9_3D (rev1).pdf \| 78.9 KB IGS Download_IGS_WCAP-PHGP_xxx (rev1).igs \| 920.7 KB STP WCAP-PHGP_7,3x4,3x1,9 (rev1).stp \| 296.3 KB Electric models ZIP PSP PSpice_WCAP-PHGP (rev22a).zip \| 4.8 KB Download all 9 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance220 µF	Rated Voltage6.3 V (DC)	Endurance 2000	Operating Temperature -55 °C up to +105 °C	Ripple Current5100 mA	ESR15 mΩ	Leakage Current138.6 µA	Dissipation Factor6 %	Length7.3 mm	Width4.3 mm	Height1.9 mm	Packaging13" Tape & Reel
875015019005	330 µF, 4 V (DC), 2000	Simulation	Downloads9 files EDA models: Components ZIP ALT Altium_WCAP-PHGP (rev22c).IntLib \| 87 KB CDS Cadence_WCAP-PHGP (rev22a).zip \| 207 KB EAG Eagle_WCAP-PHGP (rev21a).lbr \| 23.5 KB KIC KiCad_WCAP-PHGP (rev25b).zip \| 69.5 KB ZUK Cadstar_WCAP-PHGP (rev21a).zip \| 5.1 KB CAD files ZIP 3D WCAP-PHGP_7,3x4,3x1,9_3D (rev1).pdf \| 78.9 KB IGS Download_IGS_WCAP-PHGP_xxx (rev1).igs \| 920.7 KB STP WCAP-PHGP_7,3x4,3x1,9 (rev1).stp \| 296.3 KB Electric models ZIP PSP PSpice_WCAP-PHGP (rev22a).zip \| 4.8 KB Download all 9 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance330 µF	Rated Voltage4 V (DC)	Endurance 2000	Operating Temperature -55 °C up to +105 °C	Ripple Current5100 mA	ESR15 mΩ	Leakage Current132 µA	Dissipation Factor6 %	Length7.3 mm	Width4.3 mm	Height1.9 mm	Packaging13" Tape & Reel
875016219004	330 µF, 2 V (DC), 2000	Simulation	Downloads9 files EDA models: Components ZIP ALT Altium_WCAP-PHGP (rev22c).IntLib \| 87 KB CDS Cadence_WCAP-PHGP (rev22a).zip \| 207 KB EAG Eagle_WCAP-PHGP (rev21a).lbr \| 23.5 KB KIC KiCad_WCAP-PHGP (rev25b).zip \| 69.5 KB ZUK Cadstar_WCAP-PHGP (rev21a).zip \| 5.1 KB CAD files ZIP 3D WCAP-PHGP_7,3x4,3x1,9_3D (rev1).pdf \| 78.9 KB IGS Download_IGS_WCAP-PHGP_xxx (rev1).igs \| 920.7 KB STP WCAP-PHGP_7,3x4,3x1,9 (rev1).stp \| 296.3 KB Electric models ZIP PSP PSpice_WCAP-PHGP (rev22a).zip \| 4.8 KB Download all 9 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance330 µF	Rated Voltage2 V (DC)	Endurance 2000	Operating Temperature -55 °C up to +105 °C	Ripple Current5600 mA	ESR12 mΩ	Leakage Current66 µA	Dissipation Factor6 %	Length7.3 mm	Width4.3 mm	Height1.9 mm	Packaging13" Tape & Reel
875016319002	330 µF, 2.5 V (DC), 2000	Simulation	Downloads9 files EDA models: Components ZIP ALT Altium_WCAP-PHGP (rev22c).IntLib \| 87 KB CDS Cadence_WCAP-PHGP (rev22a).zip \| 207 KB EAG Eagle_WCAP-PHGP (rev21a).lbr \| 23.5 KB KIC KiCad_WCAP-PHGP (rev25b).zip \| 69.5 KB ZUK Cadstar_WCAP-PHGP (rev21a).zip \| 5.1 KB CAD files ZIP 3D WCAP-PHGP_7,3x4,3x1,9_3D (rev1).pdf \| 78.9 KB IGS Download_IGS_WCAP-PHGP_xxx (rev1).igs \| 920.7 KB STP WCAP-PHGP_7,3x4,3x1,9 (rev1).stp \| 296.3 KB Electric models ZIP PSP PSpice_WCAP-PHGP (rev22a).zip \| 4.8 KB Download all 9 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance330 µF	Rated Voltage2.5 V (DC)	Endurance 2000	Operating Temperature -55 °C up to +105 °C	Ripple Current5100 mA	ESR15 mΩ	Leakage Current82.5 µA	Dissipation Factor6 %	Length7.3 mm	Width4.3 mm	Height1.9 mm	Packaging13" Tape & Reel
875016219005	390 µF, 2 V (DC), 2000	Simulation	Downloads9 files EDA models: Components ZIP ALT Altium_WCAP-PHGP (rev22c).IntLib \| 87 KB CDS Cadence_WCAP-PHGP (rev22a).zip \| 207 KB EAG Eagle_WCAP-PHGP (rev21a).lbr \| 23.5 KB KIC KiCad_WCAP-PHGP (rev25b).zip \| 69.5 KB ZUK Cadstar_WCAP-PHGP (rev21a).zip \| 5.1 KB CAD files ZIP 3D WCAP-PHGP_7,3x4,3x1,9_3D (rev1).pdf \| 78.9 KB IGS Download_IGS_WCAP-PHGP_xxx (rev1).igs \| 920.7 KB STP WCAP-PHGP_7,3x4,3x1,9 (rev1).stp \| 296.3 KB Electric models ZIP PSP PSpice_WCAP-PHGP (rev22a).zip \| 4.8 KB Download all 9 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance390 µF	Rated Voltage2 V (DC)	Endurance 2000	Operating Temperature -55 °C up to +105 °C	Ripple Current5100 mA	ESR15 mΩ	Leakage Current78 µA	Dissipation Factor6 %	Length7.3 mm	Width4.3 mm	Height1.9 mm	Packaging13" Tape & Reel
875016319003	390 µF, 2.5 V (DC), 2000	Simulation	Downloads9 files EDA models: Components ZIP ALT Altium_WCAP-PHGP (rev22c).IntLib \| 87 KB CDS Cadence_WCAP-PHGP (rev22a).zip \| 207 KB EAG Eagle_WCAP-PHGP (rev21a).lbr \| 23.5 KB KIC KiCad_WCAP-PHGP (rev25b).zip \| 69.5 KB ZUK Cadstar_WCAP-PHGP (rev21a).zip \| 5.1 KB CAD files ZIP 3D WCAP-PHGP_7,3x4,3x1,9_3D (rev1).pdf \| 78.9 KB IGS Download_IGS_WCAP-PHGP_xxx (rev1).igs \| 920.7 KB STP WCAP-PHGP_7,3x4,3x1,9 (rev1).stp \| 296.3 KB Electric models ZIP PSP PSpice_WCAP-PHGP (rev22a).zip \| 4.8 KB Download all 9 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance390 µF	Rated Voltage2.5 V (DC)	Endurance 2000	Operating Temperature -55 °C up to +105 °C	Ripple Current5100 mA	ESR15 mΩ	Leakage Current97.5 µA	Dissipation Factor6 %	Length7.3 mm	Width4.3 mm	Height1.9 mm	Packaging13" Tape & Reel
875016219006	470 µF, 2 V (DC), 2000	Simulation	Downloads9 files EDA models: Components ZIP ALT Altium_WCAP-PHGP (rev22c).IntLib \| 87 KB CDS Cadence_WCAP-PHGP (rev22a).zip \| 207 KB EAG Eagle_WCAP-PHGP (rev21a).lbr \| 23.5 KB KIC KiCad_WCAP-PHGP (rev25b).zip \| 69.5 KB ZUK Cadstar_WCAP-PHGP (rev21a).zip \| 5.1 KB CAD files ZIP 3D WCAP-PHGP_7,3x4,3x1,9_3D (rev1).pdf \| 78.9 KB IGS Download_IGS_WCAP-PHGP_xxx (rev1).igs \| 920.7 KB STP WCAP-PHGP_7,3x4,3x1,9 (rev1).stp \| 296.3 KB Electric models ZIP PSP PSpice_WCAP-PHGP (rev22a).zip \| 4.8 KB Download all 9 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance470 µF	Rated Voltage2 V (DC)	Endurance 2000	Operating Temperature -55 °C up to +105 °C	Ripple Current5100 mA	ESR15 mΩ	Leakage Current94 µA	Dissipation Factor6 %	Length7.3 mm	Width4.3 mm	Height1.9 mm	Packaging13" Tape & Reel
875016319004	470 µF, 2.5 V (DC), 2000	Simulation	Downloads9 files EDA models: Components ZIP ALT Altium_WCAP-PHGP (rev22c).IntLib \| 87 KB CDS Cadence_WCAP-PHGP (rev22a).zip \| 207 KB EAG Eagle_WCAP-PHGP (rev21a).lbr \| 23.5 KB KIC KiCad_WCAP-PHGP (rev25b).zip \| 69.5 KB ZUK Cadstar_WCAP-PHGP (rev21a).zip \| 5.1 KB CAD files ZIP 3D WCAP-PHGP_7,3x4,3x1,9_3D (rev1).pdf \| 78.9 KB IGS Download_IGS_WCAP-PHGP_xxx (rev1).igs \| 920.7 KB STP WCAP-PHGP_7,3x4,3x1,9 (rev1).stp \| 296.3 KB Electric models ZIP PSP PSpice_WCAP-PHGP (rev22a).zip \| 4.8 KB Download all 9 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance470 µF	Rated Voltage2.5 V (DC)	Endurance 2000	Operating Temperature -55 °C up to +105 °C	Ripple Current5100 mA	ESR15 mΩ	Leakage Current117.5 µA	Dissipation Factor6 %	Length7.3 mm	Width4.3 mm	Height1.9 mm	Packaging13" Tape & Reel
875016219007	560 µF, 2 V (DC), 2000	Simulation	Downloads9 files EDA models: Components ZIP ALT Altium_WCAP-PHGP (rev22c).IntLib \| 87 KB CDS Cadence_WCAP-PHGP (rev22a).zip \| 207 KB EAG Eagle_WCAP-PHGP (rev21a).lbr \| 23.5 KB KIC KiCad_WCAP-PHGP (rev25b).zip \| 69.5 KB ZUK Cadstar_WCAP-PHGP (rev21a).zip \| 5.1 KB CAD files ZIP 3D WCAP-PHGP_7,3x4,3x1,9_3D (rev1).pdf \| 78.9 KB IGS Download_IGS_WCAP-PHGP_xxx (rev1).igs \| 920.7 KB STP WCAP-PHGP_7,3x4,3x1,9 (rev1).stp \| 296.3 KB Electric models ZIP PSP PSpice_WCAP-PHGP (rev22a).zip \| 4.8 KB Download all 9 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance560 µF	Rated Voltage2 V (DC)	Endurance 2000	Operating Temperature -55 °C up to +105 °C	Ripple Current5100 mA	ESR15 mΩ	Leakage Current112 µA	Dissipation Factor6 %	Length7.3 mm	Width4.3 mm	Height1.9 mm	Packaging13" Tape & Reel
