WCAP-AIG8 Aluminum Electrolytic Capacitors

EXTENDED

General Purpose +85 °C

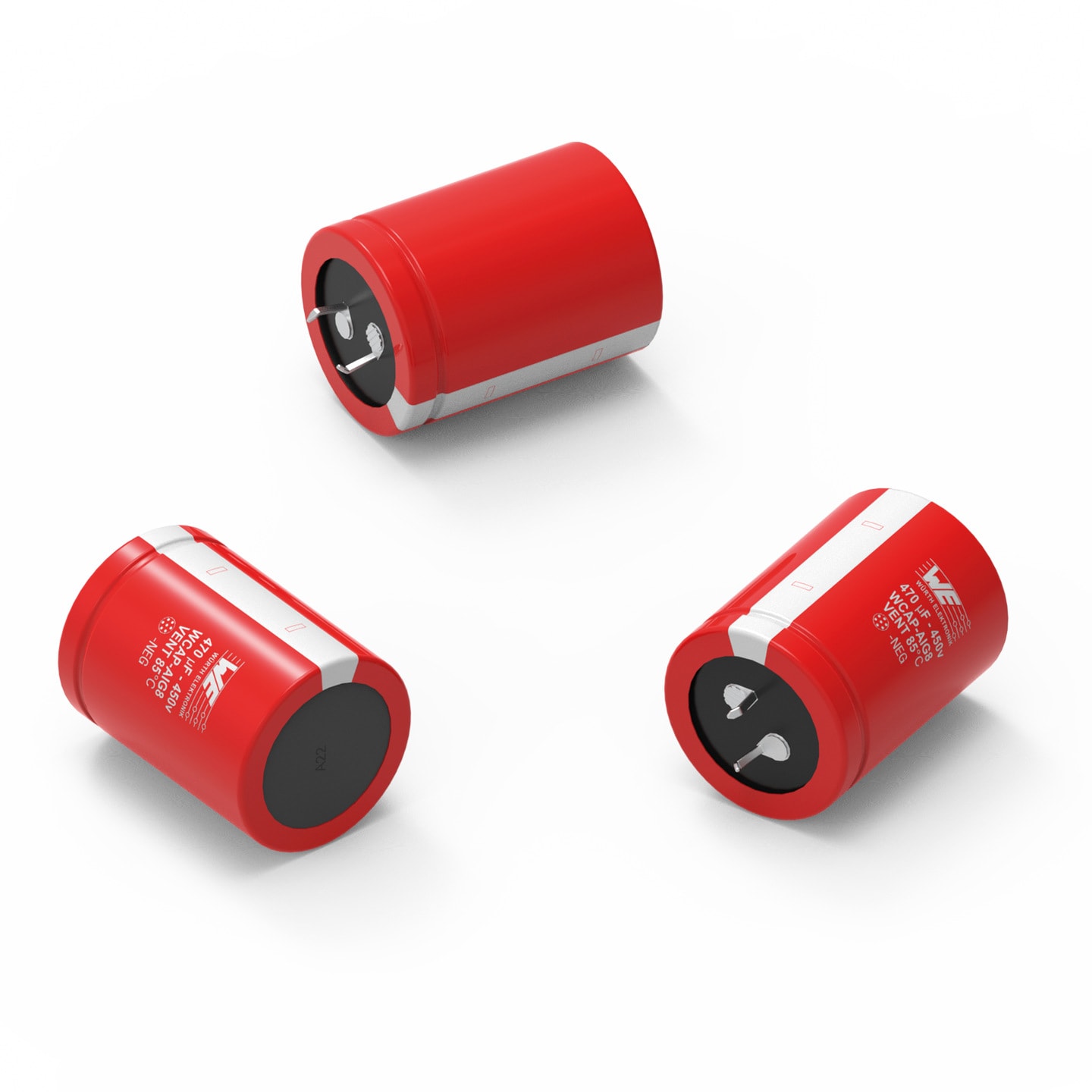

WCAP-AIG8 Aluminum Electrolytic Capacitors

LTSpice files

LT

LTSpice_WCAP-AIG8 (rev25a).zip

|

2.7 KB

Characteristics

General purpose product series with max. operating temperature of +85 °C

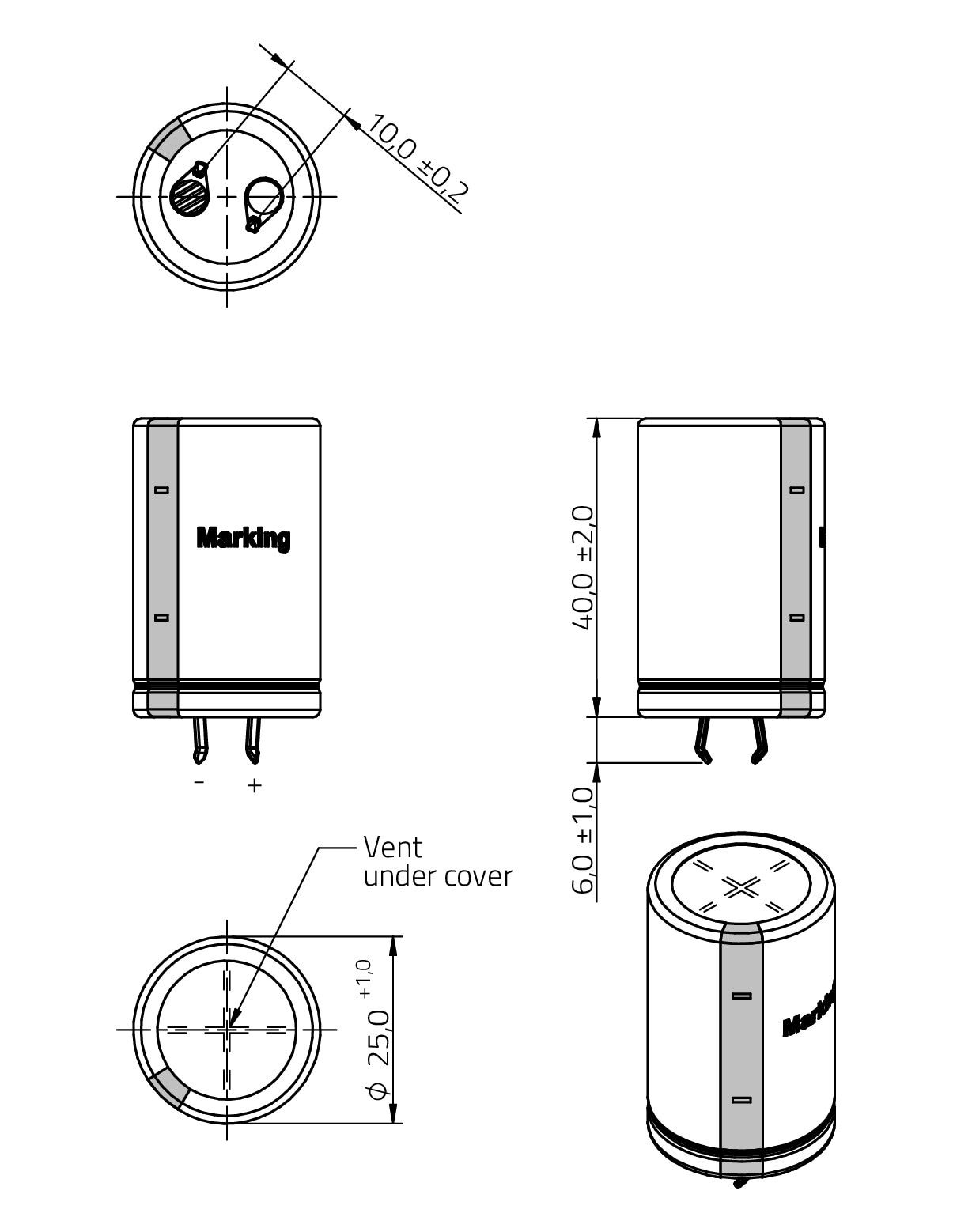

Mounting style: Snap-In
Recommended soldering: Wave soldering

Applications

Filtering
Smoothing
Energy storage
e.g. Personal and industrial computer power supply, server power supply, drive circuit, DC/AC inverter

Application Notes

Products

All

⌀ 22 mm

⌀ 25 mm

⌀ 30 mm

⌀ 35 mm

⌀ 40 mm

Reset all

Filter article data

show article in 5 product lines

article in 5 product lines

Reset all

Order Code	Datasheet	Simulation	Downloads	Status	C	V_R (V (DC))	Endurance (h)	I_RIPPLE (mA)	I_Leak (µA)	DF (%)	Pitch (mm)	Ø D (mm)	L (mm)	Packaging	Design Kit
861011483001	47 µF, 450 V (DC), 2000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-AIG8 (rev25b).IntLib \| 10 MB CDS Cadence_WCAP-AIG8 (rev25b).zip \| 57.1 MB EAG Eagle_WCAP-AIG8 (rev25a).lbr \| 100.8 KB KIC KiCad_WCAP-AIG8 (rev25b).zip \| 11.8 MB ZUK CadStar_WCAP-AIG8 (rev19a).zip \| 11.4 KB CAD files ZIP IGS IGS_WCAP-AIG8_22x26 (rev1).igs \| 4.9 MB STP Download_STP_861011483001 (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-AIG8 (rev25a).zip \| 8.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 47 µF	Rated Voltage 450 V (DC)	Endurance 2000	Ripple Current 550 mA	Leakage Current 423 µA	Dissipation Factor 20 %	Pitch 10 mm	Diameter 22 mm	Length 25 mm	Packaging Tray	Design Kit 861011
861011483002	68 µF, 450 V (DC), 2000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-AIG8 (rev25b).IntLib \| 10 MB CDS Cadence_WCAP-AIG8 (rev25b).zip \| 57.1 MB EAG Eagle_WCAP-AIG8 (rev25a).lbr \| 100.8 KB KIC KiCad_WCAP-AIG8 (rev25b).zip \| 11.8 MB ZUK CadStar_WCAP-AIG8 (rev19a).zip \| 11.4 KB CAD files ZIP IGS IGS_WCAP-AIG8_22x31 (rev1).igs \| 4.9 MB STP Download_STP_86101148300x (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-AIG8 (rev25a).zip \| 8.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 68 µF	Rated Voltage 450 V (DC)	Endurance 2000	Ripple Current 750 mA	Leakage Current 612 µA	Dissipation Factor 20 %	Pitch 10 mm	Diameter 22 mm	Length 30 mm	Packaging Tray	Design Kit 861011
861011483003	82 µF, 450 V (DC), 2000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-AIG8 (rev25b).IntLib \| 10 MB CDS Cadence_WCAP-AIG8 (rev25b).zip \| 57.1 MB EAG Eagle_WCAP-AIG8 (rev25a).lbr \| 100.8 KB KIC KiCad_WCAP-AIG8 (rev25b).zip \| 11.8 MB ZUK CadStar_WCAP-AIG8 (rev19a).zip \| 11.4 KB CAD files ZIP IGS IGS_WCAP-AIG8_22x31 (rev1).igs \| 4.9 MB STP Download_STP_86101148300x (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-AIG8 (rev25a).zip \| 8.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 82 µF	Rated Voltage 450 V (DC)	Endurance 2000	Ripple Current 930 mA	Leakage Current 738 µA	Dissipation Factor 20 %	Pitch 10 mm	Diameter 22 mm	Length 30 mm	Packaging Tray	Design Kit 861011
861011484008	82 µF, 450 V (DC), 2000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-AIG8 (rev25b).IntLib \| 10 MB CDS Cadence_WCAP-AIG8 (rev25b).zip \| 57.1 MB EAG Eagle_WCAP-AIG8 (rev25a).lbr \| 100.8 KB KIC KiCad_WCAP-AIG8 (rev25b).zip \| 11.8 MB ZUK CadStar_WCAP-AIG8 (rev19a).zip \| 11.4 KB CAD files ZIP IGS IGS_WCAP-AIG8_25x26 (rev1).igs \| 4.9 MB STP Download_STP_861011484008 (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-AIG8 (rev25a).zip \| 8.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 82 µF	Rated Voltage 450 V (DC)	Endurance 2000	Ripple Current 900 mA	Leakage Current 738 µA	Dissipation Factor 20 %	Pitch 10 mm	Diameter 25 mm	Length 25 mm	Packaging Tray	Design Kit –
861011483004	100 µF, 450 V (DC), 2000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-AIG8 (rev25b).IntLib \| 10 MB CDS Cadence_WCAP-AIG8 (rev25b).zip \| 57.1 MB EAG Eagle_WCAP-AIG8 (rev25a).lbr \| 100.8 KB KIC KiCad_WCAP-AIG8 (rev25b).zip \| 11.8 MB ZUK CadStar_WCAP-AIG8 (rev19a).zip \| 11.4 KB CAD files ZIP IGS IGS_WCAP-AIG8_22x36 (rev1).igs \| 4.9 MB STP Download_STP_861011483004 (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-AIG8 (rev25a).zip \| 8.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 100 µF	Rated Voltage 450 V (DC)	Endurance 2000	Ripple Current 1030 mA	Leakage Current 900 µA	Dissipation Factor 20 %	Pitch 10 mm	Diameter 22 mm	Length 35 mm	Packaging Tray	Design Kit 861011
861011484009	100 µF, 450 V (DC), 2000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-AIG8 (rev25b).IntLib \| 10 MB CDS Cadence_WCAP-AIG8 (rev25b).zip \| 57.1 MB EAG Eagle_WCAP-AIG8 (rev25a).lbr \| 100.8 KB KIC KiCad_WCAP-AIG8 (rev25b).zip \| 11.8 MB ZUK CadStar_WCAP-AIG8 (rev19a).zip \| 11.4 KB CAD files ZIP IGS IGS_WCAP-AIG8_25x31 (rev1).igs \| 4.9 MB STP Download_STP_861011484009 (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-AIG8 (rev25a).zip \| 8.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 100 µF	Rated Voltage 450 V (DC)	Endurance 2000	Ripple Current 1060 mA	Leakage Current 900 µA	Dissipation Factor 20 %	Pitch 10 mm	Diameter 25 mm	Length 30 mm	Packaging Tray	Design Kit –
861011483005	120 µF, 450 V (DC), 2000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-AIG8 (rev25b).IntLib \| 10 MB CDS Cadence_WCAP-AIG8 (rev25b).zip \| 57.1 MB EAG Eagle_WCAP-AIG8 (rev25a).lbr \| 100.8 KB KIC KiCad_WCAP-AIG8 (rev25b).zip \| 11.8 MB ZUK CadStar_WCAP-AIG8 (rev19a).zip \| 11.4 KB CAD files ZIP IGS IGS_WCAP-AIG8_22x41 (rev1).igs \| 4.9 MB STP Download_STP_861011483005 (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-AIG8 (rev25a).zip \| 8.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 120 µF	Rated Voltage 450 V (DC)	Endurance 2000	Ripple Current 1260 mA	Leakage Current 1080 µA	Dissipation Factor 20 %	Pitch 10 mm	Diameter 22 mm	Length 40 mm	Packaging Tray	Design Kit 861011
861011484010	120 µF, 450 V (DC), 2000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-AIG8 (rev25b).IntLib \| 10 MB CDS Cadence_WCAP-AIG8 (rev25b).zip \| 57.1 MB EAG Eagle_WCAP-AIG8 (rev25a).lbr \| 100.8 KB KIC KiCad_WCAP-AIG8 (rev25b).zip \| 11.8 MB ZUK CadStar_WCAP-AIG8 (rev19a).zip \| 11.4 KB CAD files ZIP IGS IGS_WCAP-AIG8_25x36 (rev1).igs \| 4.9 MB STP Download_STP_861011484010 (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-AIG8 (rev25a).zip \| 8.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 120 µF	Rated Voltage 450 V (DC)	Endurance 2000	Ripple Current 1340 mA	Leakage Current 1080 µA	Dissipation Factor 20 %	Pitch 10 mm	Diameter 25 mm	Length 35 mm	Packaging Tray	Design Kit –
861011483006	150 µF, 450 V (DC), 2000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-AIG8 (rev25b).IntLib \| 10 MB CDS Cadence_WCAP-AIG8 (rev25b).zip \| 57.1 MB EAG Eagle_WCAP-AIG8 (rev25a).lbr \| 100.8 KB KIC KiCad_WCAP-AIG8 (rev25b).zip \| 11.8 MB ZUK CadStar_WCAP-AIG8 (rev19a).zip \| 11.4 KB CAD files ZIP IGS IGS_WCAP-AIG8_22x51 (rev1).igs \| 4.9 MB STP Download_STP_86101148300x (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-AIG8 (rev25a).zip \| 8.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 150 µF	Rated Voltage 450 V (DC)	Endurance 2000	Ripple Current 1690 mA	Leakage Current 1350 µA	Dissipation Factor 20 %	Pitch 10 mm	Diameter 22 mm	Length 50 mm	Packaging Tray	Design Kit 861011
861011484011	150 µF, 450 V (DC), 2000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-AIG8 (rev25b).IntLib \| 10 MB CDS Cadence_WCAP-AIG8 (rev25b).zip \| 57.1 MB EAG Eagle_WCAP-AIG8 (rev25a).lbr \| 100.8 KB KIC KiCad_WCAP-AIG8 (rev25b).zip \| 11.8 MB ZUK CadStar_WCAP-AIG8 (rev19a).zip \| 11.4 KB CAD files ZIP IGS IGS_WCAP-AIG8_25x41 (rev1).igs \| 4.9 MB STP Download_STP_861011484011 (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-AIG8 (rev25a).zip \| 8.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 150 µF	Rated Voltage 450 V (DC)	Endurance 2000	Ripple Current 1740 mA	Leakage Current 1350 µA	Dissipation Factor 20 %	Pitch 10 mm	Diameter 25 mm	Length 40 mm	Packaging Tray	Design Kit –
861011485014	150 µF, 450 V (DC), 2000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-AIG8 (rev25b).IntLib \| 10 MB CDS Cadence_WCAP-AIG8 (rev25b).zip \| 57.1 MB EAG Eagle_WCAP-AIG8 (rev25a).lbr \| 100.8 KB KIC KiCad_WCAP-AIG8 (rev25b).zip \| 11.8 MB ZUK CadStar_WCAP-AIG8 (rev19a).zip \| 11.4 KB CAD files ZIP IGS IGS_WCAP-AIG8_30x31 (rev1).igs \| 4.8 MB STP Download_STP_861011485014 (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-AIG8 (rev25a).zip \| 8.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 150 µF	Rated Voltage 450 V (DC)	Endurance 2000	Ripple Current 1470 mA	Leakage Current 1350 µA	Dissipation Factor 20 %	Pitch 10 mm	Diameter 30 mm	Length 30 mm	Packaging Tray	Design Kit –
861011483007	180 µF, 450 V (DC), 2000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-AIG8 (rev25b).IntLib \| 10 MB CDS Cadence_WCAP-AIG8 (rev25b).zip \| 57.1 MB EAG Eagle_WCAP-AIG8 (rev25a).lbr \| 100.8 KB KIC KiCad_WCAP-AIG8 (rev25b).zip \| 11.8 MB ZUK CadStar_WCAP-AIG8 (rev19a).zip \| 11.4 KB CAD files ZIP IGS IGS_WCAP-AIG8_22x51 (rev1).igs \| 4.9 MB STP Download_STP_86101148300x (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-AIG8 (rev25a).zip \| 8.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 180 µF	Rated Voltage 450 V (DC)	Endurance 2000	Ripple Current 1580 mA	Leakage Current 1620 µA	Dissipation Factor 20 %	Pitch 10 mm	Diameter 22 mm	Length 50 mm	Packaging Tray	Design Kit 861011
861011484012	180 µF, 450 V (DC), 2000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-AIG8 (rev25b).IntLib \| 10 MB CDS Cadence_WCAP-AIG8 (rev25b).zip \| 57.1 MB EAG Eagle_WCAP-AIG8 (rev25a).lbr \| 100.8 KB KIC KiCad_WCAP-AIG8 (rev25b).zip \| 11.8 MB ZUK CadStar_WCAP-AIG8 (rev19a).zip \| 11.4 KB CAD files ZIP IGS IGS_WCAP-AIG8_25x46 (rev1).igs \| 4.9 MB STP Download_STP_861011484012 (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-AIG8 (rev25a).zip \| 8.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 180 µF	Rated Voltage 450 V (DC)	Endurance 2000	Ripple Current 1570 mA	Leakage Current 1620 µA	Dissipation Factor 20 %	Pitch 10 mm	Diameter 25 mm	Length 45 mm	Packaging Tray	Design Kit –
861011485015	180 µF, 450 V (DC), 2000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-AIG8 (rev25b).IntLib \| 10 MB CDS Cadence_WCAP-AIG8 (rev25b).zip \| 57.1 MB EAG Eagle_WCAP-AIG8 (rev25a).lbr \| 100.8 KB KIC KiCad_WCAP-AIG8 (rev25b).zip \| 11.8 MB ZUK CadStar_WCAP-AIG8 (rev19a).zip \| 11.4 KB CAD files ZIP IGS IGS_WCAP-AIG8_30x36 (rev1).igs \| 4.8 MB STP Download_STP_861011485015 (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-AIG8 (rev25a).zip \| 8.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 180 µF	Rated Voltage 450 V (DC)	Endurance 2000	Ripple Current 1580 mA	Leakage Current 1620 µA	Dissipation Factor 20 %	Pitch 10 mm	Diameter 30 mm	Length 35 mm	Packaging Tray	Design Kit –
861011484013	220 µF, 450 V (DC), 2000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-AIG8 (rev25b).IntLib \| 10 MB CDS Cadence_WCAP-AIG8 (rev25b).zip \| 57.1 MB EAG Eagle_WCAP-AIG8 (rev25a).lbr \| 100.8 KB KIC KiCad_WCAP-AIG8 (rev25b).zip \| 11.8 MB ZUK CadStar_WCAP-AIG8 (rev19a).zip \| 11.4 KB CAD files ZIP IGS IGS_WCAP-AIG8_25x51 (rev1).igs \| 4.9 MB STP Download_STP_861011484013 (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-AIG8 (rev25a).zip \| 8.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 220 µF	Rated Voltage 450 V (DC)	Endurance 2000	Ripple Current 1820 mA	Leakage Current 1980 µA	Dissipation Factor 20 %	Pitch 10 mm	Diameter 25 mm	Length 50 mm	Packaging Tray	Design Kit 861011
861011485016	220 µF, 450 V (DC), 2000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-AIG8 (rev25b).IntLib \| 10 MB CDS Cadence_WCAP-AIG8 (rev25b).zip \| 57.1 MB EAG Eagle_WCAP-AIG8 (rev25a).lbr \| 100.8 KB KIC KiCad_WCAP-AIG8 (rev25b).zip \| 11.8 MB ZUK CadStar_WCAP-AIG8 (rev19a).zip \| 11.4 KB CAD files ZIP IGS IGS_WCAP-AIG8_30x41 (rev1).igs \| 4.8 MB STP Download_STP_861011485016 (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-AIG8 (rev25a).zip \| 8.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 220 µF	Rated Voltage 450 V (DC)	Endurance 2000	Ripple Current 1860 mA	Leakage Current 1980 µA	Dissipation Factor 20 %	Pitch 10 mm	Diameter 30 mm	Length 40 mm	Packaging Tray	Design Kit –
861011486020	220 µF, 450 V (DC), 2000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-AIG8 (rev25b).IntLib \| 10 MB CDS Cadence_WCAP-AIG8 (rev25b).zip \| 57.1 MB EAG Eagle_WCAP-AIG8 (rev25a).lbr \| 100.8 KB KIC KiCad_WCAP-AIG8 (rev25b).zip \| 11.8 MB ZUK CadStar_WCAP-AIG8 (rev19a).zip \| 11.4 KB CAD files ZIP IGS IGS_WCAP-AIG8_35x37 (rev1).igs \| 5 MB STP Download_STP_86101148602x (rev1).stp \| 1.9 MB Electric models ZIP PSP PSpice_WCAP-AIG8 (rev25a).zip \| 8.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 220 µF	Rated Voltage 450 V (DC)	Endurance 2000	Ripple Current 1920 mA	Leakage Current 1980 µA	Dissipation Factor 20 %	Pitch 10 mm	Diameter 35 mm	Length 35 mm	Packaging Tray	Design Kit –
861011384014	220 µF, 400 V (DC), 2000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-AIG8 (rev25b).IntLib \| 10 MB CDS Cadence_WCAP-AIG8 (rev25b).zip \| 57.1 MB EAG Eagle_WCAP-AIG8 (rev25a).lbr \| 100.8 KB KIC KiCad_WCAP-AIG8 (rev25b).zip \| 11.8 MB ZUK CadStar_WCAP-AIG8 (rev19a).zip \| 11.4 KB CAD files ZIP IGS IGS_WCAP-AIG8_25x30 (rev1).igs \| 4.9 MB STP Download_STP_86101xx840xx (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-AIG8 (rev25a).zip \| 8.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 220 µF	Rated Voltage 400 V (DC)	Endurance 2000	Ripple Current 1720 mA	Leakage Current 1760 µA	Dissipation Factor 20 %	Pitch 10 mm	Diameter 25 mm	Length 30 mm	Packaging Tray	Design Kit –
861011485017	270 µF, 450 V (DC), 2000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-AIG8 (rev25b).IntLib \| 10 MB CDS Cadence_WCAP-AIG8 (rev25b).zip \| 57.1 MB EAG Eagle_WCAP-AIG8 (rev25a).lbr \| 100.8 KB KIC KiCad_WCAP-AIG8 (rev25b).zip \| 11.8 MB ZUK CadStar_WCAP-AIG8 (rev19a).zip \| 11.4 KB CAD files ZIP IGS IGS_WCAP-AIG8_30x46 (rev1).igs \| 4.8 MB STP Download_STP_86101148501x (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-AIG8 (rev25a).zip \| 8.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 270 µF	Rated Voltage 450 V (DC)	Endurance 2000	Ripple Current 2250 mA	Leakage Current 2430 µA	Dissipation Factor 20 %	Pitch 10 mm	Diameter 30 mm	Length 45 mm	Packaging Tray	Design Kit 861011
861011486021	270 µF, 450 V (DC), 2000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-AIG8 (rev25b).IntLib \| 10 MB CDS Cadence_WCAP-AIG8 (rev25b).zip \| 57.1 MB EAG Eagle_WCAP-AIG8 (rev25a).lbr \| 100.8 KB KIC KiCad_WCAP-AIG8 (rev25b).zip \| 11.8 MB ZUK CadStar_WCAP-AIG8 (rev19a).zip \| 11.4 KB CAD files ZIP IGS IGS_WCAP-AIG8_35x37 (rev1).igs \| 5 MB STP Download_STP_86101148602x (rev1).stp \| 1.9 MB Electric models ZIP PSP PSpice_WCAP-AIG8 (rev25a).zip \| 8.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 270 µF	Rated Voltage 450 V (DC)	Endurance 2000	Ripple Current 2000 mA	Leakage Current 2430 µA	Dissipation Factor 20 %	Pitch 10 mm	Diameter 35 mm	Length 35 mm	Packaging Tray	Design Kit –
861011485018	330 µF, 450 V (DC), 2000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-AIG8 (rev25b).IntLib \| 10 MB CDS Cadence_WCAP-AIG8 (rev25b).zip \| 57.1 MB EAG Eagle_WCAP-AIG8 (rev25a).lbr \| 100.8 KB KIC KiCad_WCAP-AIG8 (rev25b).zip \| 11.8 MB ZUK CadStar_WCAP-AIG8 (rev19a).zip \| 11.4 KB CAD files ZIP IGS IGS_WCAP-AIG8_30x46 (rev1).igs \| 4.8 MB STP Download_STP_86101148501x (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-AIG8 (rev25a).zip \| 8.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 330 µF	Rated Voltage 450 V (DC)	Endurance 2000	Ripple Current 2290 mA	Leakage Current 2970 µA	Dissipation Factor 20 %	Pitch 10 mm	Diameter 30 mm	Length 45 mm	Packaging Tray	Design Kit 861011
861011486022	330 µF, 450 V (DC), 2000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-AIG8 (rev25b).IntLib \| 10 MB CDS Cadence_WCAP-AIG8 (rev25b).zip \| 57.1 MB EAG Eagle_WCAP-AIG8 (rev25a).lbr \| 100.8 KB KIC KiCad_WCAP-AIG8 (rev25b).zip \| 11.8 MB ZUK CadStar_WCAP-AIG8 (rev19a).zip \| 11.4 KB CAD files ZIP IGS IGS_WCAP-AIG8_35x37 (rev1).igs \| 5 MB STP Download_STP_86101148602x (rev1).stp \| 1.9 MB Electric models ZIP PSP PSpice_WCAP-AIG8 (rev25a).zip \| 8.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 330 µF	Rated Voltage 450 V (DC)	Endurance 2000	Ripple Current 2290 mA	Leakage Current 2970 µA	Dissipation Factor 20 %	Pitch 10 mm	Diameter 35 mm	Length 35 mm	Packaging Tray	Design Kit –
861011385023	330 µF, 400 V (DC), 2000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-AIG8 (rev25b).IntLib \| 10 MB CDS Cadence_WCAP-AIG8 (rev25b).zip \| 57.1 MB EAG Eagle_WCAP-AIG8 (rev25a).lbr \| 100.8 KB KIC KiCad_WCAP-AIG8 (rev25b).zip \| 11.8 MB ZUK CadStar_WCAP-AIG8 (rev19a).zip \| 11.4 KB CAD files ZIP IGS IGS_WCAP-AIG8_30x30 (rev1).igs \| 4.8 MB STP Download_STP_861011385023 (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-AIG8 (rev25a).zip \| 8.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 330 µF	Rated Voltage 400 V (DC)	Endurance 2000	Ripple Current 2050 mA	Leakage Current 2640 µA	Dissipation Factor 20 %	Pitch 10 mm	Diameter 30 mm	Length 30 mm	Packaging Tray	Design Kit –
861011485019	390 µF, 450 V (DC), 2000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-AIG8 (rev25b).IntLib \| 10 MB CDS Cadence_WCAP-AIG8 (rev25b).zip \| 57.1 MB EAG Eagle_WCAP-AIG8 (rev25a).lbr \| 100.8 KB KIC KiCad_WCAP-AIG8 (rev25b).zip \| 11.8 MB ZUK CadStar_WCAP-AIG8 (rev19a).zip \| 11.4 KB CAD files ZIP IGS IGS_WCAP-AIG8_30x46 (rev1).igs \| 4.8 MB STP Download_STP_86101148501x (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-AIG8 (rev25a).zip \| 8.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 390 µF	Rated Voltage 450 V (DC)	Endurance 2000	Ripple Current 2540 mA	Leakage Current 3510 µA	Dissipation Factor 20 %	Pitch 10 mm	Diameter 30 mm	Length 45 mm	Packaging Tray	Design Kit 861011
861011486023	390 µF, 450 V (DC), 2000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-AIG8 (rev25b).IntLib \| 10 MB CDS Cadence_WCAP-AIG8 (rev25b).zip \| 57.1 MB EAG Eagle_WCAP-AIG8 (rev25a).lbr \| 100.8 KB KIC KiCad_WCAP-AIG8 (rev25b).zip \| 11.8 MB ZUK CadStar_WCAP-AIG8 (rev19a).zip \| 11.4 KB CAD files ZIP IGS IGS_WCAP-AIG8_35x42 (rev1).igs \| 5 MB STP Download_STP_861011486023 (rev1).stp \| 1.9 MB Electric models ZIP PSP PSpice_WCAP-AIG8 (rev25a).zip \| 8.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 390 µF	Rated Voltage 450 V (DC)	Endurance 2000	Ripple Current 2540 mA	Leakage Current 3510 µA	Dissipation Factor 20 %	Pitch 10 mm	Diameter 35 mm	Length 40 mm	Packaging Tray	Design Kit –
861011487025	390 µF, 450 V (DC), 2000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-AIG8 (rev25b).IntLib \| 10 MB CDS Cadence_WCAP-AIG8 (rev25b).zip \| 57.1 MB EAG Eagle_WCAP-AIG8 (rev25a).lbr \| 100.8 KB KIC KiCad_WCAP-AIG8 (rev25b).zip \| 11.8 MB ZUK CadStar_WCAP-AIG8 (rev19a).zip \| 11.4 KB CAD files ZIP IGS IGS_WCAP-AIG8_40x37 (rev1).igs \| 5 MB STP Download_STP_861011487025 (rev1).stp \| 1.9 MB Electric models ZIP PSP PSpice_WCAP-AIG8 (rev25a).zip \| 8.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 390 µF	Rated Voltage 450 V (DC)	Endurance 2000	Ripple Current 2670 mA	Leakage Current 3510 µA	Dissipation Factor 20 %	Pitch 10 mm	Diameter 40 mm	Length 35 mm	Packaging Tray	Design Kit –
861011486024	470 µF, 450 V (DC), 2000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-AIG8 (rev25b).IntLib \| 10 MB CDS Cadence_WCAP-AIG8 (rev25b).zip \| 57.1 MB EAG Eagle_WCAP-AIG8 (rev25a).lbr \| 100.8 KB KIC KiCad_WCAP-AIG8 (rev25b).zip \| 11.8 MB ZUK CadStar_WCAP-AIG8 (rev19a).zip \| 11.4 KB CAD files ZIP IGS IGS_WCAP-AIG8_35x47 (rev1).igs \| 5 MB STP Download_STP_861011486024 (rev1).stp \| 1.9 MB Electric models ZIP PSP PSpice_WCAP-AIG8 (rev25a).zip \| 8.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 470 µF	Rated Voltage 450 V (DC)	Endurance 2000	Ripple Current 2890 mA	Leakage Current 4230 µA	Dissipation Factor 20 %	Pitch 10 mm	Diameter 35 mm	Length 45 mm	Packaging Tray	Design Kit 861011
861011487026	470 µF, 450 V (DC), 2000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-AIG8 (rev25b).IntLib \| 10 MB CDS Cadence_WCAP-AIG8 (rev25b).zip \| 57.1 MB EAG Eagle_WCAP-AIG8 (rev25a).lbr \| 100.8 KB KIC KiCad_WCAP-AIG8 (rev25b).zip \| 11.8 MB ZUK CadStar_WCAP-AIG8 (rev19a).zip \| 11.4 KB CAD files ZIP IGS IGS_WCAP-AIG8_40x42 (rev1).igs \| 5 MB STP Download_STP_861011487026 (rev1).stp \| 1.9 MB Electric models ZIP PSP PSpice_WCAP-AIG8 (rev25a).zip \| 8.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 470 µF	Rated Voltage 450 V (DC)	Endurance 2000	Ripple Current 2890 mA	Leakage Current 4230 µA	Dissipation Factor 20 %	Pitch 10 mm	Diameter 40 mm	Length 40 mm	Packaging Tray	Design Kit –
861011084009	470 µF, 200 V (DC), 2000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-AIG8 (rev25b).IntLib \| 10 MB CDS Cadence_WCAP-AIG8 (rev25b).zip \| 57.1 MB EAG Eagle_WCAP-AIG8 (rev25a).lbr \| 100.8 KB KIC KiCad_WCAP-AIG8 (rev25b).zip \| 11.8 MB ZUK CadStar_WCAP-AIG8 (rev19a).zip \| 11.4 KB CAD files ZIP IGS IGS_WCAP-AIG8_25x25 (rev1).igs \| 4.9 MB STP Download_STP_861011084009 (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-AIG8 (rev25a).zip \| 8.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 470 µF	Rated Voltage 200 V (DC)	Endurance 2000	Ripple Current 2080 mA	Leakage Current 1880 µA	Dissipation Factor 15 %	Pitch 10 mm	Diameter 25 mm	Length 25 mm	Packaging Tray	Design Kit –
861011386030	470 µF, 400 V (DC), 2000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-AIG8 (rev25b).IntLib \| 10 MB CDS Cadence_WCAP-AIG8 (rev25b).zip \| 57.1 MB EAG Eagle_WCAP-AIG8 (rev25a).lbr \| 100.8 KB KIC KiCad_WCAP-AIG8 (rev25b).zip \| 11.8 MB ZUK CadStar_WCAP-AIG8 (rev19a).zip \| 11.4 KB CAD files ZIP IGS IGS_WCAP-AIG8_35x35 (rev1).igs \| 5 MB STP Download_STP_861011x860xx (rev1).stp \| 1.9 MB Electric models ZIP PSP PSpice_WCAP-AIG8 (rev25a).zip \| 8.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 470 µF	Rated Voltage 400 V (DC)	Endurance 2000	Ripple Current 2760 mA	Leakage Current 3760 µA	Dissipation Factor 20 %	Pitch 10 mm	Diameter 35 mm	Length 35 mm	Packaging Tray	Design Kit –
861011487027	560 µF, 450 V (DC), 2000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-AIG8 (rev25b).IntLib \| 10 MB CDS Cadence_WCAP-AIG8 (rev25b).zip \| 57.1 MB EAG Eagle_WCAP-AIG8 (rev25a).lbr \| 100.8 KB KIC KiCad_WCAP-AIG8 (rev25b).zip \| 11.8 MB ZUK CadStar_WCAP-AIG8 (rev19a).zip \| 11.4 KB CAD files ZIP IGS IGS_WCAP-AIG8_40x52 (rev1).igs \| 5 MB STP Download_STP_861011487027 (rev1).stp \| 1.9 MB Electric models ZIP PSP PSpice_WCAP-AIG8 (rev25a).zip \| 8.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 560 µF	Rated Voltage 450 V (DC)	Endurance 2000	Ripple Current 3470 mA	Leakage Current 5040 µA	Dissipation Factor 20 %	Pitch 10 mm	Diameter 40 mm	Length 50 mm	Packaging Tray	Design Kit 861011
861011084015	680 µF, 200 V (DC), 2000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-AIG8 (rev25b).IntLib \| 10 MB CDS Cadence_WCAP-AIG8 (rev25b).zip \| 57.1 MB EAG Eagle_WCAP-AIG8 (rev25a).lbr \| 100.8 KB KIC KiCad_WCAP-AIG8 (rev25b).zip \| 11.8 MB ZUK CadStar_WCAP-AIG8 (rev19a).zip \| 11.4 KB CAD files ZIP IGS IGS_WCAP-AIG8_25x30 (rev1).igs \| 4.9 MB STP Download_STP_86101xx840xx (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-AIG8 (rev25a).zip \| 8.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 680 µF	Rated Voltage 200 V (DC)	Endurance 2000	Ripple Current 2980 mA	Leakage Current 2720 µA	Dissipation Factor 15 %	Pitch 10 mm	Diameter 25 mm	Length 30 mm	Packaging Tray	Design Kit –
S861011784003	1100 µF, 80 V (DC), 2000	Simulation –	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-AIG8 (rev25b).IntLib \| 10 MB CDS Cadence_WCAP-AIG8 (rev25b).zip \| 57.1 MB EAG Eagle_WCAP-AIG8 (rev25a).lbr \| 100.8 KB KIC KiCad_WCAP-AIG8 (rev25b).zip \| 11.8 MB CAD files ZIP 3D Download 3D (o873910v250) (rev1).pdf \| 6.4 MB IGS 25x20 (rev1).igs \| 4.9 MB STP 25x20 (rev1).stp \| 1.5 MB Electric models ZIP PSP PSpice_WCAP-AIG8 (rev25a).zip \| 8.7 KB Download all 8 files as zip archive ZIP	Status New i \| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	Capacitance 1100 µF	Rated Voltage 80 V (DC)	Endurance 2000	Ripple Current 1000 mA	Leakage Current 890 µA	Dissipation Factor 15 %	Pitch 10 mm	Diameter 25 mm	Length 20 mm	Packaging Tray	Design Kit –
861011086027	1500 µF, 200 V (DC), 2000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-AIG8 (rev25b).IntLib \| 10 MB CDS Cadence_WCAP-AIG8 (rev25b).zip \| 57.1 MB EAG Eagle_WCAP-AIG8 (rev25a).lbr \| 100.8 KB KIC KiCad_WCAP-AIG8 (rev25b).zip \| 11.8 MB ZUK CadStar_WCAP-AIG8 (rev19a).zip \| 11.4 KB CAD files ZIP IGS IGS_WCAP-AIG8_35x35 (rev1).igs \| 5 MB STP Download_STP_861011x860xx (rev1).stp \| 1.9 MB Electric models ZIP PSP PSpice_WCAP-AIG8 (rev25a).zip \| 8.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 1500 µF	Rated Voltage 200 V (DC)	Endurance 2000	Ripple Current 4770 mA	Leakage Current 6000 µA	Dissipation Factor 15 %	Pitch 10 mm	Diameter 35 mm	Length 35 mm	Packaging Tray	Design Kit –
861010784009	3300 µF, 63 V (DC), 2000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-AIG8 (rev25b).IntLib \| 10 MB CDS Cadence_WCAP-AIG8 (rev25b).zip \| 57.1 MB EAG Eagle_WCAP-AIG8 (rev25a).lbr \| 100.8 KB KIC KiCad_WCAP-AIG8 (rev25b).zip \| 11.8 MB ZUK CadStar_WCAP-AIG8 (rev19a).zip \| 11.4 KB CAD files ZIP IGS IGS_WCAP-AIG8_25x30 (rev1).igs \| 4.9 MB STP Download_STP_86101xx840xx (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-AIG8 (rev25a).zip \| 8.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 3300 µF	Rated Voltage 63 V (DC)	Endurance 2000	Ripple Current 3250 mA	Leakage Current 4158 µA	Dissipation Factor 20 %	Pitch 10 mm	Diameter 25 mm	Length 30 mm	Packaging Tray	Design Kit –
861010786015	4700 µF, 63 V (DC), 2000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-AIG8 (rev25b).IntLib \| 10 MB CDS Cadence_WCAP-AIG8 (rev25b).zip \| 57.1 MB EAG Eagle_WCAP-AIG8 (rev25a).lbr \| 100.8 KB KIC KiCad_WCAP-AIG8 (rev25b).zip \| 11.8 MB ZUK CadStar_WCAP-AIG8 (rev19a).zip \| 11.4 KB CAD files ZIP IGS IGS_WCAP-AIG8_35x25 (rev1).igs \| 4.9 MB STP Download_STP_861010786015 (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-AIG8 (rev25a).zip \| 8.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 4700 µF	Rated Voltage 63 V (DC)	Endurance 2000	Ripple Current 3500 mA	Leakage Current 5922 µA	Dissipation Factor 30 %	Pitch 10 mm	Diameter 35 mm	Length 25 mm	Packaging Tray	Design Kit –
861010786021	6800 µF, 63 V (DC), 2000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-AIG8 (rev25b).IntLib \| 10 MB CDS Cadence_WCAP-AIG8 (rev25b).zip \| 57.1 MB EAG Eagle_WCAP-AIG8 (rev25a).lbr \| 100.8 KB KIC KiCad_WCAP-AIG8 (rev25b).zip \| 11.8 MB ZUK CadStar_WCAP-AIG8 (rev19a).zip \| 11.4 KB CAD files ZIP IGS IGS_WCAP-AIG8_35x30 (rev1).igs \| 4.9 MB STP Download_STP_861010786021 (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-AIG8 (rev25a).zip \| 8.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 6800 µF	Rated Voltage 63 V (DC)	Endurance 2000	Ripple Current 5400 mA	Leakage Current 8568 µA	Dissipation Factor 30 %	Pitch 10 mm	Diameter 35 mm	Length 30 mm	Packaging Tray	Design Kit –

Assortments

Articles from this product series can be found in the following assortments:

Design Kit WCAP-AIG8 Aluminium Electrolytic Capacitors
