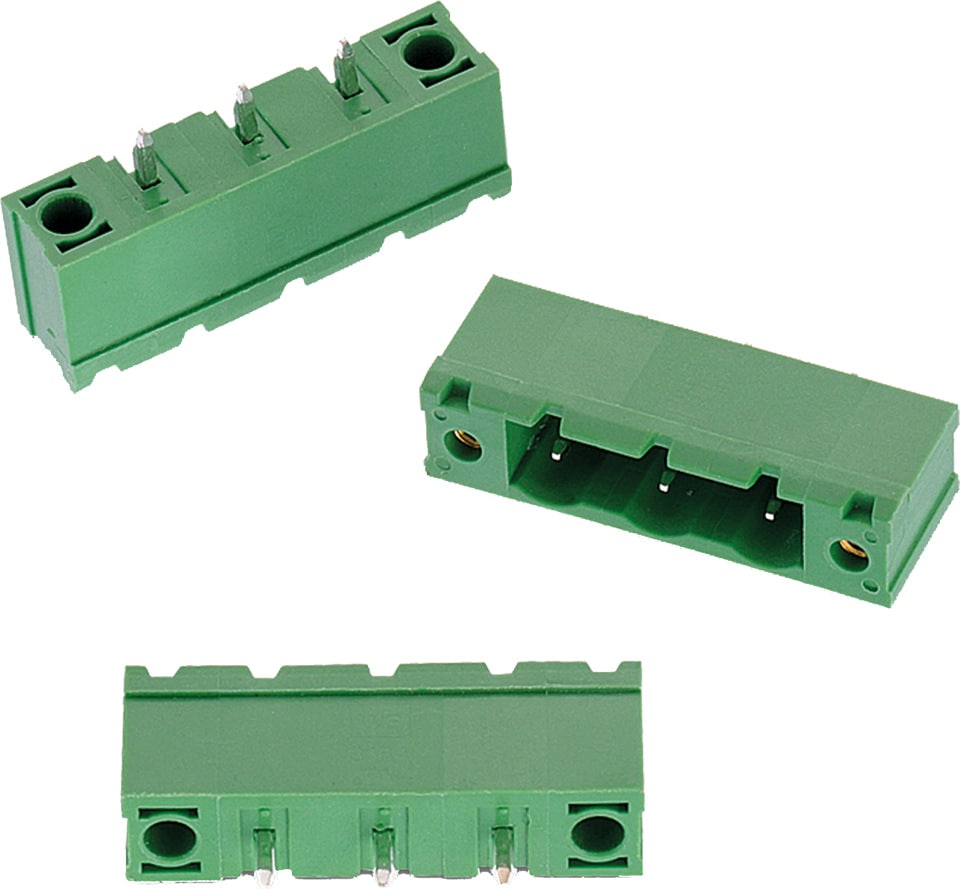

WR-TBL Series 3184 - 7.62 mm Close Vertical PCB Header with Flanges | Electromechanical Components

General Information
Operating Temperature	-40 °C up to +105 °C
Compliance	RoHS
Pitch	7.62 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Contact Material	Brass
Contact Plating	Tin

Electrical Properties
I_R	20 A
I_R[cULus]	20 A
Working Voltage	300 V
Working Voltage [cULus]	300 V
Withstanding Voltage [cULus]	1600 V (AC)
R_C	20 mΩ

Certification
cULus Approval	E315414

Application Notes

Products

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Design Kit
691318400002	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691318400002_1 (rev1).pdf \| 160.5 KB IGS 691318400002 (rev1).igs \| 1.1 MB STP 691318400002 (rev1).stp \| 412.5 KB	Active i\| Production is active. Expected lifetime: >10 years.	2	Pluggable	PCB	No	Vertical	691002
691318400003	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691318400003_1 (rev1).pdf \| 177.7 KB IGS 691318400003 (rev1).igs \| 1.3 MB STP 691318400003 (rev1).stp \| 490.4 KB	Active i\| Production is active. Expected lifetime: >10 years.	3	Pluggable	PCB	No	Vertical	–
691318400004	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691318400004_1 (rev1).pdf \| 196.1 KB IGS 691318400004 (rev1).igs \| 1.5 MB STP 691318400004 (rev1).stp \| 568.3 KB	Active i\| Production is active. Expected lifetime: >10 years.	4	Pluggable	PCB	No	Vertical	–
691318400005	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691318400005_1 (rev1).pdf \| 213.4 KB IGS 691318400005 (rev1).igs \| 1.7 MB STP 691318400005 (rev1).stp \| 648.1 KB	Active i\| Production is active. Expected lifetime: >10 years.	5	Pluggable	PCB	No	Vertical	–
691318400006	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691318400006_1 (rev1).pdf \| 235.3 KB IGS 691318400006 (rev1).igs \| 1.9 MB STP 691318400006 (rev1).stp \| 728.5 KB	Active i\| Production is active. Expected lifetime: >10 years.	6	Pluggable	PCB	No	Vertical	–
691318400007	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 3D_691318400007 (rev1).pdf \| 269.5 KB IGS Download_IGES_691318400007 (rev1).iges \| 2.1 MB STP Download_STP_691318400007 (rev1).stp \| 809.8 KB	Active i\| Production is active. Expected lifetime: >10 years.	7	Pluggable	PCB	No	Vertical	–
691318400008	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691318400008_1 (rev1).pdf \| 285.6 KB IGS 691318400008 (rev1).igs \| 2.3 MB STP 691318400008 (rev1).stp \| 889.9 KB	Active i\| Production is active. Expected lifetime: >10 years.	8	Pluggable	PCB	No	Vertical	–
691318400012	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 3D_691318400012 (rev1).pdf \| 363.5 KB IGS Download_IGES_691318400012 (rev1).iges \| 3.2 MB STP Download_STP_691318400012 (rev1).stp \| 1.2 MB	Active i\| Production is active. Expected lifetime: >10 years.	12	Pluggable	PCB	No	Vertical	–

Order Code	Datasheet
691318400002	SPEC
691318400003	SPEC
691318400004	SPEC
691318400005	SPEC
691318400006	SPEC
691318400007	SPEC
691318400008	SPEC
691318400012	SPEC

Samples

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Design Kit	Samples

Tailored to your needs

Custom & Standard Terminal Blocks

Tailored to your needs

Custom & Standard Terminal Blocks

In addition to a portfolio of more than 2000 standard articles, Würth Elektronik offers various possibilities to tailor the products to your specific requirements. Personalized modifications of standard terminal blocks are available for small to medium quantities within a few days as a special service. Fully customized products in high quantities are possible within a few weeks.In house design, tooling and prototyping ensures all customer specific requirements are met.
