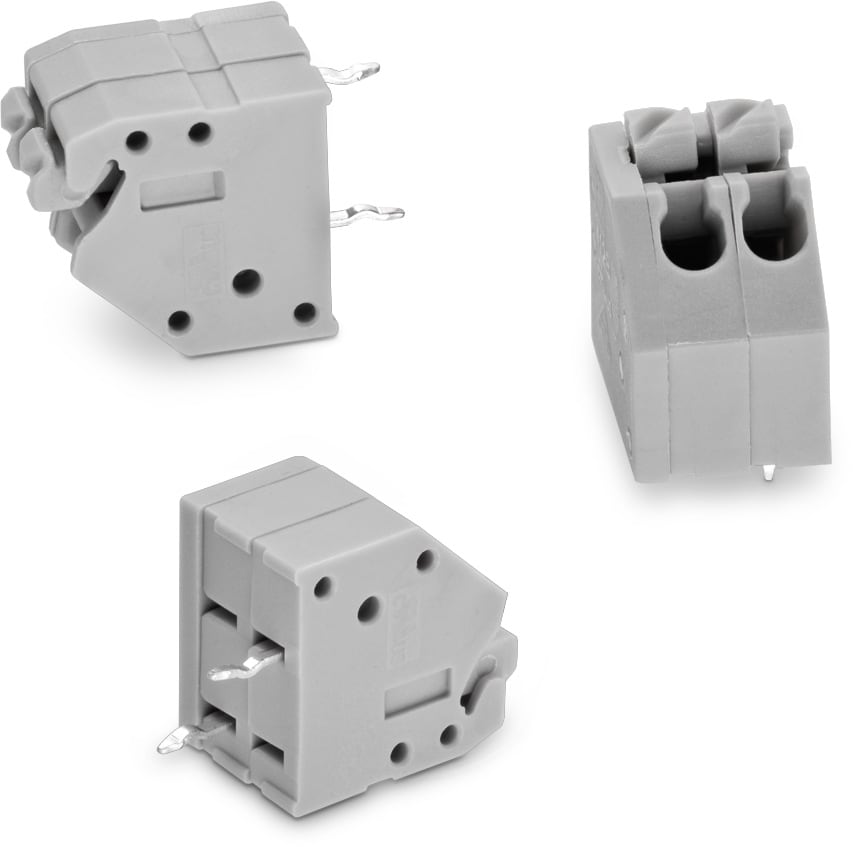

WR-TBL Series 412MB - 3.50 mm Screwless 45° Entry - 2.08 mm² Wires | Electromechanical Components

General Information
Operating Temperature	-40 °C up to +105 °C
Compliance	RoHS
Pitch	3.5 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Contact Material	Phosphor Bronze
Contact Plating	Tin

Electrical Properties
I_R	6 A
I_R	2 A
Working Voltage [cULus]	300 V (AC)
Working Voltage [VDE]	250 V (AC)
Withstanding Voltage [cULus]	1600 V (AC)
Withstanding Voltage [VDE]	2500 V (AC)
R_C	20 mΩ
R_C	20 mΩ

Mechanical Properties
Wire Strip Length	7.5 up to 8.5 (mm)

Wire Properties
Solid Wire Section (AWG)	14 to 20 (AWG)
Solid Wire Section (Metric)	2.08 to 0.518 (mm²)
Stranded Wire Section (AWG)	14 to 20 (AWG)
Stranded Wire Section (Metric)	2.08 to 0.518 (mm²)

Certification
cULus Approval	E315414
VDE Approval	40036145

Packaging Properties
Packaging	Box

Application Notes

Products

Order Code	Datasheet	Downloads	Status	Pins (Value) (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Wire Section	Design Kit
691412120002MB	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Spring Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 3D_691412120002MB (rev1).pdf \| 160.3 KB IGS Download_IGES_691412120002MB (rev1).iges \| 1.4 MB STP 691412120002MB (rev1).stp \| 294.3 KB	Active i\| Production is active. Expected lifetime: >10 years.	2	Screwless	PCB	No	45°	14 to 20 (AWG) 2.08 to 0.518 (mm²)	–
691412120003MB	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Spring Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 3D_691412120003MB (rev1).pdf \| 161.1 KB IGS Download_IGES_691412120003MB (rev1).iges \| 1.4 MB STP 691412120003MB (rev1).stp \| 294.9 KB	Active i\| Production is active. Expected lifetime: >10 years.	3	Screwless	PCB	No	45°	14 to 20 (AWG) 2.08 to 0.518 (mm²)	691001
691412120004MB	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Spring Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 3D_691412120004MB (rev1).pdf \| 161.9 KB IGS Download_IGES_691412120004MB (rev1).iges \| 1.4 MB STP 691412120004MB (rev1).stp \| 295.6 KB	Active i\| Production is active. Expected lifetime: >10 years.	4	Screwless	PCB	No	45°	14 to 20 (AWG) 2.08 to 0.518 (mm²)	–
691412120005MB	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Spring Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 3D_691412120005MB (rev1).pdf \| 162.8 KB IGS Download_IGES_691412120005MB (rev1).iges \| 1.4 MB STP 691412120005MB (rev1).stp \| 296.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	5	Screwless	PCB	No	45°	14 to 20 (AWG) 2.08 to 0.518 (mm²)	–
691412120006MB	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Spring Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 3D_691412120006MB (rev1).pdf \| 163.6 KB IGS Download_IGES_691412120006MB (rev1).iges \| 1.4 MB STP 691412120006MB (rev1).stp \| 296.8 KB	Active i\| Production is active. Expected lifetime: >10 years.	6	Screwless	PCB	No	45°	14 to 20 (AWG) 2.08 to 0.518 (mm²)	–
691412120007MB	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Spring Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 3D_691412120007MB (rev1).pdf \| 164.4 KB IGS Download_IGES_691412120007MB (rev1).iges \| 1.4 MB STP 691412120007MB (rev1).stp \| 297.5 KB	Active i\| Production is active. Expected lifetime: >10 years.	7	Screwless	PCB	No	45°	14 to 20 (AWG) 2.08 to 0.518 (mm²)	–
691412120008MB	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Spring Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 3D_691412120008MB (rev1).pdf \| 165.2 KB IGS Download_IGES_691412120008MB (rev1).iges \| 1.4 MB STP 691412120008MB (rev1).stp \| 298.1 KB	Active i\| Production is active. Expected lifetime: >10 years.	8	Screwless	PCB	No	45°	14 to 20 (AWG) 2.08 to 0.518 (mm²)	–
691412120009MB	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Spring Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 3D_691412120009MB (rev1).pdf \| 166 KB IGS Download_IGES_691412120009MB (rev1).iges \| 1.4 MB STP 691412120009MB (rev1).stp \| 298.8 KB	Active i\| Production is active. Expected lifetime: >10 years.	9	Screwless	PCB	No	45°	14 to 20 (AWG) 2.08 to 0.518 (mm²)	–
691412120010MB	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Spring Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 3D_691412120010MB (rev1).pdf \| 166.8 KB IGS Download_IGES_691412120010MB (rev1).iges \| 1.4 MB STP 691412120010MB (rev1).stp \| 299.4 KB	Active i\| Production is active. Expected lifetime: >10 years.	10	Screwless	PCB	No	45°	14 to 20 (AWG) 2.08 to 0.518 (mm²)	–
691412120011MB	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Spring Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 3D_691412120011MB (rev1).pdf \| 167.7 KB IGS Download_IGES_691412120011MB (rev1).iges \| 1.4 MB STP 691412120011MB (rev1).stp \| 300.1 KB	Active i\| Production is active. Expected lifetime: >10 years.	11	Screwless	PCB	No	45°	14 to 20 (AWG) 2.08 to 0.518 (mm²)	–
691412120012MB	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Spring Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 3D_691412120012MB (rev1).pdf \| 168.5 KB IGS Download_IGES_691412120012MB (rev1).iges \| 1.4 MB STP 691412120012MB (rev1).stp \| 300.8 KB	Active i\| Production is active. Expected lifetime: >10 years.	12	Screwless	PCB	No	45°	14 to 20 (AWG) 2.08 to 0.518 (mm²)	–

Order Code	Datasheet
691412120002MB	SPEC
691412120003MB	SPEC
691412120004MB	SPEC
691412120005MB	SPEC
691412120006MB	SPEC
691412120007MB	SPEC
691412120008MB	SPEC
691412120009MB	SPEC
691412120010MB	SPEC
691412120011MB	SPEC
691412120012MB	SPEC
