WR-COM USB Power Delivery Type C Receptacle Horizontal SMT EXTENDED

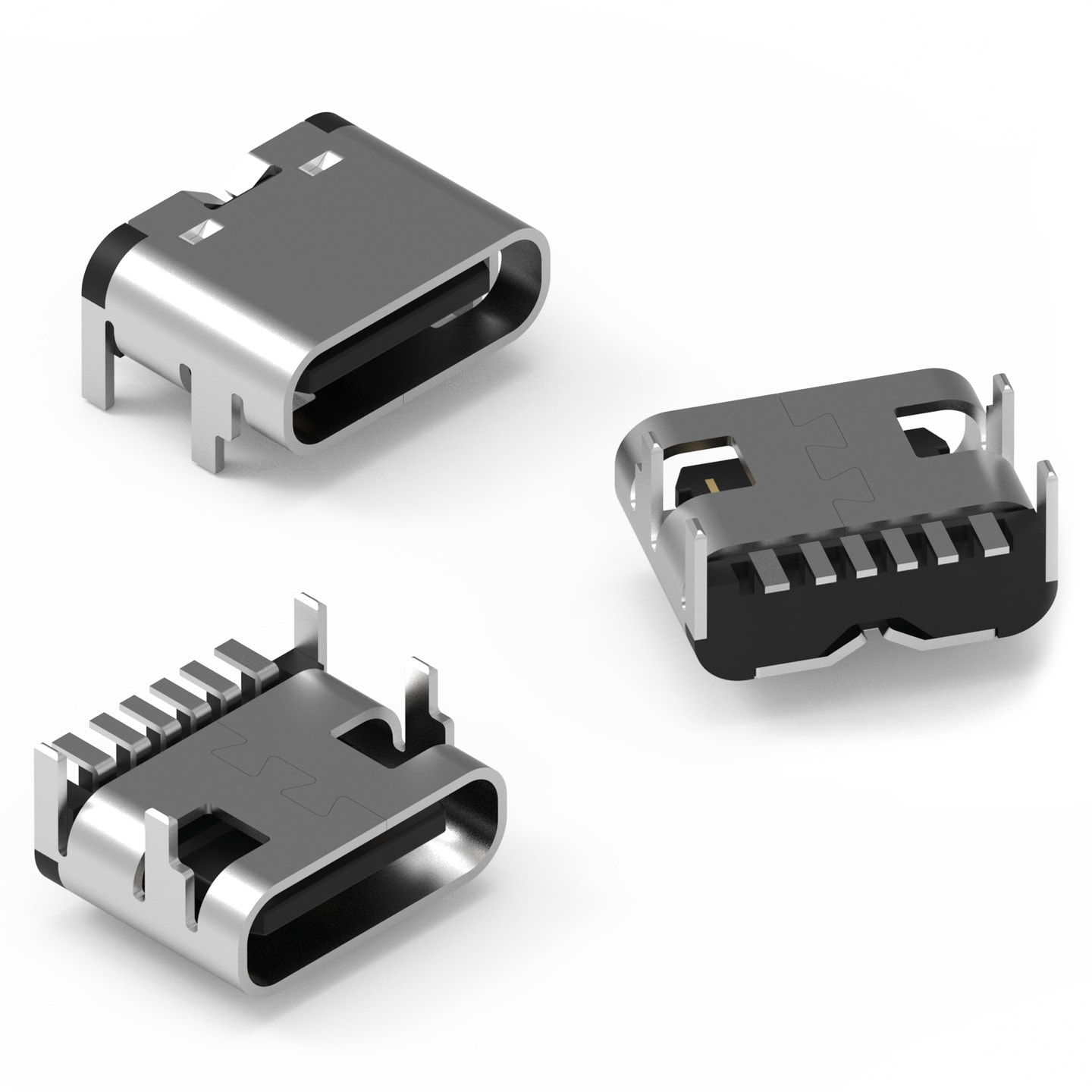

WR-COM USB Power Delivery Type C Receptacle Horizontal SMT
General Information
Operating Temperature-40 °C up to +85 °C
Durability10 000 Mating cycles
GenderReceptacle
TypeHorizontal
Material Properties
Insulator MaterialLCP
Insulator Flammability RatingUL94 V-0
Insulator ColorBlack
Contact MaterialBrass
Contact PlatingSelective Gold
Shielding MaterialSteel
Shielding PlatingNickel
Electrical Properties
Working Voltage48 V (DC)
Withstanding Voltage100 V (AC)
Contact Resistance40 mΩ

Products

Order Code Data­sheet Downloads StatusApplicationTypeGenderMountPackaging Samples
632722100213SPEC
6 files

EDA models: Components
ZIP

CAD files
ZIP

Download all 6 files as zip archive
ZIP

 New i| Product is new in our portfolio and production is active. Expected lifetime: >10 years. USB Power Delivery Horizontal Receptacle SMT Tape and Reel
Order Code Data­sheet
632722100213SPEC
Samples
Order Code Data­sheet Downloads StatusApplicationTypeGenderMountPackaging Samples
