Texas Instruments UCC28056DBV | Demoboard PMP21160

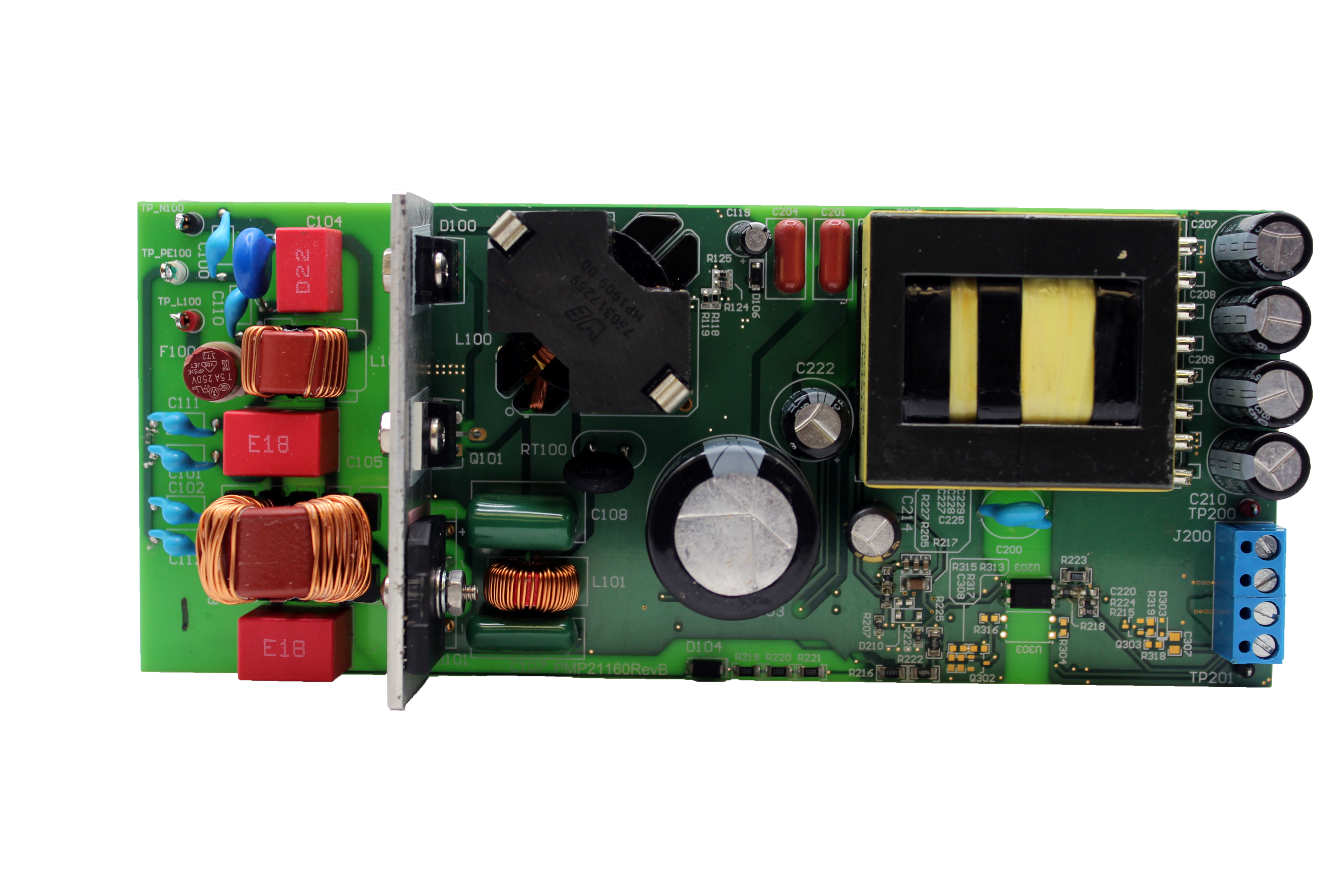

336-W auxless AC/DC power supply reference design with 80 PLUS platinum compatible performance
Overview
| Topology | LLC Resonant Converter |
| Input voltage | 90-265 V |
| Output 1 | 24 V / 10 A |
| IC revision | B |
Description
This reference design uses UCC28056 CRM/DCM PFC controller and UCC256304 enhanced LLC controller with integrated driver to provide 24-V/10-A output (continuous, 14-A peak) from universal AC input. This design achieves 92.8% peak efficiency at 115-Vac input and 94.9% peak efficiency at 230-Vac input. The efficiency and power factor numbers also meet both 115-V and 230-V internal 80 PLUS Platinum specifications and DoE level VI requirement.
Features
- Low Input Current Distortion and Near Unity Power Factor Down to 10% Load◦Enables Compliance to IEC1000-3-2
- Ultra-low No-load Input Power (25 mW at 115 Vac, 40 mW at 230 Vac)
- Excellent Efficiency Over Range Of Load
- Enables <60mW Standby Power at 115Vac and <80mW Standby Power at 230 Vac in PFC+LLC System
- Enables Compliance To Green Power Standards Without Disabling PFC◦EuP Lot 6 Tier 2, CoC Ver. 5 Tier 2, Energy Star forcomputers Ver. 6.1, DOE Level VI
- Ultra-low Audible Noise Output
- Burst Mode With Soft-entry and Soft-exit Periods
- Enhanced EA, Responds Rapidly to Load Steps Without Degrading Input Current Distortion
- Valley Synchronized Turn-on Requires No Second Winding On The Boost Inductor
- User Adjustable Valley Delay
- Low Start-up Current Consumption (<46 µA)
- Wide VCC Range 8.5 V to 34 V
- Cycle-by-cycle Current Limit
- Second Independent Output Voltage Protection
- Integrated Over-temperature Protection
Typical applications
- LED Drivers and Luminaries
- Gaming / Set Top Box / AC Adapter Front End
- Desktop Computing / Digital TV
- Entry-Level Server and Web Server
More information
Products
Order Code | Datasheet | Simulation | Downloads | Status | Product series | C | Safety Class | dV/dt(V/µs) | DF @ 1 kHz(%) | RISO | Pitch(mm) | Packaging | Tol. C | Size | Operating Temperature | DF(%) | Ceramic Type | Fl(mm) | IR(A) | L(mH) | RDC max.(mΩ) | VR(V (AC)) | VT(V (AC)) | Material | L(mm) | W(mm) | H(mm) | Mount | Samples | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | WCAP-FTX2 Film Capacitors, Across the mains, 220 nF | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWCAP-FTX2 Film Capacitors | Capacitance220 nF | Safety ClassX2 | Rate of Voltage Rise300 V/µs | Dissipation Factor0.1 % | Insulation Resistance30 GΩ | Pitch10 mm | PackagingCarton | Capacitance±10% | SizePitch 10 mm | Operating Temperature -40 °C up to +105 °C | – | – | – | – | – | – | Rated Voltage275 V (AC) | – | – | Length13 mm | Width8 mm | Height14 mm | MountBoxed THT | ||||
| WCAP-FTX2 Film Capacitors, Across the mains, 470 nF | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWCAP-FTX2 Film Capacitors | Capacitance470 nF | Safety ClassX2 | Rate of Voltage Rise280 V/µs | Dissipation Factor0.1 % | Insulation Resistance21.28 GΩ | Pitch12.5 mm | PackagingBulk | Capacitance±10% | SizePitch 12.5 mm | Operating Temperature -40 °C up to +105 °C | – | – | – | – | – | – | Rated Voltage275 V (AC) | – | – | Length15 mm | Width10 mm | Height16 mm | MountBoxed THT | ||||
 | WE-CMB Common Mode Power Line Choke, –, – | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWE-CMB Common Mode Power Line Choke | – | – | – | – | – | – | – | – | SizeType S | Operating Temperature -40 °C up to +125 °C | – | – | – | Rated Current3 A | Inductance1 mH | DC Resistance35 mΩ | Rated Voltage250 V (AC) | Insulation Test Voltage1500 V (AC) | MaterialMnZn | Length17.5 mm | Width13 mm | Height22 mm | MountTHT | ||||
| WE-CMB Common Mode Power Line Choke, –, – | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWE-CMB Common Mode Power Line Choke | – | – | – | – | – | – | – | – | SizeL | Operating Temperature -40 °C up to +125 °C | – | – | – | Rated Current3 A | Inductance10 mH | DC Resistance105 mΩ | Rated Voltage250 V (AC) | Insulation Test Voltage1500 V (AC) | MaterialMnZn | Length27.5 mm | Width18.5 mm | Height33 mm | MountTHT | ||||
 | WE-FI Leaded Toroidal Line Choke, –, – | Simulation– | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWE-FI Leaded Toroidal Line Choke | – | – | – | – | – | – | – | – | – | Operating Temperature -40 °C up to +105 °C | – | – | – | Rated Current2.5 A | Inductance0.1 mH | DC Resistance80 mΩ | – | – | – | Length16.5 mm | Width9.7 mm | – | MountTHT | |||
| WCAP-CSGP MLCCs 16 V(DC), –, 10 nF | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWCAP-CSGP MLCCs 16 V(DC) | Capacitance10 nF | – | – | – | Insulation Resistance10 GΩ | – | Packaging7" Tape & Reel | Capacitance±10% | Size0603 | Operating Temperature -55 °C up to +125 °C | Dissipation Factor3.5 % | Ceramic TypeX7R Class II | Pad Dimension0.4 mm | – | – | – | Rated Voltage16 V (AC) | – | – | Length1.6 mm | Width0.8 mm | Height0.8 mm | – | |||||
| WCAP-CSGP MLCCs 16 V(DC), –, 220 nF | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWCAP-CSGP MLCCs 16 V(DC) | Capacitance220 nF | – | – | – | Insulation Resistance2.3 GΩ | – | Packaging7" Tape & Reel | Capacitance±10% | Size0603 | Operating Temperature -55 °C up to +125 °C | Dissipation Factor5 % | Ceramic TypeX7R Class II | Pad Dimension0.4 mm | – | – | – | Rated Voltage16 V (AC) | – | – | Length1.6 mm | Width0.8 mm | Height0.8 mm | – | |||||
| WCAP-CSGP MLCCs 16 V(DC), –, 2.2 µF | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWCAP-CSGP MLCCs 16 V(DC) | Capacitance2.2 µF | – | – | – | Insulation Resistance0.05 GΩ | – | Packaging7" Tape & Reel | Capacitance±20% | Size0603 | Operating Temperature -55 °C up to +85 °C | Dissipation Factor10 % | Ceramic TypeX5R Class II | Pad Dimension0.4 mm | – | – | – | Rated Voltage16 V (AC) | – | – | Length1.6 mm | Width0.8 mm | Height0.8 mm | – | |||||
750317259 | PFC Inductor, –, – | Simulation– | Downloads– | Status Activei| Production is active. Expected lifetime: >10 years. | Product series PFC Inductor | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | ||
750317258 | Transformer, –, – | Simulation– | Downloads– | Status Activei| Production is active. Expected lifetime: >10 years. | Product series Transformer | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
