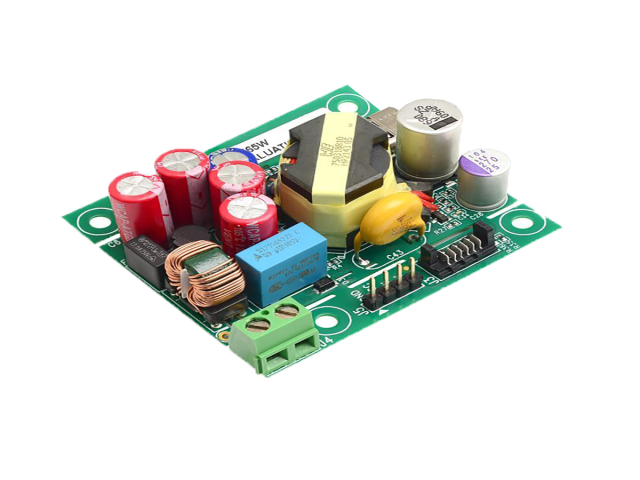

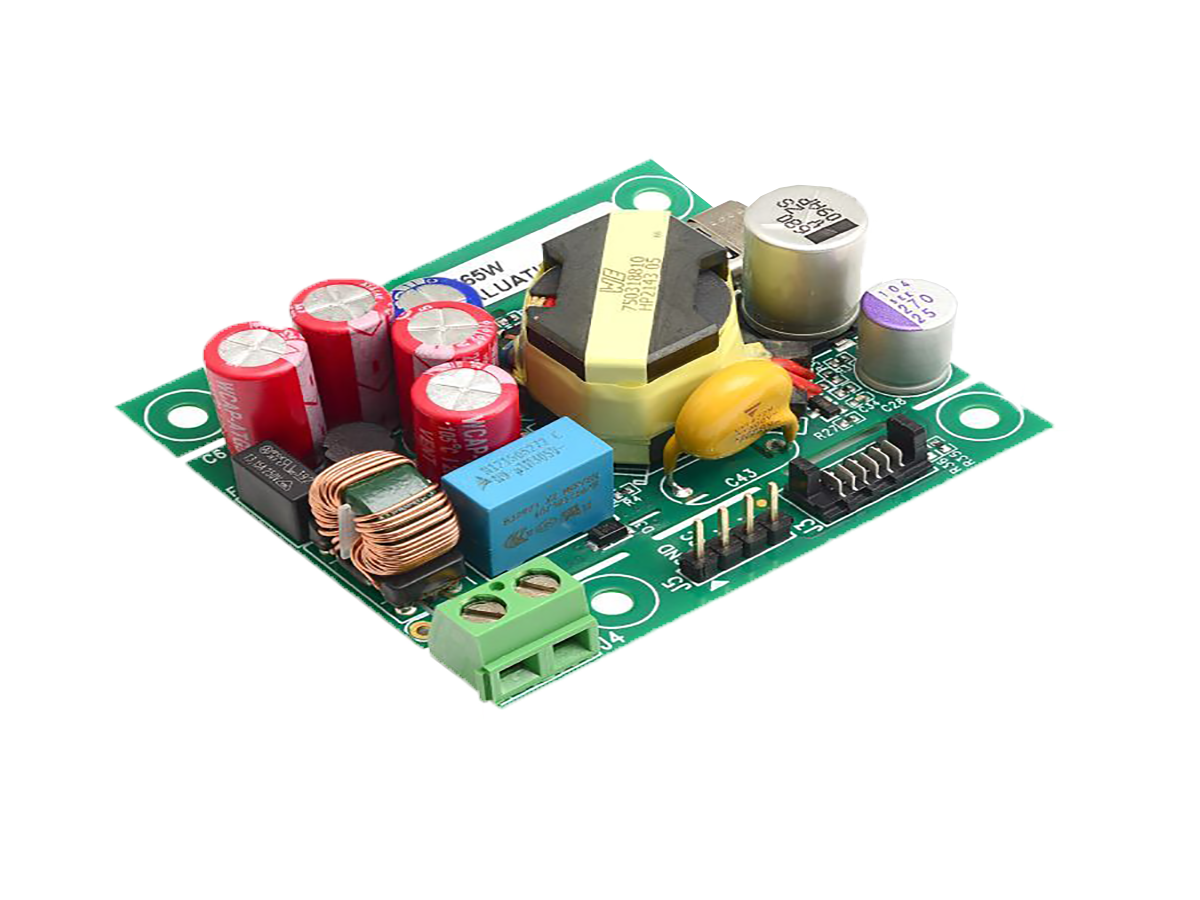

STMicroelectronics ST-ONE | Demoboard EVLONE65W
Very high power density board 65W USB Type-C PD based on ST-ONE and MASTERGAN4
Overview
| Topology | USB |
| Input voltage | 90-265 V |
| Output 1 | 21 V / 3.25 A |
| IC revision | 3 |
Description
The EVLONE65W is a high power density USB-PD board supporting Programmable Power Supply (PPS). The design supports wide range input voltage and can deliver five fixed PDOs and two APDOs. This board is based on ST-ONE, the world’s first digital controller embedding an Arm® Cortex® M0+ core, an offline programmable controller with synchronous rectification, and USB-PD PHY in a single package.Such a system is specifically designed to control ZVS non-complementary active clamp flyback converters to create high power density chargers and adapters with USB-PD interface. The device includes an active clamp flyback controller and its HV startup on the primary side, a microcontroller and all the peripherals required to control the conversion and the USB-PD communication on the secondary side. The two sides are connected through an embedded galvanically isolated dual communication channel.High switching operation in companion with a MasterGaN power stage allows use of small size magnetic components while reaching a very high efficiency.
Features
- Universal input mains range: 90 Vac to 265 Vac - Frequency 47 ÷ 63 Hz
- Maximum output power: 65 W
- Dimensions: 58x32x20 mm, (L x W x H)
- Power density: 30 W/in3
- Efficiency: > 93 % @ full load
- Constant current output: 3.75 A max
- Output voltage range: 3.3 ÷ 21 Vdc
- PD output:
- Five fixed PDOs: 5 V@3.75 A, 9 V@3.75 A, 12 V@3.75 A, 15 V@3.75 A,20 V@3.25A
- Two APDOs (PPS): 3.3 V÷16 V@3.75 A, 3.3 V÷21 V@3.25 A
- PPS mode: 20 mV step for CV, 50 mA step for CC
- Certified USB power delivery 3.1.1.2 power brick
- Feedback loops: constant current and constant voltage
- Protections: brown out, over current protection, over temperature protection,over voltage protection, under voltage protection
Typical applications
- USB-PD
More information
All technical functions in detail

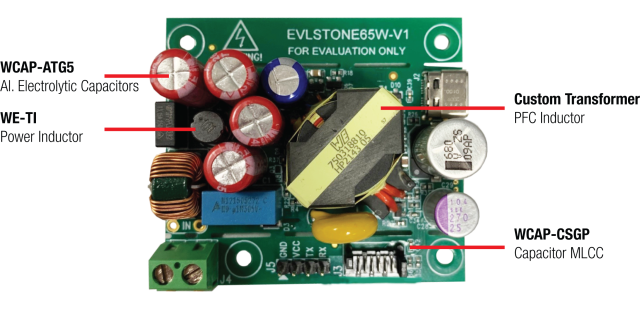

Products
Order Code | Datasheet | Simulation | Downloads | Status | Product series | C | Tol. C | VR(V (DC)) | Size | Operating Temperature | Q(%) | DF(%) | RISO | Ceramic Type | L(mm) | W(mm) | H(mm) | Fl(mm) | Packaging | L(µH) | IR(A) | ISAT,10%(A) | RDC max.(Ω) | fres(MHz) | Version | Endurance(h) | IRIPPLE(mA) | ILeak(µA) | Pitch(mm) | Ø D(mm) | Samples | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| WCAP-CSGP MLCCs 50 V(DC), 100 pF, ±10% | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWCAP-CSGP MLCCs 50 V(DC) | Capacitance100 pF | Capacitance±10% | Rated Voltage50 V (DC) | Size0402 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor2.5 % | Insulation Resistance10 GΩ | Ceramic TypeX7R Class II | Length1 mm | Width0.5 mm | Height0.5 mm | Pad Dimension0.25 mm | Packaging7" Tape & Reel | – | – | – | – | – | – | – | – | – | – | – | |||||
| WCAP-CSGP MLCCs 50 V(DC), 220 pF, ±5% | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWCAP-CSGP MLCCs 50 V(DC) | Capacitance220 pF | Capacitance±5% | Rated Voltage50 V (DC) | Size0402 | Operating Temperature -55 °C up to +125 °C | Q-Factor1000 % | – | Insulation Resistance10 GΩ | Ceramic TypeNP0 Class I | Length1 mm | Width0.5 mm | Height0.5 mm | Pad Dimension0.25 mm | Packaging7" Tape & Reel | – | – | – | – | – | – | – | – | – | – | – | |||||
| WCAP-CSGP MLCCs 25 V(DC), 10 nF, ±10% | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWCAP-CSGP MLCCs 25 V(DC) | Capacitance10 nF | Capacitance±10% | Rated Voltage25 V (DC) | Size0402 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Insulation Resistance10 GΩ | Ceramic TypeX7R Class II | Length1 mm | Width0.5 mm | Height0.5 mm | Pad Dimension0.25 mm | Packaging7" Tape & Reel | – | – | – | – | – | – | – | – | – | – | – | |||||
| WCAP-CSGP MLCCs 25 V(DC), 22 nF, ±10% | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWCAP-CSGP MLCCs 25 V(DC) | Capacitance22 nF | Capacitance±10% | Rated Voltage25 V (DC) | Size0402 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor3.5 % | Insulation Resistance10 GΩ | Ceramic TypeX7R Class II | Length1 mm | Width0.5 mm | Height0.5 mm | Pad Dimension0.25 mm | Packaging7" Tape & Reel | – | – | – | – | – | – | – | – | – | – | – | |||||
| WCAP-CSGP MLCCs 100 V(DC), 100 nF, ±10% | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWCAP-CSGP MLCCs 100 V(DC) | Capacitance100 nF | Capacitance±10% | Rated Voltage100 V (DC) | Size0603 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor5 % | Insulation Resistance1 GΩ | Ceramic TypeX7R Class II | Length1.6 mm | Width0.8 mm | Height0.8 mm | Pad Dimension0.4 mm | Packaging7" Tape & Reel | – | – | – | – | – | – | – | – | – | – | – | |||||
| WCAP-CSGP MLCCs 25 V(DC), 100 nF, ±10% | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWCAP-CSGP MLCCs 25 V(DC) | Capacitance100 nF | Capacitance±10% | Rated Voltage25 V (DC) | Size0402 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor10 % | Insulation Resistance5 GΩ | Ceramic TypeX7R Class II | Length1 mm | Width0.5 mm | Height0.5 mm | Pad Dimension0.25 mm | Packaging7" Tape & Reel | – | – | – | – | – | – | – | – | – | – | – | |||||
| WCAP-CSGP MLCCs 10 V(DC), 1 µF, ±20% | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWCAP-CSGP MLCCs 10 V(DC) | Capacitance1 µF | Capacitance±20% | Rated Voltage10 V (DC) | Size0402 | Operating Temperature -55 °C up to +85 °C | – | Dissipation Factor15 % | Insulation Resistance0.05 GΩ | Ceramic TypeX5R Class II | Length1 mm | Width0.5 mm | Height0.5 mm | Pad Dimension0.25 mm | Packaging7" Tape & Reel | – | – | – | – | – | – | – | – | – | – | – | |||||
| WCAP-CSGP MLCCs 100 V(DC), 2.2 µF, ±10% | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWCAP-CSGP MLCCs 100 V(DC) | Capacitance2.2 µF | Capacitance±10% | Rated Voltage100 V (DC) | Size1210 | Operating Temperature -55 °C up to +125 °C | – | Dissipation Factor5 % | Insulation Resistance0.05 GΩ | Ceramic TypeX7R Class II | Length3.2 mm | Width2.5 mm | Height2.5 mm | Pad Dimension0.75 mm | Packaging7" Tape & Reel | – | – | – | – | – | – | – | – | – | – | – | |||||
| WCAP-CSGP MLCCs 6.3 V(DC), 4.7 µF, ±20% | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWCAP-CSGP MLCCs 6.3 V(DC) | Capacitance4.7 µF | Capacitance±20% | Rated Voltage6.3 V (DC) | Size0402 | Operating Temperature -55 °C up to +85 °C | – | Dissipation Factor20 % | Insulation Resistance0.01 GΩ | Ceramic TypeX5R Class II | Length1 mm | Width0.5 mm | Height0.5 mm | Pad Dimension0.25 mm | Packaging7" Tape & Reel | – | – | – | – | – | – | – | – | – | – | – | |||||
| WCAP-CSGP MLCCs 25 V(DC), 4.7 µF, ±20% | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWCAP-CSGP MLCCs 25 V(DC) | Capacitance4.7 µF | Capacitance±20% | Rated Voltage25 V (DC) | Size0805 | Operating Temperature -55 °C up to +85 °C | – | Dissipation Factor10 % | Insulation Resistance0.02 GΩ | Ceramic TypeX5R Class II | Length2 mm | Width1.25 mm | Height1.25 mm | Pad Dimension0.5 mm | Packaging7" Tape & Reel | – | – | – | – | – | – | – | – | – | – | – | |||||
 | WCAP-ATG5 Aluminum Electrolytic Capacitors, 22 µF, +0%/-40% | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWCAP-ATG5 Aluminum Electrolytic Capacitors | Capacitance22 µF | Capacitance+0%/-40% | Rated Voltage400 V (DC) | Size8.0 x 16.0 | Operating Temperature -25 °C up to +105 °C | – | Dissipation Factor15 % | – | – | Length16 mm | – | – | – | PackagingAmmopack | – | – | – | – | – | – | Endurance 2000 | Ripple Current200 mA | Leakage Current264 µA | Pitch3.5 mm | Diameter8 mm | ||||
 | WE-TI Radial Leaded Wire Wound Inductor, –, – | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWE-TI Radial Leaded Wire Wound Inductor | – | – | – | Size6065 | Operating Temperature -40 °C up to +125 °C | – | – | – | – | Length6 mm | Width6 mm | Height6.5 mm | – | – | Inductance10 µH | Rated Current1.85 A | Saturation Current @ 10%2.5 A | DC Resistance0.05 Ω | Self Resonant Frequency28 MHz | VersionStandard | – | – | – | – | – | ||||
 | 750318810 | –, –, – | Simulation– | Status Activei| Production is active. Expected lifetime: >10 years. | Product series – | – | – | – | – | – | – | – | – | – | Length26 mm | Width26 mm | Height17.32 mm | – | – | – | – | – | – | – | – | – | – | – | – | – |
