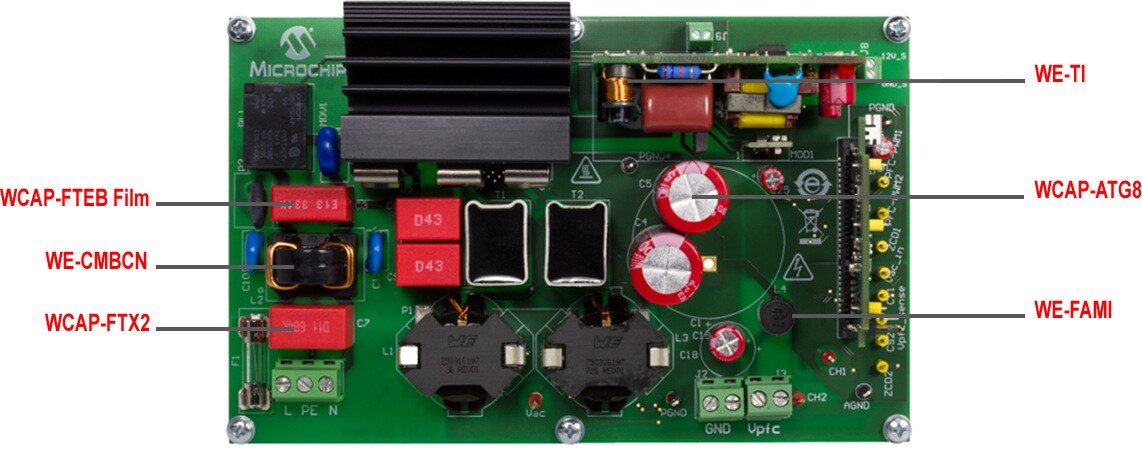

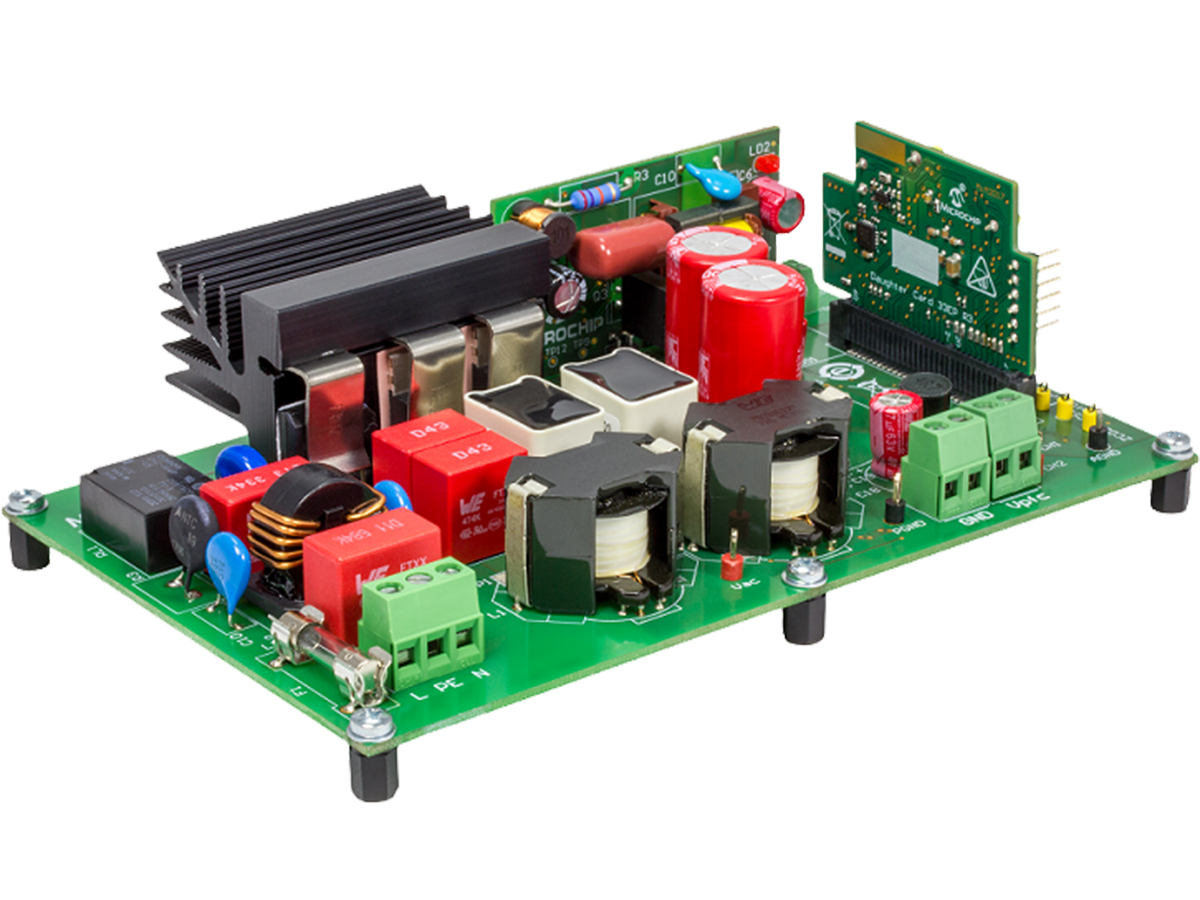

Microchip MCP14A0452 | Demoboard Digital power kit (PFC) 50W
4.5A MOSFET Driver With Low Threshold Input and Enable
Overview
| Topology | Power Factor Correction |
| Input voltage | 12-26 V |
| Switching frequency | 10-1000 kHz |
| Output 1 | 42 V / 1.3 A |
| IC revision | 5 |
Description
The MCP14A0451/2 devices are high-speed MOSFETdrivers that are capable of providing up to 4.5A of peakcurrent while operating from a single 4.5V to 18Vsupply. There are two output configurations available;inverting (MCP14A0451) and non-inverting(MCP14A0452). These devices feature low shootthroughcurrent, fast rise and fall times, and shortpropagation delays which make them ideal for highswitching frequency applications.The MCP14A0451/2 family of devices offer enhancedcontrol with Enable functionality. The active-highEnable pin can be driven low to drive the output of theMCP14A0451/2 low, regardless of the status of theInput pin. An integrated pull-up resistor allows the userto leave the Enable pin floating for standard operation.These devices are highly latch-up resistant under anycondition within their power and voltage ratings. Theycan accept up to 500 mA of reverse current beingforced back into their outputs without damage or logicupset. All terminals are fully protected againstelectrostatic discharge (ESD) up to 2 kV (HBM) and200V (MM).
Features
- High Peak Output Current: 4.5A (typical)
- Wide Input Supply Voltage Operating Range: 4.5V to 18V
- Low Shoot-Through/Cross-Conduction Current in Output Stage
- High Capacitive Load Drive Capability: 2200 pF in 9.5 ns (typical) -
- Short Delay Times: 16 ns (tD1), 19.5 ns (tD2) (typical)
- Low Supply Current: 355 μA (typical)
- Low-Voltage Threshold Input and Enable with Hysteresis
- Latch-Up Protected: Withstands 500 mA Reverse Current
- Space-Saving Packages:
- 8-Lead MSOP
- 8-Lead SOIC
- 8-Lead 2 x 2 DFN
Typical applications
- Switch Mode Power Supplies / Pulse Transformer Drive / Line Drivers
- Motor and Solenoid Drive
More information
All technical functions in detail
Products
Order Code | Datasheet | Simulation | Downloads | Status | Product series | C | Safety Class | dV/dt(V/µs) | DF @ 1 kHz(%) | RISO | Pitch(mm) | Packaging | ISAT(A) | Endurance(h) | IRIPPLE(mA) | ILeak(µA) | DF(%) | Ø D(mm) | IR(A) | L(mH) | RDC max.(mΩ) | VR(V (AC)) | VT(V (AC)) | Material | L(mm) | W(mm) | H(mm) | Mount | Samples | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | WCAP-FTX2 Film Capacitors, Across the mains, 330 nF | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWCAP-FTX2 Film Capacitors | Capacitance330 nF | Safety ClassX2 | Rate of Voltage Rise260 V/µs | Dissipation Factor0.1 % | Insulation Resistance30 GΩ | Pitch15 mm | PackagingCarton | – | – | – | – | – | – | – | – | – | Rated Voltage275 V (AC) | – | – | Length18 mm | Width8.5 mm | Height14.5 mm | MountBoxed THT | ||||
 | WCAP-FTXX Film Capacitors, Across the mains, 470 nF | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWCAP-FTXX Film Capacitors | Capacitance470 nF | Safety ClassX2 | Rate of Voltage Rise280 V/µs | Dissipation Factor0.1 % | Insulation Resistance21.28 GΩ | Pitch12.5 mm | PackagingCarton | – | – | – | – | – | – | – | – | – | Rated Voltage310 V (AC) | – | – | Length15 mm | Width10 mm | Height16 mm | MountBoxed THT | ||||
| WCAP-FTXX Film Capacitors, Across the mains, 680 nF | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWCAP-FTXX Film Capacitors | Capacitance680 nF | Safety ClassX2 | Rate of Voltage Rise230 V/µs | Dissipation Factor0.1 % | Insulation Resistance14.71 GΩ | Pitch15 mm | PackagingBulk | – | – | – | – | – | – | – | – | – | Rated Voltage310 V (AC) | – | – | Length18 mm | Width10 mm | Height16 mm | MountBoxed THT | ||||
 | WE-CMBNC Common Mode Power Line Choke Nanocrystalline, –, – | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWE-CMBNC Common Mode Power Line Choke Nanocrystalline | – | – | – | – | – | – | – | – | – | – | – | – | – | Rated Current10 A | Inductance2 mH | DC Resistance6.3 mΩ | Rated Voltage300 V (AC) | Insulation Test Voltage2100 V (AC) | MaterialNanocrystalline | Length24 mm | Width17 mm | Height25 mm | MountTHT | ||||
 | WE-FAMI THT Power Inductor, –, – | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWE-FAMI THT Power Inductor | – | – | – | – | – | – | – | Saturation Current9.6 A | – | – | – | – | – | Rated Current6.5 A | Inductance0.0047 mH | DC Resistance12.5 mΩ | – | – | – | Length8.8 mm | Width8.8 mm | Height11 mm | MountTHT | ||||
 | WCAP-ATG8 Aluminum Electrolytic Capacitors, –, 47 µF | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWCAP-ATG8 Aluminum Electrolytic Capacitors | Capacitance47 µF | – | – | – | – | Pitch2 mm | PackagingAmmopack | – | Endurance 2000 | Ripple Current143 mA | Leakage Current16.45 µA | Dissipation Factor12 % | Diameter5 mm | – | – | – | Rated Voltage35 V (AC) | – | – | Length11 mm | – | – | – | ||||
| WCAP-ATG8 Aluminum Electrolytic Capacitors, –, 1500 µF | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWCAP-ATG8 Aluminum Electrolytic Capacitors | Capacitance1500 µF | – | – | – | – | Pitch7.5 mm | PackagingAmmopack | – | Endurance 2000 | Ripple Current1848 mA | Leakage Current750 µA | Dissipation Factor10 % | Diameter16 mm | – | – | – | Rated Voltage50 V (AC) | – | – | Length31.5 mm | – | – | – | ||||
 | WCAP-ATLI Aluminum Electrolytic Capacitors, –, 47 µF | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWCAP-ATLI Aluminum Electrolytic Capacitors | Capacitance47 µF | – | – | – | – | Pitch3.5 mm | PackagingAmmopack | – | Endurance 3000 | Ripple Current400 mA | Leakage Current29.61 µA | Dissipation Factor8 % | Diameter8 mm | – | – | – | Rated Voltage63 V (AC) | – | – | Length11.5 mm | – | – | – | ||||
750316197 | PFC Inductor, –, – | Simulation– | Downloads– | Status Activei| Production is active. Expected lifetime: >10 years. | Product series PFC Inductor | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
