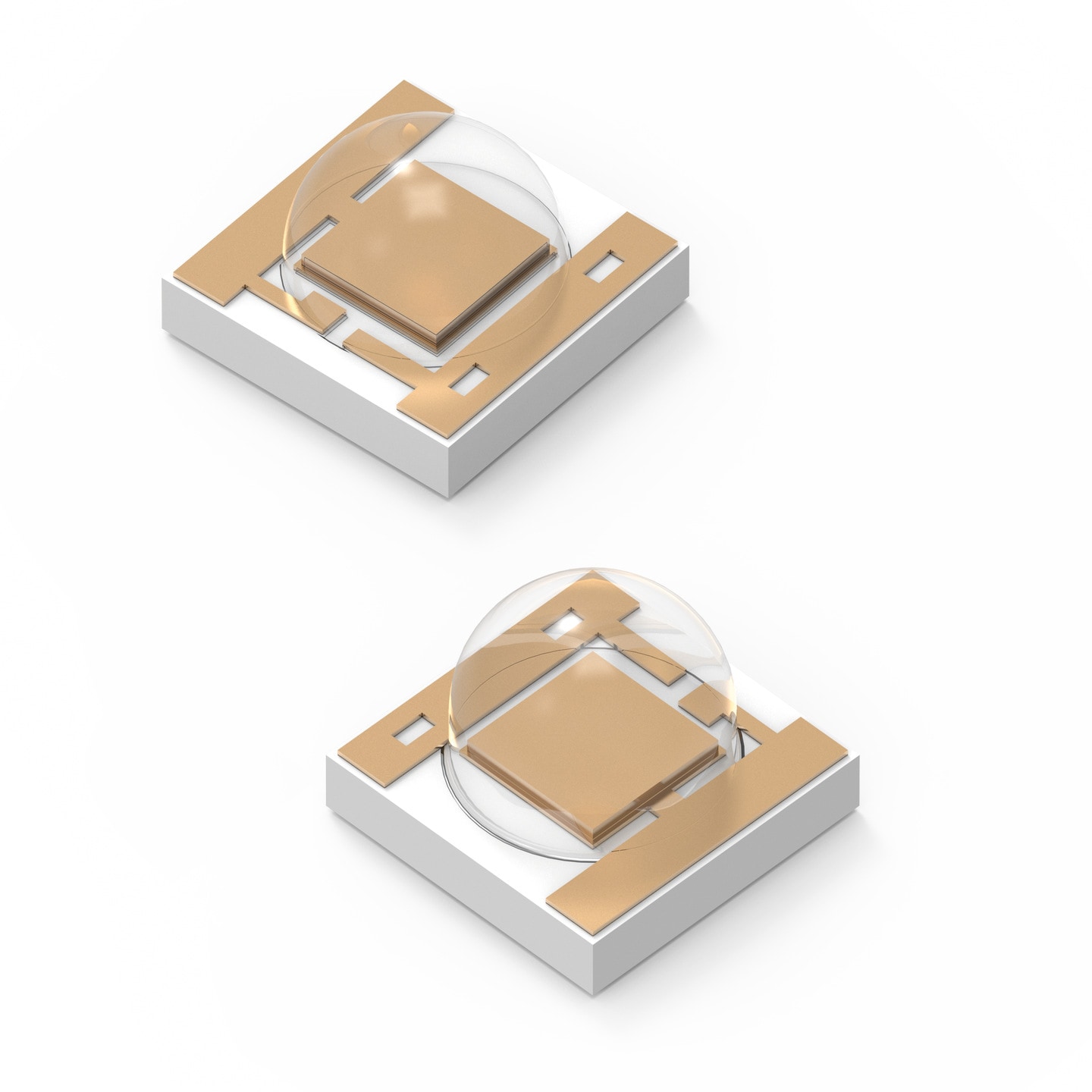

WL-SIMW SMT Infrared Ceramic Waterclear

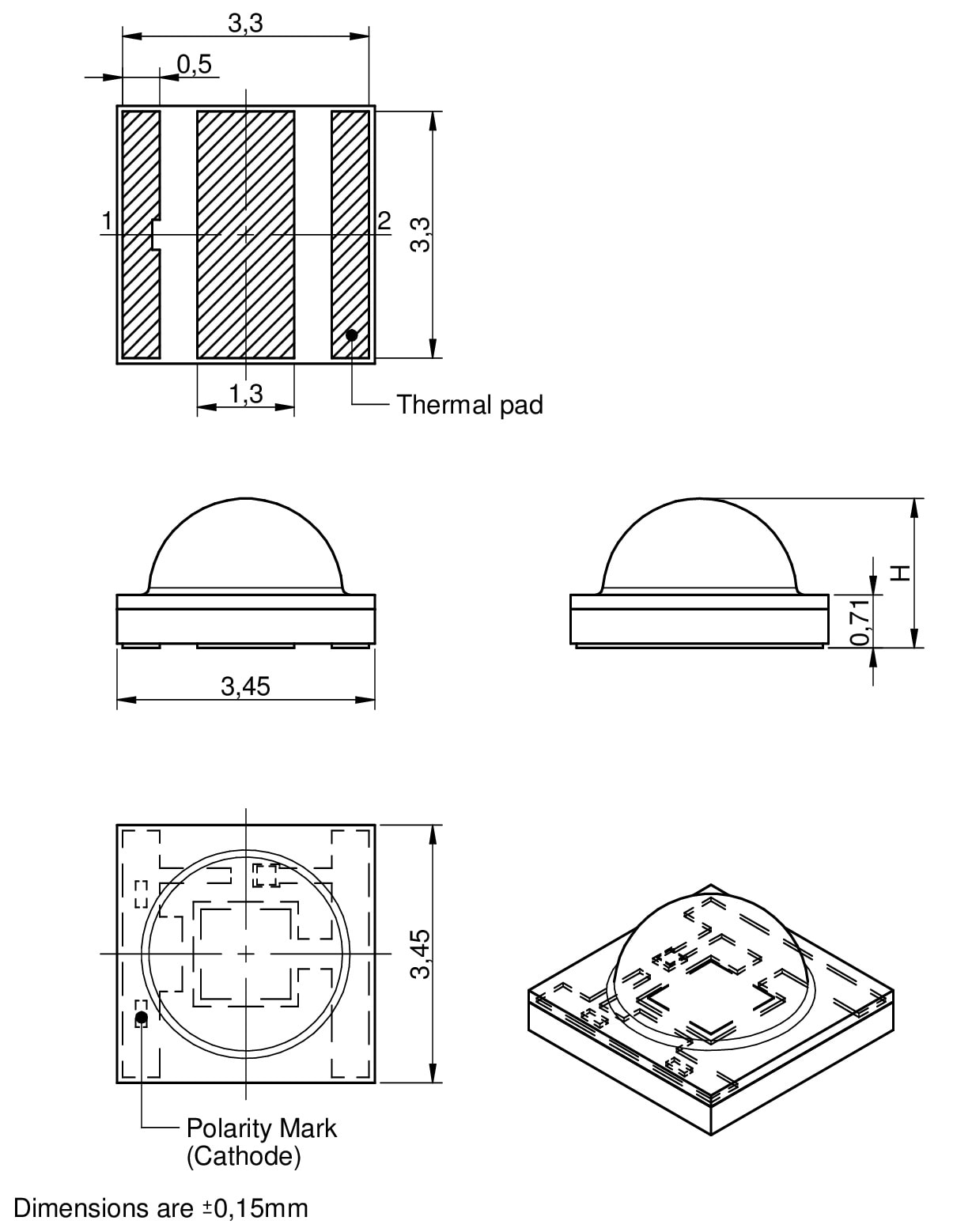

Bauform	Maße	L (mm)	B (mm)	Montageart
3535		3.45	3.45	SMT

LTSpice-Dateien

LT
LTSpice_WL-SIMW (rev22a).zip
|
1.9 KB

Merkmale

IR-Lichtquelle mit hohem Wirkungsgrad
Niedriger Wärmewiderstand
Peak-Wellenlänge: 850, 940 nm
Hohe ESD-Festigkeit: 8 kV (HBM)
Abstrahlwinkel: 90°, 130°
Standard-Lötpad

Anwendung

Infrarotbeleuchtung für z.B. Kameras
Bilderkennungs- & Überwachungssysteme
Bewegungserkennung

Artikeldaten

3535

Alle zurücksetzen

Artikeldaten filtern

Artikel in 1 Produktserien anzeigen

Artikel in 1 Produktserien

Alle zurücksetzen

	Artikel Nr.	Datenblatt	Simulation	Downloads	Status	λ_{Peak typ.}(nm)	λ_{Centroid max.}	I_{e typ.}(mW/sr)	V_{F typ.}(V)	2θ_{50% typ.}(°)	Chiptechnologie	Design Kit	Muster
	15435385A9050	855 nm, 850.0, 350 mW/sr	Simulation	Downloads26 Dateien EDA-Modelle: Bauteile ZIP ALT Altium_WL-SIMW (rev22c).IntLib \| 77 KB CDS Cadence_WL-SIMW (rev19a).zip \| 377.8 KB EAG Eagle_WL-SIMW (rev21a).lbr \| 23 KB CAD-Dateien ZIP IGS Download_IGS_WL-SIMW_154353xxA9050 (rev1).igs \| 566.1 KB STP Download_STP_WL-SIMW_154353xxA9050 (rev1).stp \| 223.3 KB Elektrische Modelle ZIP PSP PSpice_WL-SIMW (rev22a).zip \| 3.2 KB Strahldaten ASA ASAP-and-APEX_dis_15435385A9050_5M (rev1p1).zip \| 120.1 MB COD CodeV_ray_15435385A9050_5M (rev1p1).zip \| 120.1 MB FRE Fred_dat_15435385A9050_5M (rev1p1).zip \| 120.1 MB FRE Fred_txt_15435385A9050_5M (rev1p1).zip \| 188.1 MB LIG LightTools_ray_15435385A9050_5M (rev1p1).zip \| 120.1 MB LIG LightTools_txt_15435385A9050_5M (rev1).zip \| 188.7 MB LUC LucidShape_ray_15435385A9050_5M (rev1p1).zip \| 120.1 MB LUC LucidShape_txt_15435385A9050_5M (rev1p1).zip \| 188.1 MB OPT OpTaliX_dis_15435385A9050_5M (rev1p1).zip \| 120.1 MB OPT OpTaliX_txt_15435385A9050_5M (rev1p1).zip \| 188.1 MB OPT OptiCAD_dat_15435385A9050_5M (rev1p1).zip \| 120.1 MB OPT OptiCAD_txt_15435385A9050_5M (rev1p1).zip \| 188.1 MB RIR Photopia_rir_15435385A9050_5M (rev1p1).zip \| 120.1 MB SIM Simulux_ray_15435385A9050_5M (rev1p1).zip \| 120.1 MB SPE Speos_ray_15435385A9050_5M (rev1p1).zip \| 124.5 MB SRC Lucaray-maker_src_15435385A9050_5M (rev1p1).zip \| 120.1 MB TRA TracePro_txt_15435385A9050_5M (rev1p1).zip \| 188.1 MB ZEM ZemaxBin_dat_15435385A9050_5M (rev1p1).zip \| 120.1 MB ZEM Zemax_dat_15435385A9050_5M (rev1p1).zip \| 188.1 MB Zertifikate ZIP CER IR_LED_certificates_WL-SIMW-3535 (rev1).pdf \| 1.2 MB	Status Aktivi\| Produktion ist aktiv. Erwartete Lebenszeit: >10 Jahre.	Spitzen-Wellenlänge [typ.]855 nm	Schwerpunktwellenlänge [max.]850.0	(Ab)Strahlungsintensität [typ.]350 mW/sr	Durchlassspannung [typ.]2 V	Abstrahlwinkel Phi 0° [typ.]90 °	ChiptechnologieAlGaAs	Design Kit 154150
	15435385AA350	855 nm, 850.0, 250 mW/sr	Simulation	Downloads26 Dateien EDA-Modelle: Bauteile ZIP ALT Altium_WL-SIMW (rev22c).IntLib \| 77 KB CDS Cadence_WL-SIMW (rev19a).zip \| 377.8 KB EAG Eagle_WL-SIMW (rev21a).lbr \| 23 KB CAD-Dateien ZIP IGS Download_IGS_WL-SIMW_154353xxAA350 (rev1).igs \| 562.6 KB STP Download_STP_WL-SIMW_154353xxAA350 (rev1).stp \| 221.7 KB Elektrische Modelle ZIP PSP PSpice_WL-SIMW (rev22a).zip \| 3.2 KB Strahldaten ASA ASAP-and-APEX_dis_15435385AA350_5M (rev1p1).zip \| 121.3 MB COD CodeV_ray_15435385AA350_5M (rev1p1).zip \| 121.3 MB FRE Fred_dat_15435385AA350_5M (rev1p1).zip \| 121.3 MB FRE Fred_txt_15435385AA350_5M (rev1p1).zip \| 188.7 MB LIG LightTools_ray_15435385AA350_5M (rev1p1).zip \| 121.3 MB LIG LightTools_txt_15435385AA350_5M (rev1).zip \| 188.8 MB LUC LucidShape_ray_15435385AA350_5M (rev1p1).zip \| 121.3 MB LUC LucidShape_txt_15435385AA350_5M (rev1p1).zip \| 188 MB OPT OpTaliX_dis_15435385AA350_5M (rev1p1).zip \| 121.3 MB OPT OpTaliX_txt_15435385AA350_5M (rev1p1).zip \| 188 MB OPT OptiCAD_dat_15435385AA350_5M (rev1p1).zip \| 121.3 MB OPT OptiCAD_txt_15435385AA350_5M (rev1p1).zip \| 188.1 MB RIR Photopia_rir_15435385AA350_5M (rev1p1).zip \| 121.3 MB SIM Simulux_ray_15435385AA350_5M (rev1p1).zip \| 121.3 MB SPE Speos_ray_15435385AA350_5M (rev1p1).zip \| 125.8 MB SRC Lucaray-maker_src_15435385AA350_5M (rev1p1).zip \| 121.3 MB TRA TracePro_txt_15435385AA350_5M (rev1p1).zip \| 188.7 MB ZEM ZemaxBin_dat_15435385AA350_5M (rev1p1).zip \| 121.3 MB ZEM Zemax_dat_15435385AA350_5M (rev1p1).zip \| 188.1 MB Zertifikate ZIP CER IR_LED_certificates_WL-SIMW-3535 (rev1).pdf \| 1.2 MB	Status Aktivi\| Produktion ist aktiv. Erwartete Lebenszeit: >10 Jahre.	Spitzen-Wellenlänge [typ.]855 nm	Schwerpunktwellenlänge [max.]850.0	(Ab)Strahlungsintensität [typ.]250 mW/sr	Durchlassspannung [typ.]2 V	Abstrahlwinkel Phi 0° [typ.]130 °	ChiptechnologieAlGaAs	Design Kit 154150
	15435394A9050	945 nm, 940.0, 300 mW/sr	Simulation	Downloads26 Dateien EDA-Modelle: Bauteile ZIP ALT Altium_WL-SIMW (rev22c).IntLib \| 77 KB CDS Cadence_WL-SIMW (rev19a).zip \| 377.8 KB EAG Eagle_WL-SIMW (rev21a).lbr \| 23 KB CAD-Dateien ZIP IGS Download_IGS_WL-SIMW_154353xxA9050 (rev1).igs \| 566.1 KB STP Download_STP_WL-SIMW_154353xxA9050 (rev1).stp \| 223.3 KB Elektrische Modelle ZIP PSP PSpice_WL-SIMW (rev22a).zip \| 3.2 KB Strahldaten ASA ASAP-and-APEX_dis_15435394A9050_5M (rev1p1).zip \| 120.2 MB COD CodeV_ray_15435394A9050_5M (rev1p1).zip \| 120.2 MB FRE Fred_dat_15435394A9050_5M (rev1p1).zip \| 120.2 MB FRE Fred_txt_15435394A9050_5M (rev1p1).zip \| 188 MB LIG LightTools_ray_15435394A9050_5M (rev1p1).zip \| 120.2 MB LIG LightTools_txt_15435394A9050_5M (rev1).zip \| 188.7 MB LUC LucidShape_ray_15435394A9050_5M (rev1p1).zip \| 120.2 MB LUC LucidShape_txt_15435394A9050_5M (rev1p1).zip \| 188 MB OPT OpTaliX_dis_15435394A9050_5M (rev1p1).zip \| 120.2 MB OPT OpTaliX_txt_15435394A9050_5M (rev1p1).zip \| 187.9 MB OPT OptiCAD_dat_15435394A9050_5M (rev1p1).zip \| 120.2 MB OPT OptiCAD_txt_15435394A9050_5M (rev1p1).zip \| 188 MB RIR Photopia_rir_15435394A9050_5M (rev1p1).zip \| 120.2 MB SIM Simulux_ray_15435394A9050_5M (rev1p1).zip \| 120.2 MB SPE Speos_ray_15435394A9050_5M (rev1p1).zip \| 124.6 MB SRC Lucaray-maker_src_15435394A9050_5M (rev1p1).zip \| 120.2 MB TRA TracePro_txt_15435394A9050_5M (rev1p1).zip \| 188 MB ZEM ZemaxBin_dat_15435394A9050_5M (rev1p1).zip \| 120.2 MB ZEM Zemax_dat_15435394A9050_5M (rev1p1).zip \| 188 MB Zertifikate ZIP CER IR_LED_certificate_WL-SIMW-3535 (rev1).pdf \| 1.2 MB	Status Aktivi\| Produktion ist aktiv. Erwartete Lebenszeit: >10 Jahre.	Spitzen-Wellenlänge [typ.]945 nm	Schwerpunktwellenlänge [max.]940.0	(Ab)Strahlungsintensität [typ.]300 mW/sr	Durchlassspannung [typ.]1.9 V	Abstrahlwinkel Phi 0° [typ.]90 °	ChiptechnologieAlGaAs	Design Kit 154150
	15435394AA350	945 nm, 940.0, 220 mW/sr	Simulation	Downloads26 Dateien EDA-Modelle: Bauteile ZIP ALT Altium_WL-SIMW (rev22c).IntLib \| 77 KB CDS Cadence_WL-SIMW (rev19a).zip \| 377.8 KB EAG Eagle_WL-SIMW (rev21a).lbr \| 23 KB CAD-Dateien ZIP IGS Download_IGS_WL-SIMW_154353xxAA350 (rev1).igs \| 562.6 KB STP Download_STP_WL-SIMW_154353xxAA350 (rev1).stp \| 221.7 KB Elektrische Modelle ZIP PSP PSpice_WL-SIMW (rev22a).zip \| 3.2 KB Strahldaten ASA ASAP-and-APEX_dis_15435394AA350_5M (rev1p1).zip \| 120.3 MB COD CodeV_ray_15435394AA350_5M (rev1p1).zip \| 120.3 MB FRE Fred_dat_15435394AA350_5M (rev1p1).zip \| 120.3 MB FRE Fred_txt_15435394AA350_5M (rev1p1).zip \| 188.4 MB LIG LightTools_ray_15435394AA350_5M (rev1p1).zip \| 120.3 MB LIG LightTools_txt_15435394AA350_5M (rev1).zip \| 188.9 MB LUC LucidShape_ray_15435394AA350_5M (rev1p1).zip \| 120.3 MB LUC LucidShape_txt_15435394AA350_5M (rev1p1).zip \| 188.4 MB OPT OpTaliX_dis_15435394AA350_5M (rev1p1).zip \| 120.3 MB OPT OpTaliX_txt_15435394AA350_5M (rev1p1).zip \| 188.4 MB OPT OptiCAD_dat_15435394AA350_5M (rev1p1).zip \| 120.3 MB OPT OptiCAD_txt_15435394AA350_5M (rev1p1).zip \| 188.4 MB RIR Photopia_rir_15435394AA350_5M (rev1p1).zip \| 120.3 MB SIM Simulux_ray_15435394AA350_5M (rev1p1).zip \| 120.3 MB SPE Speos_ray_15435394AA350_5M (rev1p1).zip \| 125 MB SRC Lucaray-maker_src_15435394AA350_5M (rev1p1).zip \| 120.3 MB TRA TracePro_txt_15435394AA350_5M (rev1p1).zip \| 188.4 MB ZEM ZemaxBin_dat_15435394AA350_5M (rev1p1).zip \| 120.3 MB ZEM Zemax_dat_15435394AA350_5M (rev1p1).zip \| 188.4 MB Zertifikate ZIP CER IR_LED_certificate_WL-SIMW-3535 (rev1).pdf \| 1.2 MB	Status Aktivi\| Produktion ist aktiv. Erwartete Lebenszeit: >10 Jahre.	Spitzen-Wellenlänge [typ.]945 nm	Schwerpunktwellenlänge [max.]940.0	(Ab)Strahlungsintensität [typ.]220 mW/sr	Durchlassspannung [typ.]1.9 V	Abstrahlwinkel Phi 0° [typ.]130 °	ChiptechnologieAlGaAs	Design Kit 154150
