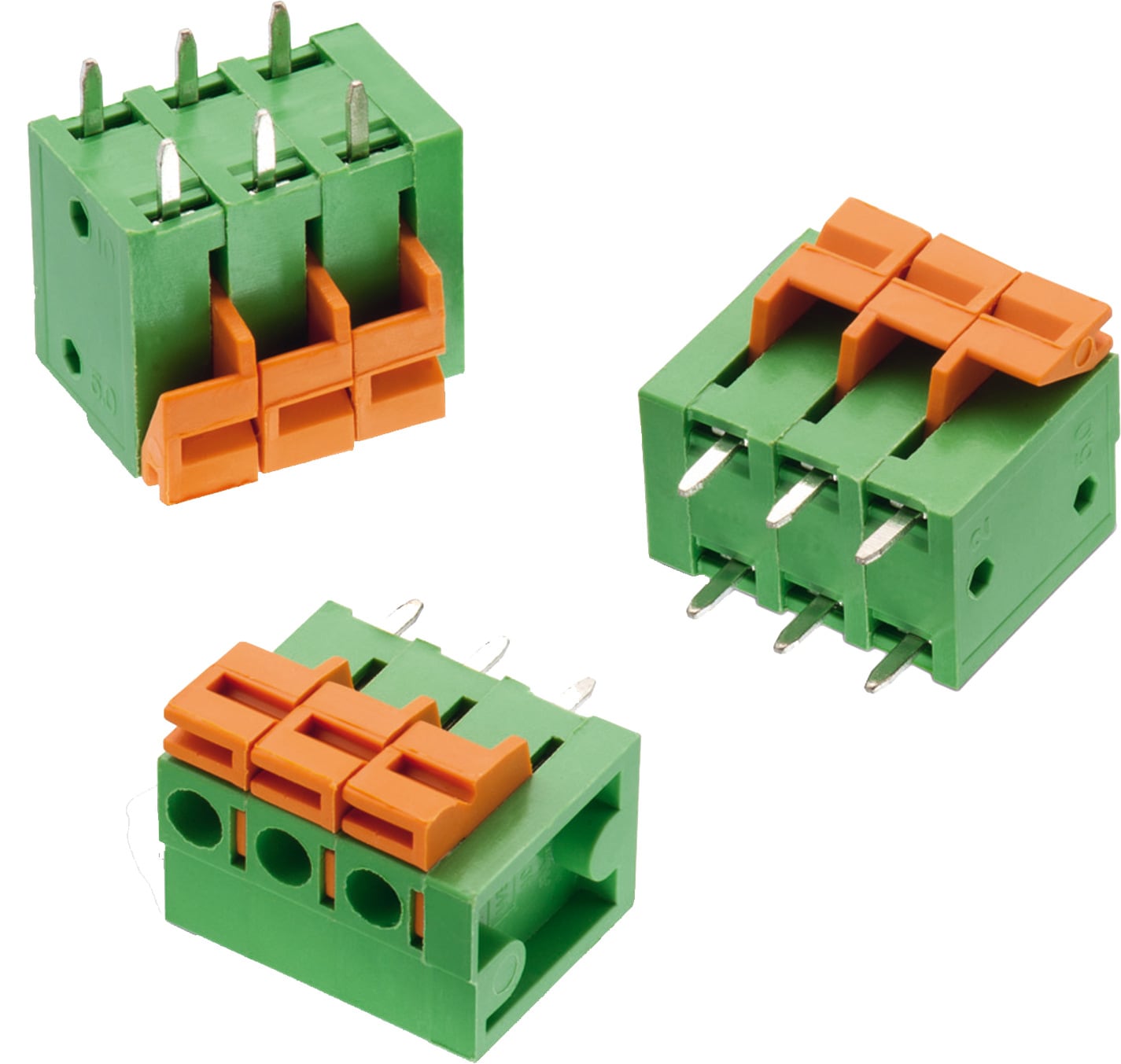

General Information | |
---|---|
Betriebstemperatur | -40 °C up to +105 °C |
Einhaltung | RoHS |
Raster | 5 mm |
Material Properties | |
---|---|
Isolationsmaterial | PA66 |
Isolation Brennbarkeitsklasse | UL94 V-0 |
Isolationsfarbe | Grün |
Kontaktmaterial | Messing |
Kontaktbeschichtung | Zinn |
Kabelschutzmaterial | Edelstahl |
Federmaterial | Edelstahl |
Pin Material | Messing |
Pinbeschichtung | Zinn über Nickel |
Electrical Properties | |
---|---|
IR[cULus] | 10 A |
IR[VDE] | 16 A |
Arbeitsspannung [cULus] | 300 V (AC) |
Arbeitsspannung [VDE] | 250 V (AC) |
Spannungsfestigkeit [cULus] | 1600 V (AC) |
Spannungsfestigkeit [VDE] | 2000 V (AC) |
RC | 20 mΩ |
RC | 20 mΩ |
Mechanical Properties | |
---|---|
Kabellänge | 10 (mm) |
Wire Properties | |
---|---|
Solid Wire Section (AWG) | 14 to 24 (AWG) |
Solid Wire Section (Metric) | 0.2 to 2.5 (mm²) |
Stranded Wire Section (AWG) | 14 to 24 (AWG) |
Stranded Wire Section (Metric) | 0.2 to 2.5 (mm²) |
Certification | |
---|---|
cULus Zulassung | E315414 |
VDE-Zulassung | 40036896 |
Packaging Properties | |
---|---|
Verpackung | Karton |
Application Notes
Artikeldaten
Artikel Nr. | Datenblatt | Downloads | Status | Pins (pcs) | Anwendung | PCB/Kabel/Panel | Modularity | Typ | Wire Section | Design Kit | Muster |
---|---|---|---|---|---|---|---|---|---|---|---|
691401700002B | SPEC | 7 Dateien | Aktiv i| Produktion ist aktiv. Erwartete Lebenszeit: >10 Jahre. | 2 | Screwless | PCB | Nein | Vertikal | 14 to 24 (AWG) 0.2 to 2.5 (mm²) | 691001 | |
691401700003B | SPEC | 7 Dateien | Aktiv i| Produktion ist aktiv. Erwartete Lebenszeit: >10 Jahre. | 3 | Screwless | PCB | Nein | Vertikal | 14 to 24 (AWG) 0.2 to 2.5 (mm²) | 612690 691001 | |
691401700004B | SPEC | 7 Dateien | Aktiv i| Produktion ist aktiv. Erwartete Lebenszeit: >10 Jahre. | 4 | Screwless | PCB | Nein | Vertikal | 14 to 24 (AWG) 0.2 to 2.5 (mm²) | – | |
691401700005B | SPEC | 7 Dateien | Aktiv i| Produktion ist aktiv. Erwartete Lebenszeit: >10 Jahre. | 5 | Screwless | PCB | Nein | Vertikal | 14 to 24 (AWG) 0.2 to 2.5 (mm²) | – | |
691401700006B | SPEC | 7 Dateien | Aktiv i| Produktion ist aktiv. Erwartete Lebenszeit: >10 Jahre. | 6 | Screwless | PCB | Nein | Vertikal | 14 to 24 (AWG) 0.2 to 2.5 (mm²) | – | |
691401700007B | SPEC | 7 Dateien | Aktiv i| Produktion ist aktiv. Erwartete Lebenszeit: >10 Jahre. | 7 | Screwless | PCB | Nein | Vertikal | 14 to 24 (AWG) 0.2 to 2.5 (mm²) | – | |
691401700008B | SPEC | 7 Dateien | Aktiv i| Produktion ist aktiv. Erwartete Lebenszeit: >10 Jahre. | 8 | Screwless | PCB | Nein | Vertikal | 14 to 24 (AWG) 0.2 to 2.5 (mm²) | – | |
691401700009B | SPEC | 7 Dateien | Aktiv i| Produktion ist aktiv. Erwartete Lebenszeit: >10 Jahre. | 9 | Screwless | PCB | Nein | Vertikal | 14 to 24 (AWG) 0.2 to 2.5 (mm²) | – | |
691401700010B | SPEC | 7 Dateien | Aktiv i| Produktion ist aktiv. Erwartete Lebenszeit: >10 Jahre. | 10 | Screwless | PCB | Nein | Vertikal | 14 to 24 (AWG) 0.2 to 2.5 (mm²) | – | |
691401700011B | SPEC | 7 Dateien | Aktiv i| Produktion ist aktiv. Erwartete Lebenszeit: >10 Jahre. | 11 | Screwless | PCB | Nein | Vertikal | 14 to 24 (AWG) 0.2 to 2.5 (mm²) | – | |
691401700012B | SPEC | 7 Dateien | Aktiv i| Produktion ist aktiv. Erwartete Lebenszeit: >10 Jahre. | 12 | Screwless | PCB | Nein | Vertikal | 14 to 24 (AWG) 0.2 to 2.5 (mm²) | – |
Artikel Nr. | Datenblatt |
---|---|
691401700002B | SPEC |
691401700003B | SPEC |
691401700004B | SPEC |
691401700005B | SPEC |
691401700006B | SPEC |
691401700007B | SPEC |
691401700008B | SPEC |
691401700009B | SPEC |
691401700010B | SPEC |
691401700011B | SPEC |
691401700012B | SPEC |
Muster |
---|
Artikel Nr. | Datenblatt | Downloads | Status | Pins (pcs) | Anwendung | PCB/Kabel/Panel | Modularity | Typ | Wire Section | Design Kit | Muster |
---|
