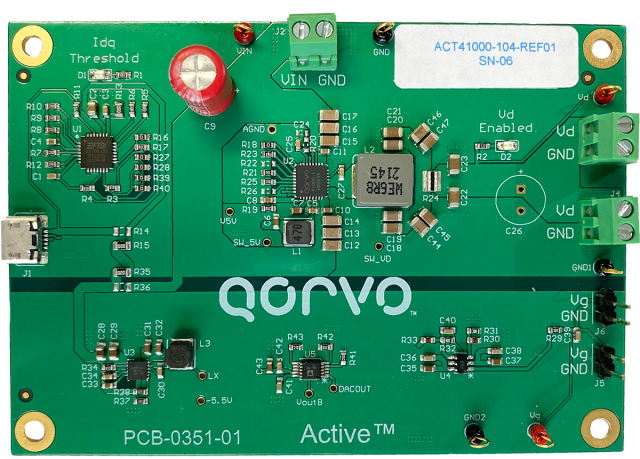

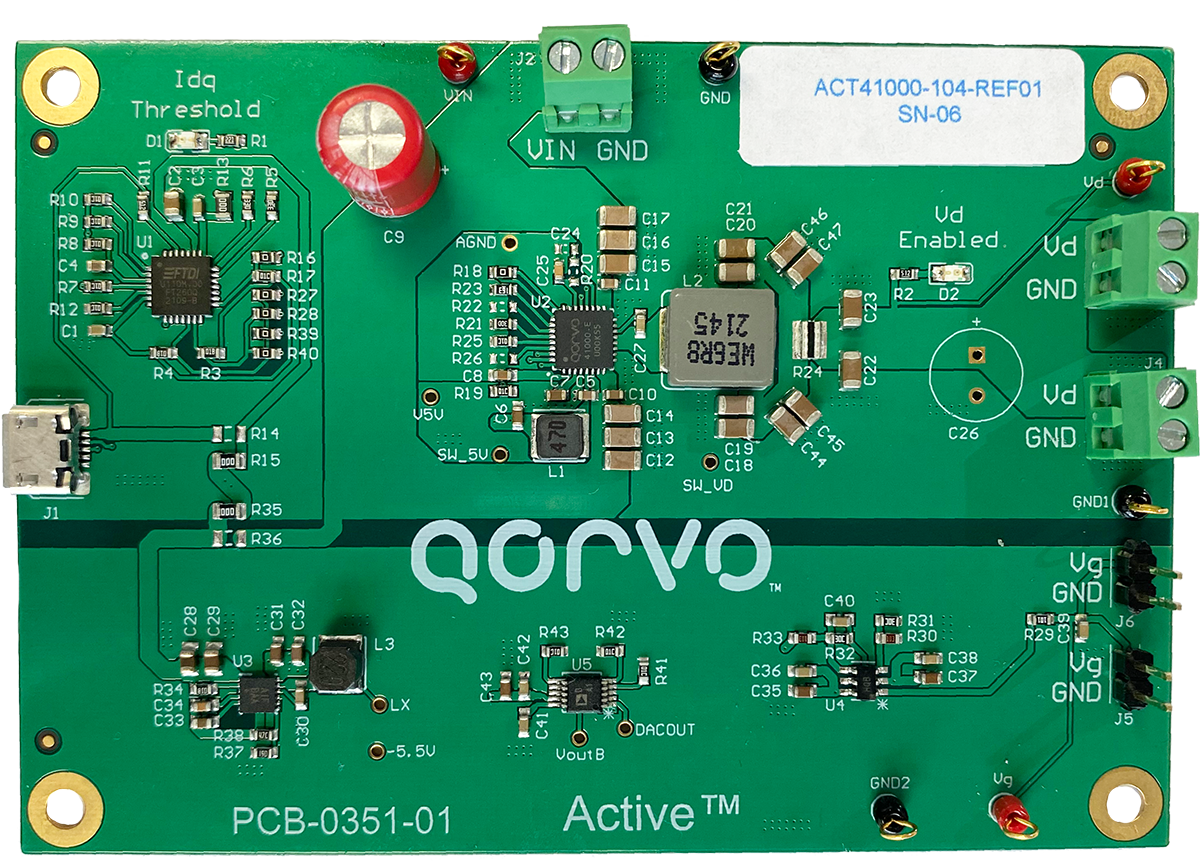

Details
| Topologie | Abwärtswandler |
| Eingangsspannung | 24-40 V |
| Ausgang 1 | 22 V / 4 A |
| IC-Revision | 2.0 |
Beschreibung
Qorvo's ACT41000 is a programmable output, low noise, DC-to-DC buck converter with auxiliary bias supply regulators. This synchronous step-down voltage regulator supports a wide input voltage from 4.5 to 40 V and integrates both the high side and low side MOSFETS. These 50 m? RDSON transistors, driven by the optimized 5V self-biasing, enable high efficiency to reduce power losses.The product's main buck converter can be dynamically programed to an output voltage between 3 and 24 V in 12.5 mV steps via the I2C interface or analog feedback. It also can dynamically program output current between 0 and 4 A in 256 steps via the I2C interface in a constant-current (CC) operation mode. The main buck operates in a proprietary current mode control that supports external clock syncing for switching frequencies between 450 kHz and 2.25 MHz and spread-spectrum. ACT41000 has built-in iDAC for Bias Detection and automatic system level bias threshold trigger for PA Vdrain bias applications. The product also integrates a 5 V / 350 mA mini-buck converter and a 20 mA AUX LDO.ACT41000 is available in a 32-pin 5 mm x 5 mm QFN package with a power-optimized footprint and exposed pad for improved thermal performance.
Eigenschaften
- 4.5 V to 40 V Operational Input Voltage
- Programmable Output with Factory Defaults
- Output Voltage: 3 V to 24 V in 12.5 mV Step
- Output Current (Limit): Up to 4 A in 15.6 mA Step
- 450 kHz to 2.25 MHz Fixed-Frequency Current-Mode, with External Clock Sync. and Spread-Spectrum
- 5 V / 350 mA Self-Bias Buck Converter with
- 20 mA AUX LDO, Programmable Output Voltage
- I2C Interface, Fast-mode Plus (Fm+, 1 MHz)
- Protections: UVLO, OVP, UVP (Hiccup/Latch-off), OCP, TSD
- Thermally Enhanced 5 mm × 5 mm QFN Package
- Automotive AEC-Q100 Options Available (Contact Qorvo for conditions of AEC-Q100 options.)
Typische Anwendungen
- RF PA (GaN/GaAs) Drain Bias / Power with IDQ Search, General Telecom and Industrial Power Supplies
- Telecom RF Modules, Radar Systems
Weiterführende Informationen
All technical functions in detail

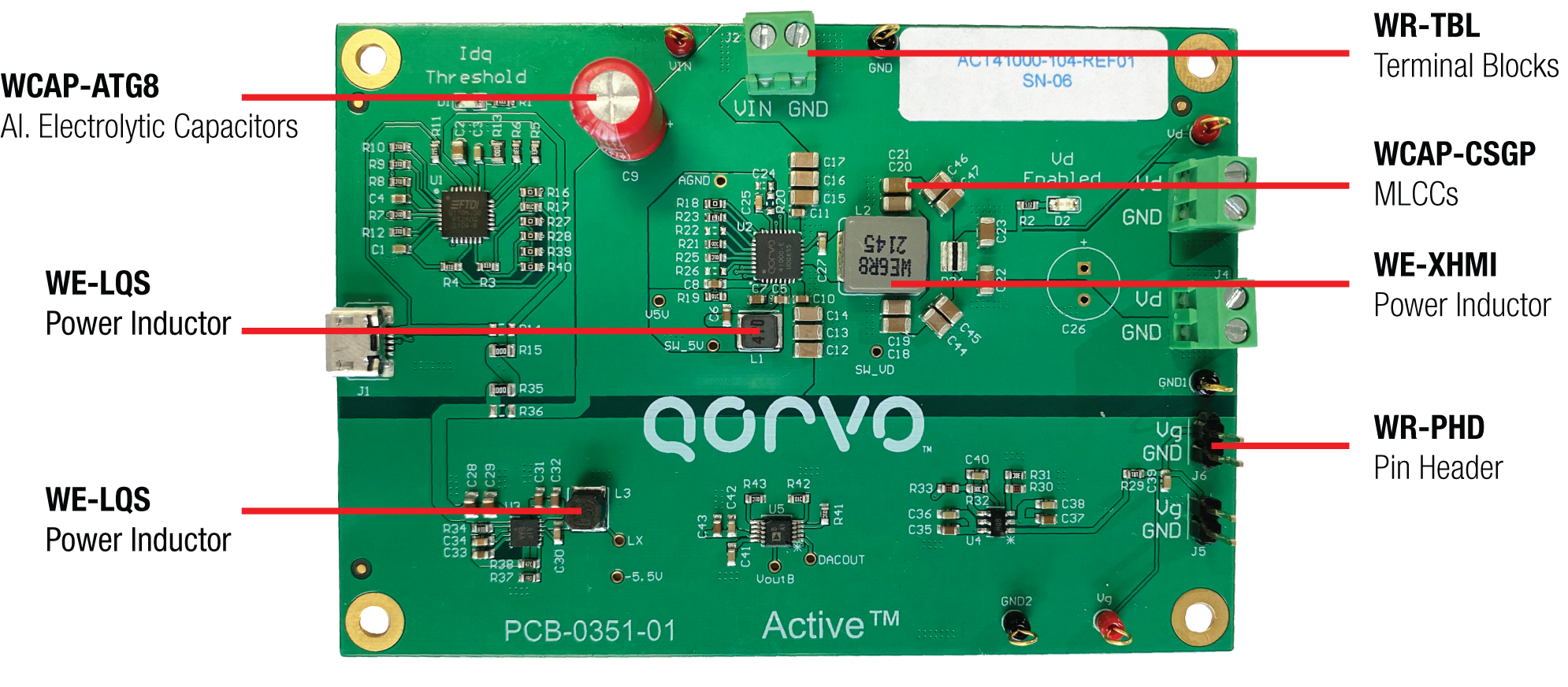

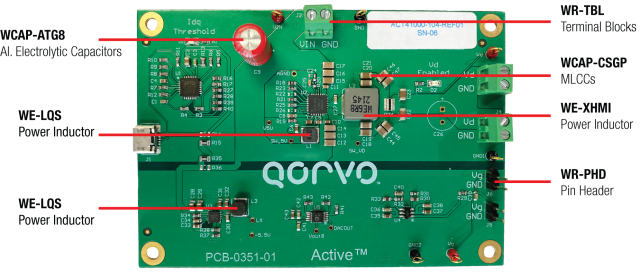

Artikeldaten
Artikel Nr. | Datenblatt | Simulation | Downloads | Status | Produktserie | Pins | PCB/Kabel/Panel | Modularity | Typ | Wire Section | C | Tol. C | VR(V (DC)) | Bauform | Betriebstemperatur | DF(%) | RISO | Keramiktyp | L(mm) | B(mm) | H(mm) | Fl(mm) | Verpackung | L(µH) | IR(A) | ISAT(A) | RDC(mΩ) | fres(MHz) | IRP,40K(A) | ISAT,30%(A) | RDC typ.(mΩ) | RDC max.(mΩ) | Montageart | Muster | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | WE-XHMI SMT Speicherdrossel, 2, – | Status Aktivi| Produktion ist aktiv. Erwartete Lebenszeit: >10 Jahre. | ProduktserieWE-XHMI SMT Speicherdrossel | Pins2 | – | – | – | – | – | – | – | Bauform8080 | Betriebstemperatur -40 °C up to +125 °C | – | – | – | Länge8.8 mm | Breite8.3 mm | Höhe7.8 mm | – | – | Induktivität6.8 µH | Nennstrom7.2 A | – | Gleichstromwiderstand13 mΩ | Eigenresonanzfrequenz22 MHz | Performance Nennstrom10.55 A | Sättigungsstrom @ 30%17.6 A | Gleichstromwiderstand13 mΩ | Gleichstromwiderstand14.3 mΩ | MontageartSMT | ||||
 | WR-TBL Series 2141S - 3.50 mm Horizontal Entry Modular w. Rising Cage Clamp, 2, Rising Cage Clamp | Simulation– | Status Aktivi| Produktion ist aktiv. Erwartete Lebenszeit: >10 Jahre. | Pins2 | PCB/Kabel/PanelPCB | ModularityJa | TypHorizontal | Wire Section 30 to 16 (AWG) 0.05 to 1.31 (mm²) | – | – | – | – | Betriebstemperatur -30 °C up to +120 °C | – | – | – | Länge7 mm | – | – | – | VerpackungKarton | – | Nennstrom10 A | – | – | – | – | – | – | – | MontageartTHT | ||||
| WCAP-CSGP MLCCs 10 V(DC), –, – | Status Aktivi| Produktion ist aktiv. Erwartete Lebenszeit: >10 Jahre. | ProduktserieWCAP-CSGP MLCCs 10 V(DC) | – | – | – | – | – | Kapazität10 µF | Kapazität±20% | Nennspannung10 V (DC) | Bauform0805 | Betriebstemperatur -55 °C up to +85 °C | Verlustfaktor10 % | Isolationswiderstand0.01 GΩ | KeramiktypX5R Klasse II | Länge2 mm | Breite1.25 mm | Höhe1.25 mm | Pad Dimension0.5 mm | Verpackung7" Tape & Reel | – | – | – | – | – | – | – | – | – | – | |||||
| WCAP-CSGP MLCCs 16 V(DC), –, – | Status Aktivi| Produktion ist aktiv. Erwartete Lebenszeit: >10 Jahre. | ProduktserieWCAP-CSGP MLCCs 16 V(DC) | – | – | – | – | – | Kapazität10 µF | Kapazität±20% | Nennspannung16 V (DC) | Bauform0805 | Betriebstemperatur -55 °C up to +85 °C | Verlustfaktor10 % | Isolationswiderstand0.01 GΩ | KeramiktypX5R Klasse II | Länge2 mm | Breite1.25 mm | Höhe1.25 mm | Pad Dimension0.5 mm | Verpackung7" Tape & Reel | – | – | – | – | – | – | – | – | – | – | |||||
 | WE-LQS SMT-Speicherdrossel, –, – | Status Aktivi| Produktion ist aktiv. Erwartete Lebenszeit: >10 Jahre. | ProduktserieWE-LQS SMT-Speicherdrossel | – | – | – | – | – | – | – | – | Bauform4025 | Betriebstemperatur -40 °C up to +125 °C | – | – | – | Länge4 mm | Breite4 mm | Höhe2.5 mm | – | – | Induktivität47 µH | Nennstrom0.71 A | Sättigungsstrom0.45 A | Gleichstromwiderstand492 mΩ | Eigenresonanzfrequenz15 MHz | – | – | – | – | MontageartSMT |
