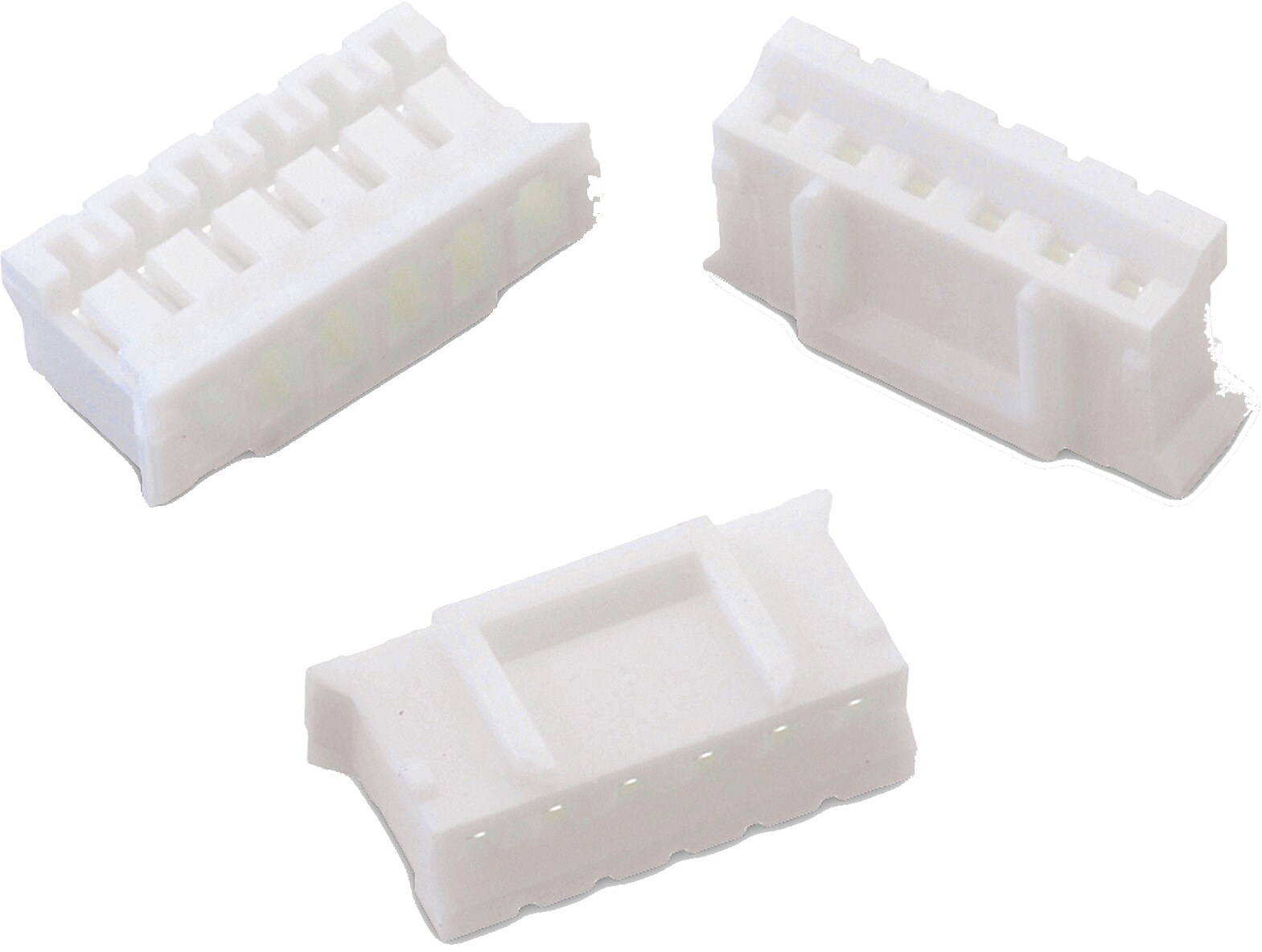

WR-WTB 2.00 mm Female Terminal Housing

Material Properties
Insulator Material	Nylon 66
Insulator Flammability Rating	UL94 V-0
Insulator Color	White

General Information
Withstanding Voltage	800 V (AC)
R_ISO	1000 MΩ
Pitch	2 mm
Gender	Female
Type	Terminal Housing
Operating Temperature	-25 °C up to +85 °C

Certification
UL Approval	E323964

Packaging Properties
Packaging	Bag

Products

Filter article data

show article in 0 product lines

article in 0 product lines

Order Code	Datasheet	Downloads	Status	Gender	Pins	Type	Packaging	Mates with	Design Kit	Samples
620002113322	Female, 2, Terminal Housing	Downloads3 files CAD files ZIP 3D 3D_620002113322 (rev1).pdf \| 45.7 KB IGS Download_IGES_620002113322 (rev1).iges \| 735.7 KB STP 620002113322 (rev1).stp \| 168.8 KB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	GenderFemale	Pins2	TypeTerminal Housing	PackagingBag	Mates with 62000211722 620102131822 620302124022 62000211622	Design Kit 645001
620003113322	Female, 3, Terminal Housing	Downloads3 files CAD files ZIP 3D 3D_620003113322 (rev1).pdf \| 59.5 KB IGS Download_IGES_620003113322 (rev1).iges \| 1004.9 KB STP 620003113322 (rev1).stp \| 228.8 KB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	GenderFemale	Pins3	TypeTerminal Housing	PackagingBag	Mates with 62000311622 62000311722 620103131822 620303124022	Design Kit 645001
620004113322	Female, 4, Terminal Housing	Downloads3 files CAD files ZIP 3D 3D_620004113322 (rev1).pdf \| 74.4 KB IGS Download_IGES_620004113322 (rev1).iges \| 1.3 MB STP 620004113322 (rev1).stp \| 295.2 KB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	GenderFemale	Pins4	TypeTerminal Housing	PackagingBag	Mates with 62000411622 62000411722 620104131822 620304124022	Design Kit 645001
620005113322	Female, 5, Terminal Housing	Downloads3 files CAD files ZIP 3D 3D_620005113322 (rev1).pdf \| 88.3 KB IGS Download_IGES_620005113322 (rev1).iges \| 1.5 MB STP 620005113322 (rev1).stp \| 356.7 KB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	GenderFemale	Pins5	TypeTerminal Housing	PackagingBag	Mates with 62000511622 62000511722 620105131822 620305124022	Design Kit 645001
620006113322	Female, 6, Terminal Housing	Downloads3 files CAD files ZIP 3D 3D_620006113322 (rev1).pdf \| 103.4 KB IGS Download_IGES_620006113322 (rev1).iges \| 1.8 MB STP 620006113322 (rev1).stp \| 422.3 KB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	GenderFemale	Pins6	TypeTerminal Housing	PackagingBag	Mates with 62000611622 62000611722 620106131822 620306124022	Design Kit 645001
620007113322	Female, 7, Terminal Housing	Downloads3 files CAD files ZIP 3D 3D_620007113322 (rev1).pdf \| 117.4 KB IGS Download_IGES_620007113322 (rev1).iges \| 2.1 MB STP 620007113322 (rev1).stp \| 486.5 KB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	GenderFemale	Pins7	TypeTerminal Housing	PackagingBag	Mates with 62000711622 62000711722 620107131822 620307124022	Design Kit 645001
620008113322	Female, 8, Terminal Housing	Downloads3 files CAD files ZIP 3D 3D_620008113322 (rev1).pdf \| 131.4 KB IGS Download_IGES_620008113322 (rev1).iges \| 2.3 MB STP 620008113322 (rev1).stp \| 550.1 KB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	GenderFemale	Pins8	TypeTerminal Housing	PackagingBag	Mates with 62000811622 62000811722 620108131822 620308124022	Design Kit 645001
620009113322	Female, 9, Terminal Housing	Downloads3 files CAD files ZIP 3D 3D_620009113322 (rev1).pdf \| 145.5 KB IGS Download_IGES_620009113322 (rev1).iges \| 2.6 MB STP 620009113322 (rev1).stp \| 615.2 KB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	GenderFemale	Pins9	TypeTerminal Housing	PackagingBag	Mates with 62000911622 62000911722 620109131822 620309124022	Design Kit 645001
620010113322	Female, 10, Terminal Housing	Downloads3 files CAD files ZIP 3D 3D_620010113322 (rev1).pdf \| 159.6 KB IGS Download_IGES_620010113322 (rev1).iges \| 2.9 MB STP 620010113322 (rev1).stp \| 676.8 KB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	GenderFemale	Pins10	TypeTerminal Housing	PackagingBag	Mates with 62001011622 62001011722 620110131822 620310124022	Design Kit 612690 645001

Use with

WR-WTB 2.00 mm Female Crimp Contact

WR-WTB Pre-crimped wire

Tools

WR-WTB Automatic Crimping Tool

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Connector Solutions

Design Kit WR-WTB Wire-to-Board Connectors
