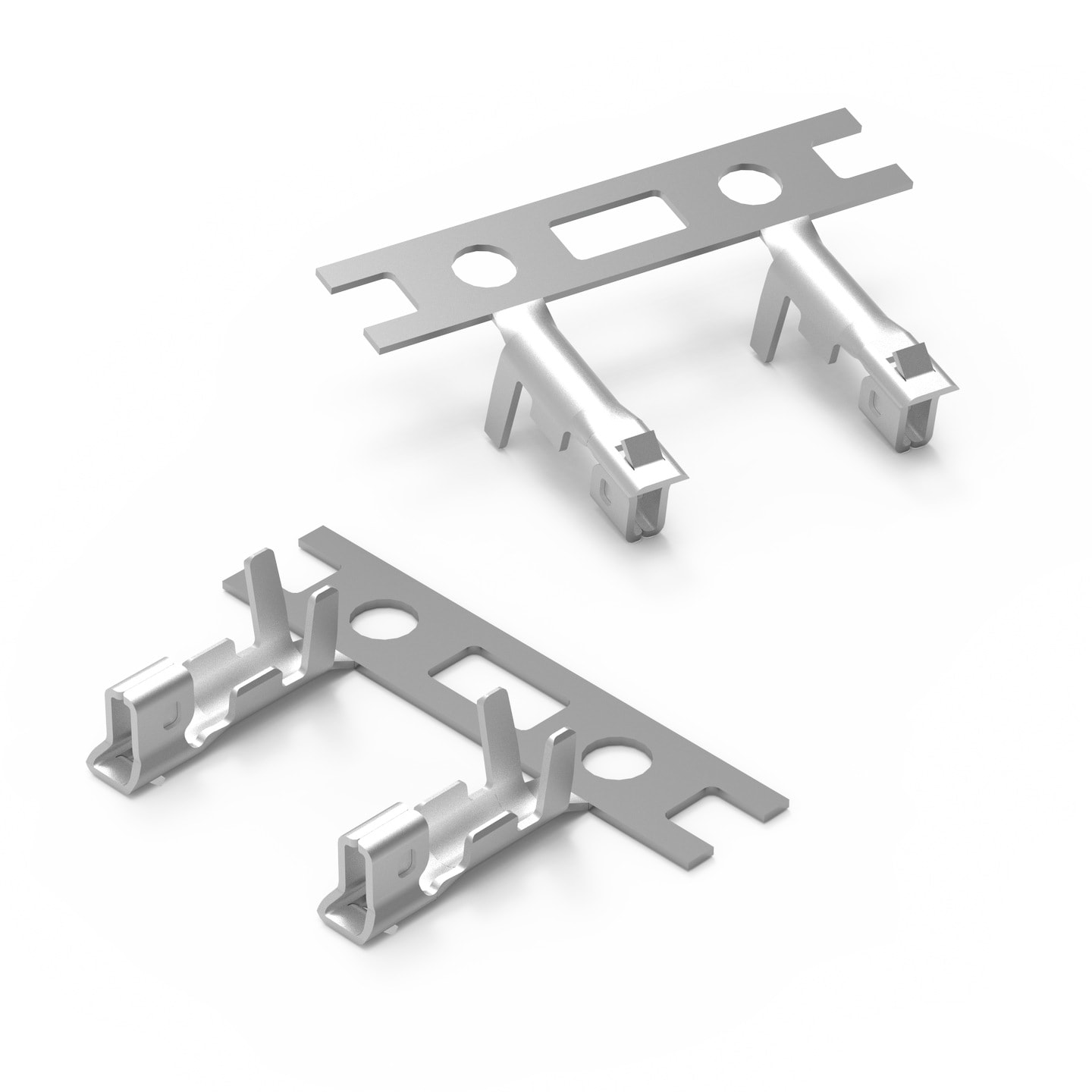

WR-WTB 2.00 mm Female Crimp Contact

Material Properties
Contact Material	Copper Alloy
Contact Plating	Tin
Contact Type	Stamped

General Information
Compliance	RoHS
I_R	2 A
Working Voltage	100 V (AC)
Contact Resistance	20 mΩ
Pitch	2 mm
Gender	Female
Type	Crimp Terminal
Operating Temperature	-25 °C up to +85 °C

Wire Properties
Stranded Wire Section (AWG)	28 to 24 (AWG)
Stranded Wire Section (Metric)	0.081 to 0.205 (mm²)

Packaging Properties
Packaging	Bag; Big Reel; Small Reel

Products

Filter article data

show article in 0 product lines

article in 0 product lines

	Order Code	Datasheet	Downloads	Status	Gender	Stranded Wire Section (AWG)	Stranded Wire Section (Metric)	Packaging	Qty.(pcs)	Automatic Crimping Tool	Manual Crimping Tool	Design Kit	SamplesAvailability & Sample
	62000113722	SPECFemale, 28 to 24 (AWG), 0.081 to 0.205 (mm²)	Availability –	Downloads3 files CAD files ZIP 3D 62000113722_1 (rev1).pdf \| 216.7 KB IGS 62000113722 (rev1).igs \| 1.1 MB STP 62000113722 (rev1).stp \| 390.9 KB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	GenderFemale	Stranded Wire Section (AWG)28 to 24 (AWG)	Stranded Wire Section (Metric)0.081 to 0.205 (mm²)	PackagingBig Reel	Packaging Unit10000 pcs	Automatic Crimping Tool 600620230220	Manual Crimping Tool 600620401	Design Kit –	–Check availability
	62010113722	SPECFemale, 28 to 24 (AWG), 0.081 to 0.205 (mm²)	Availability –	Downloads2 files CAD files ZIP 3D 62010113722_1 (rev1).pdf \| 235.7 KB STP Download_STP_62010113722 (rev1).stp \| 899.7 KB Download all 2 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	GenderFemale	Stranded Wire Section (AWG)28 to 24 (AWG)	Stranded Wire Section (Metric)0.081 to 0.205 (mm²)	PackagingSmall Reel	Packaging Unit600 pcs	Automatic Crimping Tool 600620401	Manual Crimping Tool 600620230220	Design Kit –	–Check availability
	62000113722DEC	SPECFemale, 28 to 24 (AWG), 0.081 to 0.205 (mm²)	Availability –	Downloads2 files CAD files ZIP 3D 62000113722DEC_1 (rev1).pdf \| 113.3 KB STP Download_STP_62000113722DEC (rev1).stp \| 899.7 KB Download all 2 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	GenderFemale	Stranded Wire Section (AWG)28 to 24 (AWG)	Stranded Wire Section (Metric)0.081 to 0.205 (mm²)	PackagingBag	Packaging Unit100 pcs	Automatic Crimping Tool –	Manual Crimping Tool 600620230220	Design Kit 612690 645001	–Check availability

Use with

WR-WTB 2.00 mm Female Terminal Housing

Tools

WR-WTB Manual Crimping Tool

WR-WTB Automatic Crimping Tool

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Connector Solutions

Design Kit WR-WTB Wire-to-Board Connectors
