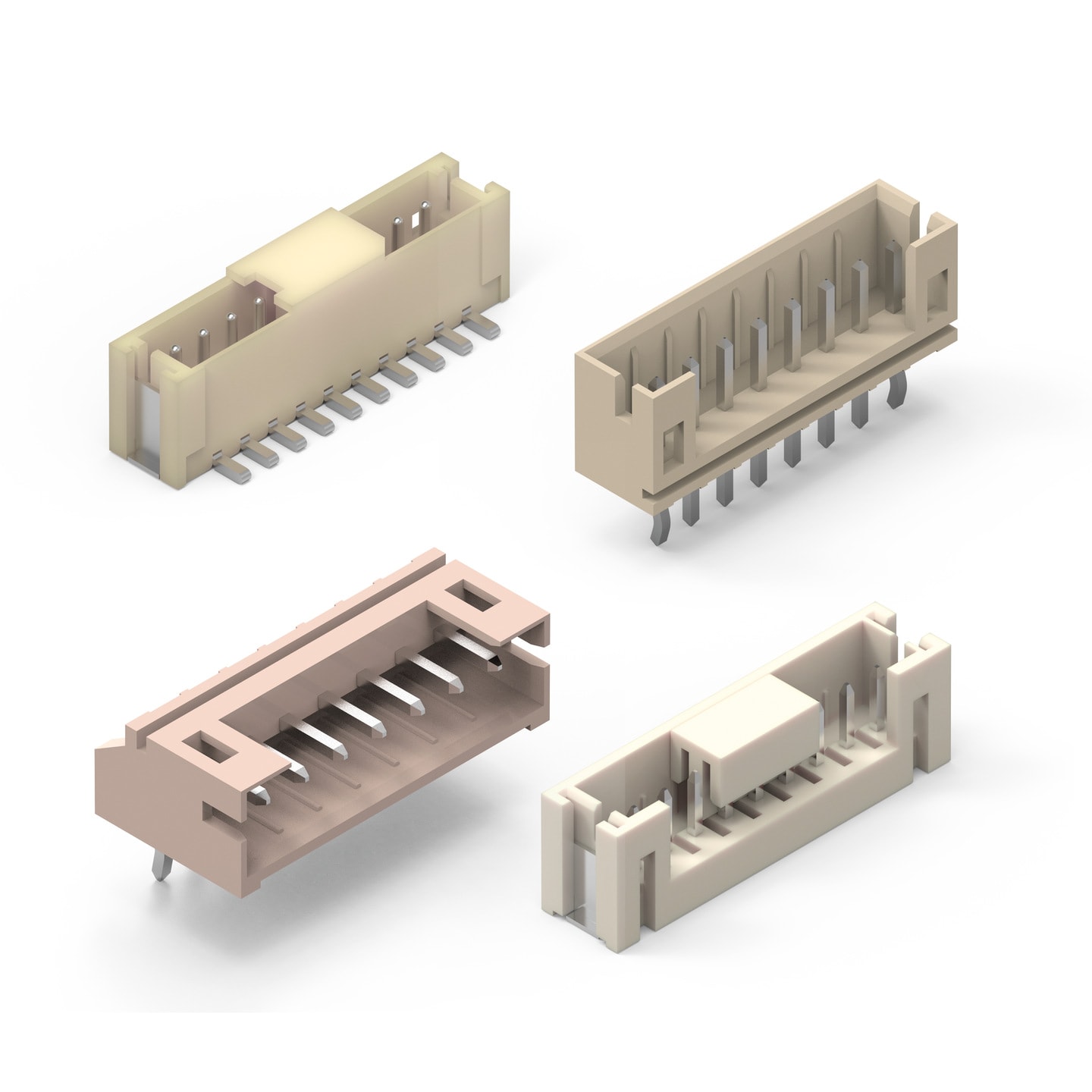

WR-WTB 2.00 mm Male Pin Header

Size	Dimensions	Mount
THT Horizontal		THT
THT Vertical		THT
SMT Horizontal		SMT
SMT Vertical		SMT

Characteristics

Rated Current: 2 A
Working Voltage: 100 V / 125 V
Operating temperature: -40 °C to +85 °C / -25 °C to +85 °C
UL 94-V0
Raster: 2.00 mm

Features:

Fine pitch
SMT soldering / THT soldering

Applications

Microelectronic
Portable devices
Industrie 4.0

Products

All

THT Horizontal

THT Vertical

SMT Horizontal

SMT Vertical

Reset all

Filter article data

show articles in 4 product lines

articles in 4 product lines

Reset all

Order Code	Datasheet	Downloads	Status	Pins	Polarity	Type	Mount	I_R(A)	PCB/Cable/Panel	L(mm)	Packaging	Mates with	Design Kit	SamplesAvailability & Sample
