WL-STCW SMT Phototransistor Chip Waterclear

Size	Dimensions	L (mm)	W (mm)	H (mm)	Mount

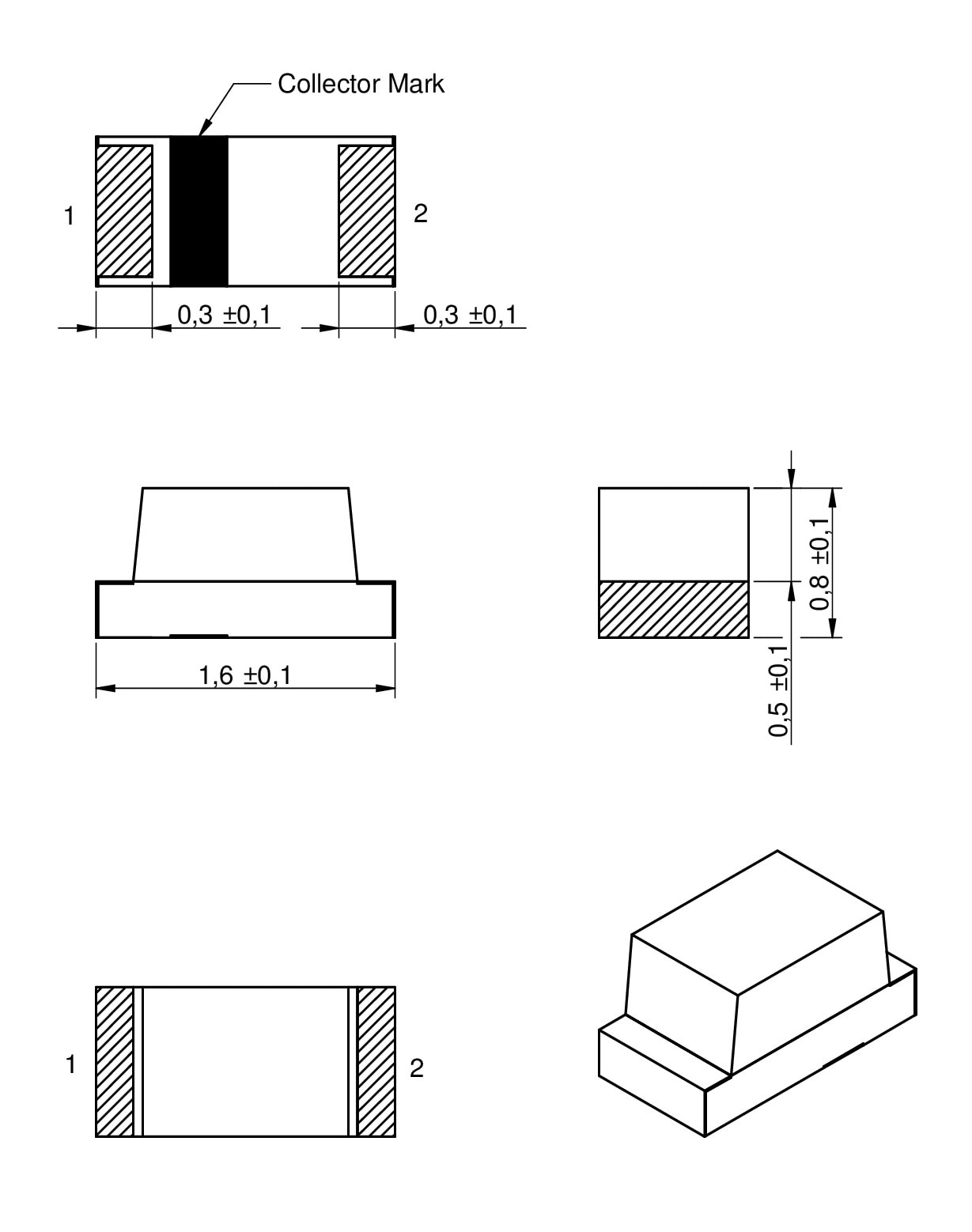

0603		1.6	0.8	0.8	SMT
0805		2	1.3	0.8	-
1206		3.2	1.6	1.1	-

Characteristics

Small standard package size
Perfect match to IR and visible emitter
High reliability
High sensitivity

Applications

Security systems
Counters
IR Data transmission
Encoder

Products

All

0603

0805

1206

Filter article data

show article in 3 product lines

article in 3 product lines

	Order Code	Datasheet	Simulation	Downloads	Status	λ_{Peak typ.}(nm)	λ_min.(nm)	λ_max.(nm)	I_{CE.P min.}(mA)	I_{CE.P typ.}(mA)	I_{CEO.Dark max.}(nA)	Chip Technology	2θ_{50% typ.}(°)	Samples
	1540601NBA500	940 nm, 400 nm, 1100 nm	Simulation	Downloads5 files EDA models: Components ZIP ALT Altium_WL-STCW (rev22b).IntLib \| 132 KB CDS Cadence_WL-STCW (rev20a).zip \| 546.1 KB EAG Eagle_WL-STCW (rev22a).lbr \| 21.4 KB CAD files ZIP IGS Download_IGS_1540601NBA500 (rev1).igs \| 574.3 KB STP Download_STP_1540601NBA500 (rev1).stp \| 175.8 KB Download all 5 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Wavelength of Peak Sensitivity [typ.]940 nm	Range of Spectral Bandwidth [min.]400 nm	Range of Spectral Bandwidth [max.]1100 nm	Collector Current [min.]0.9 mA	Collector Current [typ.]1.6 mA	Collector-Emitter Dark Current [max.]100 nA	Chip TechnologySi	Viewing Angle Phi 0° [typ.]150 °
	1541201NBA300	940 nm, 400 nm, 1100 nm	Simulation	Downloads5 files EDA models: Components ZIP ALT Altium_WL-STCW (rev22b).IntLib \| 132 KB CDS Cadence_WL-STCW (rev20a).zip \| 546.1 KB EAG Eagle_WL-STCW (rev22a).lbr \| 21.4 KB CAD files ZIP IGS Downloads_IGS_1541201NBA300 (rev1).igs \| 942.9 KB STP Download_STEP_1541201NBA300 (rev1).stp \| 238.8 KB Download all 5 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Wavelength of Peak Sensitivity [typ.]940 nm	Range of Spectral Bandwidth [min.]400 nm	Range of Spectral Bandwidth [max.]1100 nm	Collector Current [min.]0.1 mA	Collector Current [typ.]1 mA	Collector-Emitter Dark Current [max.]100 nA	Chip TechnologySi	Viewing Angle Phi 0° [typ.]130 °
	1540801NBA300	940 nm, 400 nm, 1100 nm	Simulation	Downloads5 files EDA models: Components ZIP ALT Altium_WL-STCW (rev22b).IntLib \| 132 KB CDS Cadence_WL-STCW (rev20a).zip \| 546.1 KB EAG Eagle_WL-STCW (rev22a).lbr \| 21.4 KB CAD files ZIP IGS Download_IGS_1540801NBA300 (rev1).igs \| 876.8 KB STP Download_STEP_1540801NBA300 (rev1).stp \| 249.2 KB Download all 5 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Wavelength of Peak Sensitivity [typ.]940 nm	Range of Spectral Bandwidth [min.]400 nm	Range of Spectral Bandwidth [max.]1100 nm	Collector Current [min.]0.1 mA	Collector Current [typ.]1 mA	Collector-Emitter Dark Current [max.]100 nA	Chip TechnologySi	Viewing Angle Phi 0° [typ.]130 °

Suitable for

WL-SICW SMT Chip LED Infrared Waterclear
