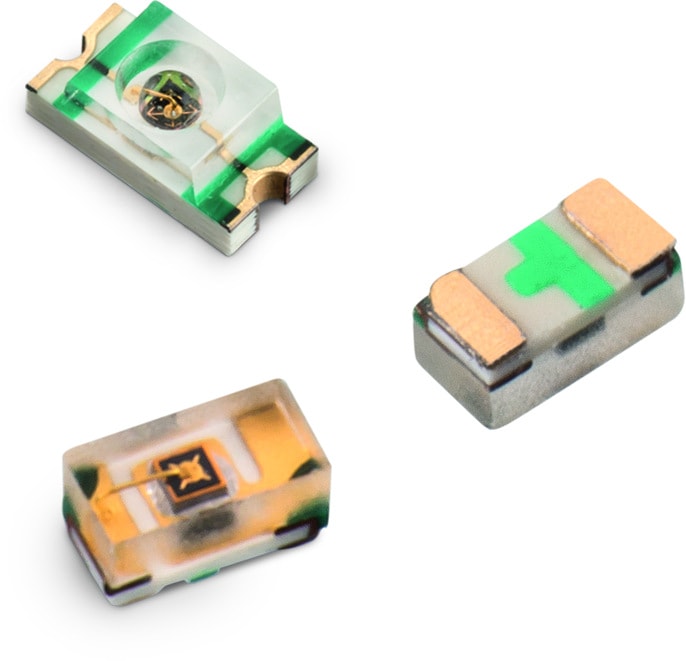

OverviewAll product units Product unitOptoelectronic Components Product groupInfrared Product familyInfrared LEDs Product seriesWL-SICW SMT Chip LED Infrared Waterclear

	Size	Dimensions	L (mm)	W (mm)	H (mm)	Mount

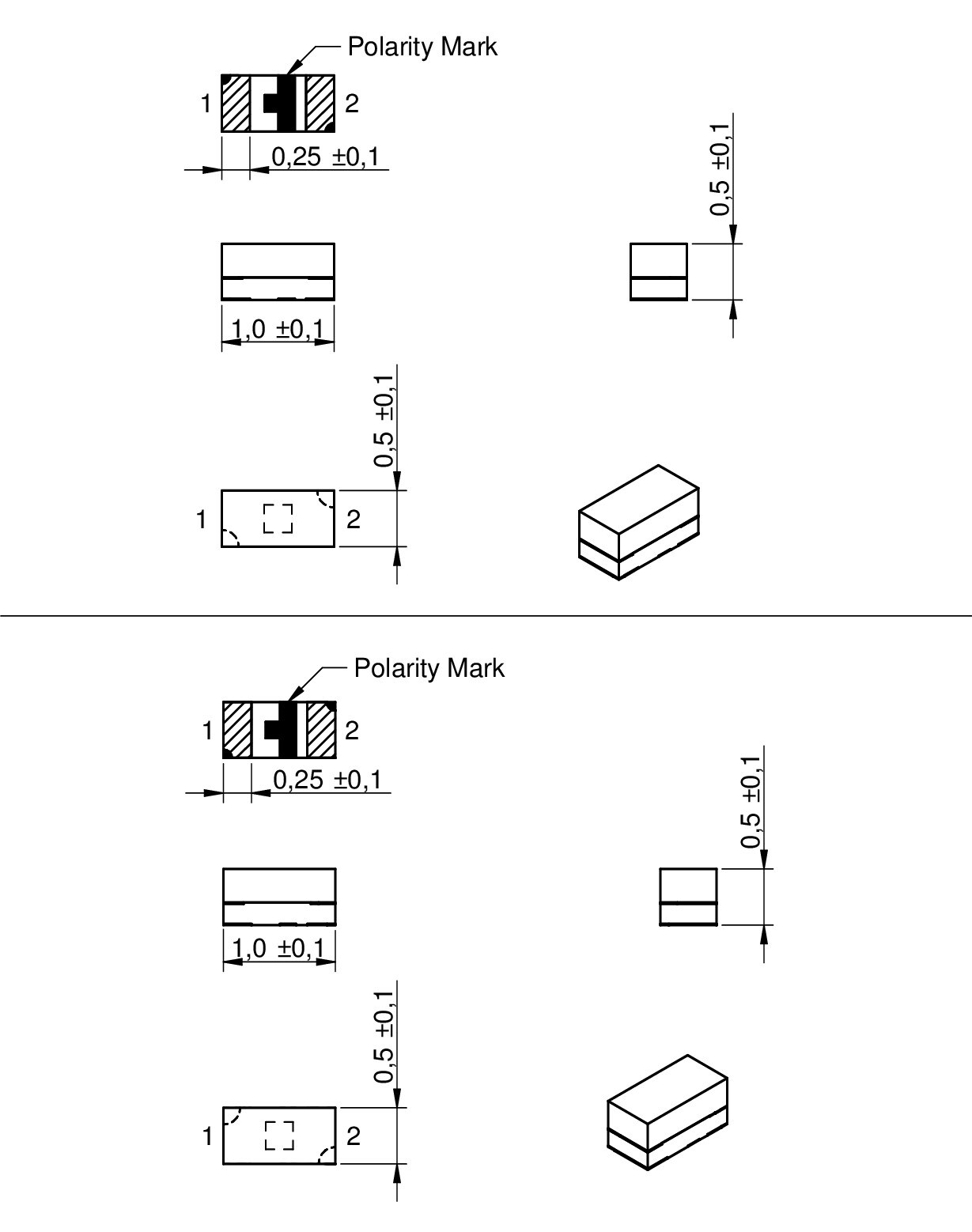

	0402		1	0.5	0.5	SMT

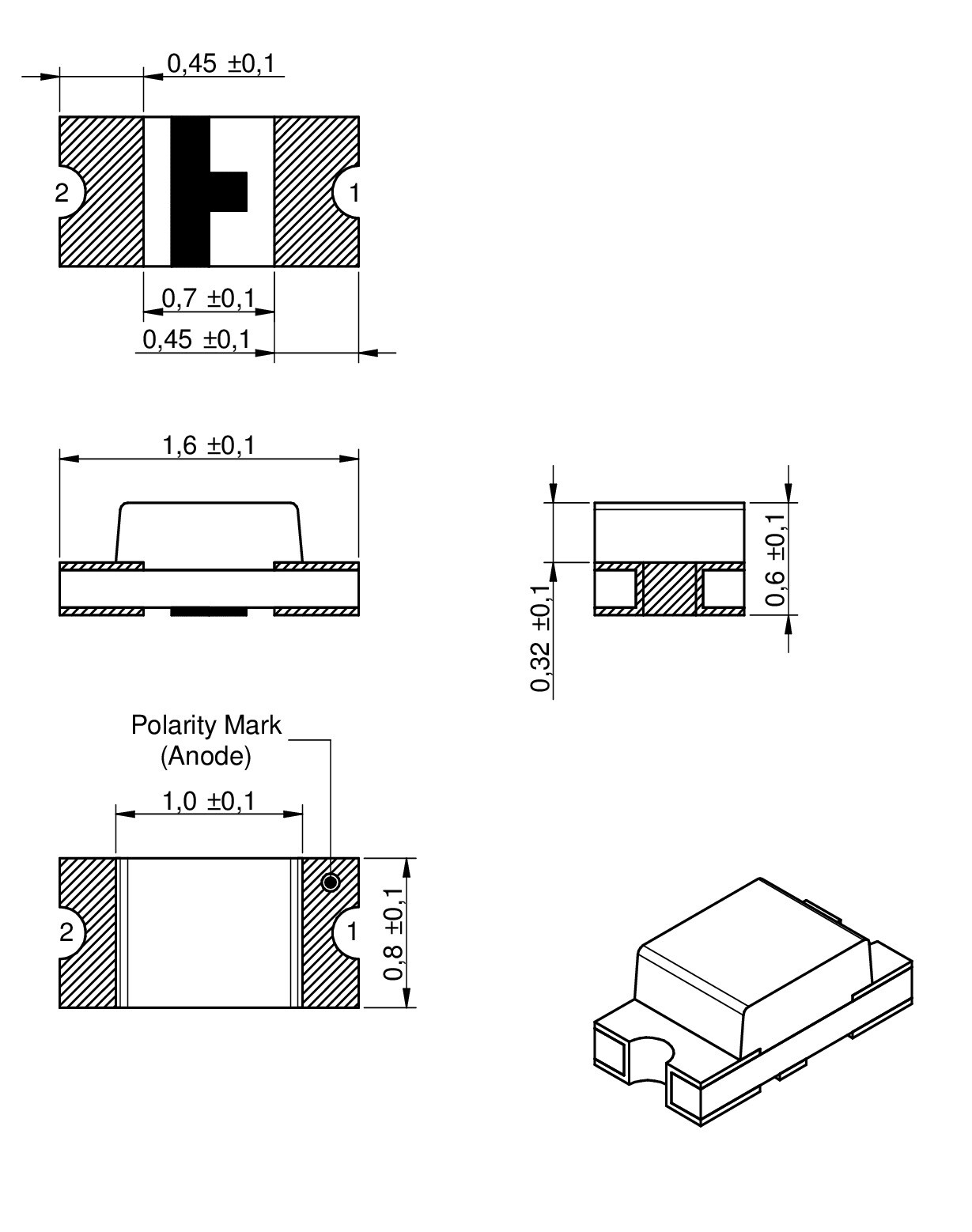

	0603		1.6	0.8	-	SMT
NEW	0603 Lens		1.6	0.8	1	SMT
	0805		2	1.3	0.8	SMT

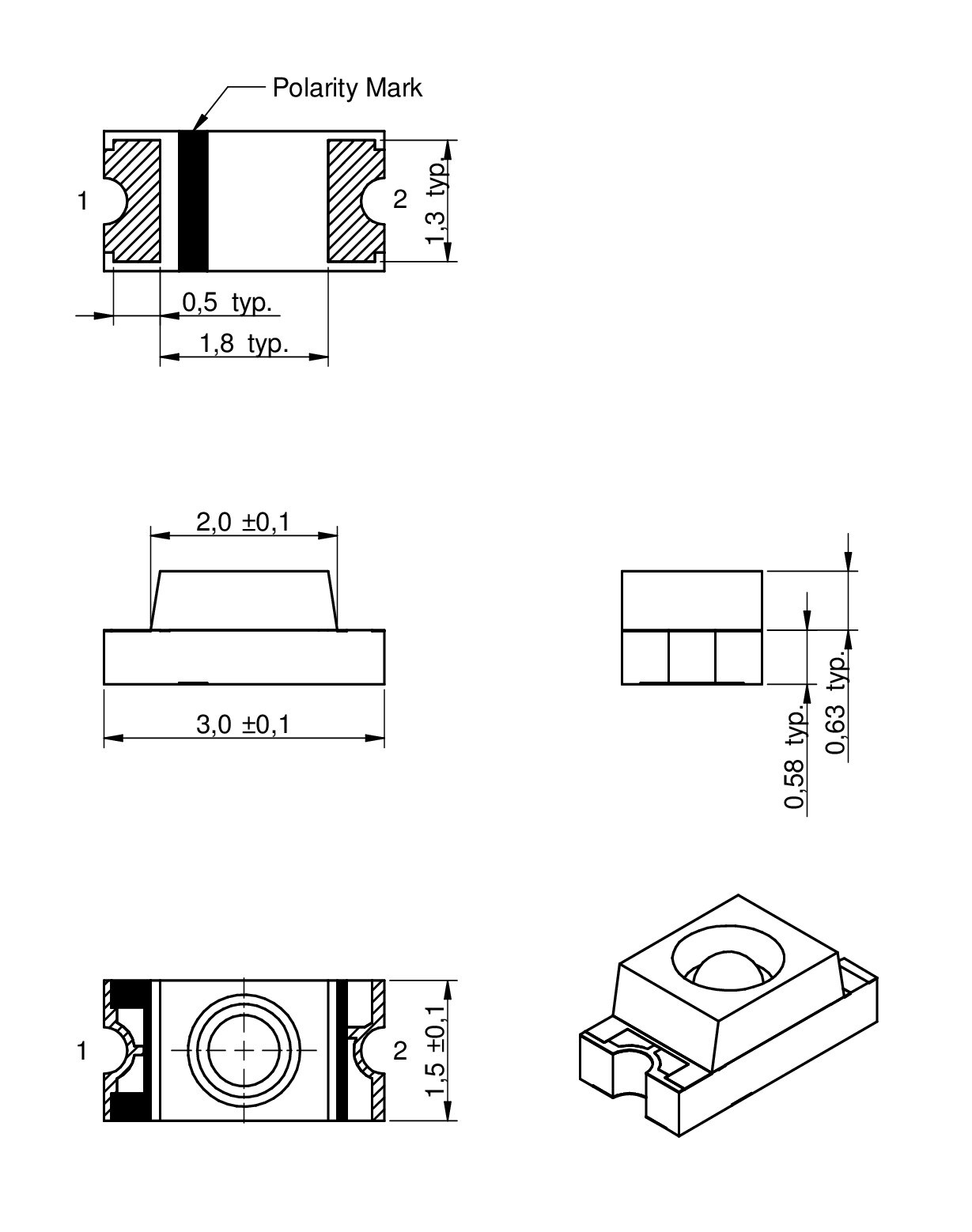

	1206		3	1.5	1.21	SMT

LTSpice files

LT
LTSpice_WL-SICW (rev22a).zip
|
2.1 KB

Characteristics

Low energy consumption
High reliability
Low current requirement
Fast switching
IR Emitter
standard size 0603
Compact package outline

Applications

Infrared sensor
Distance measure
Remote control
Smoke detector

Products

All

0402

0603

0603 Lens

0805

1206

		Order Code	Datasheet	Simulation	Downloads	Chip Technology	λ_{Peak typ.} (nm)	I_{e typ.} (mW/sr)	V_{F typ.} (V)	2θ_{50% typ.} (°)	Emitting Color	Design Kit	Samples
		15406085BA300	SPEC		25 files EDA models: Components ZIP ALT Altium_WL-SICW (rev22c).IntLib \| 215.5 KB CDS Cadence_WL-SICW (rev20a).zip \| 914.2 KB EAG Eagle_WL-SICW (rev20b).lbr \| 40.7 KB CAD files ZIP IGS Download_IGS_WL-SICW-15406085BA300 (rev1).igs \| 352.7 KB STP Download_STP_WL-SICW-15406085BA300 (rev1).stp \| 78.6 KB Electric models ZIP PSP PSpice_WL-SICW (rev22a).zip \| 4.7 KB RAY files RIR Photopia_rir_15406085BA300_5M (rev1p0).zip \| 120.5 MB SRC Lucaray-maker_src_15406085BA300_5M (rev1p0).zip \| 120.5 MB ASA ASAP-and-APEX_dis_15406085BA300_5M (rev1p0).zip \| 120.5 MB COD CodeV_ray_15406085BA300_5M (rev1p0).zip \| 120.5 MB FRE Fred_dat_15406085BA300_5M (rev1p0).zip \| 120.5 MB FRE Fred_txt_15406085BA300_5M (rev1p0).zip \| 188.5 MB LIG LightTools_ray_15406085BA300_5M (rev1p0).zip \| 120.5 MB LIG LightTools_txt_15406085BA300_5M (rev1p0).zip \| 188.5 MB LUC LucidShape_ray_15406085BA300_5M (rev1p0).zip \| 120.5 MB LUC LucidShape_txt_15406085BA300_5M (rev1p0).zip \| 188.5 MB OPT OpTaliX_dis_15406085BA300_5M (rev1p0).zip \| 120.5 MB OPT OpTaliX_txt_15406085BA300_5M (rev1p0).zip \| 188.5 MB OPT OptiCAD_dat_15406085BA300_5M (rev1p0).zip \| 120.5 MB OPT OptiCAD_txt_15406085BA300_5M (rev1p0).zip \| 188.5 MB SIM Simulux_ray_15406085BA300_5M (rev1p0).zip \| 120.5 MB SPE Speos_ray_15406085BA300_5M (rev1p0).zip \| 125.3 MB TRA TracePro_txt_15406085BA300_5M (rev1p0).zip \| 188.5 MB ZEM Zemax_dat_15406085BA300_5M (rev1p0).zip \| 188.5 MB ZEM ZemaxBin_dat_15406085BA300_5M (rev1p0).zip \| 120.5 MB	AlGaAs	850	2	1.4	130	Infrared	154150
		15406094BA500	SPEC		25 files EDA models: Components ZIP ALT Altium_WL-SICW (rev22c).IntLib \| 215.5 KB CDS Cadence_WL-SICW (rev20a).zip \| 914.2 KB EAG Eagle_WL-SICW (rev20b).lbr \| 40.7 KB CAD files ZIP IGS Download_IGS_WL-SICW-15406094BA500 (rev1).igs \| 352.7 KB STP Download_STP_WL-SICW-15406094BA500 (rev1).stp \| 78.6 KB Electric models ZIP PSP PSpice_WL-SICW (rev22a).zip \| 4.7 KB RAY files RIR Photopia_rir_15406094BA500_5M (rev1p0).zip \| 120.6 MB SRC Lucaray-maker_src_15406094BA500_5M (rev1p0).zip \| 120.6 MB ASA ASAP-and-APEX_dis_15406094BA500_5M (rev1p0).zip \| 120.6 MB COD CodeV_ray_15406094BA500_5M (rev1p0).zip \| 120.6 MB FRE Fred_dat_15406094BA500_5M (rev1p0).zip \| 120.6 MB FRE Fred_txt_15406094BA500_5M (rev1p0).zip \| 189.2 MB LIG LightTools_ray_15406094BA500_5M (rev1p0).zip \| 120.6 MB LIG LightTools_txt_15406094BA500_5M (rev1p0).zip \| 189.2 MB LUC LucidShape_ray_15406094BA500_5M (rev1p0).zip \| 120.6 MB LUC LucidShape_txt_15406094BA500_5M (rev1p0).zip \| 189.2 MB OPT optalix_DIS_15406094BA500_5M (rev1p0).zip \| 120.6 MB OPT OpTaliX_txt_15406094BA500_5M (rev1p0).zip \| 189.2 MB OPT OptiCAD_dat_15406094BA500_5M (rev1p0).zip \| 120.6 MB OPT OptiCAD_txt_15406094BA500_5M (rev1p0).zip \| 189.2 MB SIM Simulux_ray_15406094BA500_5M (rev1p0).zip \| 120.6 MB SPE Speos_ray_15406094BA500_5M (rev1p0).zip \| 125.4 MB TRA TracePro_txt_15406094BA500_5M (rev1p0).zip \| 189.2 MB ZEM Zemax_dat_15406094BA500_5M (rev1p0).zip \| 189.2 MB ZEM ZemaxBin_dat_15406094BA500_5M (rev1p0).zip \| 120.6 MB	AlGaAs	940	0.8	1.2	150	Infrared	154150
		15412094A9000	SPEC		25 files EDA models: Components ZIP ALT Altium_WL-SICW (rev22c).IntLib \| 215.5 KB CDS Cadence_WL-SICW (rev20a).zip \| 914.2 KB EAG Eagle_WL-SICW (rev20b).lbr \| 40.7 KB CAD files ZIP IGS Download_IGS_WL-SICW_1206 (rev1).igs \| 1.1 MB STP Download_STP_WL-SICW_1206 (rev1).stp \| 352.3 KB Electric models ZIP PSP PSpice_WL-SICW (rev22a).zip \| 4.7 KB RAY files RIR Photopia_rir_15412094A9000_5M (rev1p0).zip \| 120.5 MB SRC Lucaray-maker_src_15412094A9000_5M (rev1p0).zip \| 120.4 MB ASA ASAP-and-APEX_dis_15412094A9000_5M (rev1p0).zip \| 120.5 MB COD CodeV_ray_15412094A9000_5M (rev1p0).zip \| 120.4 MB FRE Fred_dat_15412094A9000_5M (rev1p0).zip \| 120.4 MB FRE Fred_txt_15412094A9000_5M (rev1p0).zip \| 188.1 MB LIG LightTools_ray_15412094A9000_5M (rev1p0).zip \| 120.4 MB LIG LightTools_txt_15412094A9000_5M (rev1p0).zip \| 188.1 MB LUC LucidShape_ray_15412094A9000_5M (rev1p0).zip \| 120.4 MB LUC LucidShape_txt_15412094A9000_5M (rev1p0).zip \| 188.1 MB OPT optalix_DIS_15412094A9000_5M (rev1p0).zip \| 120.4 MB OPT OpTaliX_txt_15412094A9000_5M (rev1p0).zip \| 188.1 MB OPT OptiCAD_dat_15412094A9000_5M (rev1p0).zip \| 120.4 MB OPT OptiCAD_txt_15412094A9000_5M (rev1p0).zip \| 188.1 MB SIM Simulux_ray_15412094A9000_5M (rev1p0).zip \| 120.4 MB SPE Speos_ray_15412094A9000_5M (rev1p0).zip \| 124.4 MB TRA TracePro_txt_15412094A9000_5M (rev1p0).zip \| 188.1 MB ZEM Zemax_dat_15412094A9000_5M (rev1p0).zip \| 188.1 MB ZEM ZemaxBin_dat_15412094A9000_5M (rev1p0).zip \| 120.4 MB	AlGaAs	940	5.5	1.2	90	Infrared	–
		15412085A9000	SPEC		25 files EDA models: Components ZIP ALT Altium_WL-SICW (rev22c).IntLib \| 215.5 KB CDS Cadence_WL-SICW (rev20a).zip \| 914.2 KB EAG Eagle_WL-SICW (rev20b).lbr \| 40.7 KB CAD files ZIP IGS Download_IGS_WL-SICW_1206 (rev1).igs \| 1.1 MB STP Download_STP_WL-SICW_1206 (rev1).stp \| 352.3 KB Electric models ZIP PSP PSpice_WL-SICW (rev22a).zip \| 4.7 KB RAY files RIR Photopia_rir_15412085A9000_5M (rev1p0).zip \| 119.2 MB SRC Lucaray-maker_src_15412085A9000_5M (rev1p0).zip \| 119.2 MB ASA ASAP-and-APEX_dis_15412085A9000_5M (rev1p0).zip \| 119.2 MB COD CodeV_ray_15412085A9000_5M (rev1p0).zip \| 119.2 MB FRE Fred_dat_15412085A9000_5M (rev1p0).zip \| 119.2 MB FRE Fred_txt_15412085A9000_5M (rev1p0).zip \| 187.3 MB LIG LightTools_ray_15412085A9000_5M (rev1p0).zip \| 119.2 MB LIG LightTools_txt_15412085A9000_5M (rev1p0).zip \| 187.4 MB LUC LucidShape_ray_15412085A9000_5M (rev1p0).zip \| 119.2 MB LUC LucidShape_txt_15412085A9000_5M (rev1p0).zip \| 187.3 MB OPT OpTaliX_dis_15412085A9000_5M (rev1p0).zip \| 119.2 MB OPT OpTaliX_txt_15412085A9000_5M (rev1p0).zip \| 187.3 MB OPT OptiCAD_dat_15412085A9000_5M (rev1p0).zip \| 119.2 MB OPT OptiCAD_txt_15412085A9000_5M (rev1p0).zip \| 187.3 MB SIM Simulux_ray_15412085A9000_5M (rev1p0).zip \| 119.2 MB SPE Speos_ray_15412085A9000_5M (rev1p0).zip \| 122.4 MB TRA TracePro_txt_15412085A9000_5M (rev1p0).zip \| 187.4 MB ZEM Zemax_dat_15412085A9000_5M (rev1p0).zip \| 187.3 MB ZEM ZemaxBin_dat_15412085A9000_5M (rev1p0).zip \| 119.2 MB	AlGaAs	850	5	1.4	90	Infrared	–
		15404085BA420	SPEC		25 files EDA models: Components ZIP ALT Altium_WL-SICW (rev22c).IntLib \| 215.5 KB CDS Cadence_WL-SICW (rev20a).zip \| 914.2 KB EAG Eagle_WL-SICW (rev20b).lbr \| 40.7 KB CAD files ZIP IGS Download_IGS_WL-SICW_0402 (rev1).igs \| 721.5 KB STP Download_STP_WL-SICW_0402 (rev1).stp \| 170.2 KB Electric models ZIP PSP PSpice_WL-SICW (rev22a).zip \| 4.7 KB RAY files RIR Photopia_rir_15404085BA420_5M (rev1p0).zip \| 120.6 MB SRC Lucaray-maker_src_15404085BA420_5M (rev1p0).zip \| 120.6 MB ASA ASAP-and-APEX_dis_15404085BA420_5M (rev1p0).zip \| 120.6 MB COD CodeV_ray_15404085BA420_5M (rev1p0).zip \| 120.6 MB FRE Fred_dat_15404085BA420_5M (rev1p0).zip \| 120.6 MB FRE Fred_txt_15404085BA420_5M (rev1p0).zip \| 189.2 MB LIG LightTools_ray_15404085BA420_5M (rev1p0).zip \| 120.6 MB LIG LightTools_txt_15404085BA420_5M (rev1p0).zip \| 189.1 MB LUC LucidShape_ray_15404085BA420_5M (rev1p0).zip \| 120.6 MB LUC LucidShape_txt_15404085BA420_5M (rev1p0).zip \| 189.2 MB OPT OpTaliX_dis_15404085BA420_5M (rev1p0).zip \| 120.6 MB OPT OpTaliX_txt_15404085BA420_5M (rev1p0).zip \| 189.2 MB OPT OptiCAD_dat_15404085BA420_5M (rev1p0).zip \| 120.6 MB OPT OptiCAD_txt_15404085BA420_5M (rev1p0).zip \| 189.2 MB SIM Simulux_ray_15404085BA420_5M (rev1p0).zip \| 120.6 MB SPE Speos_ray_15404085BA420_5M (rev1p0).zip \| 125.5 MB TRA TracePro_txt_15404085BA420_5M (rev1p0).zip \| 189.1 MB ZEM Zemax_dat_15404085BA420_5M (rev1p0).zip \| 189.2 MB ZEM ZemaxBin_dat_15404085BA420_5M (rev1p0).zip \| 120.6 MB	AlGaAs	850	6	1.6	140	Infrared	–
		15404094BA420	SPEC		6 files EDA models: Components ZIP ALT Altium_WL-SICW (rev22c).IntLib \| 215.5 KB CDS Cadence_WL-SICW (rev20a).zip \| 914.2 KB EAG Eagle_WL-SICW (rev20b).lbr \| 40.7 KB CAD files ZIP IGS Download_IGS_WL-SICW_0402 (rev1).igs \| 721.5 KB STP Download_STP_WL-SICW_0402 (rev1).stp \| 170.2 KB Electric models ZIP PSP PSpice_WL-SICW (rev22a).zip \| 4.7 KB Download all 6 files as zip archive ZIP	AlGaAs	940	5	1.4	140	Infrared	–
		15406085BA400A	SPEC		25 files EDA models: Components ZIP ALT Altium_WL-SICW (rev22c).IntLib \| 215.5 KB CDS Cadence_WL-SICW (rev20a).zip \| 914.2 KB EAG Eagle_WL-SICW (rev20b).lbr \| 40.7 KB CAD files ZIP IGS Download_IGS_154060xxBA400A (rev1).igs \| 566.2 KB STP Downloads_STEP_154060xxBA400A (rev1).stp \| 154 KB Electric models ZIP PSP PSpice_WL-SICW (rev22a).zip \| 4.7 KB RAY files RIR Photopia_rir_15406085BA400A_5M (rev1p0).zip \| 120.5 MB SRC Lucaray-maker_src_15406085BA400A_5M (rev1p0).zip \| 120.5 MB ASA ASAP-and-APEX_dis_15406085BA400A_5M (rev1p0).zip \| 120.5 MB COD CodeV_ray_15406085BA400A_5M (rev1p0).zip \| 120.5 MB FRE Fred_dat_15406085BA400A_5M (rev1p0).zip \| 120.5 MB FRE Fred_txt_15406085BA400A_5M (rev1p0).zip \| 188.3 MB LIG LightTools_ray_15406085BA400A_5M (rev1p0).zip \| 120.5 MB LIG LightTools_txt_15406085BA400A_5M (rev1p0).zip \| 188.2 MB LUC LucidShape_ray_15406085BA400A_5M (rev1p0).zip \| 120.5 MB LUC LucidShape_txt_15406085BA400A_5M (rev1p0).zip \| 188.2 MB OPT optalix_DIS_15406085BA400A_5M (rev1p0).zip \| 120.5 MB OPT OpTaliX_txt_15406085BA400A_5M (rev1p0).zip \| 188.2 MB OPT OptiCAD_dat_15406085BA400A_5M (rev1p0).zip \| 120.5 MB OPT OptiCAD_txt_15406085BA400A_5M (rev1p0).zip \| 188.2 MB SIM Simulux_ray_15406085BA400A_5M (rev1p0).zip \| 120.5 MB SPE Speos_ray_15406085BA400A_5M (rev1p0).zip \| 125.2 MB TRA TracePro_txt_15406085BA400A_5M (rev1p0).zip \| 188.2 MB ZEM Zemax_dat_15406085BA400A_5M (rev1p0).zip \| 188.2 MB ZEM ZemaxBin_dat_15406085BA400A_5M (rev1p0).zip \| 120.5 MB	AlGaAs	850	1.2	1.4	140	Infrared	–
		15406094BA400A	SPEC		6 files EDA models: Components ZIP ALT Altium_WL-SICW (rev22c).IntLib \| 215.5 KB CDS Cadence_WL-SICW (rev20a).zip \| 914.2 KB EAG Eagle_WL-SICW (rev20b).lbr \| 40.7 KB CAD files ZIP IGS Download_IGS_154060xxBA400A (rev1).igs \| 566.2 KB STP Downloads_STEP_154060xxBA400A (rev1).stp \| 154 KB Electric models ZIP PSP PSpice_WL-SICW (rev22a).zip \| 4.7 KB Download all 6 files as zip archive ZIP	AlGaAs	940	1	1.2	140	Infrared	–
		15408085BA400	SPEC		25 files EDA models: Components ZIP ALT Altium_WL-SICW (rev22c).IntLib \| 215.5 KB CDS Cadence_WL-SICW (rev20a).zip \| 914.2 KB EAG Eagle_WL-SICW (rev20b).lbr \| 40.7 KB CAD files ZIP IGS Download_IGS_15408085BA400 (rev1).igs \| 848.4 KB STP Download_STEP_15408085BA400 (rev1).stp \| 201.1 KB Electric models ZIP PSP PSpice_WL-SICW (rev22a).zip \| 4.7 KB RAY files RIR Photopia_rir_15408085BA400_5M (rev1p0).zip \| 120.6 MB SRC Lucaray-maker_src_15408085BA400_5M (rev1p0).zip \| 120.6 MB ASA ASAP-and-APEX_dis_15408085BA400_5M (rev1p0).zip \| 120.6 MB COD CodeV_ray_15408085BA400_5M (rev1p0).zip \| 120.6 MB FRE Fred_dat_15408085BA400_5M (rev1p0).zip \| 120.6 MB FRE Fred_txt_15408085BA400_5M (rev1p0).zip \| 188.5 MB LIG LightTools_ray_15408085BA400_5M (rev1p0).zip \| 120.6 MB LIG LightTools_txt_15408085BA400_5M (rev1p0).zip \| 188.5 MB LUC LucidShape_ray_15408085BA400_5M (rev1p0).zip \| 120.6 MB LUC LucidShape_txt_15408085BA400_5M (rev1p0).zip \| 188.5 MB OPT optalix_DIS_15408085BA400_5M (rev1p0).zip \| 120.6 MB OPT OpTaliX_txt_15408085BA400_5M (rev1p0).zip \| 188.5 MB OPT OptiCAD_dat_15408085BA400_5M (rev1p0).zip \| 120.6 MB OPT OptiCAD_txt_15408085BA400_5M (rev1p0).zip \| 188.5 MB SIM Simulux_ray_15408085BA400_5M (rev1p0).zip \| 120.6 MB SPE Speos_ray_15408085BA400_5M (rev1p0).zip \| 125.4 MB TRA TracePro_txt_15408085BA400_5M (rev1p0).zip \| 188.5 MB ZEM Zemax_dat_15408085BA400_5M (rev1p0).zip \| 188.5 MB ZEM ZemaxBin_dat_15408085BA400_5M (rev1p0).zip \| 120.6 MB	AlGaAs	850	1.5	1.4	140	Infrared	–
		15408094BA400	SPEC		6 files EDA models: Components ZIP ALT Altium_WL-SICW (rev22c).IntLib \| 215.5 KB CDS Cadence_WL-SICW (rev20a).zip \| 914.2 KB EAG Eagle_WL-SICW (rev20b).lbr \| 40.7 KB CAD files ZIP IGS Download_IGS_15408094BA400 (rev1).igs \| 848.4 KB STP Downloads_STEP_15408094BA400 (rev1).stp \| 201.1 KB Electric models ZIP PSP PSpice_WL-SICW (rev22a).zip \| 4.7 KB Download all 6 files as zip archive ZIP	AlGaAs	940	1	1.2	140	Infrared	–
		15412085BA400	SPEC		6 files EDA models: Components ZIP ALT Altium_WL-SICW (rev22c).IntLib \| 215.5 KB CDS Cadence_WL-SICW (rev20a).zip \| 914.2 KB EAG Eagle_WL-SICW (rev20b).lbr \| 40.7 KB CAD files ZIP IGS Download_IGS_15412085BA400 (rev1).igs \| 761.3 KB STP Download_STEP_1541085BA400 (rev1).stp \| 176 KB Electric models ZIP PSP PSpice_WL-SICW (rev22a).zip \| 4.7 KB Download all 6 files as zip archive ZIP	AlGaAs	850	2.5	1.4	140	Infrared	–
		15412094BA400	SPEC		25 files EDA models: Components ZIP ALT Altium_WL-SICW (rev22c).IntLib \| 215.5 KB CDS Cadence_WL-SICW (rev20a).zip \| 914.2 KB EAG Eagle_WL-SICW (rev20b).lbr \| 40.7 KB CAD files ZIP IGS Download_IGS_15412094BA400 (rev1).igs \| 761.3 KB STP Download_STEP_15412094BA400 (rev1).stp \| 176 KB Electric models ZIP PSP PSpice_WL-SICW (rev22a).zip \| 4.7 KB RAY files RIR Photopia_rir_15412094BA400_5M (rev1p0).zip \| 120.4 MB SRC Lucaray-maker_src_15412094BA400_5M (rev1p0).zip \| 120.4 MB ASA ASAP-and-APEX_dis_15412094BA400_5M (rev1p0).zip \| 120.4 MB COD CodeV_ray_15412094BA400_5M (rev1p0).zip \| 120.4 MB FRE Fred_dat_15412094BA400_5M (rev1p0).zip \| 120.4 MB FRE Fred_txt_15412094BA400_5M (rev1p0).zip \| 189.3 MB LIG LightTools_ray_15412094BA400_5M (rev1p0).zip \| 120.4 MB LIG LightTools_txt_15412094BA400_5M (rev1p0).zip \| 189.3 MB LUC LucidShape_ray_15412094BA400_5M (rev1p0).zip \| 120.4 MB LUC LucidShape_txt_15412094BA400_5M (rev1p0).zip \| 189.3 MB OPT optalix_DIS_15412094BA400_5M (rev1p0).zip \| 120.4 MB OPT OpTaliX_txt_15412094BA400_5M (rev1p0).zip \| 189.3 MB OPT OptiCAD_dat_15412094BA400_5M (rev1p0).zip \| 120.4 MB OPT OptiCAD_txt_15412094BA400_5M (rev1p0).zip \| 189.3 MB SIM Simulux_ray_15412094BA400_5M (rev1p0).zip \| 120.4 MB SPE Speos_ray_15412094BA400_5M (rev1p0).zip \| 125 MB TRA TracePro_txt_15412094BA400_5M (rev1p0).zip \| 189.2 MB ZEM Zemax_dat_15412094BA400_5M (rev1p0).zip \| 189.3 MB ZEM ZemaxBin_dat_15412094BA400_5M (rev1p0).zip \| 120.4 MB	AlGaAs	940	1	1.2	140	Infrared	–
NEW		15406085B6000	SPEC		3 files CAD files ZIP 3D 3D_WL-SICW_15406085B6000 (rev1).pdf \| 120.3 KB IGS IGS_WL-SICW_15406085B6000 (rev1).igs \| 602 KB STP STP_WL-SICW_15406085B6000 (rev1).stp \| 170.2 KB Download all 3 files as zip archive ZIP	AlGaAs	850	5	1.4	60	Infrared	–
NEW		15406094B6000	SPEC		3 files CAD files ZIP 3D 3D_WL-SICW_15406094B6000 (rev1).pdf \| 120.3 KB IGS IGS_WL-SICW_15406094B6000 (rev1).igs \| 602 KB STP STP_WL-SICW_15406094B6000 (rev1).stp \| 170.2 KB Download all 3 files as zip archive ZIP	AlGaAs	940	2	1.2	60	Infrared	–

		Order Code	Datasheet	Simulation
		15406085BA300	SPEC
		15406094BA500	SPEC
		15412094A9000	SPEC
		15412085A9000	SPEC
		15404085BA420	SPEC
		15404094BA420	SPEC
		15406085BA400A	SPEC
		15406094BA400A	SPEC
		15408085BA400	SPEC
		15408094BA400	SPEC
		15412085BA400	SPEC
		15412094BA400	SPEC
NEW		15406085B6000	SPEC
NEW		15406094B6000	SPEC

Samples

		Order Code	Datasheet	Simulation	Downloads	Chip Technology	λ_{Peak typ.} (nm)	I_{e typ.} (mW/sr)	V_{F typ.} (V)	2θ_{50% typ.} (°)	Emitting Color	Design Kit	Samples

Suitable for

WL-SDCB SMT Photodiode Chip Black

WL-STCW SMT Phototransistor Chip Waterclear

WL-STCB SMT Phototransistor Chip Black

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Infrared LEDs & Photodetectors
