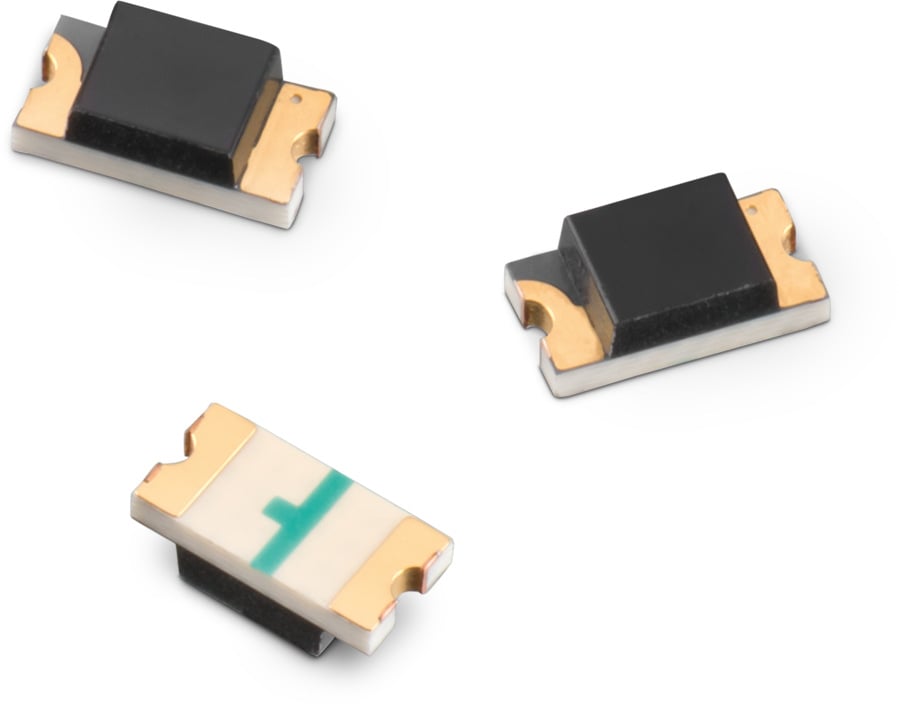

WL-SDCB SMT Photodiode Chip Black

Size	Dimensions	L (mm)	W (mm)	H (mm)	Mount
0805		2	1.3	0.8	-
1206		3.2	1.6	1.1	SMT

Characteristics

Standard package size
Wide viewing angle
Fast response time
High photo sensitivity

Applications

IR Data transmission
Touch Screen
Copier
Game machine
Security systems

Application Notes

ANO014 Signal transmission using IR diodes and photodetectors
PDF

Products

All

0805

1206

Filter article data

show articles in 2 product lines

articles in 2 product lines

Log in now to view availability and request availability forecasts. LOGIN

	Order Code	Datasheet	Simulation	Downloads	Status	λ_{Peak typ.}(nm)	λ_min.(nm)	λ_max.(nm)	I_{P typ.}(µA)	I_{D max.}(nA)	2θ_{50% typ.}(°)	SamplesAvailability & Sample

Log in now to view availability and request availability forecasts. LOGIN
	1541201EEA400	SPEC940 nm, 700 nm, 1100 nm	Simulation	Availability –	Downloads6 files ALT Altium_WL-SDCB (rev22b).IntLib \| 65.5 KB CDS Cadence_WL-SDCB (rev19a).zip \| 213.4 KB EAG Eagle_WL-SDCB (rev20b).lbr \| 17.9 KB KIC KiCad_WL-SDCB (rev26a).zip \| 57.9 KB IGS Download_IGS_1541201EEA400 (rev1).igs \| 443.3 KB STP Download_STP_1541201EEA400 (rev1).stp \| 104.7 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Wavelength of Peak Sensitivity [typ.]940 nm	Range of Spectral Bandwidth [min.]700 nm	Range of Spectral Bandwidth [max.]1100 nm	Photo Current [typ.]1.8 µA	Dark Current [max.]10 nA	Viewing Angle Phi 0° [typ.]140 °	–Check availability
	1540801EEA300	SPEC940 nm, 700 nm, 1100 nm	Simulation	Availability –	Downloads6 files ALT Altium_WL-SDCB (rev22b).IntLib \| 65.5 KB CDS Cadence_WL-SDCB (rev19a).zip \| 213.4 KB EAG Eagle_WL-SDCB (rev20b).lbr \| 17.9 KB KIC KiCad_WL-SDCB (rev26a).zip \| 57.9 KB IGS Download_IGS_1540801EEA300 (rev1).igs \| 559.4 KB STP Download_STEP_1540801EEA300 (rev1).stp \| 122.9 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Wavelength of Peak Sensitivity [typ.]940 nm	Range of Spectral Bandwidth [min.]700 nm	Range of Spectral Bandwidth [max.]1100 nm	Photo Current [typ.]1 µA	Dark Current [max.]10 nA	Viewing Angle Phi 0° [typ.]130 °	–Check availability

Suitable for

WL-SICW SMT Chip LED Infrared Waterclear
