WE-TVS TVS Diode – Standard Series | Passive Components | Würth Elektronik Product Catalog

OverviewAll product units Product unitPassive Components Product groupEMC Components Product familyESD Protection Product seriesWE-TVS TVS Diode – Standard Series

WE-TVS TVS Diode – High Speed Series. Low clamping voltage. Rail to Rail protection. Very fast data lines.

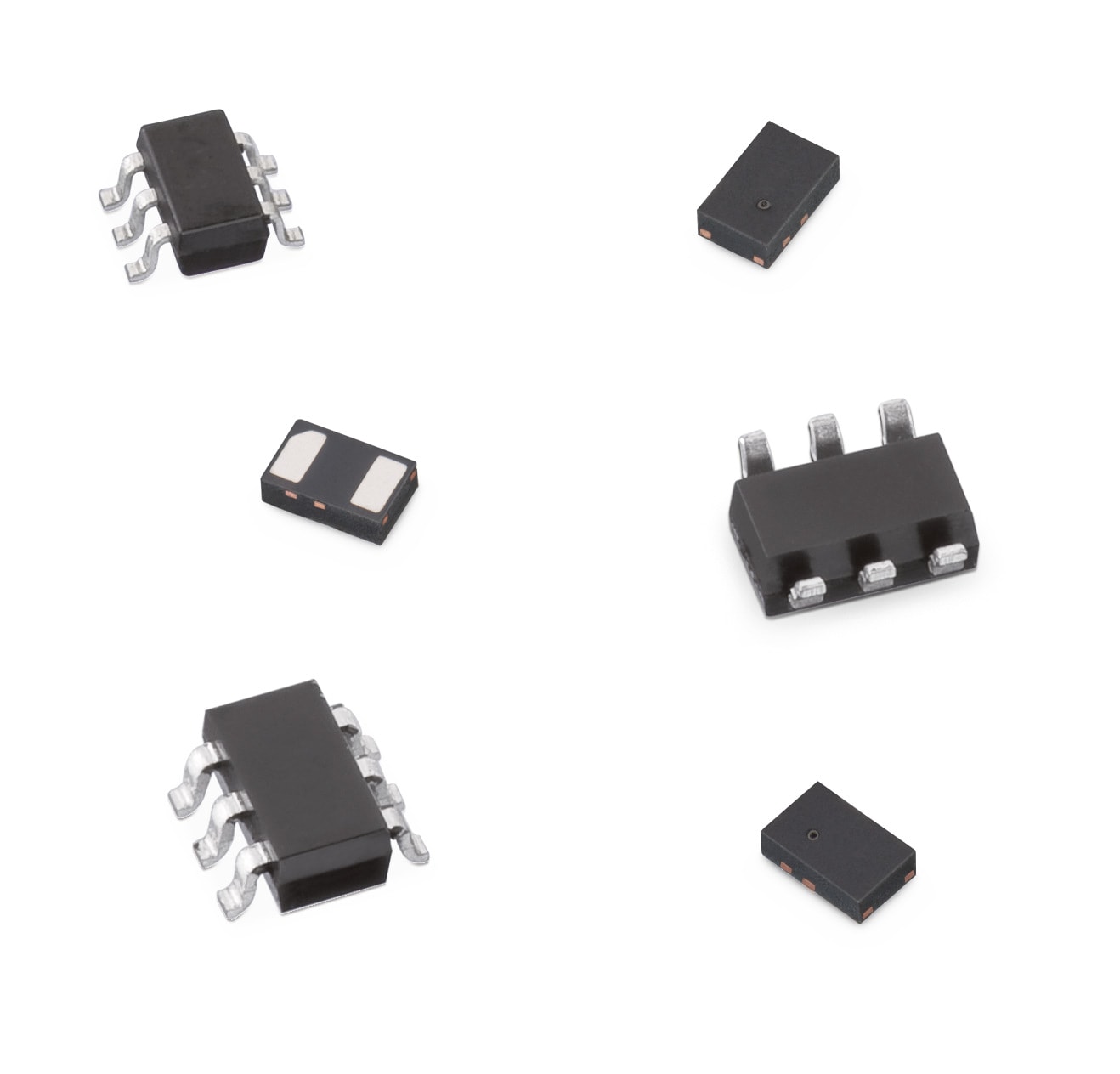

Size	Dimensions	3D	L (mm)	W (mm)	H (mm)	Mount
SOT23-3L			2.9	2.4	1.04	SMT
SOT23-6L			2.9	2.8	1.16	SMT
SC70-5L			2	2.2	1	SMT
SC70-6L			2	2.2	1	SMT
DFN1610-2L			1.6	1	0.5	SMT
DFN2020-2L			2	2	0.5	-

LTSpice files

LT
LTspice_WE-TVS (rev25a).zip
|
37.2 KB

Characteristics

Fast turn-on
Low clamping voltage
High ESD withstand voltage
Uni- or bidirectional protection
Small package
Epoxy flame resistant UL94 V-0

Reference Designs

RD016 Reference Design Gigabit Ethernet Front End
RD022 GB PoE+-Ethernet-USB“ adapter for industrial use with an EMC perspective
RD041 Design of a Single Pair Ethernet System with Power over Data Lines (SPoE)

Applications

DC power supply
USB Power Delivery (PD)
Headsets and accessories
PDAs
Digital cameras
MP3-Player
Touch Panels
Notebooks
ESD, EFT and Surge Protection
ESD protection in accordance with EN 61000-4-2
– 8 kV contact discharge
– 15 kV air discharge

Application Notes

One Pair is all you need.

The WE-LAN AQ is a LAN transformer manufactured by a fully automated production process.

Products

All

SOT23-3L

SOT23-6L

SC70-5L

SC70-6L

DFN1610-2L

DFN2020-2L

Order Code	Datasheet	Simulation	Downloads	Status	Channels	Polarity	V_{Ch max.} (V)	I_{Ch Leak max.} (nA)	V_{BR min.} (V)	C_{Ch typ.} (pF)	I_Peak (A)	V_{Ch Clamp ESD typ.} (V)	V_{ESD Contact} (kV)	Application	Design Kit	Filter Stick	Filter Bag	Samples
824045817	SPEC		7 files EDA models: Components ZIP ALT Altium_WE-TVS (rev24a).IntLib \| 575.5 KB CDS Cadence_WE-TVS (rev22a).zip \| 2.6 MB EAG Eagle_WE-TVS (rev22a).lbr \| 203.9 KB ZUK Cadstar_WE-TVS (rev19a).zip \| 12.3 KB CAD files ZIP IGS Download_IGS_WE-TVS-DFN1610-2L (rev1).igs \| 1.2 MB STP Download_STP_WE-TVS-DFN1610-2L (rev1).stp \| 550 KB Electric models ZIP PSP PSpice_WE-TVS (rev25a).zip \| 27.8 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1	Unidirectional	7	–	7.8	830	60	10	30	Power Delivery USB 3.1	823999	–	–
824045812	SPEC		7 files EDA models: Components ZIP ALT Altium_WE-TVS (rev24a).IntLib \| 575.5 KB CDS Cadence_WE-TVS (rev22a).zip \| 2.6 MB EAG Eagle_WE-TVS (rev22a).lbr \| 203.9 KB ZUK Cadstar_WE-TVS (rev19a).zip \| 12.3 KB CAD files ZIP IGS Download_IGS_WE-TVS-DFN1610-2L (rev1).igs \| 1.2 MB STP Download_STP_WE-TVS-DFN1610-2L (rev1).stp \| 550 KB Electric models ZIP PSP PSpice_WE-TVS (rev25a).zip \| 27.8 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1	Unidirectional	12	–	13.3	440	38	15	30	Power Delivery USB 3.1	–	–	–
824045810	SPEC		7 files EDA models: Components ZIP ALT Altium_WE-TVS (rev24a).IntLib \| 575.5 KB CDS Cadence_WE-TVS (rev22a).zip \| 2.6 MB EAG Eagle_WE-TVS (rev22a).lbr \| 203.9 KB ZUK Cadstar_WE-TVS (rev19a).zip \| 12.3 KB CAD files ZIP IGS Download_IGS_WE-TVS-DFN1610-2L (rev1).igs \| 1.2 MB STP Download_STP_WE-TVS-DFN1610-2L (rev1).stp \| 550 KB Electric models ZIP PSP PSpice_WE-TVS (rev25a).zip \| 27.8 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1	Unidirectional	20	–	22.8	240	24	25.5	30	Power Delivery USB 3.1	823999	82931060 82931100	82931061 82931101
824031815	SPEC		7 files EDA models: Components ZIP ALT Altium_WE-TVS (rev24a).IntLib \| 575.5 KB CDS Cadence_WE-TVS (rev22a).zip \| 2.6 MB EAG Eagle_WE-TVS (rev22a).lbr \| 203.9 KB ZUK Cadstar_WE-TVS (rev19a).zip \| 12.3 KB CAD files ZIP IGS Download_IGS_WE-TVS-DFN1610-2L (rev1).igs \| 1.2 MB STP Download_STP_WE-TVS-DFN1610-2L (rev1).stp \| 550 KB Electric models ZIP PSP PSpice_WE-TVS (rev25a).zip \| 27.8 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1	Unidirectional	5	–	6	250	80	6	30	–	–	–	–
824032813	SPEC		7 files EDA models: Components ZIP ALT Altium_WE-TVS (rev24a).IntLib \| 575.5 KB CDS Cadence_WE-TVS (rev22a).zip \| 2.6 MB EAG Eagle_WE-TVS (rev22a).lbr \| 203.9 KB ZUK Cadstar_WE-TVS (rev19a).zip \| 12.3 KB CAD files ZIP IGS Download_IGS_WE-TVS-DFN1610-2L (rev1).igs \| 1.2 MB STP Download_STP_WE-TVS-DFN1610-2L (rev1).stp \| 550 KB Electric models ZIP PSP PSpice_WE-TVS (rev25a).zip \| 27.8 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1	Bidirectional	3.3	–	4	280	180	4.7	30	–	–	–	–
824032815	SPEC		7 files EDA models: Components ZIP ALT Altium_WE-TVS (rev24a).IntLib \| 575.5 KB CDS Cadence_WE-TVS (rev22a).zip \| 2.6 MB EAG Eagle_WE-TVS (rev22a).lbr \| 203.9 KB ZUK Cadstar_WE-TVS (rev19a).zip \| 12.3 KB CAD files ZIP IGS Download_IGS_WE-TVS-DFN1610-2L (rev1).igs \| 1.2 MB STP Download_STP_WE-TVS-DFN1610-2L (rev1).stp \| 550 KB Electric models ZIP PSP PSpice_WE-TVS (rev25a).zip \| 27.8 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1	Bidirectional	5	–	6	140	100	6	30	–	–	–	–
824043810	SPEC		5 files EDA models: Components ZIP ALT Altium_WE-TVS (rev24a).IntLib \| 575.5 KB CDS Cadence_WE-TVS (rev22a).zip \| 2.6 MB EAG Eagle_WE-TVS (rev22a).lbr \| 203.9 KB ZUK Cadstar_WE-TVS (rev19a).zip \| 12.3 KB Electric models ZIP PSP PSpice_WE-TVS (rev25a).zip \| 27.8 KB Download all 5 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1	Unidirectional	10	–	11.2	950	150	13	30	–	–	–	–
824043817	SPEC		5 files EDA models: Components ZIP ALT Altium_WE-TVS (rev24a).IntLib \| 575.5 KB CDS Cadence_WE-TVS (rev22a).zip \| 2.6 MB EAG Eagle_WE-TVS (rev22a).lbr \| 203.9 KB ZUK Cadstar_WE-TVS (rev19a).zip \| 12.3 KB Electric models ZIP PSP PSpice_WE-TVS (rev25a).zip \| 27.8 KB Download all 5 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1	Unidirectional	7	–	7.8	1650	180	9.5	30	–	–	–	–
824021	SPEC		7 files EDA models: Components ZIP ALT Altium_WE-TVS (rev24a).IntLib \| 575.5 KB CDS Cadence_WE-TVS (rev22a).zip \| 2.6 MB EAG Eagle_WE-TVS (rev22a).lbr \| 203.9 KB ZUK Cadstar_WE-TVS (rev19a).zip \| 12.3 KB CAD files ZIP IGS WE-TVS_Standard_SOT23-3L_STD (rev1).igs \| 308.2 KB STP WE-TVS_Standard_SOT23-3L_STD (rev1).stp \| 106.3 KB Electric models ZIP PSP PSpice_WE-TVS (rev25a).zip \| 27.8 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2	Unidirectional	5	–	6.1	55	15	10	18	–	823999	–	–
824022	SPEC		7 files EDA models: Components ZIP ALT Altium_WE-TVS (rev24a).IntLib \| 575.5 KB CDS Cadence_WE-TVS (rev22a).zip \| 2.6 MB EAG Eagle_WE-TVS (rev22a).lbr \| 203.9 KB ZUK Cadstar_WE-TVS (rev19a).zip \| 12.3 KB CAD files ZIP IGS WE-TVS_Standard_SOT23-3L_STD (rev1).igs \| 308.2 KB STP WE-TVS_Standard_SOT23-3L_STD (rev1).stp \| 106.3 KB Electric models ZIP PSP PSpice_WE-TVS (rev25a).zip \| 27.8 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2	Bidirectional	5	–	6.1	12	8	9	12	–	823999	–	–
824094024	SPEC		4 files EDA models: Components ZIP ALT Altium_WE-TVS (rev24a).IntLib \| 575.5 KB CDS Cadence_WE-TVS (rev22a).zip \| 2.6 MB EAG Eagle_WE-TVS (rev22a).lbr \| 203.9 KB Electric models ZIP PSP PSpice_WE-TVS (rev25a).zip \| 27.8 KB Download all 4 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2	Bidirectional	24	100	26.2	38	6	31	30	–	823999	–	–
82402304	SPEC		7 files EDA models: Components ZIP ALT Altium_WE-TVS (rev24a).IntLib \| 575.5 KB CDS Cadence_WE-TVS (rev22a).zip \| 2.6 MB EAG Eagle_WE-TVS (rev22a).lbr \| 203.9 KB ZUK Cadstar_WE-TVS (rev19a).zip \| 12.3 KB CAD files ZIP IGS WE-TVS_Standard_SOT23-6L_STD (rev1).igs \| 547.4 KB STP WE-TVS_Standard_SOT23-6L_STD (rev1).stp \| 185.7 KB Electric models ZIP PSP PSpice_WE-TVS (rev25a).zip \| 27.8 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4	Unidirectional	5	–	6	13	6	8.5	10	–	823999	–	–
82402374	SPEC		7 files EDA models: Components ZIP ALT Altium_WE-TVS (rev24a).IntLib \| 575.5 KB CDS Cadence_WE-TVS (rev22a).zip \| 2.6 MB EAG Eagle_WE-TVS (rev22a).lbr \| 203.9 KB ZUK Cadstar_WE-TVS (rev19a).zip \| 12.3 KB CAD files ZIP IGS WE-TVS_Standard_SC70-5L_STD (rev1).igs \| 479.2 KB STP WE-TVS_Standard_SC70-5L_STD (rev1).stp \| 166.2 KB Electric models ZIP PSP PSpice_WE-TVS (rev25a).zip \| 27.8 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4	Unidirectional	5	–	6	13	6	8.5	10	–	823999	–	–
82402305	SPEC		7 files EDA models: Components ZIP ALT Altium_WE-TVS (rev24a).IntLib \| 575.5 KB CDS Cadence_WE-TVS (rev22a).zip \| 2.6 MB EAG Eagle_WE-TVS (rev22a).lbr \| 203.9 KB ZUK Cadstar_WE-TVS (rev19a).zip \| 12.3 KB CAD files ZIP IGS WE-TVS_Standard_SOT23-6L_STD (rev1).igs \| 547.4 KB STP WE-TVS_Standard_SOT23-6L_STD (rev1).stp \| 185.7 KB Electric models ZIP PSP PSpice_WE-TVS (rev25a).zip \| 27.8 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	5	Unidirectional	5	–	6	13	6	8	10	–	823999	–	–
82402375	SPEC		7 files EDA models: Components ZIP ALT Altium_WE-TVS (rev24a).IntLib \| 575.5 KB CDS Cadence_WE-TVS (rev22a).zip \| 2.6 MB EAG Eagle_WE-TVS (rev22a).lbr \| 203.9 KB ZUK Cadstar_WE-TVS (rev19a).zip \| 12.3 KB CAD files ZIP IGS WE-TVS_Standard_SC70-6L_STD (rev1).igs \| 559 KB STP WE-TVS_Standard_SC70-6L_STD (rev1).stp \| 194 KB Electric models ZIP PSP PSpice_WE-TVS (rev25a).zip \| 27.8 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	5	Unidirectional	5	–	6	13	6	8	10	–	–	–	–

Order Code	Datasheet	Simulation
824045817	SPEC
824045812	SPEC
824045810	SPEC
824031815	SPEC
824032813	SPEC
824032815	SPEC
824043810	SPEC
824043817	SPEC
824021	SPEC
824022	SPEC
824094024	SPEC
82402304	SPEC
82402374	SPEC
82402305	SPEC
82402375	SPEC

Samples

Order Code	Datasheet	Simulation	Downloads	Status	Channels	Polarity	V_{Ch max.} (V)	I_{Ch Leak max.} (nA)	V_{BR min.} (V)	C_{Ch typ.} (pF)	I_Peak (A)	V_{Ch Clamp ESD typ.} (V)	V_{ESD Contact} (kV)	Application	Design Kit	Filter Stick	Filter Bag	Samples

Suitable for

WE-LAN AQ Transformer

WE-LAN LAN Transformer

WE-STST Super Tiny Signal Transformer

WE-LAN 10G Transformer 10Gbit Base-T

Assortments

Articles from this product series can be found in the following assortments:

Design Kit ESD PROTECTION

Filter Stick USB 3.1 Type C 100W EMC

Filter Bag USB 3.1 Type C 100W EMC

Filter Stick USB 3.1 Type C 60W EMC

Filter Bag USB 3.1 Type C 60W EMC

Comments

The WE-TVS series are high performance designed TVS diodes which include surge rated diodes to protect data lines.
