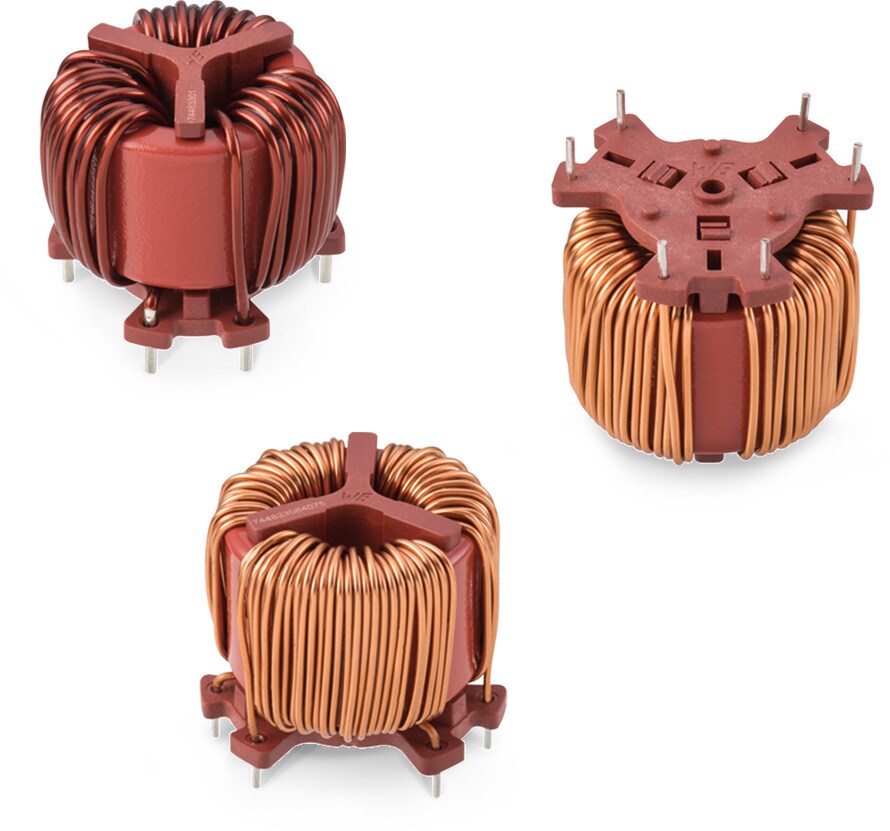

WE-TPB Three-Phase Common Mode Power Line Choke

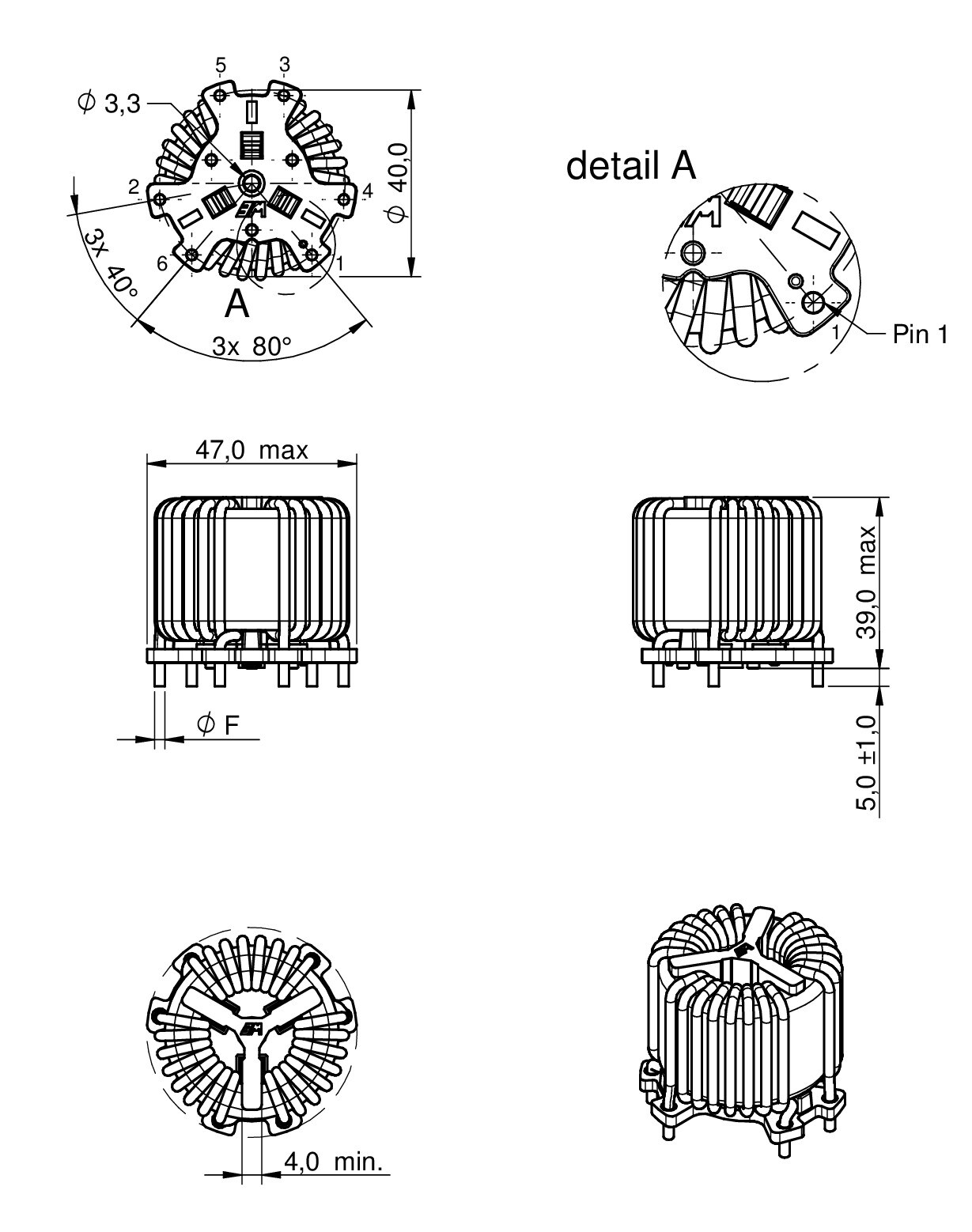

Size	Dimensions	H (mm)	Mount	Ø OD (mm)
3XL		39	THT	47

LTSpice files

LT
LTSpice_WE-TPB (rev22a).zip
|
78 KB

Characteristics

Application up to 500 VAC
High permeability MnZn Ferrite core material
Insulation through winding spacer
Specification according to EN 60938-2Air and creepage distances ≥ 5 mm
Up to 24 A rated current
Suppression frequency range: 1 kHz to 1 MHz
Operating temperature: -40 °C to +125 °C
Flammability corresponding to UL 94 V-0
Climatic category 40/125/21

Applications

Power electronics
Power line input filter
Radio interference suppression in motors
Suppression for common mode noise
Frequency converter
Power supplies
Charging stations

Products

3XL

Order Code	Datasheet	Simulation	Downloads	I_R (A)	L (mH)	V_R (V (AC))	V_T (V (AC))	Material	Samples
744833005240	SPEC		8 files EDA models: Components ZIP ALT Altium_WE-TPB (rev22a).IntLib \| 1.4 MB ZUK Cadstar_WE-TPB (rev19a).zip \| 7.4 KB CDS Cadence_WE-TPB (rev18a).zip \| 8.1 MB EAG Eagle_WE-TPB (rev19a).lbr \| 29.5 KB CAD files ZIP IGS Download_IGS_WE-TPB-3XL-744833005240 (rev1).igs \| 6.4 MB STP Download_STP_WE-TPB-3XL-744833005240 (rev1).stp \| 1.2 MB Electric models ZIP S S-PARAMETER_WE-TPB (rev19a).zip \| 962.8 KB PSP PSpice_WE-TPB (rev22a).zip \| 79.8 KB Download all 8 files as zip archive ZIP	24	0.52	500	2500	MnZn
744833011180	SPEC		8 files EDA models: Components ZIP ALT Altium_WE-TPB (rev22a).IntLib \| 1.4 MB ZUK Cadstar_WE-TPB (rev19a).zip \| 7.4 KB CDS Cadence_WE-TPB (rev18a).zip \| 8.1 MB EAG Eagle_WE-TPB (rev19a).lbr \| 29.5 KB CAD files ZIP IGS Download_IGS_WE-TPB-3XL-744833011180 (rev1).igs \| 6.1 MB STP Download_STP_WE-TPB-3XL-744833011180 (rev1).stp \| 1.2 MB Electric models ZIP S S-PARAMETER_WE-TPB (rev19a).zip \| 962.8 KB PSP PSpice_WE-TPB (rev22a).zip \| 79.8 KB Download all 8 files as zip archive ZIP	18	1.1	500	2500	MnZn
744833027110	SPEC		8 files EDA models: Components ZIP ALT Altium_WE-TPB (rev22a).IntLib \| 1.4 MB ZUK Cadstar_WE-TPB (rev19a).zip \| 7.4 KB CDS Cadence_WE-TPB (rev18a).zip \| 8.1 MB EAG Eagle_WE-TPB (rev19a).lbr \| 29.5 KB CAD files ZIP IGS Download_IGS_WE-TPB-3XL-744833027110 (rev1).igs \| 6.1 MB STP Download_STP_WE-TPB-3XL-744833027110 (rev1).stp \| 1.2 MB Electric models ZIP S S-PARAMETER_WE-TPB (rev19a).zip \| 962.8 KB PSP PSpice_WE-TPB (rev22a).zip \| 79.8 KB Download all 8 files as zip archive ZIP	11	2.7	500	2500	MnZn
744833052100	SPEC		8 files EDA models: Components ZIP ALT Altium_WE-TPB (rev22a).IntLib \| 1.4 MB ZUK Cadstar_WE-TPB (rev19a).zip \| 7.4 KB CDS Cadence_WE-TPB (rev18a).zip \| 8.1 MB EAG Eagle_WE-TPB (rev19a).lbr \| 29.5 KB CAD files ZIP IGS Download_IGS_WE-TPB-3XL-744833052100 (rev1).igs \| 6.1 MB STP Download_STP_WE-TPB-3XL-744833052100 (rev1).stp \| 1.2 MB Electric models ZIP S S-PARAMETER_WE-TPB (rev19a).zip \| 962.8 KB PSP PSpice_WE-TPB (rev22a).zip \| 79.8 KB Download all 8 files as zip archive ZIP	10	5.2	500	2500	MnZn
744833084075	SPEC		8 files EDA models: Components ZIP ALT Altium_WE-TPB (rev22a).IntLib \| 1.4 MB ZUK Cadstar_WE-TPB (rev19a).zip \| 7.4 KB CDS Cadence_WE-TPB (rev18a).zip \| 8.1 MB EAG Eagle_WE-TPB (rev19a).lbr \| 29.5 KB CAD files ZIP IGS Download_IGS_WE-TPB-3XL-744833084075 (rev1).igs \| 6.1 MB STP Download_STP_WE-TPB-3XL-744833084075 (rev1).stp \| 1.2 MB Electric models ZIP S S-PARAMETER_WE-TPB (rev19a).zip \| 962.8 KB PSP PSpice_WE-TPB (rev22a).zip \| 79.8 KB Download all 8 files as zip archive ZIP	7.5	8.4	500	2500	MnZn
744833120060	SPEC		8 files EDA models: Components ZIP ALT Altium_WE-TPB (rev22a).IntLib \| 1.4 MB ZUK Cadstar_WE-TPB (rev19a).zip \| 7.4 KB CDS Cadence_WE-TPB (rev18a).zip \| 8.1 MB EAG Eagle_WE-TPB (rev19a).lbr \| 29.5 KB CAD files ZIP IGS Download_IGS_WE-TPB-3XL-744833120060 (rev1).igs \| 6.1 MB STP Download_STP_WE-PBF_3XL_744833120060 (rev1).stp \| 1.2 MB Electric models ZIP S S-PARAMETER_WE-TPB (rev19a).zip \| 962.8 KB PSP PSpice_WE-TPB (rev22a).zip \| 79.8 KB Download all 8 files as zip archive ZIP	6	12	500	2500	MnZn

Order Code	Datasheet	Simulation
744833005240	SPEC
744833011180	SPEC
744833027110	SPEC
744833052100	SPEC
744833084075	SPEC
744833120060	SPEC

Samples

Order Code	Datasheet	Simulation	Downloads	I_R (A)	L (mH)	V_R (V (AC))	V_T (V (AC))	Material	Samples
