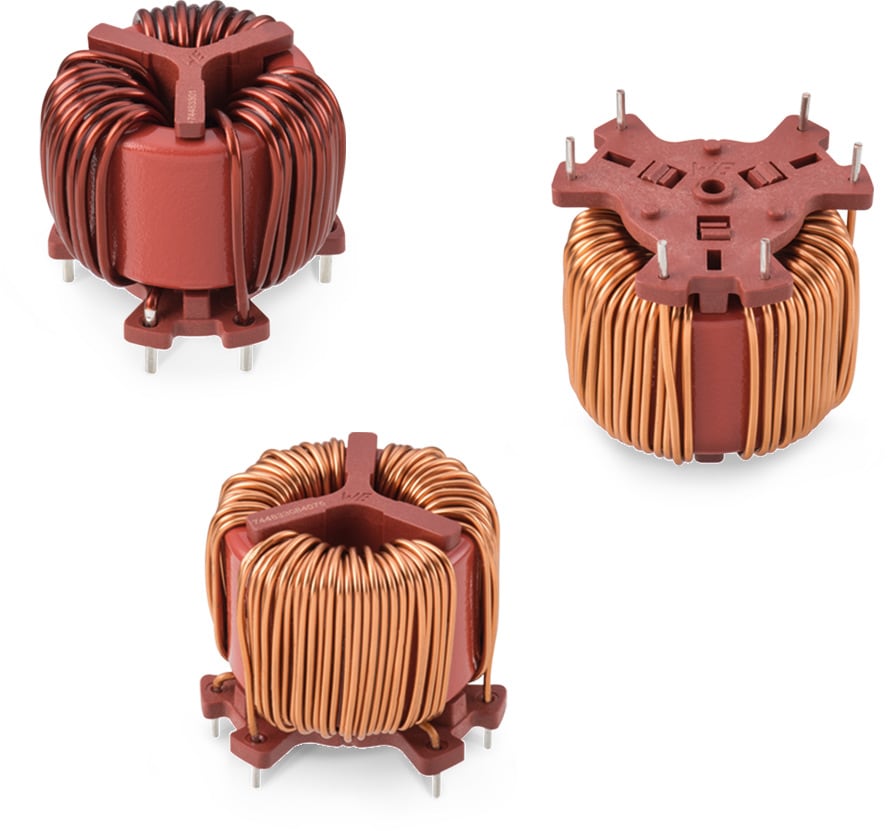

WE-TPB Three-Phase Common Mode Power Line Choke

Size	Dimensions	H (mm)	Mount	Ø OD (mm)
3XL		39	THT	47

LTSpice files

LT
LTSpice_WE-TPB (rev25a).zip
|
80.1 KB

Characteristics

Application up to 500 VAC
High permeability MnZn Ferrite core material
Insulation through winding spacer
Specification according to EN 60938-2Air and creepage distances ≥ 5 mm
Up to 24 A rated current
Suppression frequency range: 1 kHz to 1 MHz
Operating temperature: -40 °C to +125 °C
Flammability corresponding to UL 94 V-0
Climatic category 40/125/21

Applications

Power electronics
Power line input filter
Radio interference suppression in motors
Suppression for common mode noise
Frequency converter
Power supplies
Charging stations

Products

3XL

Filter article data

show article in 1 product lines

article in 1 product lines

Order Code	Datasheet	Simulation	Downloads	Status	I_R(A)	L(mH)	V_R(V (AC))	V_T(V (AC))	Material	Samples
744833005240	24 A, 0.52 mH, 500 V (AC)	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WE-TPB (rev22a).IntLib \| 1.4 MB CDS Cadence_WE-TPB (rev18a).zip \| 8.1 MB EAG Eagle_WE-TPB (rev19a).lbr \| 29.5 KB KIC KiCad_WE-TPB (rev25b).zip \| 18.1 MB ZUK Cadstar_WE-TPB (rev19a).zip \| 7.4 KB CAD files ZIP IGS Download_IGS_WE-TPB-3XL-744833005240 (rev1).igs \| 6.4 MB STP Download_STP_WE-TPB-3XL-744833005240 (rev1).stp \| 1.2 MB Electric models ZIP ADS ADS_WE-TPB (rev24a).zip \| 2.7 MB PSP PSpice_WE-TPB (rev25a).zip \| 82.1 KB S S-PARAMETER_WE-TPB (rev19a).zip \| 962.8 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Rated Current24 A	Inductance0.52 mH	Rated Voltage500 V (AC)	Insulation Test Voltage2500 V (AC)	MaterialMnZn
744833011180	18 A, 1.1 mH, 500 V (AC)	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WE-TPB (rev22a).IntLib \| 1.4 MB CDS Cadence_WE-TPB (rev18a).zip \| 8.1 MB EAG Eagle_WE-TPB (rev19a).lbr \| 29.5 KB KIC KiCad_WE-TPB (rev25b).zip \| 18.1 MB ZUK Cadstar_WE-TPB (rev19a).zip \| 7.4 KB CAD files ZIP IGS Download_IGS_WE-TPB-3XL-744833011180 (rev1).igs \| 6.1 MB STP Download_STP_WE-TPB-3XL-744833011180 (rev1).stp \| 1.2 MB Electric models ZIP ADS ADS_WE-TPB (rev24a).zip \| 2.7 MB PSP PSpice_WE-TPB (rev25a).zip \| 82.1 KB S S-PARAMETER_WE-TPB (rev19a).zip \| 962.8 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Rated Current18 A	Inductance1.1 mH	Rated Voltage500 V (AC)	Insulation Test Voltage2500 V (AC)	MaterialMnZn
744833027110	11 A, 2.7 mH, 500 V (AC)	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WE-TPB (rev22a).IntLib \| 1.4 MB CDS Cadence_WE-TPB (rev18a).zip \| 8.1 MB EAG Eagle_WE-TPB (rev19a).lbr \| 29.5 KB KIC KiCad_WE-TPB (rev25b).zip \| 18.1 MB ZUK Cadstar_WE-TPB (rev19a).zip \| 7.4 KB CAD files ZIP IGS Download_IGS_WE-TPB-3XL-744833027110 (rev1).igs \| 6.1 MB STP Download_STP_WE-TPB-3XL-744833027110 (rev1).stp \| 1.2 MB Electric models ZIP ADS ADS_WE-TPB (rev24a).zip \| 2.7 MB PSP PSpice_WE-TPB (rev25a).zip \| 82.1 KB S S-PARAMETER_WE-TPB (rev19a).zip \| 962.8 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Rated Current11 A	Inductance2.7 mH	Rated Voltage500 V (AC)	Insulation Test Voltage2500 V (AC)	MaterialMnZn
744833052100	10 A, 5.2 mH, 500 V (AC)	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WE-TPB (rev22a).IntLib \| 1.4 MB CDS Cadence_WE-TPB (rev18a).zip \| 8.1 MB EAG Eagle_WE-TPB (rev19a).lbr \| 29.5 KB KIC KiCad_WE-TPB (rev25b).zip \| 18.1 MB ZUK Cadstar_WE-TPB (rev19a).zip \| 7.4 KB CAD files ZIP IGS Download_IGS_WE-TPB-3XL-744833052100 (rev1).igs \| 6.1 MB STP Download_STP_WE-TPB-3XL-744833052100 (rev1).stp \| 1.2 MB Electric models ZIP ADS ADS_WE-TPB (rev24a).zip \| 2.7 MB PSP PSpice_WE-TPB (rev25a).zip \| 82.1 KB S S-PARAMETER_WE-TPB (rev19a).zip \| 962.8 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Rated Current10 A	Inductance5.2 mH	Rated Voltage500 V (AC)	Insulation Test Voltage2500 V (AC)	MaterialMnZn
744833084075	7.5 A, 8.4 mH, 500 V (AC)	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WE-TPB (rev22a).IntLib \| 1.4 MB CDS Cadence_WE-TPB (rev18a).zip \| 8.1 MB EAG Eagle_WE-TPB (rev19a).lbr \| 29.5 KB KIC KiCad_WE-TPB (rev25b).zip \| 18.1 MB ZUK Cadstar_WE-TPB (rev19a).zip \| 7.4 KB CAD files ZIP IGS Download_IGS_WE-TPB-3XL-744833084075 (rev1).igs \| 6.1 MB STP Download_STP_WE-TPB-3XL-744833084075 (rev1).stp \| 1.2 MB Electric models ZIP ADS ADS_WE-TPB (rev24a).zip \| 2.7 MB PSP PSpice_WE-TPB (rev25a).zip \| 82.1 KB S S-PARAMETER_WE-TPB (rev19a).zip \| 962.8 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Rated Current7.5 A	Inductance8.4 mH	Rated Voltage500 V (AC)	Insulation Test Voltage2500 V (AC)	MaterialMnZn
744833120060	6 A, 12 mH, 500 V (AC)	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WE-TPB (rev22a).IntLib \| 1.4 MB CDS Cadence_WE-TPB (rev18a).zip \| 8.1 MB EAG Eagle_WE-TPB (rev19a).lbr \| 29.5 KB KIC KiCad_WE-TPB (rev25b).zip \| 18.1 MB ZUK Cadstar_WE-TPB (rev19a).zip \| 7.4 KB CAD files ZIP IGS Download_IGS_WE-TPB-3XL-744833120060 (rev1).igs \| 6.1 MB STP Download_STP_WE-PBF_3XL_744833120060 (rev1).stp \| 1.2 MB Electric models ZIP ADS ADS_WE-TPB (rev24a).zip \| 2.7 MB PSP PSpice_WE-TPB (rev25a).zip \| 82.1 KB S S-PARAMETER_WE-TPB (rev19a).zip \| 962.8 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Rated Current6 A	Inductance12 mH	Rated Voltage500 V (AC)	Insulation Test Voltage2500 V (AC)	MaterialMnZn
