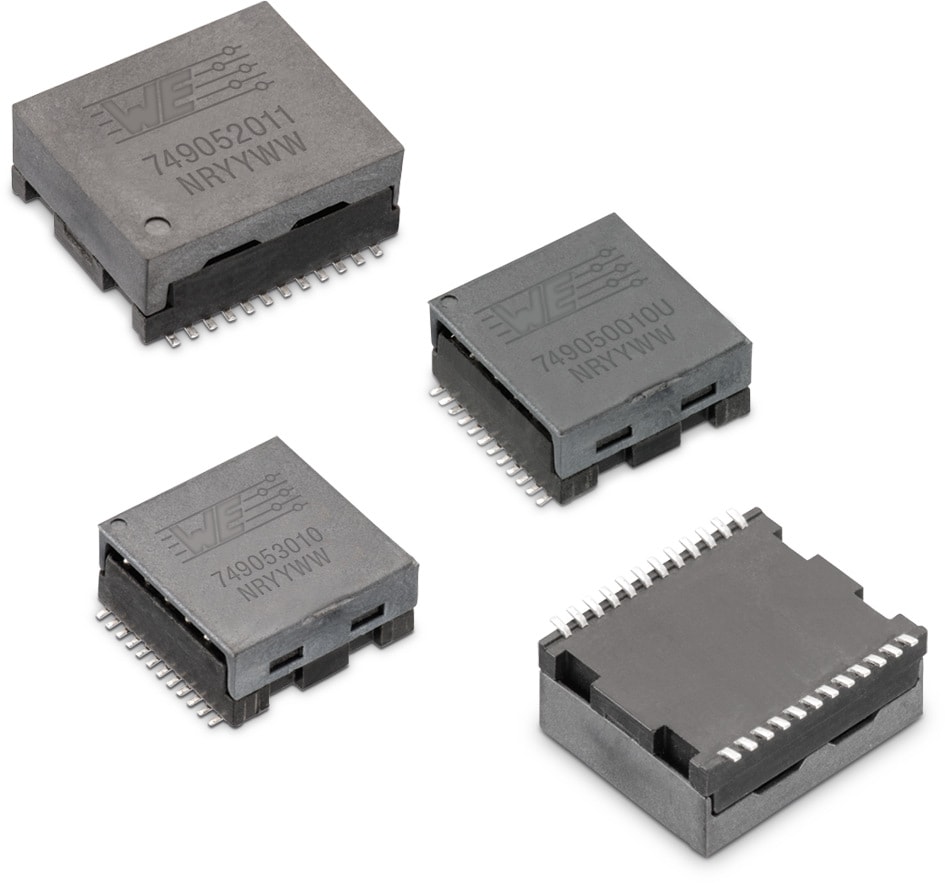

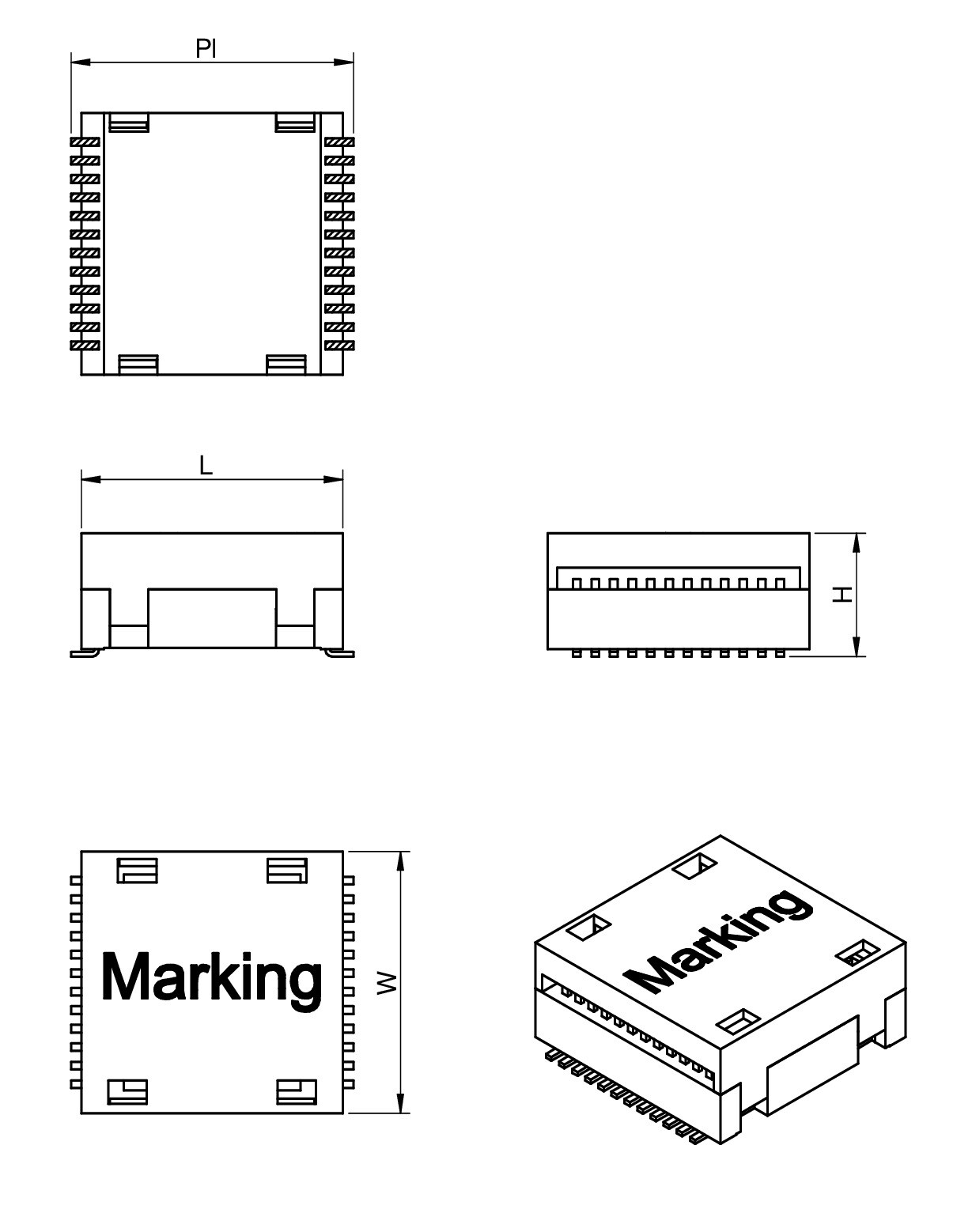

WE-LAN 10G Transformer 10Gbit Base-T

WE-LAN 10G Transformer 10Gbit Base-T

LTSpice files

Characteristics

  • 10G Base-T
  • PoE(+) over 4 pairs up to 150 W
  • Compliant with IEEE standards: 802.3af, 802.3at, 802.3an and 802.3bt
  • Suitable for industrial temperatures: -40°C up to +105°C

Applications

  • Office and factory access points
  • Gateways
  • Servers
  • High-speed routers and switches
  • HDBaseT applications

Products

Filter article data
Filter by
Delete all
 show  articles in 0 product lines
 articles in 0 product lines
Reset all
Log in now to view availability and request availability forecasts. LOGIN
Order Code
Data­sheet
Simu­lation
Downloads
Status
Data rate
Ports
PoE
Improved CMRR
Operating Temperature
VT(V (RMS))
Mount
L(µH)
Design Kit
SamplesAvailability & Sample
Log in now to view availability and request availability forecasts. LOGIN
749050010A
SPEC10G Base-T, 1, non-PoE
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Data rate10G Base-T
Ports1
PoEnon-PoE
Improved Common Mode RejectionNo
Operating Temperature 0 °C up to +70 °C
Insulation Test Voltage1500 V (RMS)
MountSMT
Inductance200 µH
Design Kit –
–Check availability
749050010U
SPEC10G Base-T, 1, non-PoE
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Data rate10G Base-T
Ports1
PoEnon-PoE
Improved Common Mode RejectionNo
Operating Temperature 0 °C up to +70 °C
Insulation Test Voltage1500 V (RMS)
MountSMT
Inductance200 µH
Design Kit
749010
–Check availability
749052011
SPEC10G Base-T, 1, PoE+ (up to 600 mA)
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Data rate10G Base-T
Ports1
PoEPoE+ (up to 600 mA)
Improved Common Mode RejectionNo
Operating Temperature 0 °C up to +70 °C
Insulation Test Voltage1500 V (RMS)
MountSMT
Inductance120 µH
Design Kit
749010
–Check availability
749052050
SPEC10G Base-T, 1, PoE+ (up to 1 A)
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Data rate10G Base-T
Ports1
PoEPoE+ (up to 1 A)
Improved Common Mode RejectionNo
Operating Temperature 0 °C up to +70 °C
Insulation Test Voltage1500 V (RMS)
MountSMT
Inductance180 µH
Design Kit
749010
–Check availability
749053010
SPEC10G Base-T, 1, PoE (up to 350 mA)
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Data rate10G Base-T
Ports1
PoEPoE (up to 350 mA)
Improved Common Mode RejectionNo
Operating Temperature 0 °C up to +70 °C
Insulation Test Voltage1500 V (RMS)
MountSMT
Inductance120 µH
Design Kit
749010
–Check availability
749050017
SPEC10G Base-T, 1, non-PoE
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Data rate10G Base-T
Ports1
PoEnon-PoE
Improved Common Mode RejectionNo
Operating Temperature -40 °C up to +85 °C
Insulation Test Voltage1500 V (RMS)
MountSMT
Inductance120 µH
Design Kit –
–Check availability
749050018
SPEC10G Base-T, 1, non-PoE
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Data rate10G Base-T
Ports1
PoEnon-PoE
Improved Common Mode RejectionNo
Operating Temperature -40 °C up to +85 °C
Insulation Test Voltage1500 V (RMS)
MountSMT
Inductance120 µH
Design Kit –
–Check availability
749053011
SPEC10G Base-T, 1, PoE (up to 350 mA)
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Data rate10G Base-T
Ports1
PoEPoE (up to 350 mA)
Improved Common Mode RejectionNo
Operating Temperature 0 °C up to +70 °C
Insulation Test Voltage1500 V (RMS)
MountSMT
Inductance200 µH
Design Kit –
–Check availability
749053012
SPEC10G Base-T, 1, PoE (up to 350 mA)
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Data rate10G Base-T
Ports1
PoEPoE (up to 350 mA)
Improved Common Mode RejectionNo
Operating Temperature -40 °C up to +85 °C
Insulation Test Voltage1500 V (RMS)
MountSMT
Inductance200 µH
Design Kit –
–Check availability
749053013
SPEC10G Base-T, 1, PoE (up to 350 mA)
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Data rate10G Base-T
Ports1
PoEPoE (up to 350 mA)
Improved Common Mode RejectionNo
Operating Temperature -40 °C up to +85 °C
Insulation Test Voltage1500 V (RMS)
MountSMT
Inductance120 µH
Design Kit –
–Check availability
749052012
SPEC10G Base-T, 1, PoE+ (up to 600 mA)
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Data rate10G Base-T
Ports1
PoEPoE+ (up to 600 mA)
Improved Common Mode RejectionNo
Operating Temperature 0 up to +70 °C
Insulation Test Voltage1500 V (RMS)
MountSMT
Inductance120 µH
Design Kit –
–Check availability
749052051
SPEC10G Base-T, 1, PoE+ (up to 1 A)
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Data rate10G Base-T
Ports1
PoEPoE+ (up to 1 A)
Improved Common Mode RejectionNo
Operating Temperature -40 °C up to +85 °C
Insulation Test Voltage1500 V (RMS)
MountSMT
Inductance120 µH
Design Kit –
–Check availability
749052014
SPEC10G Base-T, 1, non-PoE
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Data rate10G Base-T
Ports1
PoEnon-PoE
Improved Common Mode RejectionNo
Operating Temperature -40 °C up to +105 °C
Insulation Test Voltage1500 V (RMS)
MountSMT
Inductance180 µH
Design Kit –
–Check availability
749054010
SPEC10G Base-T, 1, PoE (up to 350 mA)
Simu­lation–
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Data rate10G Base-T
Ports1
PoEPoE (up to 350 mA)
Improved Common Mode RejectionNo
Operating Temperature -40 °C up to +85 °C
Insulation Test Voltage4000 V (RMS)
MountSMT
Inductance120 µH
Design Kit –
–Check availability

Suitable for

WR-MJ Modular Jacks
WE-TVS TVS Diode – Standard Series
WCAP-CSMH Mid and High Voltage

Assortments

Articles from this product series can be found in the following assortments:

Design Kit LAN Transformer WE-LAN

Learn more
