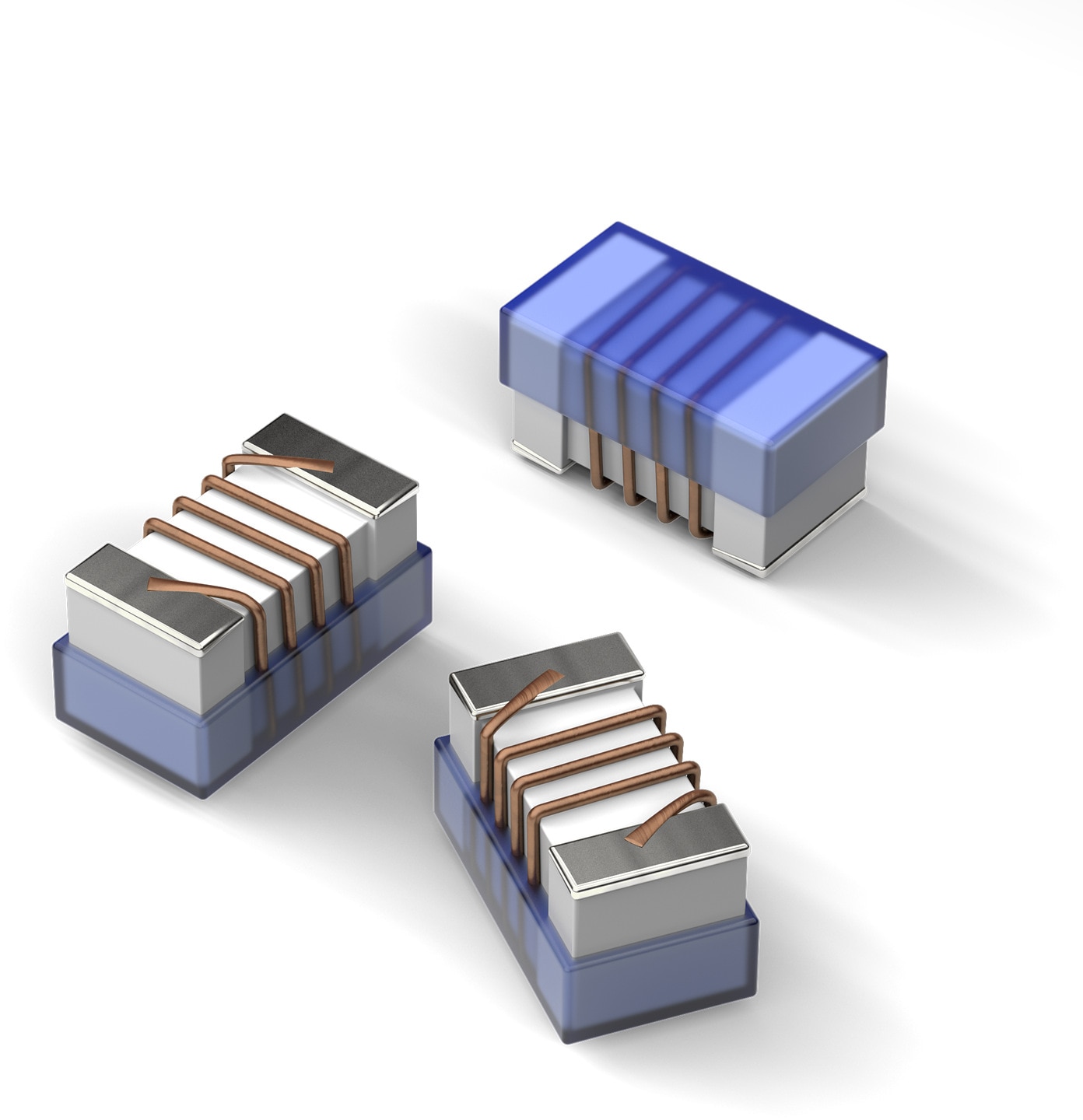

WE-KI HC SMT High Current Wire Wound Ceramic Inductor

SizeL
(mm)
W
(mm)
H
(mm)
Mount

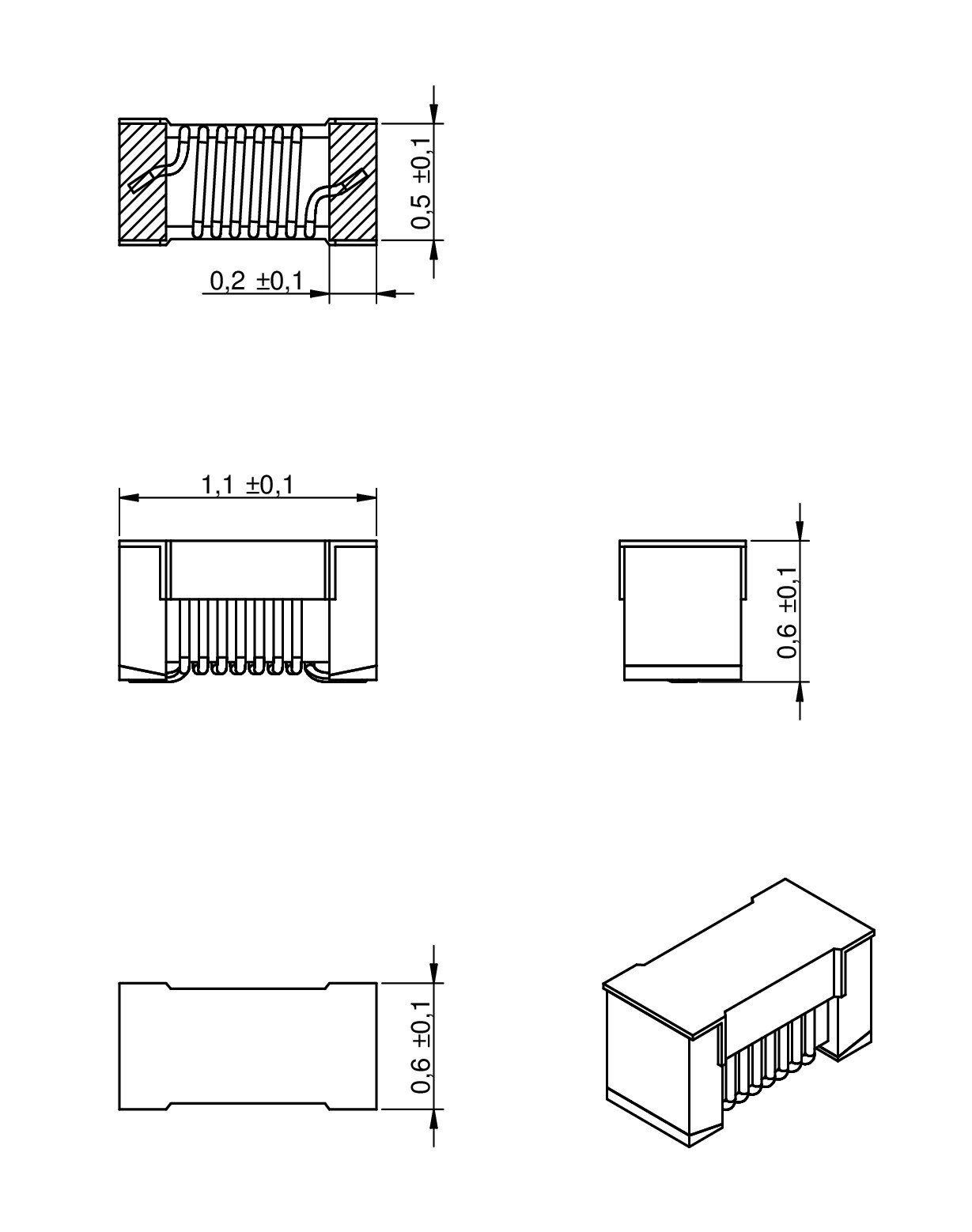

0402 1.1 0.6 0.6 SMT

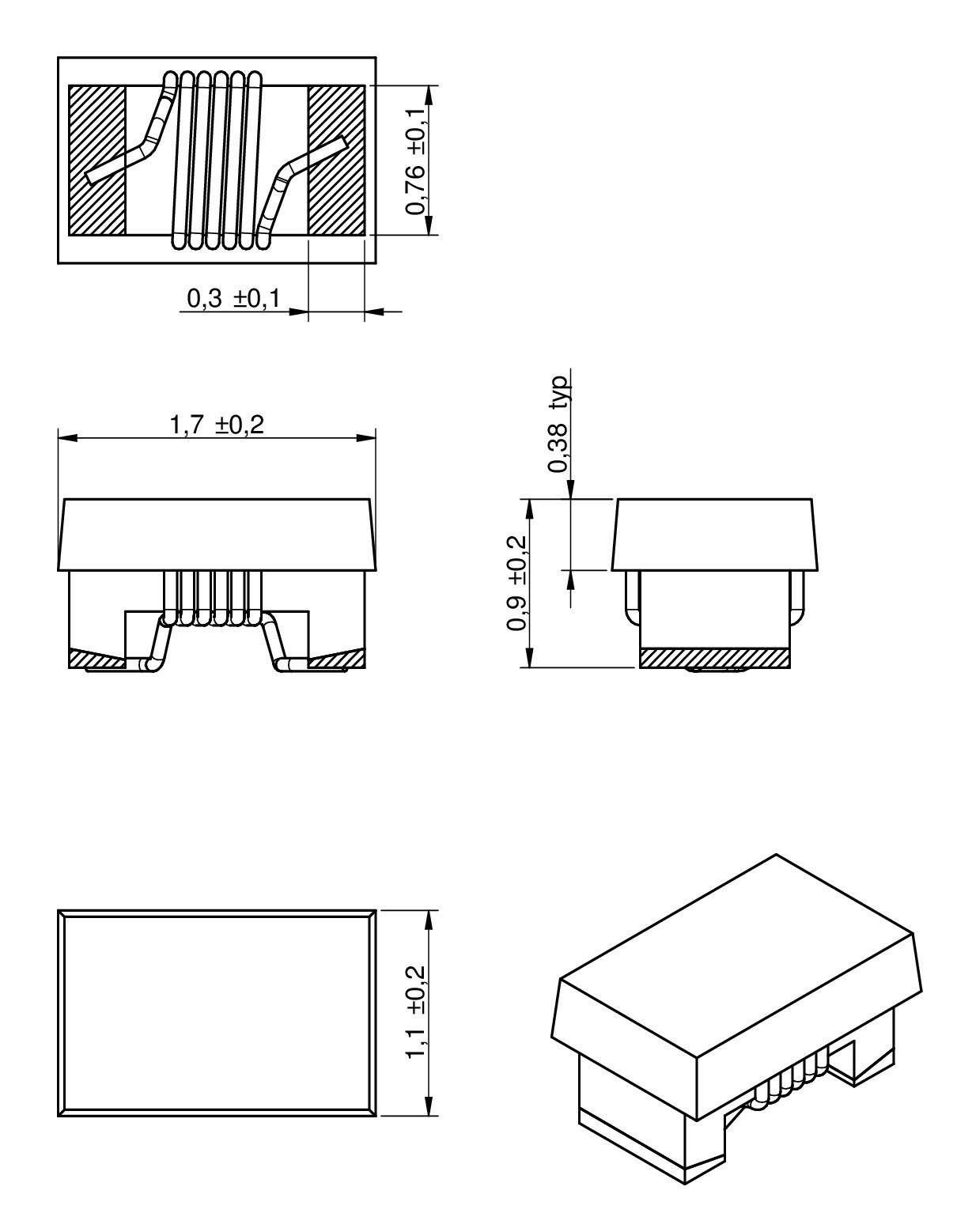

0603 1.7 1.1 0.9 SMT

Characteristics

  • Inductance values ​​from 1 nH up to 390 nH
  • High quality factor Q
  • High self-resonant frequency
  • High currents up to 2.3 A
  • 2% Inductance tolerance
  • Operating temperature: -40 ° C to +125 ° C

Applications

  • Especially for RF application
  • Ideal for high current applications
  • Wideband filter
  • Decoupling

Modelithics Simulation Models

Incorporate this part into your design with Modelithics’ highly accurate measurement-based simulation models. Request a 90-day FREE trail! Modelithics libraries are available for Keysight Technologies’ Advanced Design System (ADS), NI/AWR Design Environment/Microwave Office™, Keysight Technologies’ Gensys, ASYSS® HFSS™, Sonnet® and Cadence.

Request a FREE 90-Day Trial!

Products

All
0402
0603
Order Code Data­sheet Simu­lation DownloadsL
(nH)
Test Condition LTol. LTest Condition QRDC max.
(Ω)
IR
(mA)
fres
(MHz)
Design Kit Samples
744916010SPEC
8 files 1 250 MHz ±0.2nH 250 MHz 0.03 2300 1600074476
744917018SPEC
8 files 1.8 250 MHz ±0.2nH 250 MHz 0.033 2100 1600074476
744916020SPEC
8 files 2 250 MHz ±0.2nH 250 MHz 0.038 2100 15200
744916022SPEC
8 files 2.2 250 MHz ±0.2nH 250 MHz 0.038 2100 1510074476
744917022SPEC
8 files 2.2 250 MHz ±0.2nH 250 MHz 0.23 900 15000
744916027SPEC
8 files 2.7 250 MHz ±0.2nH 250 MHz 0.56 1500 13000
744916033SPEC
8 files 3.3 250 MHz ±0.2nH 250 MHz 0.045 1700 1280074476
744917033SPEC
8 files 3.3 250 MHz ±0.2nH 250 MHz 0.024 1900 9600
744916036SPEC
8 files 3.6 250 MHz ±0.2nH 250 MHz 0.045 1700 11700
744917036SPEC
8 files 3.6 250 MHz ±0.2nH 250 MHz 0.031 1900 9700
744916039SPEC
8 files 3.9 250 MHz ±0.2nH 250 MHz 0.045 1700 9500
744917039SPEC
8 files 3.9 250 MHz ±0.2nH 250 MHz 0.039 1600 750074476
744916043SPEC
8 files 4.3 250 MHz ±0.2nH 250 MHz 0.04 1600 715074476
744917043SPEC
8 files 4.3 250 MHz ±0.2nH 250 MHz 0.08 1300 7500
744916047SPEC
8 files 4.7 250 MHz ±0.2nH 250 MHz 0.06 1500 6850
744916051SPEC
8 files 5.1 250 MHz ±0.2nH 250 MHz 0.1 1200 680074476
744917051SPEC
8 files 5.1 250 MHz ±0.2nH 250 MHz 0.036 1700 8900
744916056SPEC
8 files 5.6 250 MHz ±0.2nH 250 MHz 0.048 1600 6500
744917056SPEC
8 files 5.6 250 MHz ±0.2nH 250 MHz 0.036 1700 660074476
744917060SPEC
8 files 6 250 MHz ±0.2nH 250 MHz 0.036 1700 6000
744916062SPEC
8 files 6.2 250 MHz ±0.2nH 250 MHz 0.05 1600 580074476
744916068SPEC
8 files 6.8 250 MHz ±2% 250 MHz 0.055 1500 580074476
744917068SPEC
8 files 6.8 250 MHz ±2% 250 MHz 0.042 1400 580074476
744917072SPEC
8 files 7.2 250 MHz ±2% 250 MHz 0.07 1400 5400
744917075SPEC
8 files 7.5 250 MHz ±2% 250 MHz 0.08 1300 5300
744916082SPEC
8 files 8.2 250 MHz ±2% 250 MHz 0.058 1500 5400
744917082SPEC
8 files 8.2 250 MHz ±2% 250 MHz 0.054 1400 5900
744916087SPEC
8 files 8.7 250 MHz ±2% 250 MHz 0.065 1500 500074476
744917087SPEC
8 files 8.7 250 MHz ±2% 250 MHz 0.054 1400 5500
744916090SPEC
8 files 9 250 MHz ±2% 250 MHz 0.073 1400 5000
744917091SPEC
8 files 9.1 250 MHz ±2% 250 MHz 0.058 1400 510074476
744916095SPEC
8 files 9.5 250 MHz ±2% 250 MHz 0.075 1400 4700
744917095SPEC
8 files 9.5 250 MHz ±2% 250 MHz 0.053 1400 4900
744916110SPEC
8 files 10 250 MHz ±2% 250 MHz 0.085 1300 470074476
744917110SPEC
8 files 10 250 MHz ±2% 250 MHz 0.048 1400 4300
744916111SPEC
8 files 11 250 MHz ±2% 250 MHz 0.065 1400 4700
744917111SPEC
8 files 11 250 MHz ±2% 250 MHz 0.058 1400 4100
744916112SPEC
8 files 12 250 MHz ±2% 250 MHz 0.07 1200 440074476
744917112SPEC
8 files 12 250 MHz ±2% 250 MHz 0.115 1100 4100
744916113SPEC
8 files 13 250 MHz ±2% 250 MHz 0.14 870 4200
744916115SPEC
8 files 15 250 MHz ±2% 250 MHz 0.13 1100 390074476
744917115SPEC
8 files 15 250 MHz ±2% 250 MHz 0.078 1200 360074476
744916116SPEC
8 files 16 250 MHz ±2% 250 MHz 0.13 850 3700
744917116SPEC
8 files 16 250 MHz ±2% 250 MHz 0.085 1100 3500
744916118SPEC
8 files 18 250 MHz ±2% 250 MHz 0.12 900 355074476
744917118SPEC
8 files 18 250 MHz ±2% 250 MHz 0.066 1200 3300
744916119SPEC
8 files 19 250 MHz ±2% 250 MHz 0.175 850 3500
744916121SPEC
8 files 21 250 MHz ±2% 250 MHz 0.46 450 1700
744916122SPEC
8 files 22 250 MHz ±2% 250 MHz 0.25 800 330074476
744917122SPEC
8 files 22 250 MHz ±2% 250 MHz 0.14 850 315074476
744916123SPEC
8 files 23 250 MHz ±2% 250 MHz 0.16 800 3300
744917123SPEC
8 files 23 250 MHz ±2% 250 MHz 0.19 850 3000
744916124SPEC
8 files 24 250 MHz ±2% 250 MHz 0.29 700 3150
744917124SPEC
8 files 24 250 MHz ±2% 250 MHz 0.074 1100 2950
744916125SPEC
8 files 25 250 MHz ±2% 250 MHz 0.3 700 315074476
744916126SPEC
8 files 26 250 MHz ±2% 250 MHz 0.275 700 3150
744916127SPEC
8 files 27 250 MHz ±2% 250 MHz 0.33 450 3200
744917127SPEC
8 files 27 250 MHz ±2% 250 MHz 0.2 780 280074476
744916130SPEC
8 files 30 250 MHz ±2% 250 MHz 0.4 450 2900
744917130SPEC
8 files 30 250 MHz ±2% 250 MHz 0.16 920 2800
744916133SPEC
8 files 33 250 MHz ±2% 250 MHz 0.33 490 280074476
744917133SPEC
8 files 33 250 MHz ±2% 250 MHz 0.22 680 2700
744916136SPEC
8 files 36 250 MHz ±2% 250 MHz 0.36 480 2800
744917136SPEC
8 files 36 250 MHz ±2% 250 MHz 0.225 720 250074476
744916137SPEC
8 files 37 250 MHz ±2% 250 MHz 0.48 470 2700
744916139SPEC
8 files 39 250 MHz ±2% 250 MHz 0.43 450 260074476
744917139SPEC
8 files 39 250 MHz ±2% 250 MHz 0.25 680 2450
744916140SPEC
8 files 40 250 MHz ±2% 250 MHz 0.52 450 2600
744916143SPEC
8 files 43 250 MHz ±2% 250 MHz 0.52 450 2500
744917143SPEC
8 files 43 250 MHz ±2% 250 MHz 0.225 810 2450
744916147SPEC
8 files 47 250 MHz ±2% 250 MHz 0.58 420 240074476
744917147SPEC
8 files 47 200 MHz ±2% 250 MHz 0.24 680 2300
744916151SPEC
8 files 51 250 MHz ±2% 250 MHz 0.7 360 230074476
744917151SPEC
8 files 51 200 MHz ±2% 250 MHz 0.28 660 230074476
744917156SPEC
8 files 56 200 MHz ±2% 250 MHz 0.3 610 2200
744917168SPEC
8 files 68 200 MHz ±2% 250 MHz 0.33 600 2000
744917172SPEC
8 files 72 150 MHz ±2% 250 MHz 0.42 550 1900
744917175SPEC
8 files 75 150 MHz ±2% 250 MHz 0.52 500 190074476
744917182SPEC
8 files 82 150 MHz ±2% 250 MHz 0.46 510 1800
744917191SPEC
8 files 91 150 MHz ±2% 250 MHz 0.58 440 1650
744917210SPEC
8 files 100 150 MHz ±2% 250 MHz 0.54 470 170074476
744917211SPEC
8 files 110 150 MHz ±2% 250 MHz 0.58 440 1600
744917212SPEC
8 files 120 150 MHz ±2% 250 MHz 0.72 420 1550
744917215SPEC
8 files 150 150 MHz ±2% 250 MHz 0.82 390 135074476
744917218SPEC
8 files 180 100 MHz ±2% 250 MHz 1.5 310 1300
744917220SPEC
8 files 200 100 MHz ±2% 250 MHz 2 280 125074476
744917221SPEC
8 files 210 100 MHz ±2% 250 MHz 2 280 1200
744917222SPEC
8 files 220 100 MHz ±2% 250 MHz 2 280 110074476
744917225SPEC
8 files 250 100 MHz ±2% 250 MHz 3 240 1050
744917227SPEC
8 files 270 100 MHz ±2% 250 MHz 2.25 260 105074476
744917230SPEC
8 files 300 100 MHz ±2% 250 MHz 2.8 220 990
744917233SPEC
8 files 330 100 MHz ±2% 250 MHz 3.6 180 93074476
744917236SPEC
8 files 360 100 MHz ±2% 250 MHz 4.6 170 930
744917239SPEC
8 files 390 100 MHz ±2% 250 MHz 4.7 170 88074476
