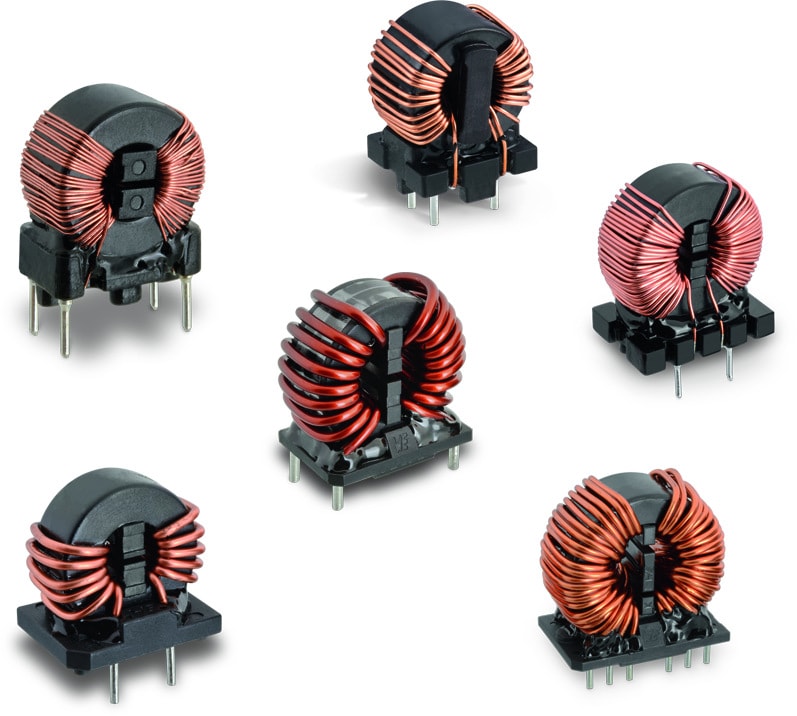

WE-CMBNC Common Mode Power Line Choke Nanocrystalline

Size L
(mm)
W
(mm)
H
(mm)
Mount
Type XS - 7.5 16 THT
Type S 18 14 22 -
Type M - - 25 THT
Type L - - 32 THT
Type XL - - - THT
Type XXL - 27 46 THT

Characteristics

  • Very high permeability nanocrystalline core material
  • Improved isolation through plastic case and winding spacer
  • High and stable inductance values up to 150 °C
  • High rated currents
  • Broadband suppression
  • Small size
  • Frequency range: 1 kHz-300 MHz
  • Operating temperature: -40°C to +125°C
  • Flammability corresponding to UL 94 V-0
  • Climatic category: 40/125/21

Applications

  • Power electronics
  • Power line in- and output filter
  • Radio interference suppression in motors
  • Suppression for common mode noise

Products

All
Type XS
Type S
Type M
Type L
Type XL
Type XXL
Order Code SPEC Simu­lation Downloads IR 1
(A)
L1
(mH)
RDC1 max.
(mΩ)
VR
(V (AC))
VT
(V (AC))
Design Kit Samples
7448020680
STE ALT EAG CAD LTS PSP CAD IGS CAD 0.6 80 1000 250 1500
7448010911
STE ALT EAG CAD LTS PSP IGS CAD CAD 0.9 11 430 250 1500 744800
7448011008
STE ALT EAG CAD LTS PSP IGS CAD CAD 1 8 330 250 1500
7448021230
STE ALT EAG CAD LTS PSP CAD IGS CAD 1.2 30 280 250 1500
7448011305
STE ALT EAG CAD LTS PSP IGS CAD CAD 1.3 5 200 250 1500 744800
7448012002
STE ALT EAG CAD LTS PSP IGS CAD CAD 2 1.6 90 250 1500
7448050219
STE ALT EAG CAD LTS PSP IGS CAD CAD 2 190 310 250 1500 744800
7448022010
STE ALT EAG CAD LTS PSP CAD IGS CAD 2 10 85 250 1500
7448012501
STE ALT EAG CAD LTS PSP IGS CAD CAD 2.5 1 55 250 1500
7448030333
STE ALT EAG CAD LTS PSP IGS CAD CAD 2.5 33 90 250 1500 744800
7448040382
STE ALT EAG CAD LTS PSP IGS CAD CAD 2.5 82 170 250 1500 744800
7448023005
STE ALT EAG CAD LTS PSP CAD IGS CAD 3 5 40 250 1500
7448013501
STE ALT EAG CAD LTS PSP IGS CAD CAD 3.5 0.5 33 250 1500
7448040435
STE ALT EAG CAD LTS PSP IGS CAD CAD 3.5 35 80 250 1500 744824
7448050490
STE ALT EAG CAD LTS PSP IGS CAD CAD 3.5 90 110 250 1500
7448030417
STE ALT EAG CAD LTS PSP IGS CAD CAD 4 17 50 250 1500
7448014501
STE ALT EAG CAD LTS PSP IGS CAD CAD 4.5 0.4 22 250 1500 744800
7448024503
STE ALT EAG CAD LTS PSP CAD IGS CAD 4.5 3 22 250 1500
7448030509
STE ALT EAG CAD LTS PSP IGS CAD CAD 5 9 28 250 1500 744800
744998
7448040515
STE ALT EAG CAD LTS PSP IGS CAD CAD 5 15 38 250 1500 744824
7448050530
STE ALT EAG CAD LTS PSP IGS CAD CAD 5 30 46 250 1500
7448060535
STE ALT EAG CAD LTS PSP IGS CAD CAD 5 35 90 250 1500 744800
7448025003
STE ALT EAG CAD LTS PSP CAD IGS CAD 5 2.5 15 250 1500
7448060620
STE ALT EAG CAD LTS PSP IGS CAD CAD 6 20 45 250 1500
7448026002
STE ALT EAG CAD LTS PSP CAD IGS CAD 6 1.5 8 250 1500
7448040707
STE ALT EAG CAD LTS PSP IGS CAD CAD 7 7 20 250 1500 744800
744824
744998
7448027001
STE ALT EAG CAD LTS PSP CAD IGS CAD 7 1 6 250 1500
7448060814
STE ALT EAG CAD LTS PSP IGS CAD CAD 8 14 27 250 1500
7448031002
STE ALT EAG CAD LTS PSP IGS CAD CAD 10 2 6 250 1500
7448051012
STE ALT EAG CAD LTS PSP IGS CAD CAD 10 12 15 250 1500 744800
7448041104
STE ALT EAG CAD LTS PSP IGS CAD CAD 11 4 8.5 250 1500 744824
7448061309
STE ALT EAG CAD LTS PSP IGS CAD CAD 13 9 15 250 1500 744800
7448031501
STE ALT EAG CAD LTS PSP IGS CAD CAD 15 1 3.3 250 1500 744800
7448041502
STE ALT EAG CAD LTS PSP IGS CAD CAD 15 2 5 250 1500 744824
7448061507
STE ALT EAG CAD LTS PSP IGS CAD CAD 15 7 9.5 250 1500
7448041801
STE ALT EAG CAD LTS PSP IGS CAD CAD 18 1.5 3.2 250 1500
7448051804
STE ALT EAG CAD LTS PSP IGS CAD CAD 18 4.5 4.2 250 1500
7448042001
STE ALT EAG CAD LTS PSP IGS CAD CAD 20 1 2.4 250 1500 744800
7448062105
STE ALT EAG CAD LTS PSP IGS CAD CAD 21 5 6.5 250 1500
7448052303
STE ALT EAG CAD LTS PSP IGS CAD CAD 23 3 3 250 1500
7448052502
STE ALT EAG CAD LTS PSP IGS CAD CAD 25 2.5 2.2 250 1500
7448062603
STE ALT EAG CAD LTS PSP IGS CAD CAD 26 3 4.5 250 1500
7448053201
STE ALT EAG CAD LTS PSP IGS CAD CAD 32 0.9 1.1 250 1500 744800
7448063801
STE ALT EAG CAD LTS PSP IGS CAD CAD 38 1.5 2.3 250 1500 744800
