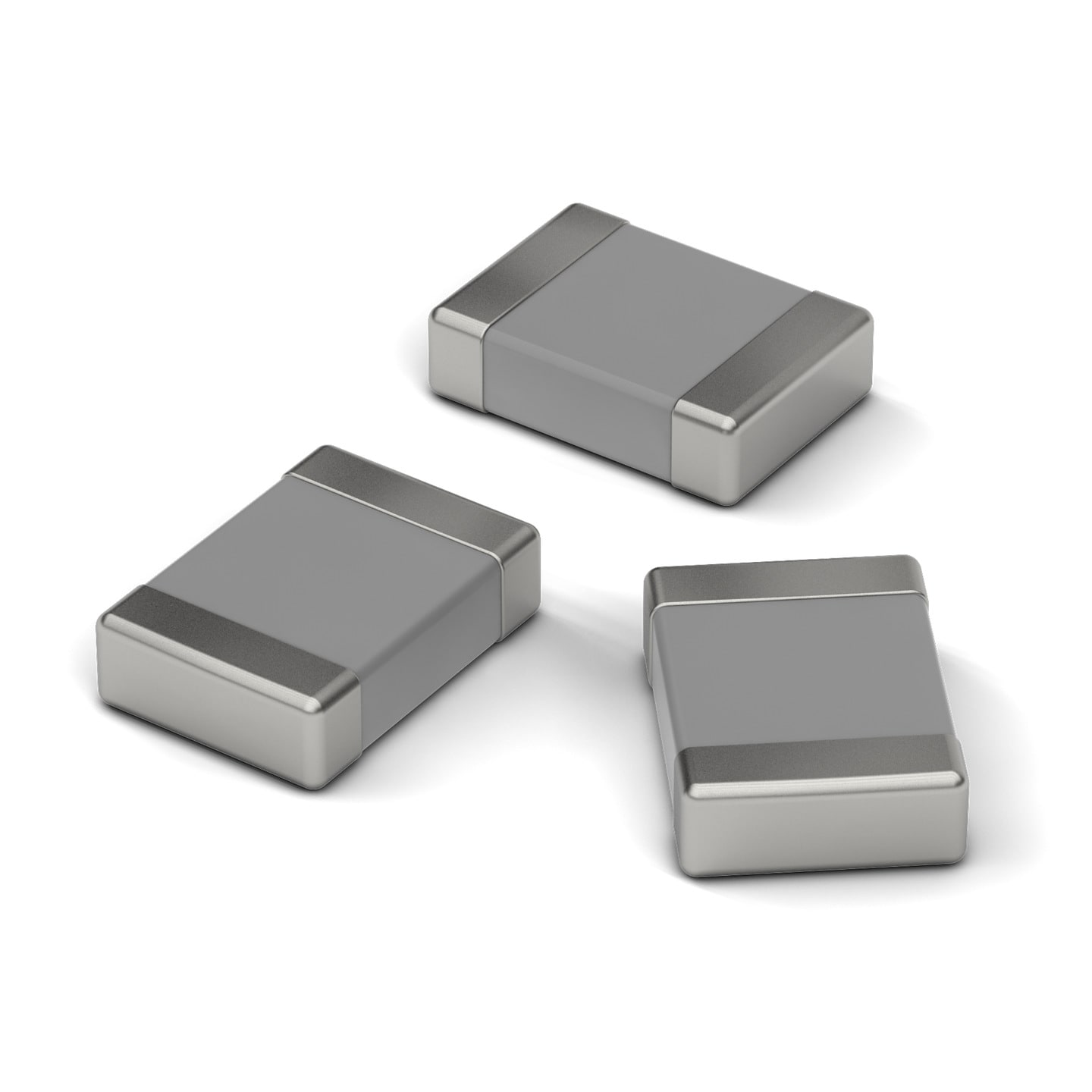

WCAP-CSSA MLCCs EXTENDED

Safety Capacitors

Characteristics

  • Product series for interference suppression
  • High capacitance stability
  • Certificates: TÜV, cULus
  • Safety class: X1/Y2, X2
  • Mounting style: SMT-Chip
  • Ceramic: NP0 (Class I), X7R (Class II)
  • Capacitance range: 33 pF ‒ 4.7 nF
  • Temperature Coefficient:
    ±30 ppm/°C for NP0
    ±15 % for X7R
  • Voltage range (UR): 250 V(AC)
  • Operating temperature: -55 °C up to + 125 °C
  • Sizes: 1808 / 1812 / 2211 / 2220
  • Recommended soldering: Reflow soldering

Applications

  • Interference suppression
  • Filter in power supplies

Happy with MLCC Downsizing? Check our menu.

Würth Elektronik offers a large portfolio of MLCC sizes up to 2220.

All Information here

Products

All
1808
1812
2211
2220
Order Code Data­sheet Simu­lation DownloadsCTol. CVR
(V (AC))
SizeOperating TemperatureSafety ClassVIMP
(V (DC))
DF
(%)

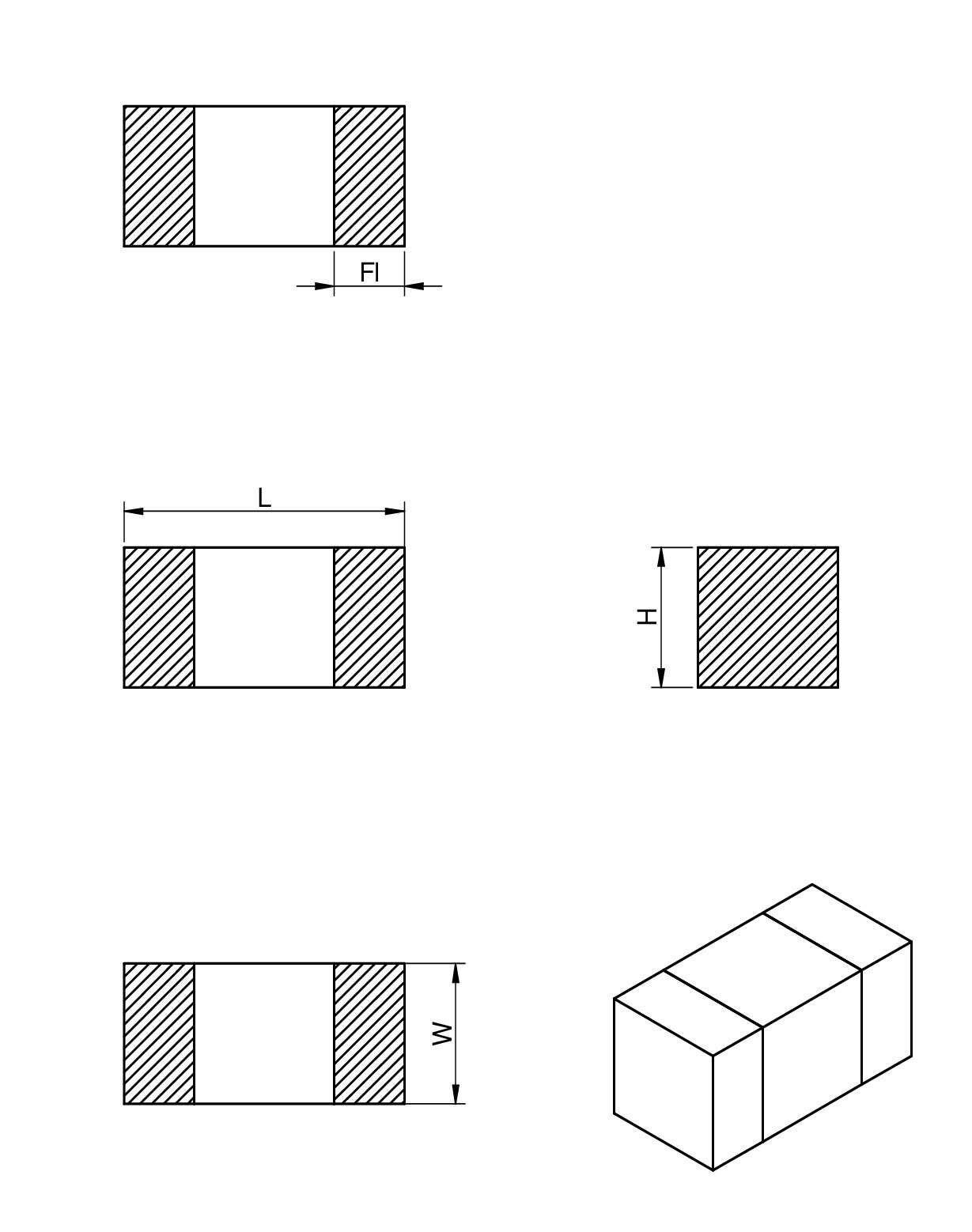

RISOCeramic TypeL
(mm)
W
(mm)
H
(mm)
Fl
(mm)
Technical ReferenceDesign Kit Samples
885362010009SPEC
6 files 33 pF ±5% 250 1808 X2 2500 0.1100 GΩ NP0 Class I 4.5 2 1.4 0.26 NP01808330JB50IFCT10000
NEW8853520100071SPEC
4 files 33 pF ±5% 250 1808 -55 up to +125 °C X1 / Y2 5000 0.1100 GΩ NP0 Class I 4.5 2 1.4 0.5 NP01808330JE00IFCT1B000
NEW8853620100091SPEC
4 files 33 pF ±5% 250 1808 -55 up to +125 °C X2 2500 0.1100 GΩ NP0 Class I 4.5 2 1.4 0.5 NP01808330JB50IFCT1B000
885362010011SPEC
6 files 47 pF ±5% 250 1808 X2 2500 0.1100 GΩ NP0 Class I 4.5 2 1.6 0.26 NP01808470JB50IFCT10000
NEW8853620100111SPEC
4 files 47 pF ±5% 250 1808 -55 up to +125 °C X2 2500 0.1100 GΩ NP0 Class I 4.5 2 1.6 0.5 NP01808470JB50IFCT1B000
885362010017SPEC
7 files 100 pF ±5% 250 1808 X2 2500 0.1100 GΩ NP0 Class I 4.5 2 2 0.26 NP01808101JB50IFCT10000
NEW8853620100171SPEC
5 files 100 pF ±5% 250 1808 -55 up to +125 °C X2 2500 0.1100 GΩ NP0 Class I 4.5 2 2 0.5 NP01808101JB50IFCT1B000
NEW8853622100181SPEC
4 files 150 pF ±10% 250 1808 -55 up to +125 °C X2 2500 2.510 GΩ X7R Class II 4.5 2 1.6 0.5 X7R1808151KB50IFCT1B000
NEW8853620100181SPEC
5 files 220 pF ±5% 250 1808 -55 up to +125 °C X2 2500 0.1100 GΩ NP0 Class I 4.5 2 2 0.5 NP01808221JB50IFCT1B000
885352211001SPEC
7 files 470 pF ±10% 250 1812 X1 / Y2 5000 2.510 GΩ X7R Class II 4.5 3.2 1.6 0.75 X7R1812471KE00IFCT10000
NEW8853522110011SPEC
5 files 470 pF ±10% 250 1812 -55 up to +125 °C X1 / Y2 5000 2.510 GΩ X7R Class II 4.5 3.2 1.6 0.5 X7R1812471KE00IFCT1B000
NEW8853622100091SPEC
4 files 470 pF ±10% 250 1808 -55 up to +125 °C X2 2500 2.510 GΩ X7R Class II 4.5 2 1.6 0.5 X7R1808471KB50IFCT1B000
885362210013SPEC
6 files 680 pF ±10% 250 1808 X2 2500 2.510 GΩ X7R Class II 4.5 2 1.6 0.26 X7R1808681KB50IFCT10000
885352211002SPEC
7 files 680 pF ±10% 250 1812 X1 / Y2 5000 2.510 GΩ X7R Class II 4.5 3.2 2 0.75 X7R1812681KE00IFCT10000744998
NEW8853522110021SPEC
5 files 680 pF ±10% 250 1812 -55 up to +125 °C X1 / Y2 5000 2.510 GΩ X7R Class II 4.5 3.2 2 0.5 X7R1812681KE00IFCT1B000
NEW8853622100131SPEC
4 files 680 pF ±10% 250 1808 -55 up to +125 °C X2 2500 2.510 GΩ X7R Class II 4.5 2 1.6 0.5 X7R1808681KB50IFCT1B000
885362210017SPEC
7 files 1 nF ±10% 250 1808 X2 2500 2.510 GΩ X7R Class II 4.5 2 2 0.26 X7R1808102KB50IFCT10000
885362211011SPEC
7 files 1 nF ±10% 250 1812 X2 2500 2.510 GΩ X7R Class II 4.5 3.2 1.6 0.26 X7R1812102KB50IFCT10000
NEW8853522100131SPEC
5 files 1 nF ±10% 250 1808 -55 up to +125 °C X1 / Y2 5000 2.510 GΩ X7R Class II 4.5 2 2 0.5 X7R1808102KE00IFCT1B000
NEW8853522110031SPEC
5 files 1 nF ±10% 250 1812 -55 up to +125 °C X1 / Y2 5000 2.510 GΩ X7R Class II 4.5 3.2 2.5 0.5 X7R1812102KE00IFCT1B000
NEW8853522130111SPEC
5 files 1 nF ±10% 250 2211 -55 up to +125 °C X1 / Y2 5000 2.510 GΩ X7R Class II 5.7 2.8 2.5 0.6 X7R2211102KE00IFCT1B000
NEW8853622100171SPEC
5 files 1 nF ±10% 250 1808 -55 up to +125 °C X2 2500 2.510 GΩ X7R Class II 4.5 2 2 0.5 X7R1808102KB50IFCT1B000
NEW8853622110111SPEC
5 files 1 nF ±10% 250 1812 -55 up to +125 °C X2 2500 2.510 GΩ X7R Class II 4.5 3.2 1.6 0.5 X7R1812102KB50IFCT1B000
NEW8853522130151SPEC
5 files 2.2 nF ±10% 250 2211 -55 up to +125 °C X1 / Y2 5000 2.510 GΩ X7R Class II 5.7 2.8 2.5 0.6 X7R2211222KE00IFCT1B000
NEW8853622110151SPEC
5 files 2.2 nF ±10% 250 1812 -55 up to +125 °C X2 2500 2.510 GΩ X7R Class II 4.5 3.2 2.5 0.5 X7R1812222KB50IFCT1B000
885352214001SPEC
5 files 4.7 nF ±10% 250 2220 X1 / Y2 2.510 GΩ X7R Class II 5.7 5 2.5 0.85 X7R2220472KE00IFCT10000
NEW8853522140011SPEC
5 files 4.7 nF ±10% 250 2220 -55 up to +125 °C X1 / Y2 5000 2.510 GΩ X7R Class II 5.7 5 2.5 0.6 X7R2220472KE00IFCT1B000
