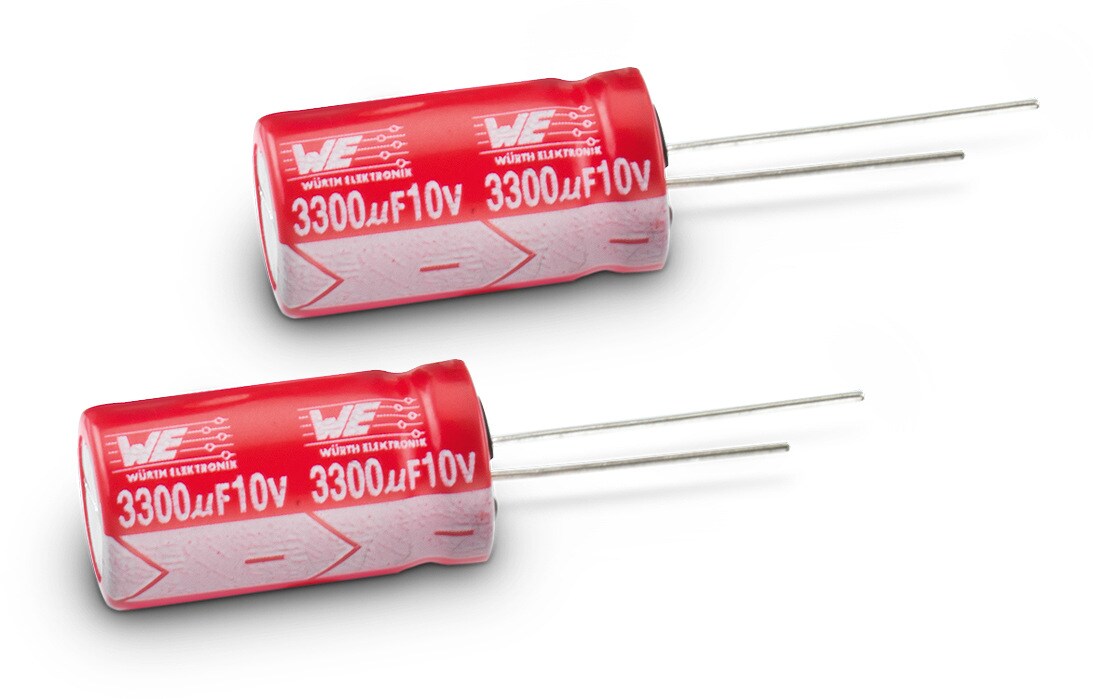

WCAP-ATLL Aluminum Electrolytic Capacitors

Long Life +105 °C

Characteristics

  • Long life product series
  • Mounting style: THT Radial
  • Capacitance range: 0.47 µF ‒ 6800 µF
  • Capacitance tolerance: ±20 %
  • Voltage range (UR): 10 ‒ 50 V(DC)
  • Operating temperature: -55 °C up to +105 °C
  • Endurance: 3000 ‒ 10000 h @ +105 °C
  • Dimensions (DxL) in mm: 5.0 x 11.0 up to 18.0 x 35.5
  • Recommended soldering: Wave soldering

Applications

  • Long life application
  • Filtering
  • Smoothing
  • Energy storage
  • Coupling
  • e.g. Switched-mode power supply, AC/DC converter, adapter, charger, digital camera

Products

Order Code Data­sheet Simu­lation DownloadsCVR
(V (DC))
Endurance
(h)
Operating TemperatureIRIPPLE
(mA)
ILeak
(µA)
DF
(%)
Pitch
(mm)
Ø D
(mm)
L
(mm)
Technical ReferenceDesign Kit Samples
860160672001SPEC
7 files 0.47 µF 50 4000 -55 °C up to +105 °C 12 3 10 2 5 11 ATEC110R47M050DSPA3D000860161
860160672002SPEC
7 files 1 µF 50 4000 -55 °C up to +105 °C 24 3 10 2 5 11 ATEC110010M050DSPA3D000860161
860160672003SPEC
7 files 2.2 µF 50 4000 -55 °C up to +105 °C 36 3 10 2 5 11 ATEC1102R2M050DSPA3D000860161
860160672004SPEC
7 files 3.3 µF 50 4000 -55 °C up to +105 °C 48 3 10 2 5 11 ATEC1103R3M050DSPA3D000860161
860160672005SPEC
7 files 4.7 µF 50 4000 -55 °C up to +105 °C 66 3 10 2 5 11 ATEC1104R7M050DSPA3D000860161
860160672006SPEC
7 files 5.6 µF 50 4000 -55 °C up to +105 °C 96 3 10 2 5 11 ATEC1105R6M050DSPA3D000860161
860160672007SPEC
7 files 6.8 µF 50 4000 -55 °C up to +105 °C 96 3.4 10 2 5 11 ATEC1106R8M050DSPA3D000860161
860160672008SPEC
7 files 8.2 µF 50 4000 -55 °C up to +105 °C 108 4.1 10 2 5 11 ATEC1108R2M050DSPA3D000860161
860160372001SPEC
7 files 10 µF 16 4000 -55 °C up to +105 °C 36 3 16 2 5 11 ATEC110100M016DSPA3D000860160
860160472001SPEC
7 files 10 µF 25 4000 -55 °C up to +105 °C 66 3 14 2 5 11 ATEC110100M025DSPA3D000
860160572001SPEC
7 files 10 µF 35 4000 -55 °C up to +105 °C 84 3.5 12 2 5 11 ATEC110100M035DSPA3D000
860160672009SPEC
7 files 10 µF 50 4000 -55 °C up to +105 °C 120 5 10 2 5 11 ATEC110100M050DSPA3D000860161
860160372002SPEC
7 files 15 µF 16 4000 -55 °C up to +105 °C 72 3 16 2 5 11 ATEC110150M016DSPA3D000860160
860160472002SPEC
7 files 15 µF 25 4000 -55 °C up to +105 °C 120 3.75 14 2 5 11 ATEC110150M025DSPA3D000
860160572002SPEC
7 files 15 µF 35 4000 -55 °C up to +105 °C 144 5.25 12 2 5 11 ATEC110150M035DSPA3D000
860160672010SPEC
7 files 15 µF 50 4000 -55 °C up to +105 °C 150 7.5 10 2 5 11 ATEC110150M050DSPA3D000860161
860160272001SPEC
7 files 22 µF 10 4000 -55 °C up to +105 °C 66 3 19 2 5 11 ATEC110220M010DSPA3D000
860160372003SPEC
7 files 22 µF 16 4000 -55 °C up to +105 °C 72 3.52 16 2 5 11 ATEC110220M016DSPA3D000860160
860160472003SPEC
7 files 22 µF 25 4000 -55 °C up to +105 °C 144 5.5 14 2 5 11 ATEC110220M025DSPA3D000
860160572003SPEC
7 files 22 µF 35 4000 -55 °C up to +105 °C 162 7.7 12 2 5 11 ATEC110220M035DSPA3D000
860160672011SPEC
7 files 22 µF 50 3000 -55 °C up to +105 °C 162 11 10 2 5 11 ATEC110220M050DSPA3C000860161
860160272002SPEC
7 files 27 µF 10 4000 -55 °C up to +105 °C 72 3 19 2 5 11 ATEC110270M010DSPA3D000
860160372004SPEC
7 files 27 µF 16 4000 -55 °C up to +105 °C 132 4.32 16 2 5 11 ATEC110270M016DSPA3D000
860160472004SPEC
7 files 27 µF 25 4000 -55 °C up to +105 °C 156 6.75 14 2 5 11 ATEC110270M025DSPA3D000
860160572004SPEC
7 files 27 µF 35 3000 -55 °C up to +105 °C 174 9.45 12 2 5 11 ATEC110270M035DSPA3C000
860160673012SPEC
7 files 27 µF 50 4000 -55 °C up to +105 °C 192 13.5 10 2.5 6.3 11 ATED110270M050DSPA4D000860161
860160272003SPEC
7 files 33 µF 10 4000 -55 °C up to +105 °C 72 3.3 19 2 5 11 ATEC110330M010DSPA3D000
860160372005SPEC
7 files 33 µF 16 4000 -55 °C up to +105 °C 144 5.28 16 2 5 11 ATEC110330M016DSPA3D000860160
860160472005SPEC
7 files 33 µF 25 4000 -55 °C up to +105 °C 174 8.25 14 2 5 11 ATEC110330M025DSPA3D000
860160572005SPEC
7 files 33 µF 35 3000 -55 °C up to +105 °C 222 11.55 12 2 5 11 ATEC110330M035DSPA3C000
860160673013SPEC
7 files 33 µF 50 3000 -55 °C up to +105 °C 282 16.5 10 2.5 6.3 11 ATED110330M050DSPA4C000860161
860160272004SPEC
7 files 39 µF 10 4000 -55 °C up to +105 °C 120 3.9 19 2 5 11 ATEC110390M010DSPA3D000
860160372006SPEC
7 files 39 µF 16 4000 -55 °C up to +105 °C 168 6.24 16 2 5 11 ATEC110390M016DSPA3D000
860160472006SPEC
7 files 39 µF 25 4000 -55 °C up to +105 °C 174 9.75 14 2 5 11 ATEC110390M025DSPA3D000
860160573006SPEC
7 files 39 µF 35 4000 -55 °C up to +105 °C 252 13.65 12 2.5 6.3 11 ATED110390M035DSPA4D000
860160673014SPEC
7 files 39 µF 50 3000 -55 °C up to +105 °C 306 19.5 10 2.5 6.3 11 ATED110390M050DSPA4C000860161
860160272005SPEC
7 files 47 µF 10 4000 -55 °C up to +105 °C 132 4.7 19 2 5 11 ATEC110470M010DSPA3D000
860160372007SPEC
7 files 47 µF 16 4000 -55 °C up to +105 °C 186 7.52 16 2 5 11 ATEC110470M016DSPA3D000860160
860160472007SPEC
7 files 47 µF 25 4000 -55 °C up to +105 °C 222 11.75 14 2 5 11 ATEC110470M025DSPA3D000
860160573007SPEC
7 files 47 µF 35 4000 -55 °C up to +105 °C 264 16.45 12 2.5 6.3 11 ATED110470M035DSPA4D000
860160673015SPEC
7 files 47 µF 50 4000 -55 °C up to +105 °C 348 23.5 10 2.5 6.3 15 ATED150470M050DSPA4D000
860160674016SPEC
7 files 47 µF 50 7000 -55 °C up to +105 °C 366 23.5 10 3.5 8 11.5 ATEE115470M050DSPA7G000860161
860160272006SPEC
7 files 56 µF 10 4000 -55 °C up to +105 °C 144 5.6 19 2 5 11 ATEC110560M010DSPA3D000
860160372008SPEC
7 files 56 µF 16 4000 -55 °C up to +105 °C 210 8.96 16 2 5 11 ATEC110560M016DSPA3D000
860160472008SPEC
7 files 56 µF 25 4000 -55 °C up to +105 °C 264 14 14 2 5 11 ATEC110560M025DSPA3D000
860160573008SPEC
7 files 56 µF 35 3000 -55 °C up to +105 °C 282 19.6 12 2.5 6.3 11 ATED110560M035DSPA4C000
860160674017SPEC
7 files 56 µF 50 7000 -55 °C up to +105 °C 378 28 10 3.5 8 11.5 ATEE115560M050DSPA7G000860161
860160272007SPEC
7 files 68 µF 10 4000 -55 °C up to +105 °C 162 6.8 19 2 5 11 ATEC110680M010DSPA3D000
860160372009SPEC
7 files 68 µF 16 4000 -55 °C up to +105 °C 228 10.88 16 2 5 11 ATEC110680M016DSPA3D000860160
860160473009SPEC
7 files 68 µF 25 4000 -55 °C up to +105 °C 300 17 14 2.5 6.3 11 ATED110680M025DSPA4D000
860160573009SPEC
7 files 68 µF 35 3000 -55 °C up to +105 °C 312 23.8 12 2.5 6.3 11 ATED110680M035DSPA4C000
860160674018SPEC
7 files 68 µF 50 7000 -55 °C up to +105 °C 420 34 10 3.5 8 11.5 ATEE115680M050DSPA7G000860161
860160272008SPEC
7 files 82 µF 10 4000 -55 °C up to +105 °C 192 8.2 19 2 5 11 ATEC110820M010DSPA3D000
860160373010SPEC
7 files 82 µF 16 4000 -55 °C up to +105 °C 264 13.12 16 2.5 6.3 11 ATED110820M016DSPA4D000
860160473010SPEC
7 files 82 µF 25 4000 -55 °C up to +105 °C 312 20.5 14 2.5 6.3 11 ATED110820M025DSPA4D000
860160573010SPEC
7 files 82 µF 35 4000 -55 °C up to +105 °C 354 28.7 12 2.5 6.3 15 ATED150820M035DSPA4D000
860160673019SPEC
7 files 82 µF 50 3000 -55 °C up to +105 °C 462 41 10 2.5 6.3 15 ATED150820M050DSPA4C000860161
860160574011SPEC
7 files 82 µF 35 7000 -55 °C up to +105 °C 384 28.7 12 3.5 8 11.5 ATEE115820M035DSPA7G000
860160674020SPEC
7 files 82 µF 50 4000 -55 °C up to +105 °C 492 41 10 3.5 8 11.5 ATEE115820M050DSPA7D000
860160272009SPEC
7 files 100 µF 10 4000 -55 °C up to +105 °C 222 10 19 2 5 11 ATEC110101M010DSPA3D000
860160372011SPEC
7 files 100 µF 16 3000 -55 °C up to +105 °C 228 16 16 2 5 11 ATEC110101M016DSPA3C000860160
860160473011SPEC
7 files 100 µF 25 4000 -55 °C up to +105 °C 360 25 14 2.5 6.3 11 ATED110101M025DSPA4D000
860160573012SPEC
7 files 100 µF 35 3000 -55 °C up to +105 °C 378 35 12 2.5 6.3 15 ATED150101M035DSPA4C000
860160574013SPEC
7 files 100 µF 35 7000 -55 °C up to +105 °C 414 35 12 3.5 8 11.5 ATEE115101M035DSPA7G000
860160674021SPEC
7 files 100 µF 50 4000 -55 °C up to +105 °C 540 50 10 3.5 8 11.5 ATEE115101M050DSPA7D000860161
860160272010SPEC
7 files 120 µF 10 3000 -55 °C up to +105 °C 246 12 19 2 5 11 ATEC110121M010DSPA3C000
860160373012SPEC
7 files 120 µF 16 4000 -55 °C up to +105 °C 312 19.2 16 2.5 6.3 11 ATED110121M016DSPA4D000860160
860160473012SPEC
7 files 120 µF 25 4000 -55 °C up to +105 °C 402 30 14 2.5 6.3 11 ATED110121M025DSPA4D000
860160574014SPEC
7 files 120 µF 35 4000 -55 °C up to +105 °C 546 42 12 3.5 8 11.5 ATEE115121M035DSPA7D000
860160674022SPEC
7 files 120 µF 50 7000 -55 °C up to +105 °C 630 60 10 3.5 8 16 ATEE160121M050DSPA7G000860161
860160273011SPEC
7 files 150 µF 10 4000 -55 °C up to +105 °C 282 15 19 2.5 6.3 11 ATED110151M010DSPA4D000
860160373013SPEC
7 files 150 µF 16 3000 -55 °C up to +105 °C 336 24 16 2.5 6.3 11 ATED110151M016DSPA4C000860160
860160473013SPEC
7 files 150 µF 25 4000 -55 °C up to +105 °C 510 37.5 14 2.5 6.3 15 ATED150151M025DSPA4D000
860160474014SPEC
7 files 150 µF 25 7000 -55 °C up to +105 °C 528 37.5 14 3.5 8 11.5 ATEE115151M025DSPA7G000
860160574015SPEC
7 files 150 µF 35 7000 -55 °C up to +105 °C 714 52.5 12 3.5 8 16 ATEE160151M035DSPA7G000
860160674023SPEC
7 files 150 µF 50 4000 -55 °C up to +105 °C 696 75 10 3.5 8 16 ATEE160151M050DSPA7D000860161
860160575016SPEC
7 files 150 µF 35 7000 -55 °C up to +105 °C 720 52.5 12 5 10 12.5 ATEF125151M035DSPA9G000
860160273012SPEC
7 files 180 µF 10 4000 -55 °C up to +105 °C 318 18 19 2.5 6.3 11 ATED110181M010DSPA4D000
860160373014SPEC
7 files 180 µF 16 4000 -55 °C up to +105 °C 420 28.8 16 2.5 6.3 15 ATED150181M016DSPA4D000860160
860160473015SPEC
7 files 180 µF 25 4000 -55 °C up to +105 °C 546 45 14 2.5 6.3 15 ATED150181M025DSPA4D000
860160374015SPEC
7 files 180 µF 16 7000 -55 °C up to +105 °C 426 28.8 16 3.5 8 11.5 ATEE115181M016DSPA7G000
860160474016SPEC
7 files 180 µF 25 7000 -55 °C up to +105 °C 552 45 14 3.5 8 11.5 ATEE115181M025DSPA7G000
860160574017SPEC
7 files 180 µF 35 7000 -55 °C up to +105 °C 792 63 12 3.5 8 16 ATEE160181M035DSPA7G000
860160674024SPEC
7 files 180 µF 50 4000 -55 °C up to +105 °C 864 90 10 3.5 8 20 ATEE200181M050DSPA7D000
860160575018SPEC
7 files 180 µF 35 7000 -55 °C up to +105 °C 804 63 12 5 10 12.5 ATEF125181M035DSPA9G000
860160675025SPEC
7 files 180 µF 50 7000 -55 °C up to +105 °C 912 90 10 5 10 16 ATEF160181M050DSPAAG000860161
860160273013SPEC
7 files 220 µF 10 5000 -55 °C up to +105 °C 366 22 19 2.5 6.3 11 ATED110221M010DSPA4E000
860160373016SPEC
7 files 220 µF 16 4000 -55 °C up to +105 °C 504 35.2 16 2.5 6.3 15 ATED150221M016DSPA4D000
860160374017SPEC
7 files 220 µF 16 7000 -55 °C up to +105 °C 540 35.2 16 3.5 8 11.5 ATEE115221M016DSPA7G000860160
860160474017SPEC
7 files 220 µF 25 7000 -55 °C up to +105 °C 618 55 14 3.5 8 11.5 ATEE115221M025DSPA7G000
860160574019SPEC
7 files 220 µF 35 4000 -55 °C up to +105 °C 864 77 12 3.5 8 16 ATEE160221M035DSPA7D000
860160575020SPEC
7 files 220 µF 35 6000 -55 °C up to +105 °C 888 77 12 5 10 12.5 ATEF125221M035DSPA9F000
860160675026SPEC
7 files 220 µF 50 6000 -55 °C up to +105 °C 1056 110 10 5 10 16 ATEF160221M050DSPAAF000860161
860160273014SPEC
7 files 270 µF 10 4000 -55 °C up to +105 °C 414 27 19 2.5 6.3 15 ATED150271M010DSPA4D000
860160373018SPEC
7 files 270 µF 16 3000 -55 °C up to +105 °C 540 43.2 16 2.5 6.3 15 ATED150271M016DSPA4C000860160
860160274015SPEC
7 files 270 µF 10 7000 -55 °C up to +105 °C 420 27 19 3.5 8 11.5 ATEE115271M010DSPA7G000
860160374019SPEC
7 files 270 µF 16 7000 -55 °C up to +105 °C 582 43.2 16 3.5 8 11.5 ATEE115271M016DSPA7G000
860160474018SPEC
7 files 270 µF 25 4000 -55 °C up to +105 °C 750 67.5 14 3.5 8 11.5 ATEE115271M025DSPA7D000
860160574021SPEC
7 files 270 µF 35 4000 -55 °C up to +105 °C 1056 94.5 12 3.5 8 20 ATEE200271M035DSPA7D000
860160575022SPEC
7 files 270 µF 35 6000 -55 °C up to +105 °C 984 94.5 12 5 10 12.5 ATEF125271M035DSPA9F000
860160675027SPEC
7 files 270 µF 50 6000 -55 °C up to +105 °C 1212 135 10 5 10 20 ATEF200271M050DSPAAF000860161
860160273016SPEC
7 files 330 µF 10 4000 -55 °C up to +105 °C 462 33 19 2.5 6.3 15 ATED150331M010DSPA4D000
860160373021SPEC
7 files 330 µF 16 3000 -55 °C up to +105 °C 588 52.8 16 2.5 6.3 15 ATED150331M016DSPA4C000860160
860160274017SPEC
7 files 330 µF 10 7000 -55 °C up to +105 °C 492 33 19 3.5 8 11.5 ATEE115331M010DSPA7G000
860160374020SPEC
7 files 330 µF 16 4000 -55 °C up to +105 °C 588 52.8 16 3.5 8 11.5 ATEE115331M016DSPA7D000
860160474019SPEC
7 files 330 µF 25 7000 -55 °C up to +105 °C 960 82.5 14 3.5 8 16 ATEE160331M025DSPA7G000
860160574023SPEC
7 files 330 µF 35 4000 -55 °C up to +105 °C 1140 115.5 12 3.5 8 20 ATEE200331M035DSPA7D000
860160475020SPEC
7 files 330 µF 25 7000 -55 °C up to +105 °C 924 82.5 14 5 10 12.5 ATEF125331M025DSPA9G000
860160575024SPEC
7 files 330 µF 35 6000 -55 °C up to +105 °C 1176 115.5 12 5 10 16 ATEF160331M035DSPAAF000
860160675028SPEC
7 files 330 µF 50 6000 -55 °C up to +105 °C 1404 165 10 5 10 25 ATEF250331M050DSPAAF000860161
860160678029SPEC
7 files 330 µF 50 10000 -55 °C up to +105 °C 1500 165 10 5 13 20 ATEI200331M050DSPACK000
860160273018SPEC
7 files 390 µF 10 3000 -55 °C up to +105 °C 456 39 19 2.5 6.3 15 ATED150391M010DSPA4C000
860160274019SPEC
7 files 390 µF 10 7000 -55 °C up to +105 °C 516 39 19 3.5 8 11.5 ATEE115391M010DSPA7G000
860160374022SPEC
7 files 390 µF 16 4000 -55 °C up to +105 °C 612 62.4 16 3.5 8 11.5 ATEE115391M016DSPA7D000860160
860160375023SPEC
7 files 390 µF 16 7000 -55 °C up to +105 °C 648 62.4 16 5 10 12.5 ATEF125391M016DSPA9G000
860160273020SPEC
7 files 470 µF 10 3000 -55 °C up to +105 °C 480 47 19 2.5 6.3 15 ATED150471M010DSPA4C000
860160274021SPEC
7 files 470 µF 10 7000 -55 °C up to +105 °C 552 47 19 3.5 8 11.5 ATEE115471M010DSPA7G000
860160374024SPEC
7 files 470 µF 16 4000 -55 °C up to +105 °C 846 75.2 16 3.5 8 16 ATEE160471M016DSPA7D000860160
860160474021SPEC
7 files 470 µF 25 7000 -55 °C up to +105 °C 1056 117.5 14 3.5 8 20 ATEE200471M025DSPA7G000
860160375025SPEC
7 files 470 µF 16 7000 -55 °C up to +105 °C 882 75.2 16 5 10 12.5 ATEF125471M016DSPA9G000
860160475022SPEC
7 files 470 µF 25 6000 -55 °C up to +105 °C 1020 117.5 14 5 10 12.5 ATEF125471M025DSPA9F000
860160575025SPEC
7 files 470 µF 35 6000 -55 °C up to +105 °C 1302 164.5 12 5 10 20 ATEF200471M035DSPAAF000
860160678030SPEC
7 files 470 µF 50 7000 -55 °C up to +105 °C 1776 235 10 5 13 20 ATEI200471M050DSPACG000860161
860160274022SPEC
7 files 560 µF 10 4000 -55 °C up to +105 °C 588 56 19 3.5 8 11.5 ATEE115561M010DSPA7D000
860160374026SPEC
7 files 560 µF 16 4000 -55 °C up to +105 °C 864 89.6 16 3.5 8 16 ATEE160561M016DSPA7D000
860160474023SPEC
7 files 560 µF 25 4000 -55 °C up to +105 °C 1224 140 14 3.5 8 20 ATEE200561M025DSPA7D000
860160275023SPEC
7 files 560 µF 10 7000 -55 °C up to +105 °C 636 56 19 5 10 12.5 ATEF125561M010DSPA9G000
860160375027SPEC
7 files 560 µF 16 6000 -55 °C up to +105 °C 882 89.6 16 5 10 12.5 ATEF125561M016DSPA9F000860160
860160475024SPEC
7 files 560 µF 25 7000 -55 °C up to +105 °C 1260 140 14 5 10 16 ATEF160561M025DSPAAG000
860160575026SPEC
7 files 560 µF 35 6000 -55 °C up to +105 °C 1572 196 12 5 10 25 ATEF250561M035DSPAAF000
860160578027SPEC
7 files 560 µF 35 10000 -55 °C up to +105 °C 1584 196 12 5 13 20 ATEI200561M035DSPACK000
860160678031SPEC
7 files 560 µF 50 7000 -55 °C up to +105 °C 2094 280 10 5 13 20 ATEI200561M050DSPACG000860161
860160274024SPEC
7 files 680 µF 10 7000 -55 °C up to +105 °C 660 68 19 3.5 8 16 ATEE160681M010DSPA7G000
860160374028SPEC
7 files 680 µF 16 4000 -55 °C up to +105 °C 960 108.8 16 3.5 8 20 ATEE200681M016DSPA7D000860160
860160275025SPEC
7 files 680 µF 10 7000 -55 °C up to +105 °C 684 68 19 5 10 12.5 ATEF125681M010DSPA9G000
860160375029SPEC
7 files 680 µF 16 7000 -55 °C up to +105 °C 1044 108.8 16 5 10 16 ATEF160681M016DSPAAG000
860160475025SPEC
7 files 680 µF 25 7000 -55 °C up to +105 °C 1470 170 14 5 10 20 ATEF200681M025DSPAAG000
860160575028SPEC
7 files 680 µF 35 6000 -55 °C up to +105 °C 1680 238 12 5 10 25 ATEF250681M035DSPAAF000
860160578029SPEC
7 files 680 µF 35 10000 -55 °C up to +105 °C 1692 238 12 5 13 20 ATEI200681M035DSPACK000
