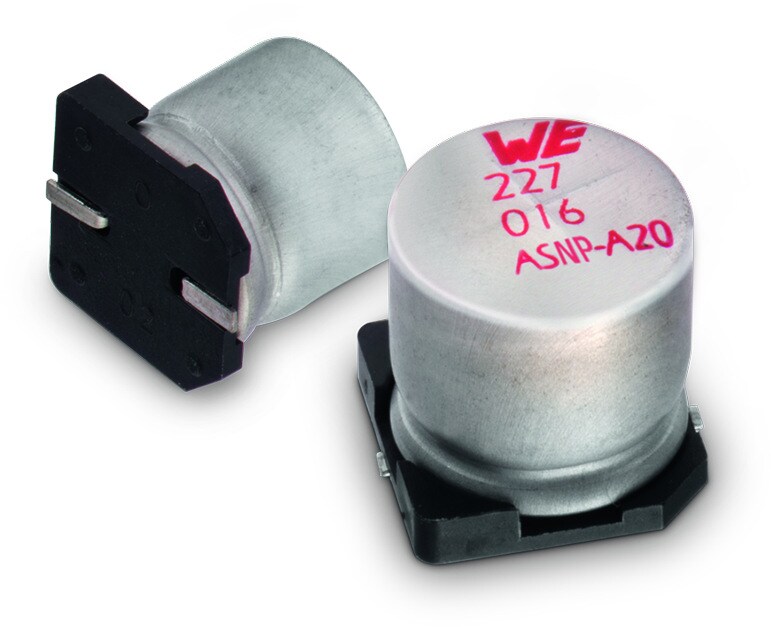

WCAP-ASNP Aluminum Electrolytic Capacitors

Non-Polar +85 °C

Characteristics

  • Non-polarized product series with max. operating temperature of +85°C
  • Mounting style: V-Chip SMT
  • Capacitance range: 0.1 µF ‒ 560 µF
  • Capacitance tolerance: ±20 %
  • Voltage range (UR): 6.3 ‒ 50 V(DC)
  • Operating temperature: -40 °C up to +85 °C
  • Endurance: 2000 h @ +85 °C
  • Dimensions (DxL) in mm: 4.0 x 5.5 up to 10.0 x 10.5
  • Recommended soldering: Reflow soldering

Applications

  • Reverse polarity protected
  • Filtering
  • Coupling
  • e.g. TV, audio, digital camera

Products

Order Code Data­sheet Simu­lation DownloadsCVR
(V (DC))
Endurance
(h)
Operating TemperatureIRIPPLE
(mA)
Z
(Ω)
ILeak
(µA)
DF
(%)
Ø D
(mm)
L
(mm)
Technical ReferenceDesign Kit Samples
865250640001
STE ALT EAG CAD LTS PSP CAD0.1 µF 50 2000 -40 °C up to +85 °C 1 20.6814 10 15 4 5.5 ASBB055R10M050DVCTAB000865250
865250640002
STE ALT EAG CAD LTS PSP CAD0.22 µF 50 2000 -40 °C up to +85 °C 2 10 15 4 5.5 ASBB055R22M050DVCTAB000865250
865250640003
STE ALT EAG CAD LTS PSP CAD0.33 µF 50 2000 -40 °C up to +85 °C 2.8 8.79148 10 15 4 5.5 ASBB055R33M050DVCTAB000865250
865250640004
STE ALT EAG CAD LTS PSP CAD0.47 µF 50 2000 -40 °C up to +85 °C 4 7.8069 10 15 4 5.5 ASBB055R47M050DVCTAB000865250
865250640005
STE ALT EAG CAD LTS PSP CAD1 µF 50 2000 -40 °C up to +85 °C 8.4 6.11584 10 15 4 5.5 ASBB055010M050DVCTAB000865250
865250640006
STE ALT EAG CAD LTS PSP CAD2.2 µF 50 2000 -40 °C up to +85 °C 13 5.54928 10 15 4 5.5 ASBB0552R2M050DVCTAB000865250
865250540001
STE ALT EAG CAD LTS PSP CAD2.2 µF 35 2000 -40 °C up to +85 °C 8.4 5.31872 10 15 4 5.5 ASBB0552R2M035DVCTAB000
865250340001
STE ALT EAG CAD LTS PSP CAD3.3 µF 16 2000 -40 °C up to +85 °C 12 4.00216 10 17 4 5.5 ASBB0553R3M016DVCTAB000
865250440001
STE ALT EAG CAD LTS PSP CAD3.3 µF 25 2000 -40 °C up to +85 °C 12 3.93557 10 17 4 5.5 ASBB0553R3M025DVCTAB000865250
865250640007
STE ALT EAG CAD LTS PSP CAD3.3 µF 50 2000 -40 °C up to +85 °C 17 5.77566 10 15 4 5.5 ASBB0553R3M050DVCTAB000865250
865250540002
STE ALT EAG CAD LTS PSP CAD3.3 µF 35 2000 -40 °C up to +85 °C 16 3.34078 10 15 4 5.5 ASBB0553R3M035DVCTAB000
865250340002
STE ALT EAG CAD LTS PSP CAD4.7 µF 16 2000 -40 °C up to +85 °C 12 10 17 4 5.5 ASBB0554R7M016DVCTAB000
865250440002
STE ALT EAG CAD LTS PSP CAD4.7 µF 25 2000 -40 °C up to +85 °C 16 3.37198 10 17 4 5.5 ASBB0554R7M025DVCTAB000
865250540003
STE ALT EAG CAD LTS PSP CAD4.7 µF 35 2000 -40 °C up to +85 °C 18 3.47818 10 15 4 5.5 ASBB0554R7M035DVCTAB000865250
865250642008
STE ALT EAG CAD LTS PSP CAD4.7 µF 50 2000 -40 °C up to +85 °C 20 2.61794 11.75 15 5 5.5 ASBC0554R7M050DVCTBB000865250
865250340003
STE ALT EAG CAD LTS PSP CAD10 µF 16 2000 -40 °C up to +85 °C 23 3.68257 10 17 4 5.5 ASBB055100M016DVCTAB000865250
865250140001
STE ALT EAG CAD LTS PSP CAD10 µF 6.3 2000 -40 °C up to +85 °C 15 3.8354 10 24 4 5.5 ASBB055100M6R3DVCTAB000
865250240001
STE ALT EAG CAD LTS PSP CAD10 µF 10 2000 -40 °C up to +85 °C 17 3.8754 10 20 4 5.5 ASBB055100M010DVCTAB000
865250442003
STE ALT EAG CAD LTS PSP CAD10 µF 25 2000 -40 °C up to +85 °C 27 2.34491 12.5 17 5 5.5 ASBC055100M025DVCTBB000865250
865250643009
STE ALT EAG CAD LTS PSP CAD10 µF 50 2000 -40 °C up to +85 °C 32 2.52664 25 15 6.3 5.5 ASBD055100M050DVCTBB000865250
865250543004
STE ALT EAG CAD LTS PSP CAD10 µF 35 2000 -40 °C up to +85 °C 29 1.27833 17.5 15 6.3 5.5 ASBD055100M035DVCTBB000
865250140002
STE ALT EAG CAD LTS PSP CAD22 µF 6.3 2000 -40 °C up to +85 °C 28 3.86425 10 24 4 5.5 ASBB055220M6R3DVCTAB000865250
865250342004
STE ALT EAG CAD LTS PSP CAD22 µF 16 2000 -40 °C up to +85 °C 37 1.45067 17.6 17 5 5.5 ASBC055220M016DVCTBB000865250
865250242002
STE ALT EAG CAD LTS PSP CAD22 µF 10 2000 -40 °C up to +85 °C 33 1.7538 11 20 5 5.5 ASBC055220M010DVCTBB000
865250443004
STE ALT EAG CAD LTS PSP CAD22 µF 25 2000 -40 °C up to +85 °C 40 1.08894 27.5 17 6.3 5.5 ASBD055220M025DVCTBB000
865250543005
STE ALT EAG CAD LTS PSP CAD22 µF 35 2000 -40 °C up to +85 °C 45 1.10653 38.5 15 6.3 5.5 ASBD055220M035DVCTBB000865250
865250653010
STE ALT EAG CAD LTS PSP CAD22 µF 50 2000 -40 °C up to +85 °C 60 0.415783 55 15 8 10.5 ASBE105220M050DVCTEB000865250
865250142003
STE ALT EAG CAD LTS PSP CAD33 µF 6.3 2000 -40 °C up to +85 °C 37 1.37241 10.395 24 5 5.5 ASBC055330M6R3DVCTBB000865250
865250343005
STE ALT EAG CAD LTS PSP CAD33 µF 16 2000 -40 °C up to +85 °C 49 1.89848 26.4 17 6.3 5.5 ASBD055330M016DVCTBB000
865250243003
STE ALT EAG CAD LTS PSP CAD33 µF 10 2000 -40 °C up to +85 °C 41 1.07989 16.5 20 6.3 5.5 ASBD055330M010DVCTBB000
865250445005
STE ALT EAG CAD LTS PSP CAD33 µF 25 2000 -40 °C up to +85 °C 51 0.761286 41.25 17 6.3 7.7 ASBD077330M025DVCTCB000865250
865250449006
STE ALT EAG CAD LTS PSP CAD33 µF 25 2000 -40 °C up to +85 °C 55 0.711226 41.25 17 8 6.5 ASBE065330M025DVCTBB000
865250553006
STE ALT EAG CAD LTS PSP CAD33 µF 35 2000 -40 °C up to +85 °C 58 0.356225 57.75 15 8 10.5 ASBE105330M035DVCTEB000865250
865250657011
STE ALT EAG CAD LTS PSP CAD33 µF 50 2000 -40 °C up to +85 °C 75 0.214878 82.5 15 10 10.5 ASBF105330M050DVCTEB000865250
865250143004
STE ALT EAG CAD LTS PSP CAD47 µF 6.3 2000 -40 °C up to +85 °C 45 0.990213 14.805 24 6.3 5.5 ASBD055470M6R3DVCTBB000
865250243004
STE ALT EAG CAD LTS PSP CAD47 µF 10 2000 -40 °C up to +85 °C 50 0.996059 23.5 20 6.3 5.5 ASBD055470M010DVCTBB000
865250345006
STE ALT EAG CAD LTS PSP CAD47 µF 16 2000 -40 °C up to +85 °C 51 0.67708 37.6 17 6.3 7.7 ASBD077470M016DVCTCB000865250
865250445007
STE ALT EAG CAD LTS PSP CAD47 µF 25 2000 -40 °C up to +85 °C 56 0.624706 58.75 17 6.3 7.7 ASBD077470M025DVCTCB000865250
865250349007
STE ALT EAG CAD LTS PSP CAD47 µF 16 2000 -40 °C up to +85 °C 55 0.592421 37.6 17 8 6.5 ASBE065470M016DVCTBB000
865250449008
STE ALT EAG CAD LTS PSP CAD47 µF 25 2000 -40 °C up to +85 °C 60 0.896552 58.75 17 8 6.5 ASBE065470M025DVCTBB000865250
865250553007
STE ALT EAG CAD LTS PSP CAD47 µF 35 2000 -40 °C up to +85 °C 64 0.351603 82.25 15 8 10.5 ASBE105470M035DVCTEB000865250
865250657012
STE ALT EAG CAD LTS PSP CAD47 µF 50 2000 -40 °C up to +85 °C 100 0.214467 117.5 15 10 10.5 ASBF105470M050DVCTEB000865250
865250145005
STE ALT EAG CAD LTS PSP CAD100 µF 6.3 2000 -40 °C up to +85 °C 65 0.463097 31.5 24 6.3 7.7 ASBD077101M6R3DVCTCB000
865250245005
STE ALT EAG CAD LTS PSP CAD100 µF 10 2000 -40 °C up to +85 °C 75 0.442638 50 20 6.3 7.7 ASBD077101M010DVCTCB000865250
865250149006
STE ALT EAG CAD LTS PSP CAD100 µF 6.3 2000 -40 °C up to +85 °C 70 0.592638 31.5 24 8 6.5 ASBE065101M6R3DVCTBB000865250
865250249006
STE ALT EAG CAD LTS PSP CAD100 µF 10 2000 -40 °C up to +85 °C 80 0.603224 50 20 8 6.5 ASBE065101M010DVCTBB000
865250353008
STE ALT EAG CAD LTS PSP CAD100 µF 16 2000 -40 °C up to +85 °C 100 0.298562 80 17 8 10.5 ASBE105101M016DVCTEB000
865250453009
STE ALT EAG CAD LTS PSP CAD100 µF 25 2000 -40 °C up to +85 °C 130 0.308167 125 17 8 10.5 ASBE105101M025DVCTEB000865250
865250153007
STE ALT EAG CAD LTS PSP CAD220 µF 6.3 2000 -40 °C up to +85 °C 120 0.258878 69.3 24 8 10.5 ASBE105221M6R3DVCTEB000
865250253007
STE ALT EAG CAD LTS PSP CAD220 µF 10 2000 -40 °C up to +85 °C 150 0.249444 110 20 8 10.5 ASBE105221M010DVCTEB000865250
865250357009
STE ALT EAG CAD LTS PSP CAD220 µF 16 2000 -40 °C up to +85 °C 170 0.152594 176 17 10 10.5 ASBF105221M016DVCTEB000865250
865250153008
STE ALT EAG CAD LTS PSP CAD330 µF 6.3 2000 -40 °C up to +85 °C 160 0.246094 103.95 24 8 10.5 ASBE105331M6R3DVCTEB000865250
865250257008
STE ALT EAG CAD LTS PSP CAD330 µF 10 2000 -40 °C up to +85 °C 180 0.151124 165 20 10 10.5 ASBF105331M010DVCTEB000865250
865250157009
STE ALT EAG CAD LTS PSP CAD470 µF 6.3 2000 -40 °C up to +85 °C 190 0.154707 148.05 24 10 10.5 ASBF105471M6R3DVCTEB000865250
865250157010
STE ALT EAG CAD LTS PSP CAD560 µF 6.3 2000 -40 °C up to +85 °C 220 0.138049 176.4 24 10 10.5 ASBF105561M6R3DVCTEB000865250
