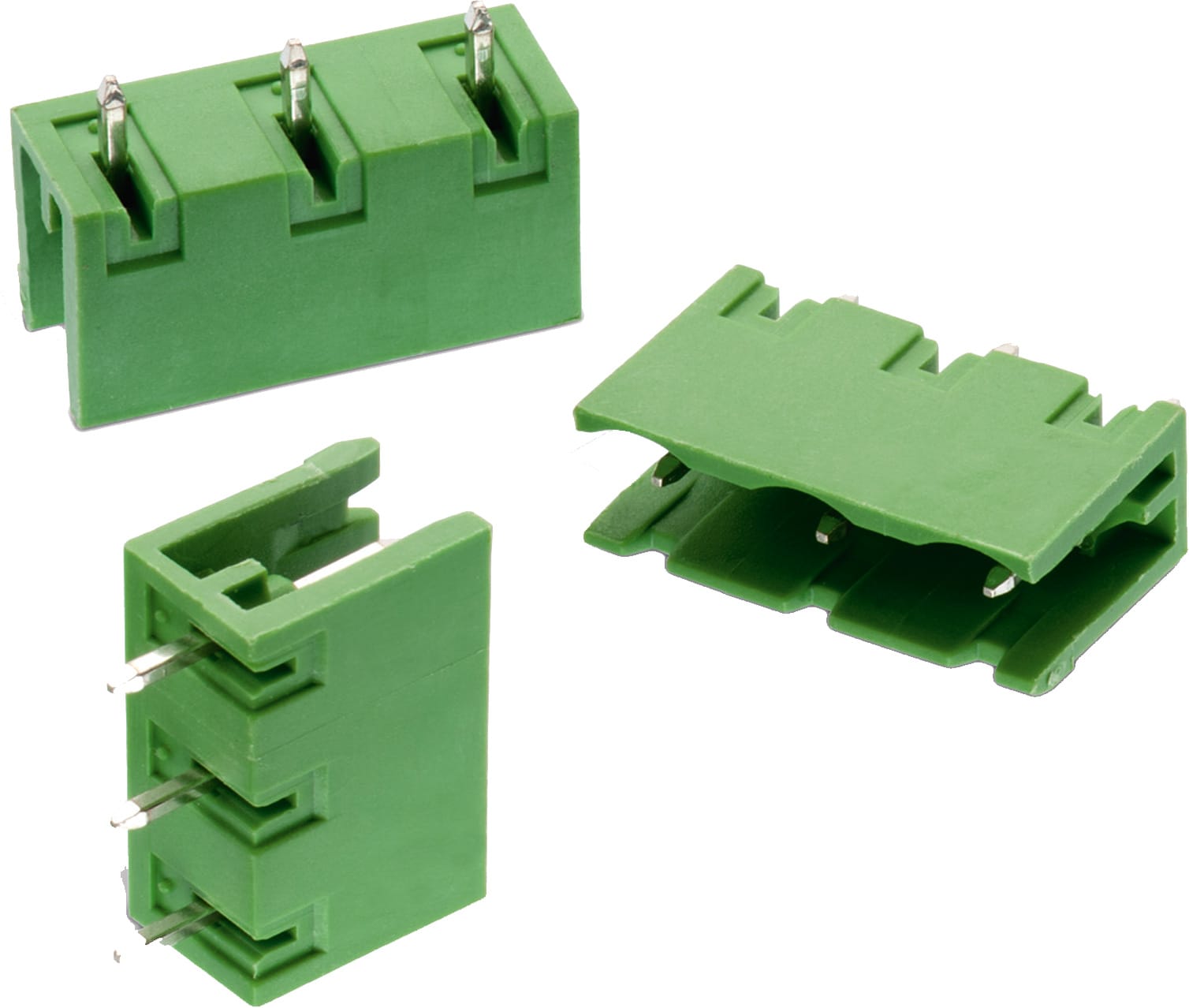

WR-TBL Series 3114 - 7.62 mm Open Vertical PCB Header

Kind Properties
Pitch 7.62 mm
Material Properties
Insulator Material PBT
Insulator Flammability Rating UL94 V-0
Contact Material Brass
Contact Plating Tin
General Information
Operating Temperature -40 up to +105 °C
Compliance RoHS
Electrical Properties
IR cULus 20 A
Working Voltage 300 V (AC)
Working Voltage [cULus] 300 V (AC)
Withstanding Voltage [cULus] 1600 V (AC)
Contact Resistance [cULus] 20 mΩ
Certification
cULus Approval E315414

Products

Order Code Data­sheet Downloads Application PCB/Cable/Panel Modularity Type IR
(A)
Samples
691311400002
STE 3D ALT EAG IGS CAD Pluggable PCB No Vertical 20
691311400003
STE 3D ALT EAG IGS CAD Pluggable PCB No Vertical 20
691311400004
STE 3D ALT EAG IGS CAD Pluggable PCB No Vertical 20
691311400005
STE 3D ALT EAG IGS CAD Pluggable PCB No Vertical 20
691311400006
STE 3D ALT EAG IGS CAD Pluggable PCB No Vertical 20
691311400008
STE 3D ALT EAG IGS CAD Pluggable PCB No Vertical 20
691311400007
IGE STE 3D ALT EAG CAD Pluggable PCB No Vertical 20
691311400012
IGE STE 3D ALT EAG CAD Pluggable PCB No Vertical 20
Order Code Data­sheet
691311400002
691311400003
691311400004
691311400005
691311400006
691311400008
691311400007
691311400012
