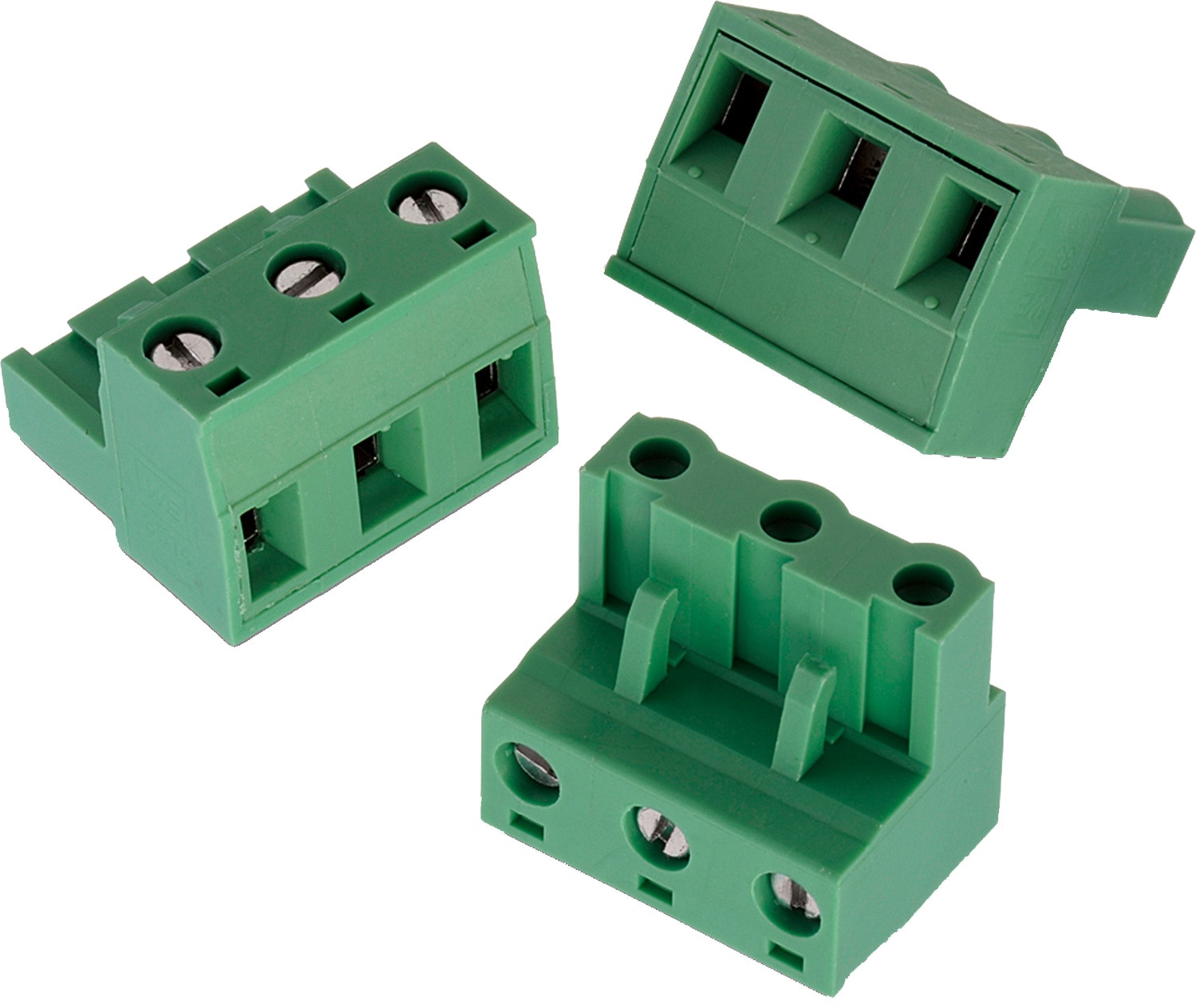

WR-TBL Series 3514 - 7.62 mm Vertical | Electromechanical Components

General Information
Operating Temperature	-40 °C up to +105 °C
Compliance	RoHS
Pitch	7.62 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Contact Material	Brass
Terminal Screw Material	Steel
Terminal Screw Plating	Zinc
Wire Guard Material	Phosphor Bronze

Electrical Properties
I_R	20 A
I_R[cULus]	20 A
Working Voltage	300 V (AC)
Working Voltage [cULus]	300 V (AC)
Withstanding Voltage [cULus]	1600 V (AC)
R_C	20 mΩ

Mechanical Properties
Screw	M3

Wire Properties
Solid Wire Section (AWG)	12 to 24 (AWG)
Solid Wire Section (Metric)	3.31 to 0.205 (mm²)
Stranded Wire Section (AWG)	12 to 24 (AWG)
Stranded Wire Section (Metric)	3.31 to 0.205 (mm²)

Certification
cULus Approval	E315414

Application Notes

Products

Filter article data

show article in 0 product lines

article in 0 product lines

Reset all

Order Code	Datasheet	Downloads	Status	Pins	PCB/Cable/Panel	Modularity	Type	Wire Section	Design Kit
691351400002	2, Pluggable, Cable	Downloads3 files CAD files ZIP 3D 691351400002_1 (rev1).pdf \| 224.9 KB IGS 691351400002 (rev1).iges \| 1.8 MB STP 691351400002 (rev1).stp \| 373.3 KB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins2	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 12 to 24 (AWG) 3.31 to 0.205 (mm²)	Design Kit 691002
691351400003	3, Pluggable, Cable	Downloads3 files CAD files ZIP 3D 691351400003_1 (rev1).pdf \| 279.8 KB IGS 691351400003 (rev1).iges \| 2.4 MB STP 691351400003 (rev1).stp \| 922.3 KB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins3	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 12 to 24 (AWG) 3.31 to 0.205 (mm²)	Design Kit –
691351400004	4, Pluggable, Cable	Downloads3 files CAD files ZIP 3D 691351400004_1 (rev1).pdf \| 331.3 KB IGS 691351400004 (rev1).iges \| 3.1 MB STP 691351400004 (rev1).stp \| 1.1 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins4	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 12 to 24 (AWG) 3.31 to 0.205 (mm²)	Design Kit –
691351400005	5, Pluggable, Cable	Downloads3 files CAD files ZIP 3D 691351400005_1 (rev1).pdf \| 386.3 KB IGS 691351400005 (rev1).iges \| 3.7 MB STP 691351400005 (rev1).stp \| 1.4 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins5	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 12 to 24 (AWG) 3.31 to 0.205 (mm²)	Design Kit –
691351400006	6, Pluggable, Cable	Downloads3 files CAD files ZIP 3D 691351400006_1 (rev1).pdf \| 443.5 KB IGS 691351400006 (rev1).iges \| 4.3 MB STP 691351400006 (rev1).stp \| 1.6 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins6	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 12 to 24 (AWG) 3.31 to 0.205 (mm²)	Design Kit –
691351400007	7, Pluggable, Cable	Downloads3 files CAD files ZIP 3D 3D_691351400007 (rev1).pdf \| 484.1 KB IGS Download_IGES_691351400007 (rev1).iges \| 4.9 MB STP Download_STP_691351400007 (rev1).stp \| 1.8 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins7	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 12 to 24 (AWG) 3.31 to 0.205 (mm²)	Design Kit –
691351400008	8, Pluggable, Cable	Downloads3 files CAD files ZIP 3D 691351400008_1 (rev1).pdf \| 534.6 KB IGS 691351400008 (rev1).iges \| 5.5 MB STP 691351400008 (rev1).stp \| 2.1 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins8	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 12 to 24 (AWG) 3.31 to 0.205 (mm²)	Design Kit –
691351400012	12, Pluggable, Cable	Downloads3 files CAD files ZIP 3D 3D_691351400012 (rev1).pdf \| 758.5 KB IGS Download_IGES_691351400012 (rev1).iges \| 8 MB STP Download_STP_691351400012 (rev1).stp \| 3 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins12	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 12 to 24 (AWG) 3.31 to 0.205 (mm²)	Design Kit –
