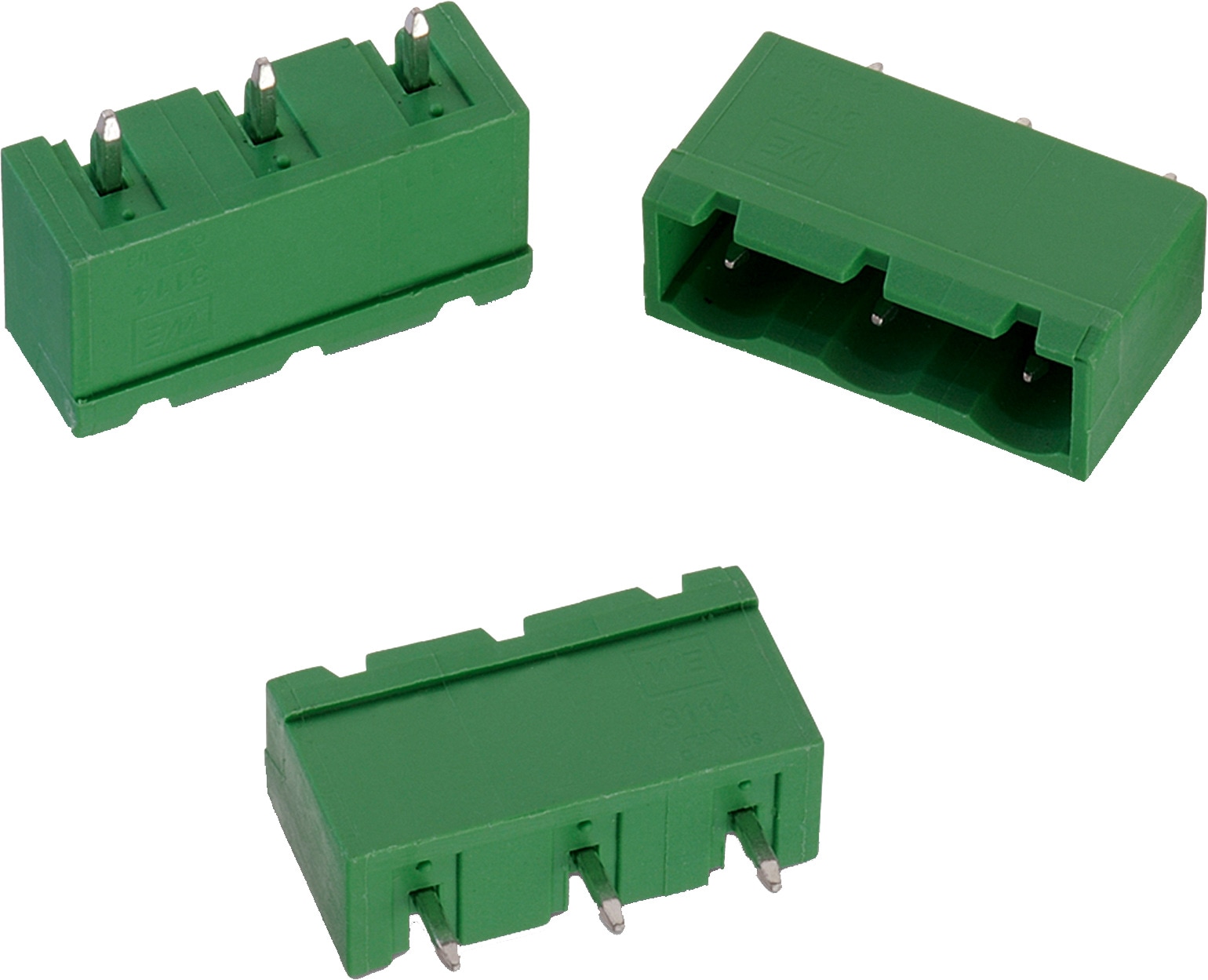

WR-TBL Series 3114 - 7.62 mm Close Vertical PCB Header | Electromechanical Components

General Information
Operating Temperature	-40 °C up to +105 °C
Compliance	RoHS
Pitch	7.62 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Contact Material	Brass
Contact Plating	Tin

Electrical Properties
I_R	20 A
I_{R cULus}	20 A
Working Voltage	300 V (AC)
Working Voltage [cULus]	300 V (AC)
Withstanding Voltage [cULus]	1600 V (AC)
Contact Resistance [cULus]	20 mΩ

Certification
cULus Approval	E315414

Application Notes

Products

Order Code	Datasheet	Downloads	Pins	Application	PCB/Cable/Panel	Modularity	Type	Design Kit
691311400102	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Pluggable Connector (rev23b).lbr \| 3.8 MB CAD files ZIP 3D 691311400102_1 (rev1).pdf \| 65.4 KB IGS 691311400102 (rev1).igs \| 575.2 KB STP 691311400102 (rev1).stp \| 223.4 KB	2	Pluggable	PCB	No	Vertical	–
691311400103	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Pluggable Connector (rev23b).lbr \| 3.8 MB CAD files ZIP 3D 691311400103_1 (rev1).pdf \| 85.3 KB IGS 691311400103 (rev1).igs \| 789.5 KB STP 691311400103 (rev1).stp \| 301.5 KB	3	Pluggable	PCB	No	Vertical	691002
691311400104	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Pluggable Connector (rev23b).lbr \| 3.8 MB CAD files ZIP 3D 691311400104_1 (rev1).pdf \| 104.1 KB IGS 691311400104 (rev1).igs \| 1004 KB STP 691311400104 (rev1).stp \| 379.3 KB	4	Pluggable	PCB	No	Vertical	–
691311400105	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Pluggable Connector (rev23b).lbr \| 3.8 MB CAD files ZIP 3D 691311400105_1 (rev1).pdf \| 131.1 KB IGS 691311400105 (rev1).igs \| 1.2 MB STP 691311400105 (rev1).stp \| 457.2 KB	5	Pluggable	PCB	No	Vertical	–
691311400106	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Pluggable Connector (rev23b).lbr \| 3.8 MB CAD files ZIP 3D 691311400106_1 (rev1).pdf \| 150.8 KB IGS 691311400106 (rev1).igs \| 1.4 MB STP 691311400106 (rev1).stp \| 535.3 KB	6	Pluggable	PCB	No	Vertical	–
691311400107	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Pluggable Connector (rev23b).lbr \| 3.8 MB CAD files ZIP 3D 3D_691311400107 (rev1).pdf \| 154.3 KB IGS Downloads_IGES_691311400107 (rev1).iges \| 1.6 MB STP Downloads_STP_691311400107 (rev1).stp \| 614.8 KB	7	Pluggable	PCB	No	Vertical	–
691311400108	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Pluggable Connector (rev23b).lbr \| 3.8 MB CAD files ZIP 3D 691311400108_1 (rev1).pdf \| 205.8 KB IGS 691311400108 (rev1).igs \| 1.8 MB STP 691311400108 (rev1).stp \| 695.4 KB	8	Pluggable	PCB	No	Vertical	–
691311400112	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Pluggable Connector (rev23b).lbr \| 3.8 MB CAD files ZIP 3D 3D_691311400112 (rev1).pdf \| 256.2 KB IGS Downloads_IGES_691311400112 (rev1).iges \| 2.7 MB STP Downloads_STP_691311400112 (rev1).stp \| 1018.9 KB	12	Pluggable	PCB	No	Vertical	–

Order Code	Datasheet
691311400102	SPEC
691311400103	SPEC
691311400104	SPEC
691311400105	SPEC
691311400106	SPEC
691311400107	SPEC
691311400108	SPEC
691311400112	SPEC

Samples

Order Code	Datasheet	Downloads	Pins	Application	PCB/Cable/Panel	Modularity	Type	Design Kit	Samples

Terminal Blocks - Standard, Personalized & Highly Customized

Tailored to your needs

Custom & Standard Terminal Blocks

In addition to a portfolio of more than 2000 standard articles, Würth Elektronik offers various possibilities to tailor the products to your specific requirements. Personalized modifications of standard terminal blocks are available for small to medium quantities within a few days as a special service. Fully customized products in high quantities are possible within a few weeks.In house design, tooling and prototyping ensures all customer specific requirements are met.
