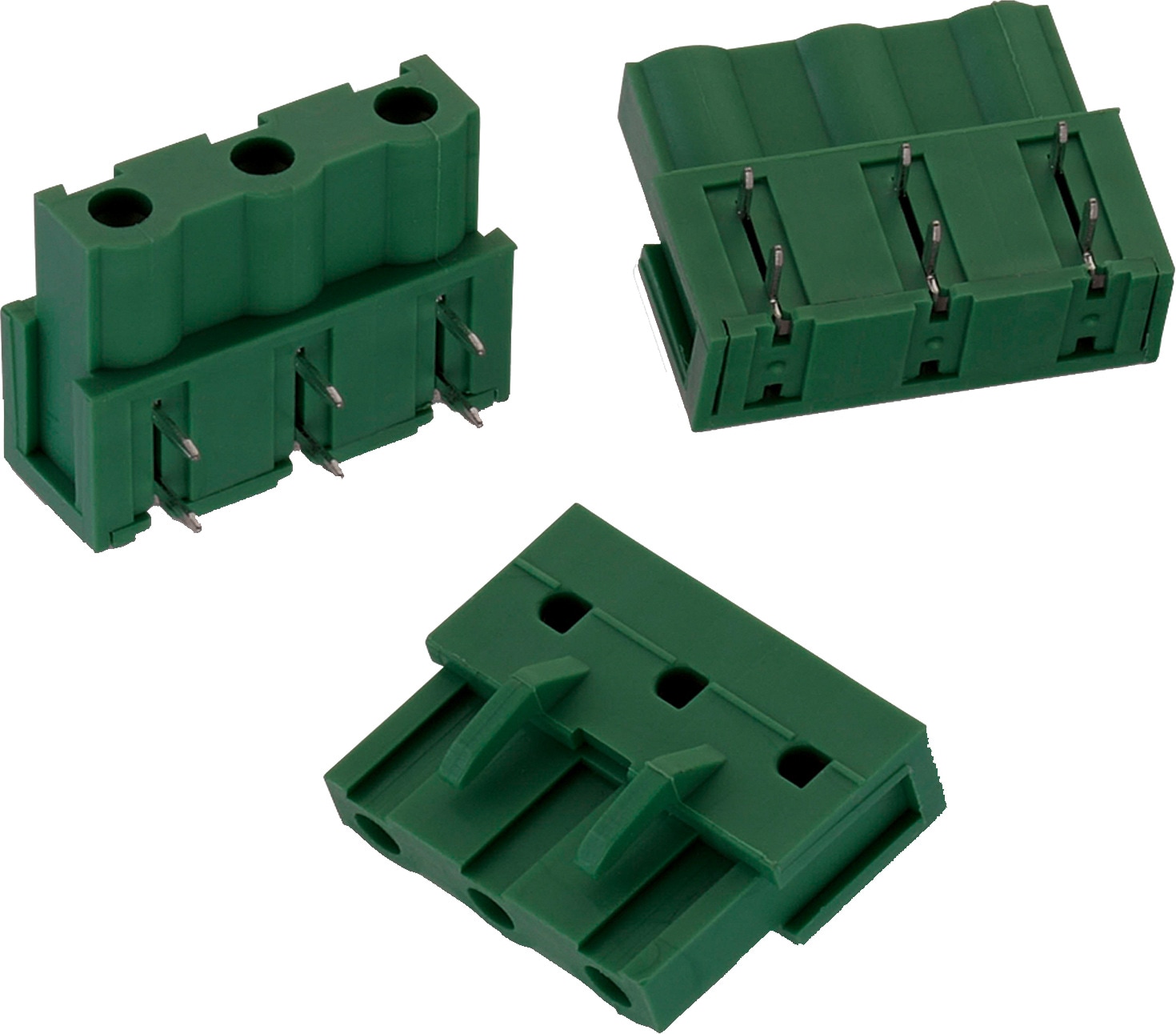

WR-TBL Series 3094 - 7.62 mm Reversed Gender Horizontal PCB Header | Electromechanical Components

General Information
Operating Temperature	-40 °C up to +105 °C
Compliance	RoHS
Pitch	7.62 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Contact Material	Brass
Contact Plating	Tin
Wire Guard Material	Phosphor Bronze

Electrical Properties
I_R	20 A
I_{R cULus}	20 A
Working Voltage	300 V (AC)
Working Voltage [cULus]	300 V (AC)
Withstanding Voltage [cULus]	1600 V (AC)
Contact Resistance [cULus]	20 mΩ

Certification
cULus Approval	E315414

Application Notes

Products

Order Code	Datasheet	Downloads	Pins	Application	PCB/Cable/Panel	Modularity	Type	Design Kit
691309410002	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Pluggable Connector (rev23b).lbr \| 3.8 MB CAD files ZIP 3D 691309410002_1 (rev1).pdf \| 138.8 KB IGS 691309410002 (rev1).igs \| 1.5 MB STP 691309410002 (rev1).stp \| 546.6 KB	2	Pluggable	PCB	No	Horizontal	691001 691002
691309410003	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Pluggable Connector (rev23b).lbr \| 3.8 MB CAD files ZIP 3D 691309410003_1 (rev1).pdf \| 173.2 KB IGS 691309410003 (rev1).igs \| 1.9 MB STP 691309410003 (rev1).stp \| 714.5 KB	3	Pluggable	PCB	No	Horizontal	–
691309410004	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Pluggable Connector (rev23b).lbr \| 3.8 MB CAD files ZIP 3D 691309410004_1 (rev1).pdf \| 206.3 KB IGS 691309410004 (rev1).igs \| 2.3 MB STP 691309410004 (rev1).stp \| 860 KB	4	Pluggable	PCB	No	Horizontal	–
691309410005	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Pluggable Connector (rev23b).lbr \| 3.8 MB CAD files ZIP 3D 691309410005_1 (rev1).pdf \| 245.3 KB IGS 691309410005 (rev1).igs \| 2.7 MB STP 691309410005 (rev1).stp \| 1006.5 KB	5	Pluggable	PCB	No	Horizontal	–
691309410006	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Pluggable Connector (rev23b).lbr \| 3.8 MB CAD files ZIP 3D 691309410006_1 (rev1).pdf \| 283.2 KB IGS 691309410006 (rev1).igs \| 3 MB STP 691309410006 (rev1).stp \| 1.1 MB	6	Pluggable	PCB	No	Horizontal	–
691309410007	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Pluggable Connector (rev23b).lbr \| 3.8 MB CAD files ZIP 3D 3D_691309410007 (rev1).pdf \| 315.5 KB IGS Downloads_IGES_691309410007 (rev1).iges \| 3.4 MB STP Downloads_STP_691309410007 (rev1).stp \| 1.3 MB	7	Pluggable	PCB	No	Horizontal	–
691309410008	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Pluggable Connector (rev23b).lbr \| 3.8 MB CAD files ZIP 3D 691309410008_1 (rev1).pdf \| 318.9 KB IGS 691309410008 (rev1).igs \| 3.8 MB STP 691309410008 (rev1).stp \| 1.4 MB	8	Pluggable	PCB	No	Horizontal	–
691309410012	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Pluggable Connector (rev23b).lbr \| 3.8 MB CAD files ZIP 3D 3D_691309410012 (rev1).pdf \| 451.3 KB IGS Downloads_IGES_691309410012 (rev1).iges \| 5.3 MB STP Downloads_STP_691309410012 (rev1).stp \| 2 MB	12	Pluggable	PCB	No	Horizontal	–
