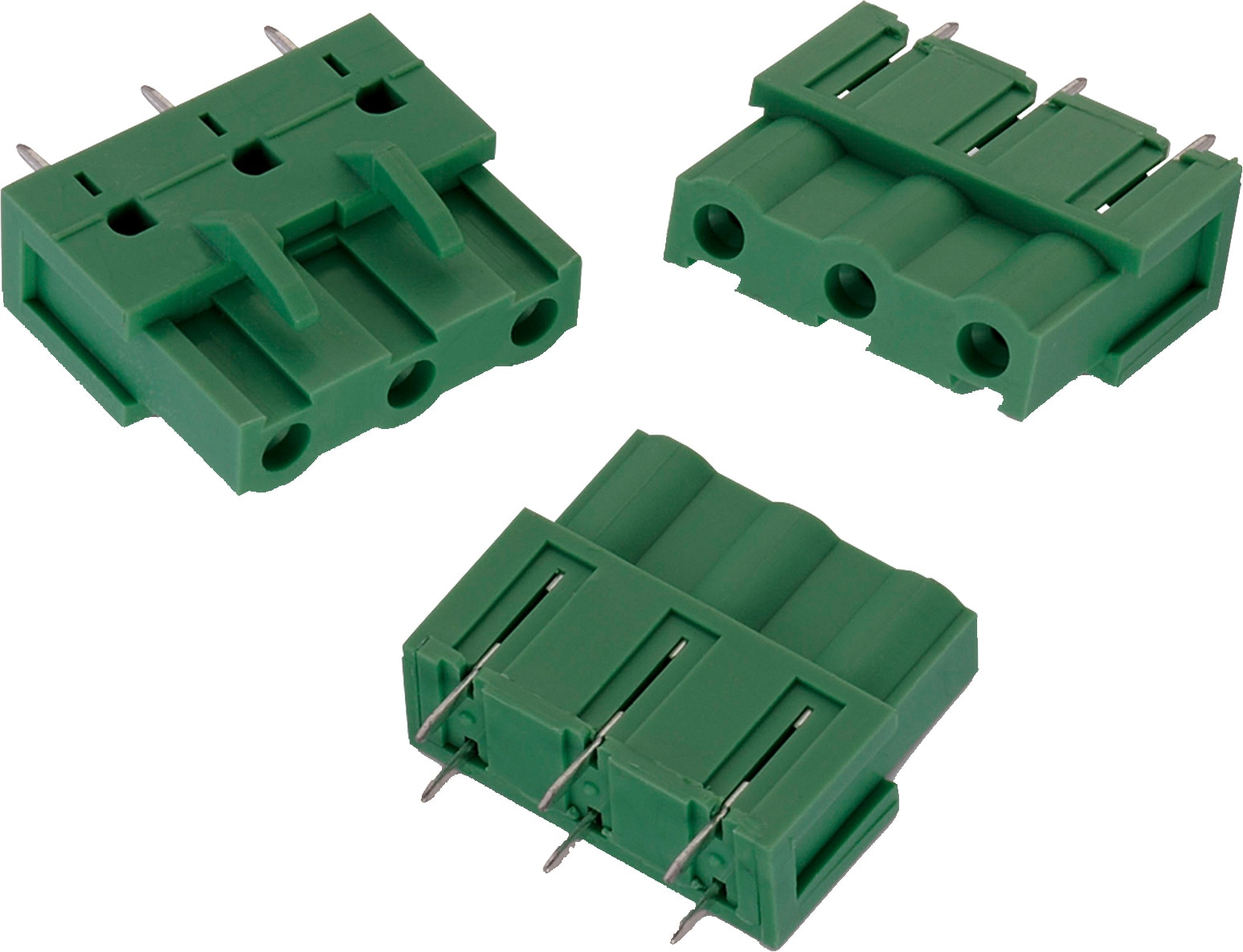

WR-TBL Series 3074 - 7.62 mm Reversed Gender Vertical PCB Header

Kind Properties
Pitch7.62 mm
Material Properties
Insulator MaterialPA66
Insulator Flammability RatingUL94 V-0
Contact MaterialBrass
Contact PlatingTin
Wire Guard MaterialPhosphor Bronze
General Information
Operating Temperature-40 up to +105 °C
ComplianceRoHS
Electrical Properties
IR cULus20 A
Working Voltage300 V (AC)
Working Voltage [cULus]300 V (AC)
Withstanding Voltage [cULus]1600 V (AC)
Contact Resistance [cULus]20 mΩ
Certification
cULus ApprovalE315414

Products

Order Code Data­sheet DownloadsPinsApplicationPCB/Cable/PanelModularityTypeIR
(A)
Design Kit Samples
691307400002
STE 3D ALT EAG IGS CAD 2 Pluggable PCB No Vertical 20691001
691307400003
STE 3D ALT EAG IGS CAD 3 Pluggable PCB No Vertical 20
691307400004
STE 3D ALT EAG IGS CAD 4 Pluggable PCB No Vertical 20
691307400005
STE 3D ALT EAG IGS CAD 5 Pluggable PCB No Vertical 20
691307400006
STE 3D ALT EAG IGS CAD 6 Pluggable PCB No Vertical 20
691307400007
IGE STE 3D ALT EAG CAD 7 Pluggable PCB No Vertical 20
691307400008
STE 3D ALT EAG IGS CAD 8 Pluggable PCB No Vertical 20
691307400012
IGE STE 3D ALT EAG CAD 12 Pluggable PCB No Vertical 20
Order Code Data­sheet
691307400002
691307400003
691307400004
691307400005
691307400006
691307400007
691307400008
691307400012
Samples
Order Code Data­sheet DownloadsPinsApplicationPCB/Cable/PanelModularityTypeIR
(A)
Design Kit Samples

Assortments

Articles from this product series can be found in the following assortments:
