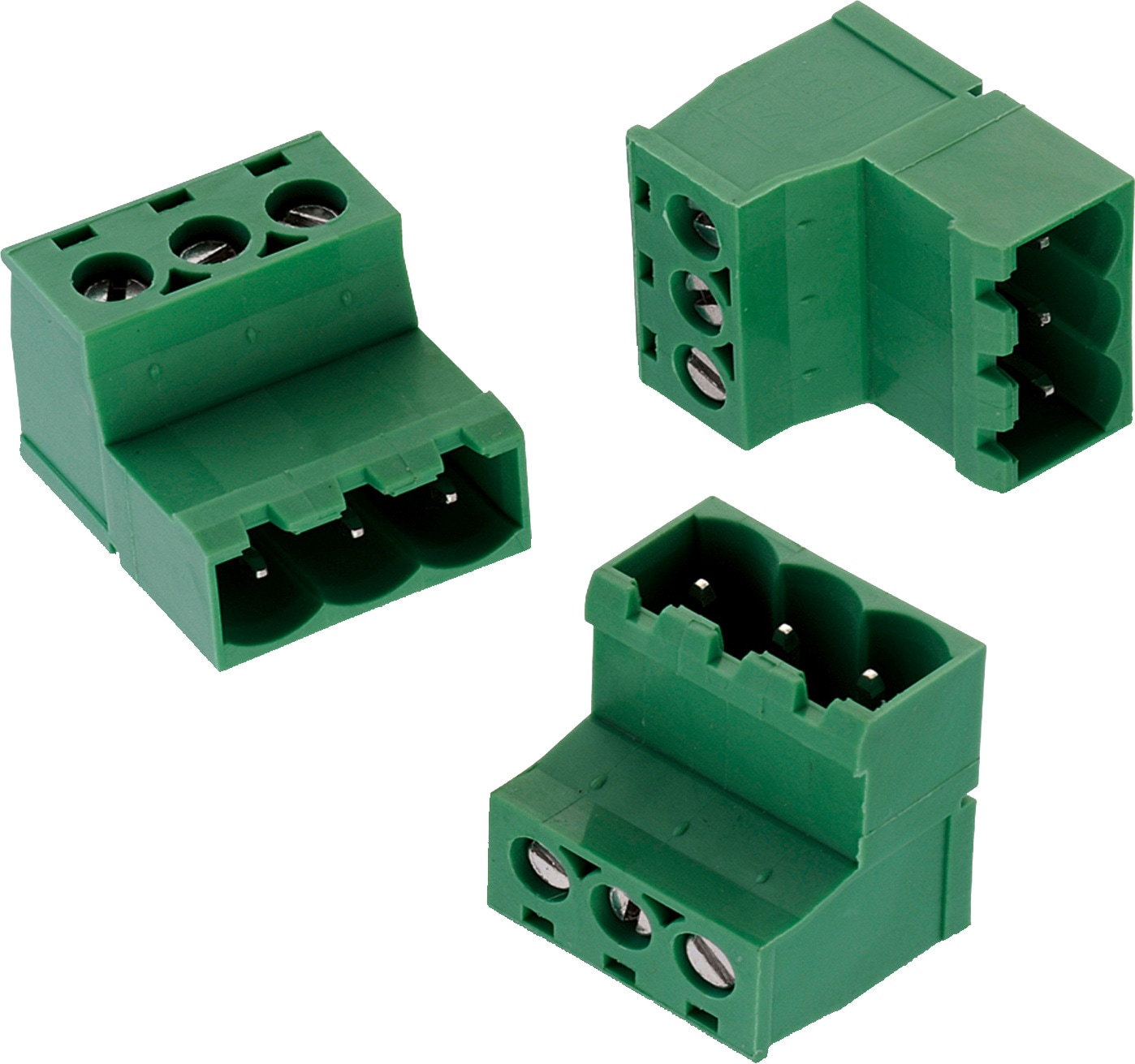

WR-TBL Series 3485 - 5.08 mm Reversed Gender Vertical 3.00 mm 2 Wires

General Information
Operating Temperature-40 °C up to +105 °C
ComplianceRoHS
Pitch5.08 mm
Material Properties
Insulator MaterialPA66
Insulator Flammability RatingUL94 V-0
Contact MaterialBrass
Terminal Screw MaterialSteel
Terminal Screw PlatingZinc
Wire Guard MaterialPhosphor Bronze
Electrical Properties
IR20 A
IR cULus20 A
Working Voltage300 V (AC)
Working Voltage [cULus]300 V (AC)
Withstanding Voltage [cULus]1600 V (AC)
Contact Resistance [cULus]20 mΩ
Mechanical Properties
Wire Strip Length7 up to 8 (mm)
ScrewM3
Wire Properties
Solid Wire Section (AWG)12 to 22 (AWG)
Solid Wire Section (Metric)3.31 to 0.326 (mm²)
Stranded Wire Section (AWG)12 to 22 (AWG)
Stranded Wire Section (Metric)3.31 to 0.326 (mm²)
Certification
cULus ApprovalE315414

Products

Order Code Data­sheet DownloadsPinsApplicationPCB/Cable/PanelModularityTypeWire SectionDesign Kit Samples
691348500002SPEC
3 files 2 Pluggable Cable No Vertical 12 to 22 (AWG) 3.31 to 0.326 (mm²)691001
691348500003SPEC
3 files 3 Pluggable Cable No Vertical 12 to 22 (AWG) 3.31 to 0.326 (mm²)612690
691348500004SPEC
3 files 4 Pluggable Cable No Vertical 12 to 22 (AWG) 3.31 to 0.326 (mm²)
691348500005SPEC
3 files 5 Pluggable Cable No Vertical 12 to 22 (AWG) 3.31 to 0.326 (mm²)
691348500006SPEC
3 files 6 Pluggable Cable No Vertical 12 to 22 (AWG) 3.31 to 0.326 (mm²)
691348500007SPEC
3 files 7 Pluggable Cable No Vertical 12 to 22 (AWG) 3.31 to 0.326 (mm²)
691348500008SPEC
3 files 8 Pluggable Cable No Vertical 12 to 22 (AWG) 3.31 to 0.326 (mm²)
691348500012SPEC
3 files 12 Pluggable Cable No Vertical 12 to 22 (AWG) 3.31 to 0.326 (mm²)
Order Code Data­sheet
691348500002SPEC
691348500003SPEC
691348500004SPEC
691348500005SPEC
691348500006SPEC
691348500007SPEC
691348500008SPEC
691348500012SPEC
