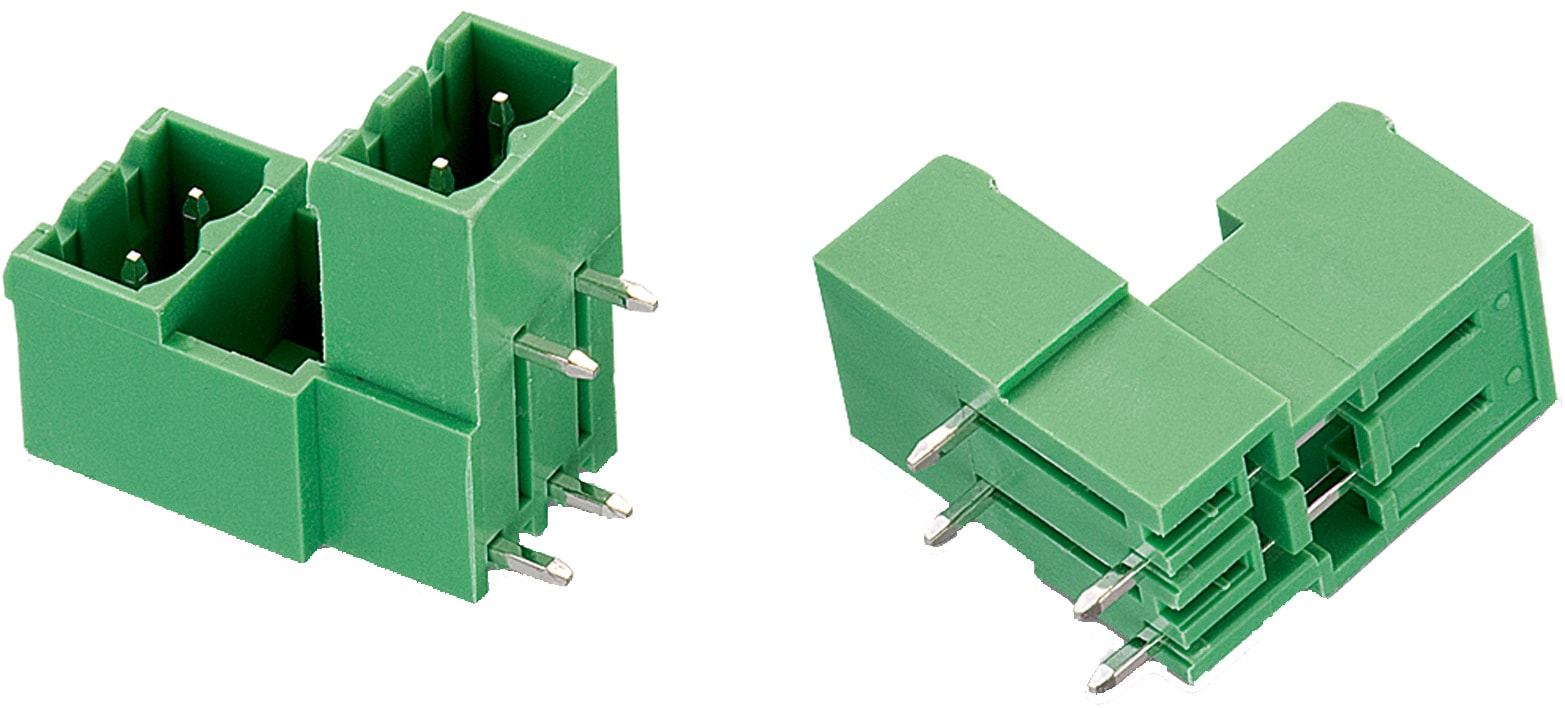

WR-TBL Series 3195 - 5.08 mm Double Level Horizontal Male PCB Header w. closed Flanges

Kind Properties
Pitch5.08 mm
Material Properties
Insulator MaterialPBT
Insulator Flammability RatingUL94 V-0
Contact MaterialBrass
Contact PlatingTin
General Information
Operating Temperature-40 up to +105 °C
ComplianceRoHS
Electrical Properties
IR cULus10 A
Working Voltage300 V (AC)
Working Voltage [cULus]300 V (AC)
Withstanding Voltage [cULus]1600 V (AC)
Contact Resistance [cULus]20 mΩ
Certification
cULus ApprovalE315414

Products

Order Code Data­sheet DownloadsPinsApplicationPCB/Cable/PanelModularityType Samples
691319510004SPEC
6 files 4 Pluggable PCB No Double Level Horizontal
691319510006SPEC
6 files 6 Pluggable PCB No Double Level Horizontal
691319510008SPEC
6 files 8 Pluggable PCB No Double Level Horizontal
691319510010SPEC
6 files 10 Pluggable PCB No Double Level Horizontal
691319510012SPEC
7 files 12 Pluggable PCB No Double Level Horizontal
691319510016SPEC
6 files 16 Pluggable PCB No Double Level Horizontal
Order Code Data­sheet
691319510004SPEC
691319510006SPEC
691319510008SPEC
691319510010SPEC
691319510012SPEC
691319510016SPEC
