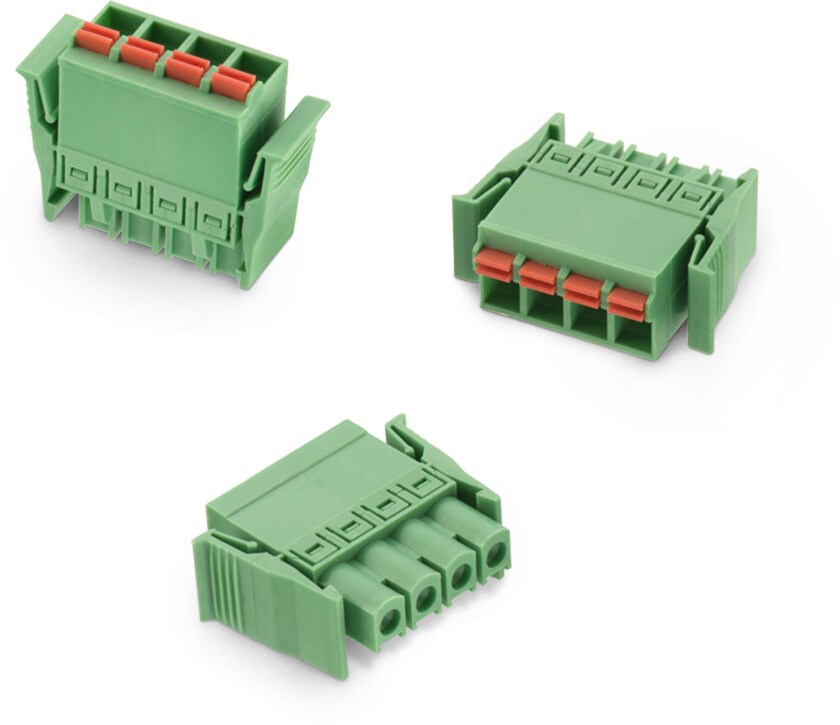

WR-TBL Series 3045 - 5.08 mm - Screwless Plug Vertical Entry with Plastic Latches | Electromechanical Components

General Information
Operating Temperature	-40 °C up to +105 °C
Pitch	5.08 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Insulator Color	Green
Contact Material	Copper Alloy
Contact Plating	Tin over Nickel
Spring Material	Stainless Steel

Electrical Properties
I_R	12 A
Working Voltage	300 V
Withstanding Voltage	1600 V
Contact Resistance	20 mΩ

Mechanical Properties
Wire Strip Length	11 up to 12 (mm)

Wire Properties
Solid Wire Section (AWG)	26 to 14 (AWG)
Solid Wire Section (Metric)	0.2 to 1.5 (mm²)
Stranded Wire Section (AWG)	26 to 14 (AWG)
Stranded Wire Section (Metric)	0.2 to 1.5 (mm²)

Certification
cULus Approval	E315414

Application Notes

Products

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Wire Section	Design Kit
691304530002	SPEC	3 files CAD files ZIP 3D 3D_691304530002 (rev1).pdf \| 294.4 KB IGS Download_IGES_691304530002 (rev1).iges \| 4.4 MB STP Download_STEP_691304530002 (rev1).stp \| 968.5 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2	Plug Screwless Push In	Cable	No	Vertical	26 to 14 (AWG) 0.2 to 1.5 (mm²)	–
691304530003	SPEC	3 files CAD files ZIP 3D 3D_691304530003 (rev1).pdf \| 359.2 KB IGS Download_IGES_691304530003 (rev1).iges \| 5.4 MB STP Download_STEP_691304530003 (rev1).stp \| 1.2 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3	Plug Screwless Push In	Cable	No	Vertical	26 to 14 (AWG) 0.2 to 1.5 (mm²)	691002
691304530004	SPEC	3 files CAD files ZIP 3D 3D_691304530004 (rev1).pdf \| 417.1 KB IGS Download_IGES_691304530004 (rev1).iges \| 6.4 MB STP Download_STEP_691304530004 (rev1).stp \| 1.4 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4	Plug Screwless Push In	Cable	No	Vertical	26 to 14 (AWG) 0.2 to 1.5 (mm²)	–
691304530005	SPEC	3 files CAD files ZIP 3D 3D_691304530005 (rev1).pdf \| 476 KB IGS Download_IGES_691304530005 (rev1).iges \| 7.4 MB STP Download_STEP_691304530005 (rev1).stp \| 1.7 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	5	Plug Screwless Push In	Cable	No	Vertical	26 to 14 (AWG) 0.2 to 1.5 (mm²)	–
691304530006	SPEC	3 files CAD files ZIP 3D 3D_691304530006 (rev1).pdf \| 539.9 KB IGS Download_IGES_691304530006 (rev1).iges \| 8.3 MB STP Download_STEP_691304530006 (rev1).stp \| 1.9 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6	Plug Screwless Push In	Cable	No	Vertical	26 to 14 (AWG) 0.2 to 1.5 (mm²)	–
691304530007	SPEC	3 files CAD files ZIP 3D 3D_691304530007 (rev1).pdf \| 599.2 KB IGS Download_IGES_691304530007 (rev1).iges \| 9.3 MB STP Download_STEP_691304530007 (rev1).stp \| 2.1 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	7	Plug Screwless Push In	Cable	No	Vertical	26 to 14 (AWG) 0.2 to 1.5 (mm²)	–
691304530008	SPEC	3 files CAD files ZIP 3D 3D_691304530008 (rev1).pdf \| 660.5 KB IGS Download_IGES_691304530008 (rev1).iges \| 10.3 MB STP Download_STEP_691304530008 (rev1).stp \| 2.3 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	8	Plug Screwless Push In	Cable	No	Vertical	26 to 14 (AWG) 0.2 to 1.5 (mm²)	–
691304530009	SPEC	3 files CAD files ZIP 3D 3D_691304530009 (rev1).pdf \| 718.7 KB IGS Download_IGES_691304530009 (rev1).iges \| 11.2 MB STP Download_STEP_691304530009 (rev1).stp \| 2.6 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	9	Plug Screwless Push In	Cable	No	Vertical	26 to 14 (AWG) 0.2 to 1.5 (mm²)	–
691304530010	SPEC	3 files CAD files ZIP 3D 3D_691304530010 (rev1).pdf \| 763.6 KB IGS Download_IGES_691304530010 (rev1).iges \| 12.2 MB STP Download_STEP_691304530010 (rev1).stp \| 2.8 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	Plug Screwless Push In	Cable	No	Vertical	26 to 14 (AWG) 0.2 to 1.5 (mm²)	–

Order Code	Datasheet
691304530002	SPEC
691304530003	SPEC
691304530004	SPEC
691304530005	SPEC
691304530006	SPEC
691304530007	SPEC
691304530008	SPEC
691304530009	SPEC
691304530010	SPEC

Samples

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Wire Section	Design Kit	Samples
