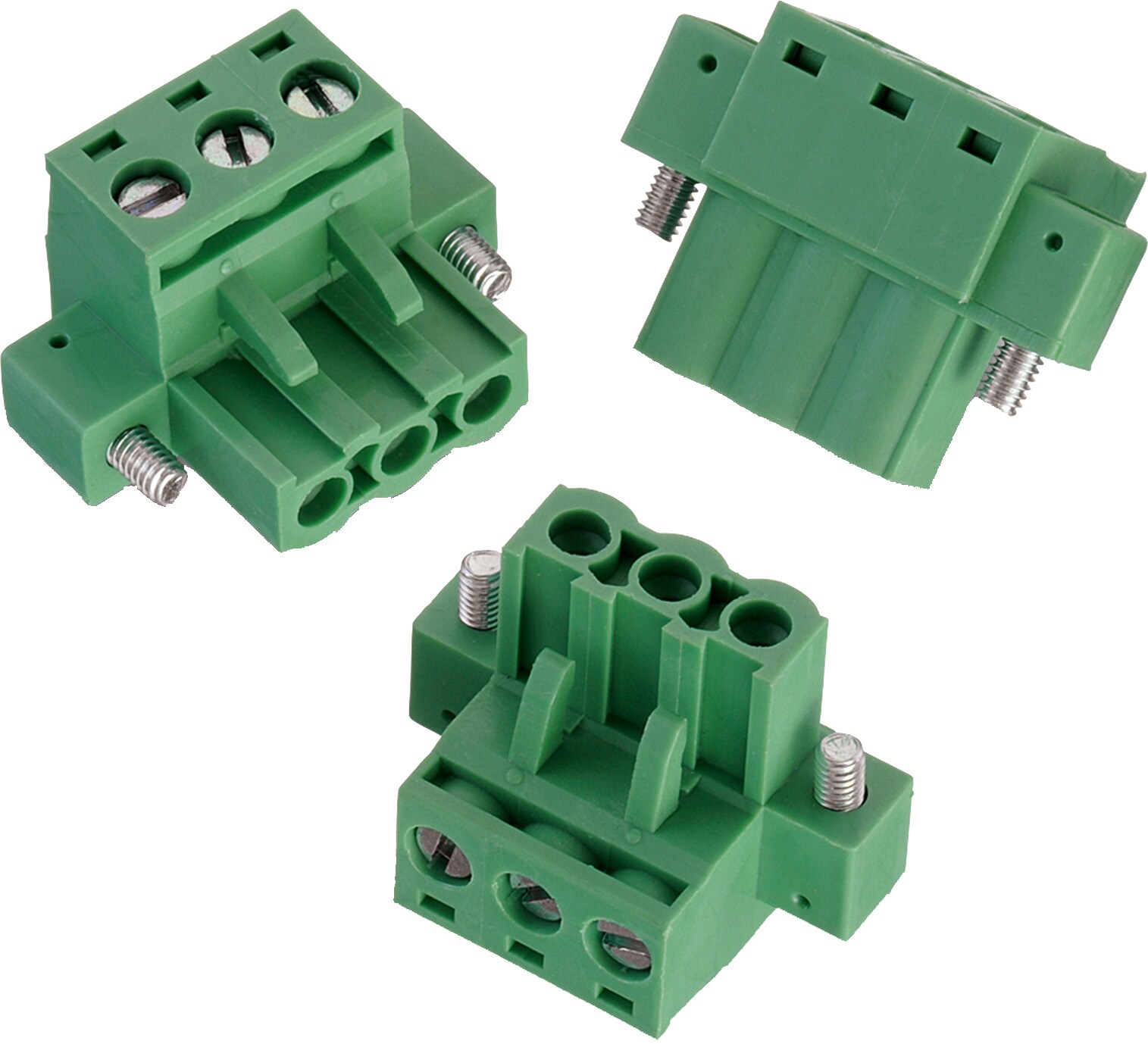

WR-TBL Series 3437 - 5.00 mm Vertical with Flanges | Electromechanical Components

General Information
Operating Temperature	-40 °C up to +105 °C
Compliance	RoHS
Pitch	5 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Insulator Color	Green
Contact Material	Brass
Contact Plating	Tin over Nickel
Cage Material	Brass
Cage Plating	nickel
Terminal Screw Material	Steel
Terminal Screw Plating	Zinc
Wire Guard Material	Phosphor Bronze

Electrical Properties
I_R	20 A
I_R[cULus]	20 A
I_R[VDE]	20 A
Working Voltage	300 V (AC); 320 V (AC)
Working Voltage [cULus]	300 V (AC)
Working Voltage [VDE]	320 V (AC)
Withstanding Voltage [cULus]	1600 V (AC)
Withstanding Voltage [VDE]	2200 V (AC)
R_C	20 mΩ
R_C	20 mΩ

Mechanical Properties
Screw	M3

Wire Properties
Solid Wire Section (AWG)	12 to 24 (AWG)
Solid Wire Section (Metric)	3.31 to 0.205 (mm²)
Stranded Wire Section (AWG)	12 to 24 (AWG)
Stranded Wire Section (Metric)	3.31 to 0.205 (mm²)

Certification
cULus Approval	E315414
VDE Approval	40023195

Application Notes

Products

Filter article data

show article in 0 product lines

article in 0 product lines

Reset all

Order Code	Downloads	Status	Pins	PCB/Cable/Panel	Modularity	Type	Wire Section	Design Kit
691343710002	Downloads3 files CAD files ZIP 3D 691343710002_1 (rev1).pdf \| 277.5 KB IGS 691343710002 (rev1).igs \| 2.5 MB STP 691343710002 (rev1).stp \| 849.4 KB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins2	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 12 to 24 (AWG) 3.31 to 0.205 (mm²)	Design Kit 691002
691343710003	Downloads3 files CAD files ZIP 3D 691343710003_1 (rev1).pdf \| 336.3 KB IGS 691343710003 (rev1).igs \| 3.2 MB STP 691343710003 (rev1).stp \| 1.1 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins3	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 12 to 24 (AWG) 3.31 to 0.205 (mm²)	Design Kit –
691343710004	Downloads3 files CAD files ZIP 3D 691343710004_1 (rev1).pdf \| 361.4 KB IGS 691343710004 (rev1).igs \| 3.7 MB STP 691343710004 (rev1).stp \| 1.3 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins4	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 12 to 24 (AWG) 3.31 to 0.205 (mm²)	Design Kit –
691343710005	Downloads3 files CAD files ZIP 3D 691343710005_1 (rev1).pdf \| 408.5 KB IGS 691343710005 (rev1).igs \| 4.2 MB STP 691343710005 (rev1).stp \| 1.4 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins5	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 12 to 24 (AWG) 3.31 to 0.205 (mm²)	Design Kit –
691343710006	Downloads3 files CAD files ZIP 3D 691343710006_1 (rev1).pdf \| 447.5 KB IGS 691343710006 (rev1).igs \| 4.7 MB STP 691343710006 (rev1).stp \| 1.6 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins6	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 12 to 24 (AWG) 3.31 to 0.205 (mm²)	Design Kit –
691343710007	Downloads3 files CAD files ZIP 3D 3D_691343710007 (rev1).pdf \| 486.3 KB IGS Download_IGES_691343710007 (rev1).iges \| 5.3 MB STP Download_STP_691343710007 (rev1).stp \| 1.9 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins7	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 12 to 24 (AWG) 3.31 to 0.205 (mm²)	Design Kit –
691343710008	Downloads3 files CAD files ZIP 3D 691343710008_1 (rev1).pdf \| 517.3 KB IGS 691343710008 (rev1).igs \| 5.7 MB STP 691343710008 (rev1).stp \| 2 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins8	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 12 to 24 (AWG) 3.31 to 0.205 (mm²)	Design Kit –
691343710012	Downloads3 files CAD files ZIP 3D 3D_691343710012 (rev1).pdf \| 630.7 KB IGS Download_IGES_691343710012 (rev1).iges \| 7.8 MB STP Download_STP_691343710012 (rev1).stp \| 2.8 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins12	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 12 to 24 (AWG) 3.31 to 0.205 (mm²)	Design Kit –
