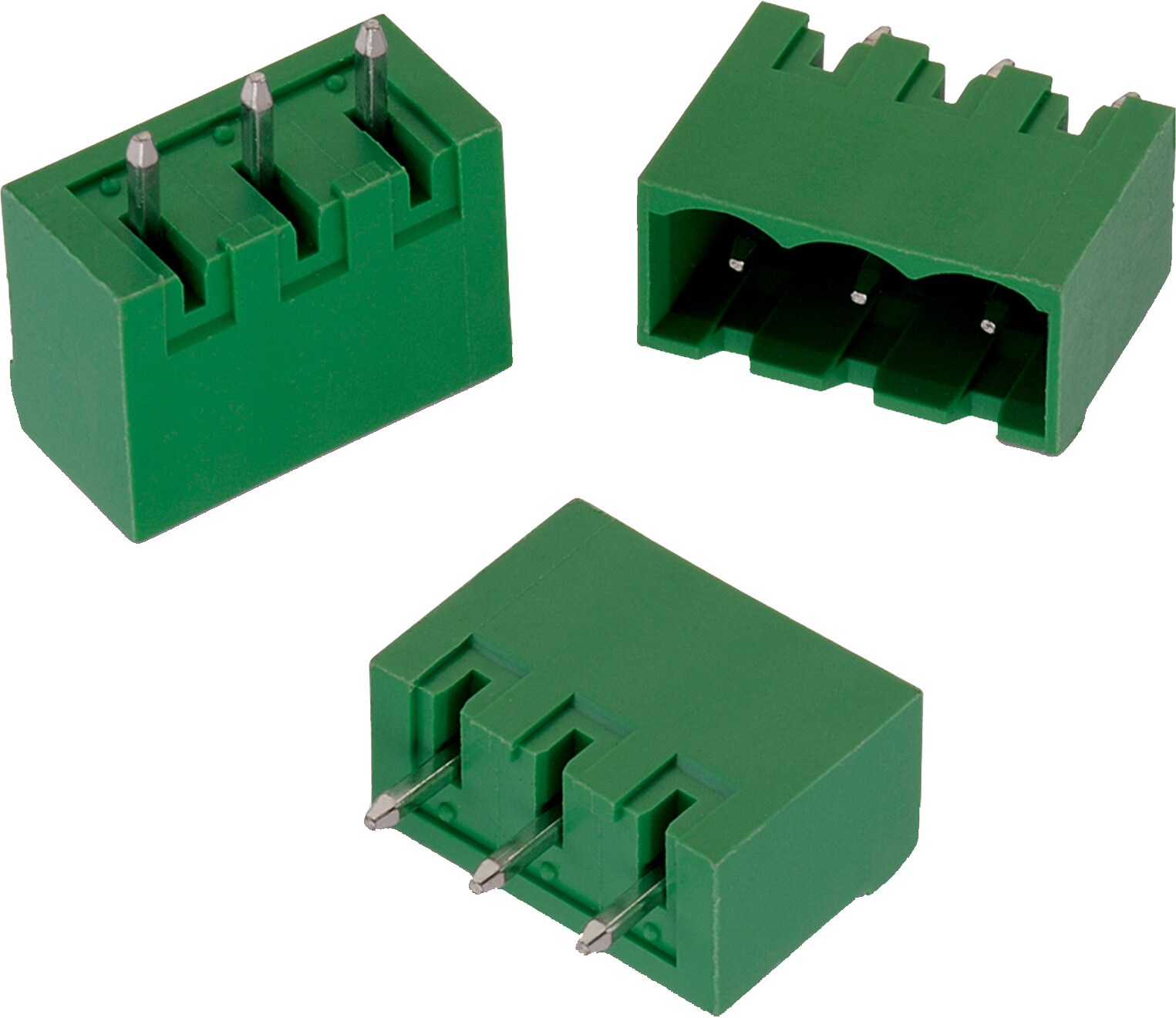

WR-TBL Series 3117 - 5.00 mm Close Vertical PCB Header | Electromechanical Components

General Information
Operating Temperature	-40 °C up to +105 °C
Compliance	RoHS
Pitch	5 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Contact Material	Brass
Contact Plating	Tin

Electrical Properties
I_R	20 A
I_{R cULus}	20 A
I_{R VDE}	20 A
Working Voltage	300 V (AC)
Working Voltage [cULus]	300 V (AC)
Working Voltage [VDE]	300 V (AC)
Withstanding Voltage [cULus]	1600 V (AC)
Withstanding Voltage [VDE]	2500 V (AC)
Contact Resistance [cULus]	20 mΩ
Contact Resistance [VDE]	20 mΩ

Certification
cULus Approval	E315414
VDE Approval	40023195

Application Notes

Products

Order Code	Datasheet	Downloads	Pins	Application	PCB/Cable/Panel	Modularity	Type	Design Kit
691311700102	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Pluggable Connector (rev23b).lbr \| 3.8 MB CAD files ZIP 3D 691311700102_1 (rev1).pdf \| 70.3 KB IGS 691311700102 (rev1).igs \| 550.9 KB STP 691311700102 (rev1).stp \| 216.2 KB	2	Pluggable	PCB	No	Vertical	–
691311700103	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Pluggable Connector (rev23b).lbr \| 3.8 MB CAD files ZIP 3D 691311700103_1 (rev1).pdf \| 94.9 KB IGS 691311700103 (rev1).igs \| 769.5 KB STP 691311700103 (rev1).stp \| 296.6 KB	3	Pluggable	PCB	No	Vertical	691002
691311700104	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Pluggable Connector (rev23b).lbr \| 3.8 MB CAD files ZIP 3D 691311700104_1 (rev1).pdf \| 112.3 KB IGS 691311700104 (rev1).igs \| 980.9 KB STP 691311700104 (rev1).stp \| 376.9 KB	4	Pluggable	PCB	No	Vertical	–
691311700105	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Pluggable Connector (rev23b).lbr \| 3.8 MB CAD files ZIP 3D 691311700105_1 (rev1).pdf \| 129.8 KB IGS 691311700105 (rev1).igs \| 1.2 MB STP 691311700105 (rev1).stp \| 457.2 KB	5	Pluggable	PCB	No	Vertical	–
691311700106	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Pluggable Connector (rev23b).lbr \| 3.8 MB CAD files ZIP 3D 691311700106_1 (rev1).pdf \| 149.7 KB IGS 691311700106 (rev1).igs \| 1.4 MB STP 691311700106 (rev1).stp \| 537.4 KB	6	Pluggable	PCB	No	Vertical	–
691311700107	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Pluggable Connector (rev23b).lbr \| 3.8 MB CAD files ZIP 3D 3D_691311700107 (rev1).pdf \| 163.5 KB IGS Download_IGES_691311700107 (rev1).iges \| 1.6 MB STP Download_STP_691311700107 (rev1).stp \| 619.2 KB	7	Pluggable	PCB	No	Vertical	–
691311700108	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Pluggable Connector (rev23b).lbr \| 3.8 MB CAD files ZIP 3D 691311700108_1 (rev1).pdf \| 173.6 KB IGS 691311700108 (rev1).igs \| 1.8 MB STP 691311700108 (rev1).stp \| 702.1 KB	8	Pluggable	PCB	No	Vertical	–
691311700112	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Pluggable Connector (rev23b).lbr \| 3.8 MB CAD files ZIP 3D 3D_691311700112 (rev1).pdf \| 284.2 KB IGS Download_IGES_691311700112 (rev1).iges \| 2.7 MB STP Download_STP_691311700112 (rev1).stp \| 1 MB	12	Pluggable	PCB	No	Vertical	–

Order Code	Datasheet
691311700102	SPEC
691311700103	SPEC
691311700104	SPEC
691311700105	SPEC
691311700106	SPEC
691311700107	SPEC
691311700108	SPEC
691311700112	SPEC

Samples

Order Code	Datasheet	Downloads	Pins	Application	PCB/Cable/Panel	Modularity	Type	Design Kit	Samples
