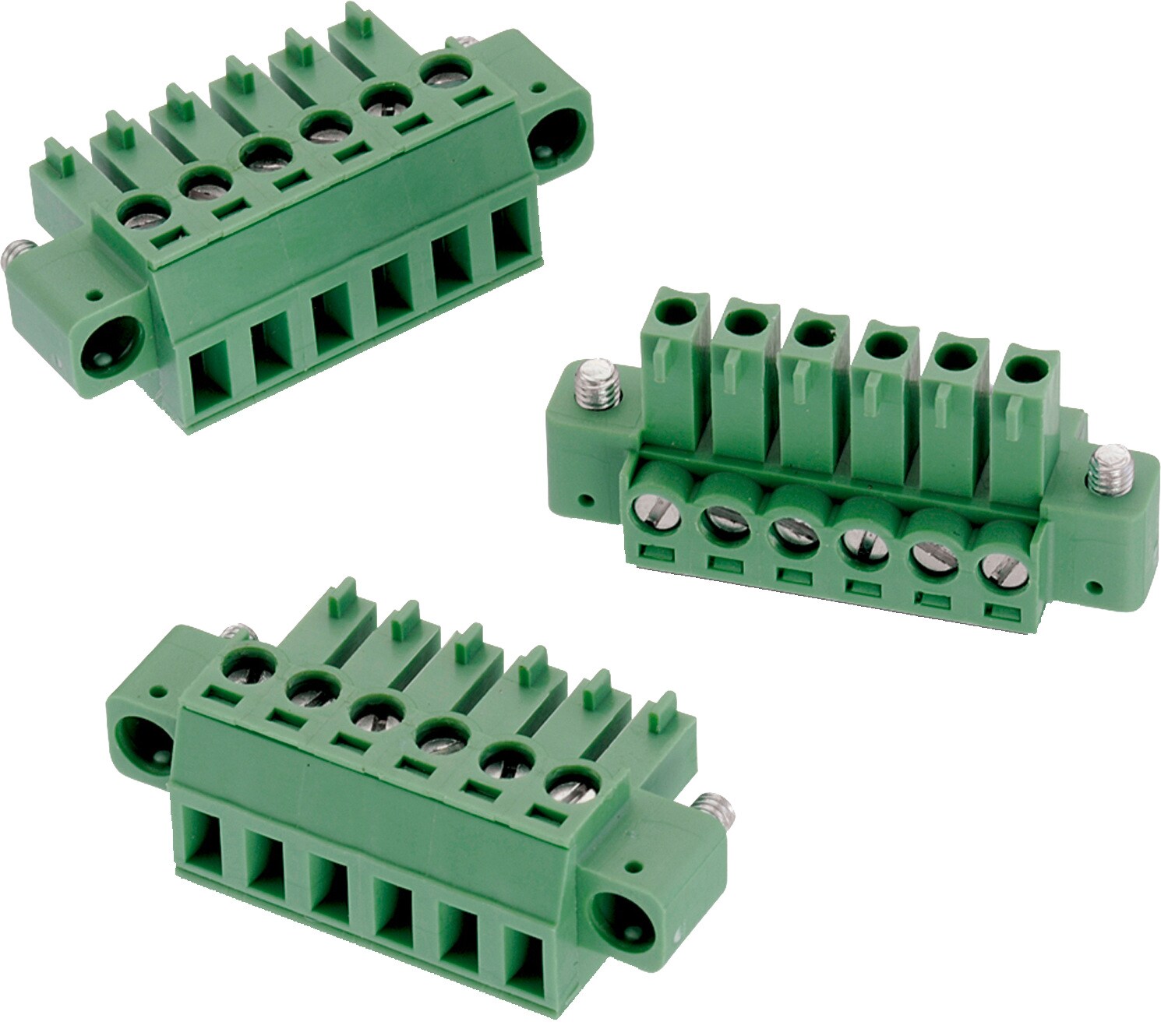

WR-TBL Series 3643 - 3.81 mm Vertical with flanges screw

Kind Properties
Pitch3.81 mm
Material Properties
Insulator MaterialPA66
Insulator Flammability RatingUL94 V-0
Contact MaterialBrass
Terminal Screw MaterialSteel
Terminal Screw PlatingZinc
Wire Guard MaterialPhosphor Bronze
General Information
Operating Temperature-40 up to +105 °C
ComplianceRoHS
Electrical Properties
IR cULus10 A
IR VDE10.5 A
Working Voltage [cULus]300 V (AC)
Working Voltage [VDE]300 V (AC)
Withstanding Voltage [cULus]1600 V (AC)
Withstanding Voltage [VDE]2500 V (AC)
Contact Resistance [cULus]20 mΩ
Contact Resistance [VDE]20 mΩ
Mechanical Properties
Wire Strip Length6 up to 7 (mm)
ScrewM2
Wire Properties
Solid Wire Section (AWG)16 to 26 (AWG)
Solid Wire Section (Metric)1.31 to 0.129 (mm²)
Stranded Wire Section (AWG)16 to 26 (AWG)
Stranded Wire Section (Metric)1.31 to 0.129 (mm²)
Certification
cULus ApprovalE315414
VDE Approval40023195

Products

Order Code Data­sheet DownloadsPinsApplicationPCB/Cable/PanelModularityTypeWire Section Samples
691364300002SPEC
3 files 2 Pluggable Cable No Vertical 16 to 26 (AWG) 1.31 to 0.129 (mm²)
691364300003SPEC
3 files 3 Pluggable Cable No Vertical 16 to 26 (AWG) 1.31 to 0.129 (mm²)
691364300004SPEC
3 files 4 Pluggable Cable No Vertical 16 to 26 (AWG) 1.31 to 0.129 (mm²)
691364300005SPEC
3 files 5 Pluggable Cable No Vertical 16 to 26 (AWG) 1.31 to 0.129 (mm²)
691364300006SPEC
3 files 6 Pluggable Cable No Vertical 16 to 26 (AWG) 1.31 to 0.129 (mm²)
691364300007SPEC
3 files 7 Pluggable Cable No Vertical 16 to 26 (AWG) 1.31 to 0.129 (mm²)
691364300008SPEC
3 files 8 Pluggable Cable No Vertical 16 to 26 (AWG) 1.31 to 0.129 (mm²)
691364300012SPEC
3 files 12 Pluggable Cable No Vertical 16 to 26 (AWG) 1.31 to 0.129 (mm²)
Order Code Data­sheet
691364300002SPEC
691364300003SPEC
691364300004SPEC
691364300005SPEC
691364300006SPEC
691364300007SPEC
691364300008SPEC
691364300012SPEC
Samples
Order Code Data­sheet DownloadsPinsApplicationPCB/Cable/PanelModularityTypeWire Section Samples

Terminal Blocks - Standard, Personalized & Highly Customized

Tailored to you needs

Custom & Standard Terminal Blocks

In addition to a portfolio of more than 2000 standard articles, Würth Elektronik offers various possibilities to tailor the products to your specific requirements. Personalized modifications of standard terminal blocks are available for small to medium quantities within a few days as a special service. Fully customized products in high quantities are possible within a few weeks.In house design, tooling and prototyping ensures all customer specific requirements are met.

  • Highly customized products
  • Over 2000 standard articles
  • Available from stock without MOQ
  • Personalized modifications of standard parts for small quantities
  • Color & printing possibilities with MOQ for mass production

Personalized Modifications of Standard Terminal Blocks

Ink Jet

Printing for your terminal blocks (e.g. coding, personalization)

Coding

Installation of coding pins according to keying specification

Color Coding

For selected series according to your specifications (412B / 412MB / 413B)

Assembly

Rapid assembly of pin numbers according to your needs
