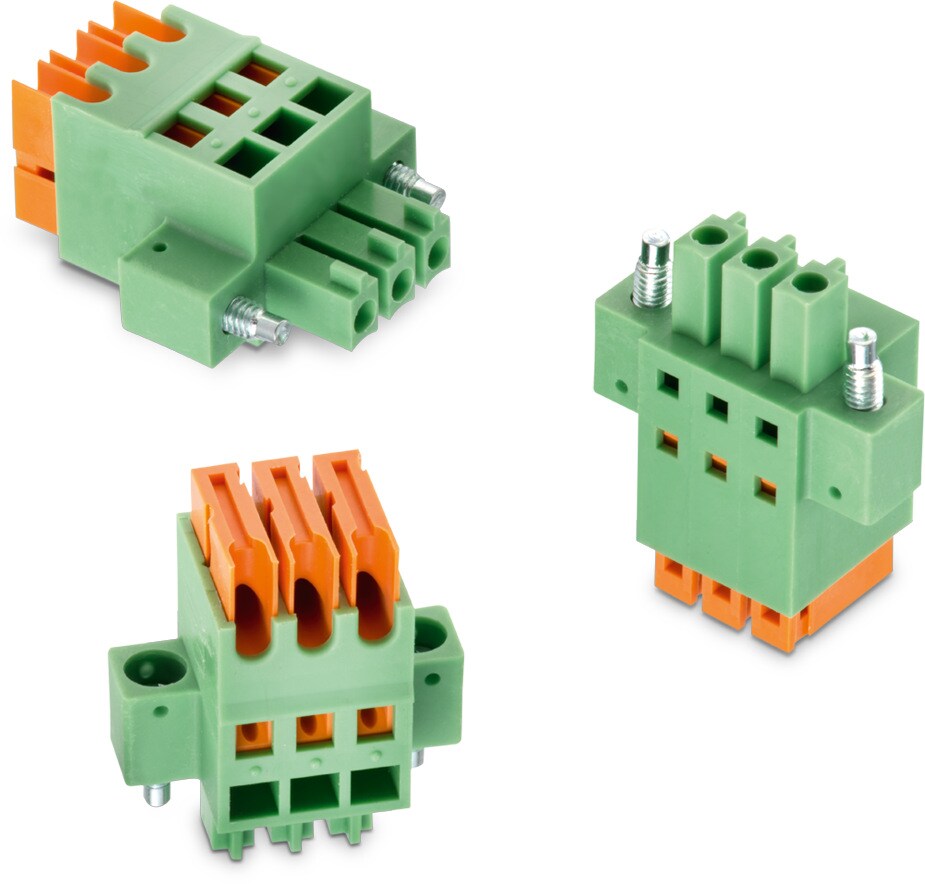

WR-TBL Series 3593 - 3.81 mm Horizontal IDC Plug with Flanges | Electromechanical Components

General Information
Operating Temperature	-40 °C up to +105 °C; -40 °C up to +115 °C
Compliance	RoHS
Pitch	3.81 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Contact Material	Copper Alloy
Contact Plating	Tin
Contact Type	Stamped

Electrical Properties
I_R	5 A
I_R[cULus]	5 A
Working Voltage	300 V (AC)
Working Voltage [cULus]	300 V (AC)
Withstanding Voltage [cULus]	1600 V (AC)
R_C	20 mΩ

Wire Properties
Solid Wire Section (AWG)	20 to 22 (AWG)
Solid Wire Section (Metric)	0.518 to 0.326 (mm²)
Stranded Wire Section (AWG)	20 to 22 (AWG)
Stranded Wire Section (Metric)	0.518 to 0.326 (mm²)

Certification
cULus Approval	E315414

Application Notes

Products

Filter article data

show article in 0 product lines

article in 0 product lines

Reset all

Order Code	Datasheet	Downloads	Status	Pins	PCB/Cable/Panel	Modularity	Type	Wire Section
691359340002	2, Pluggable, Cable	Downloads3 files CAD files ZIP 3D 691359340002_1 (rev1).pdf \| 248.9 KB IGS 691359340002 (rev1).iges \| 2.7 MB STP 691359340002 (rev1).stp \| 979.4 KB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins2	PCB/Cable/PanelCable	ModularityNo	TypeHorizontal	Wire Section 20 to 22 (AWG) 0.518 to 0.326 (mm²)
691359340003	3, Pluggable, Cable	Downloads3 files CAD files ZIP 3D 691359340003_1 (rev1).pdf \| 293 KB IGS 691359340003 (rev1).iges \| 3.2 MB STP 691359340003 (rev1).stp \| 1.2 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins3	PCB/Cable/PanelCable	ModularityNo	TypeHorizontal	Wire Section 20 to 22 (AWG) 0.518 to 0.326 (mm²)
691359340004	4, Pluggable, Cable	Downloads3 files CAD files ZIP 3D 691359340004_1 (rev1).pdf \| 329.9 KB IGS 691359340004 (rev1).iges \| 3.7 MB STP 691359340004 (rev1).stp \| 1.4 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins4	PCB/Cable/PanelCable	ModularityNo	TypeHorizontal	Wire Section 20 to 22 (AWG) 0.518 to 0.326 (mm²)
691359340005	5, Pluggable, Cable	Downloads3 files CAD files ZIP 3D 691359340005_1 (rev1).pdf \| 365.4 KB IGS 691359340005 (rev1).iges \| 4.2 MB STP 691359340005 (rev1).stp \| 1.6 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins5	PCB/Cable/PanelCable	ModularityNo	TypeHorizontal	Wire Section 20 to 22 (AWG) 0.518 to 0.326 (mm²)
691359340006	6, Pluggable, Cable	Downloads3 files CAD files ZIP 3D 691359340006_1 (rev1).pdf \| 401.3 KB IGS 691359340006 (rev1).iges \| 4.8 MB STP 691359340006 (rev1).stp \| 1.7 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins6	PCB/Cable/PanelCable	ModularityNo	TypeHorizontal	Wire Section 20 to 22 (AWG) 0.518 to 0.326 (mm²)
691359340007	7, Pluggable, Cable	Downloads3 files CAD files ZIP 3D 3D_691359340007 (rev1).pdf \| 439.1 KB IGS Download_IGES_691359340007 (rev1).iges \| 5.3 MB STP Download_STP_691359340007 (rev1).stp \| 1.9 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins7	PCB/Cable/PanelCable	ModularityNo	TypeHorizontal	Wire Section 20 to 22 (AWG) 0.518 to 0.326 (mm²)
691359340008	8, Pluggable, Cable	Downloads3 files CAD files ZIP 3D 691359340008_1 (rev1).pdf \| 476.5 KB IGS 691359340008 (rev1).iges \| 5.8 MB STP 691359340008 (rev1).stp \| 2.1 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins8	PCB/Cable/PanelCable	ModularityNo	TypeHorizontal	Wire Section 20 to 22 (AWG) 0.518 to 0.326 (mm²)
691359340012	12, Pluggable, Cable	Downloads3 files CAD files ZIP 3D 3D_691359340012 (rev1).pdf \| 629.5 KB IGS Download_IGES_691359340012 (rev1).iges \| 7.9 MB STP Download_STP_691359340012 (rev1).stp \| 2.9 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins12	PCB/Cable/PanelCable	ModularityNo	TypeHorizontal	Wire Section 20 to 22 (AWG) 0.518 to 0.326 (mm²)
