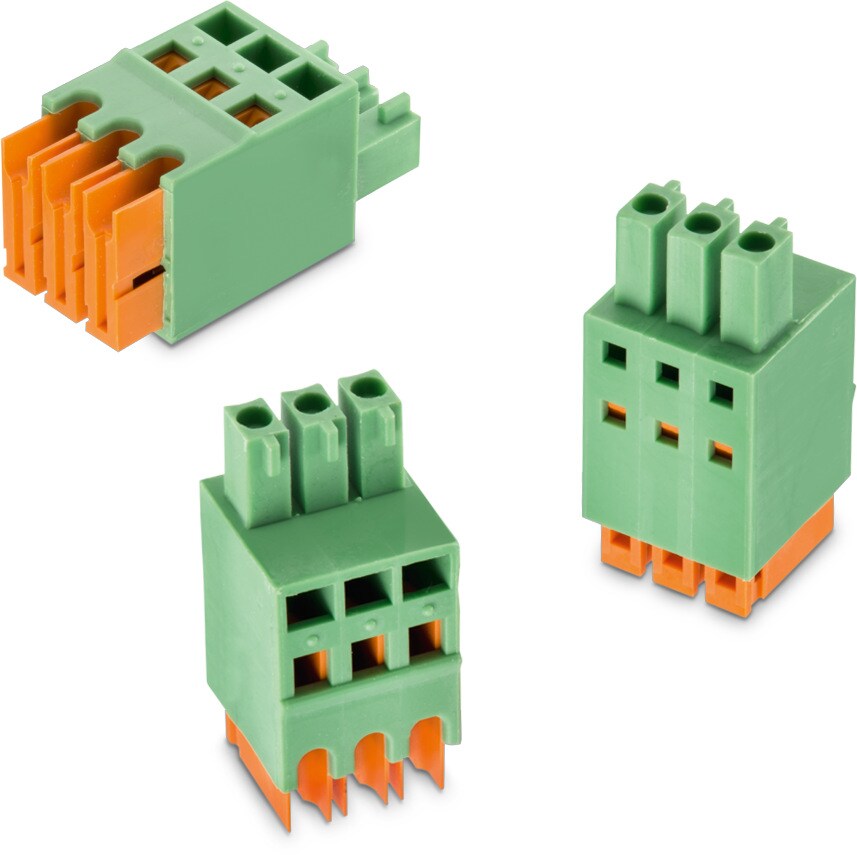

WR-TBL Series 3583 - 3.81 mm Horizontal IDC Plug | Electromechanical Components

General Information
Operating Temperature	-40 °C up to +115 °C
Pitch	3.81 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Insulator Color	Green
Contact Material	Copper Alloy
Contact Plating	Tin
Contact Type	Stamped

Electrical Properties
I_R	5 A
I_R[cULus]	5 A
Working Voltage	300 V (AC)
Working Voltage [cULus]	300 V (AC)
Withstanding Voltage [cULus]	1600 V (AC)
R_C [cULus]	20 mΩ

Wire Properties
Solid Wire Section (AWG)	20 to 22 (AWG)
Solid Wire Section (Metric)	0.518 to 0.326 (mm²)
Stranded Wire Section (AWG)	20 to 22 (AWG)
Stranded Wire Section (Metric)	0.518 to 0.326 (mm²)

Certification
cULus Approval	E315414

Application Notes

Products

Filter article data

show articles in 0 product lines

articles in 0 product lines

Reset all

	Order Code	Datasheet	Downloads	Status	Pins	Application	PCB/Cable/Panel	Modularity	Type	Wire Section	Design Kit	SamplesAvailability & Sample

Log in now to view availability and request availability forecasts. LOGIN
	691358310002	SPEC2, Plug IDC Clamp, Cable	Availability –	Downloads3 files 3D 691358310002_1 (rev1).pdf \| 164.4 KB IGS 691358310002 (rev1).iges \| 2.3 MB STP 691358310002 (rev1).stp \| 838.2 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Pins2	ApplicationPlug IDC Clamp	PCB/Cable/PanelCable	ModularityNo	TypeHorizontal Cable Entry	Wire Section 20 to 22 (AWG) 0.518 to 0.326 (mm²)	Design Kit –	–Check availability
	691358310003	SPEC3, Plug IDC Clamp, Cable	Availability –	Downloads3 files 3D 691358310003_1 (rev1).pdf \| 207.4 KB IGS 691358310003 (rev1).iges \| 2.8 MB STP 691358310003 (rev1).stp \| 1 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Pins3	ApplicationPlug IDC Clamp	PCB/Cable/PanelCable	ModularityNo	TypeHorizontal Cable Entry	Wire Section 20 to 22 (AWG) 0.518 to 0.326 (mm²)	Design Kit 691002	–Check availability
	691358310004	SPEC4, Plug IDC Clamp, Cable	Availability –	Downloads3 files 3D 691358310004_1 (rev1).pdf \| 242.5 KB IGS 691358310004 (rev1).iges \| 3.3 MB STP 691358310004 (rev1).stp \| 1.2 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Pins4	ApplicationPlug IDC Clamp	PCB/Cable/PanelCable	ModularityNo	TypeHorizontal Cable Entry	Wire Section 20 to 22 (AWG) 0.518 to 0.326 (mm²)	Design Kit –	–Check availability
	691358310005	SPEC5, Plug IDC Clamp, Cable	Availability –	Downloads3 files 3D 691358310005_1 (rev1).pdf \| 282 KB IGS 691358310005 (rev1).iges \| 3.8 MB STP 691358310005 (rev1).stp \| 1.4 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Pins5	ApplicationPlug IDC Clamp	PCB/Cable/PanelCable	ModularityNo	TypeHorizontal Cable Entry	Wire Section 20 to 22 (AWG) 0.518 to 0.326 (mm²)	Design Kit –	–Check availability
	691358310006	SPEC6, Plug IDC Clamp, Cable	Availability –	Downloads3 files 3D 691358310006_1 (rev1).pdf \| 320.7 KB IGS 691358310006 (rev1).iges \| 4.3 MB STP 691358310006 (rev1).stp \| 1.6 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Pins6	ApplicationPlug IDC Clamp	PCB/Cable/PanelCable	ModularityNo	TypeHorizontal Cable Entry	Wire Section 20 to 22 (AWG) 0.518 to 0.326 (mm²)	Design Kit –	–Check availability
	691358310007	SPEC7, Plug IDC Clamp, Cable	Availability –	Downloads3 files 3D 3D_691358310007 (rev1).pdf \| 354.5 KB IGS Download_IGES_691358310007 (rev1).iges \| 4.8 MB STP Download_STP_691358310007 (rev1).stp \| 1.8 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Pins7	ApplicationPlug IDC Clamp	PCB/Cable/PanelCable	ModularityNo	TypeHorizontal Cable Entry	Wire Section 20 to 22 (AWG) 0.518 to 0.326 (mm²)	Design Kit –	–Check availability
	691358310008	SPEC8, Plug IDC Clamp, Cable	Availability –	Downloads3 files 3D 691358310008_1 (rev1).pdf \| 390.2 KB IGS 691358310008 (rev1).iges \| 5.4 MB STP 691358310008 (rev1).stp \| 2 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Pins8	ApplicationPlug IDC Clamp	PCB/Cable/PanelCable	ModularityNo	TypeHorizontal Cable Entry	Wire Section 20 to 22 (AWG) 0.518 to 0.326 (mm²)	Design Kit –	–Check availability
	691358310012	SPEC12, Plug IDC Clamp, Cable	Availability –	Downloads3 files 3D 3D_691358310012 (rev1).pdf \| 542.9 KB IGS Download_IGES_691358310012 (rev1).iges \| 7.4 MB STP Download_STP_691358310012 (rev1).stp \| 2.8 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Pins12	ApplicationPlug IDC Clamp	PCB/Cable/PanelCable	ModularityNo	TypeHorizontal Cable Entry	Wire Section 20 to 22 (AWG) 0.518 to 0.326 (mm²)	Design Kit –	–Check availability

Expected Availability	Opening inventory	Quantity
Current Availability	–	–

Tailored to your needs

Custom & Standard Terminal Blocks

Tailored to your needs

Custom & Standard Terminal Blocks

In addition to a portfolio of more than 2000 standard articles, Würth Elektronik offers various possibilities to tailor the products to your specific requirements. Personalized modifications of standard terminal blocks are available for small to medium quantities within a few days as a special service. Fully customized products in high quantities are possible within a few weeks.In house design, tooling and prototyping ensures all customer specific requirements are met.
