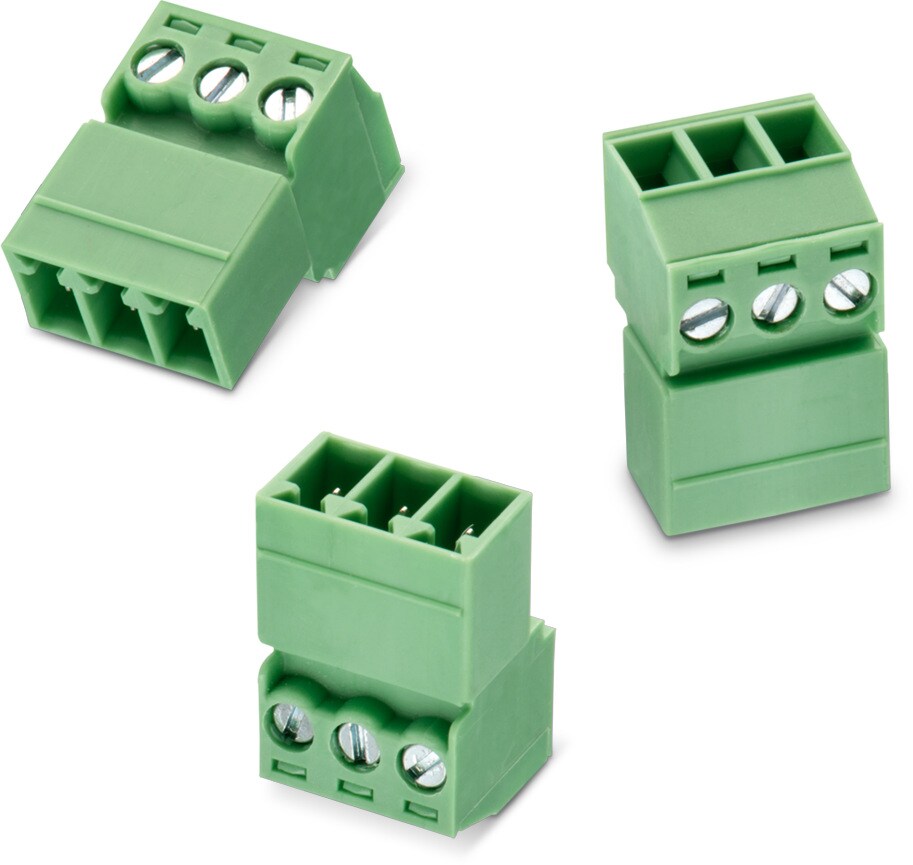

WR-TBL Series 3483 - 3.81 mm Reversed Gender Plug Vertical Entry | Electromechanical Components

General Information
Operating Temperature	-40 °C up to +115 °C
Compliance	RoHS
Pitch	3.81 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Contact Material	Brass
Contact Plating	Tin
Contact Type	Stamped
Terminal Screw Material	Steel
Terminal Screw Plating	Zinc

Electrical Properties
I_R	8 A
I_{R cULus}	8 A
Working Voltage	300 V (AC)
Working Voltage [cULus]	300 V (AC)
Withstanding Voltage [cULus]	1600 V (AC)
Contact Resistance [cULus]	20 mΩ

Mechanical Properties
Wire Strip Length	7
Screw	M2

Wire Properties
Solid Wire Section (AWG)	14 to 30 (AWG)
Solid Wire Section (Metric)	2.08 to 0.0509 (mm²)
Stranded Wire Section (AWG)	14 to 30 (AWG)
Stranded Wire Section (Metric)	2.08 to 0.0509 (mm²)

Certification
cULus Approval	E315414

Application Notes

Products

Order Code	Datasheet	Downloads	Pins	Application	PCB/Cable/Panel	Modularity	Type	Wire Section	Design Kit
691348300002	SPEC	3 files CAD files ZIP 3D 691348300002_1 (rev1).pdf \| 195.4 KB IGS 691348300002 (rev1).iges \| 1.8 MB STP 691348300002 (rev1).stp \| 687.4 KB Download all 3 files as zip archive ZIP	2	Pluggable	Cable	No	Vertical	14 to 30 (AWG) 2.08 to 0.0509 (mm²)	691001
691348300003	SPEC	3 files CAD files ZIP 3D 691348300003_1 (rev1).pdf \| 251.1 KB IGS 691348300003 (rev1).iges \| 2.4 MB STP 691348300003 (rev1).stp \| 936.2 KB Download all 3 files as zip archive ZIP	3	Pluggable	Cable	No	Vertical	14 to 30 (AWG) 2.08 to 0.0509 (mm²)	691002
691348300004	SPEC	3 files CAD files ZIP 3D 691348300004_1 (rev1).pdf \| 295.6 KB IGS 691348300004 (rev1).iges \| 3.1 MB STP 691348300004 (rev1).stp \| 1.2 MB Download all 3 files as zip archive ZIP	4	Pluggable	Cable	No	Vertical	14 to 30 (AWG) 2.08 to 0.0509 (mm²)	–
691348300005	SPEC	3 files CAD files ZIP 3D 691348300005_1 (rev1).pdf \| 347.3 KB IGS 691348300005 (rev1).iges \| 3.7 MB STP 691348300005 (rev1).stp \| 1.4 MB Download all 3 files as zip archive ZIP	5	Pluggable	Cable	No	Vertical	14 to 30 (AWG) 2.08 to 0.0509 (mm²)	–
691348300006	SPEC	3 files CAD files ZIP 3D 691348300006_1 (rev1).pdf \| 400.6 KB IGS 691348300006 (rev1).iges \| 4.3 MB STP 691348300006 (rev1).stp \| 1.6 MB Download all 3 files as zip archive ZIP	6	Pluggable	Cable	No	Vertical	14 to 30 (AWG) 2.08 to 0.0509 (mm²)	–
691348300007	SPEC	3 files CAD files ZIP 3D 3D_691348300007 (rev1).pdf \| 447.3 KB IGS Download_IGES_691348300007 (rev1).iges \| 4.9 MB STP Download_STP_691348300007 (rev1).stp \| 1.9 MB Download all 3 files as zip archive ZIP	7	Pluggable	Cable	No	Vertical	14 to 30 (AWG) 2.08 to 0.0509 (mm²)	–
691348300008	SPEC	3 files CAD files ZIP 3D 691348300008_1 (rev1).pdf \| 492.6 KB IGS 691348300008 (rev1).iges \| 5.6 MB STP 691348300008 (rev1).stp \| 2.1 MB Download all 3 files as zip archive ZIP	8	Pluggable	Cable	No	Vertical	14 to 30 (AWG) 2.08 to 0.0509 (mm²)	–
691348300012	SPEC	3 files CAD files ZIP 3D 3D_691348300012 (rev1).pdf \| 670.5 KB IGS Download_IGES_691348300012 (rev1).iges \| 8.1 MB STP Download_STP_691348300012 (rev1).stp \| 3.1 MB Download all 3 files as zip archive ZIP	12	Pluggable	Cable	No	Vertical	14 to 30 (AWG) 2.08 to 0.0509 (mm²)	–

Order Code	Datasheet
691348300002	SPEC
691348300003	SPEC
691348300004	SPEC
691348300005	SPEC
691348300006	SPEC
691348300007	SPEC
691348300008	SPEC
691348300012	SPEC
