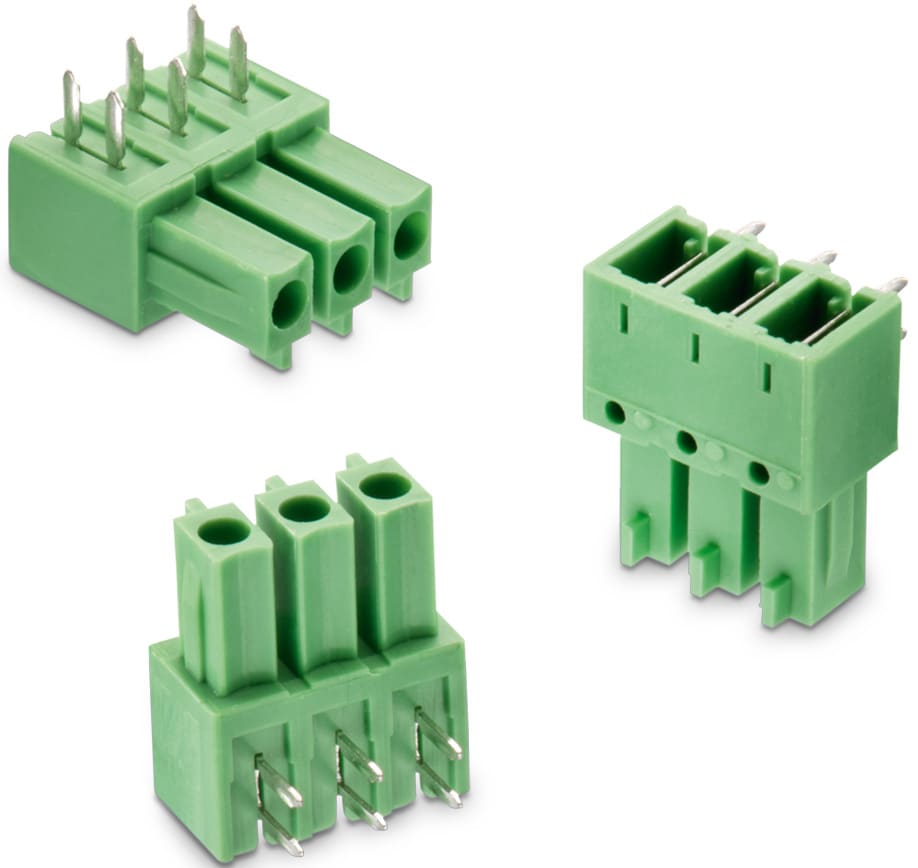

WR-TBL Series 3093 - PCB Header Reversed Gender 3.81mm pitch - Horizontal with Coding finger - THT | Electromechanical Components

General Information
Operating Temperature	-40 °C up to +115 °C
Compliance	RoHS
Pitch	3.81 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Contact Material	Copper Alloy
Contact Plating	Tin
Contact Type	Stamped

Electrical Properties
I_R	8 A
I_R[cULus]	8 A
Working Voltage	300 V (AC)
Working Voltage [cULus]	300 V (AC)
Withstanding Voltage [cULus]	1600 V (AC)
R_C	20 mΩ

Certification
cULus Approval	E315414

Application Notes

Products

Filter article data

show article in 0 product lines

article in 0 product lines

Reset all

Order Code	Datasheet	Downloads	Status	Pins	PCB/Cable/Panel	Modularity	Type	Design Kit	SamplesAvailability & Sample
691309310002	SPEC2, Pluggable, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691309310002_1 (rev1).pdf \| 127 KB IGS 691309310002 (rev1).iges \| 1.6 MB STP 691309310002 (rev1).stp \| 639.2 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins2	PCB/Cable/PanelPCB	ModularityNo	TypeHorizontal	Design Kit 691001 691002	–Check availability
691309310003	SPEC3, Pluggable, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691309310003_1 (rev1).pdf \| 164 KB IGS 691309310003 (rev1).iges \| 2 MB STP 691309310003 (rev1).stp \| 814.6 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins3	PCB/Cable/PanelPCB	ModularityNo	TypeHorizontal	Design Kit –	–Check availability
691309310004	SPEC4, Pluggable, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691309310004_1 (rev1).pdf \| 197.9 KB IGS 691309310004 (rev1).iges \| 2.5 MB STP 691309310004 (rev1).stp \| 991 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins4	PCB/Cable/PanelPCB	ModularityNo	TypeHorizontal	Design Kit –	–Check availability
691309310005	SPEC5, Pluggable, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691309310005_1 (rev1).pdf \| 235.3 KB IGS 691309310005 (rev1).iges \| 2.9 MB STP 691309310005 (rev1).stp \| 1.1 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins5	PCB/Cable/PanelPCB	ModularityNo	TypeHorizontal	Design Kit –	–Check availability
691309310006	SPEC6, Pluggable, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691309310006_1 (rev1).pdf \| 272.2 KB IGS 691309310006 (rev1).iges \| 3.4 MB STP 691309310006 (rev1).stp \| 1.3 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins6	PCB/Cable/PanelPCB	ModularityNo	TypeHorizontal	Design Kit –	–Check availability
691309310007	SPEC7, Pluggable, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 3D_691309310007 (rev1).pdf \| 297 KB IGS Downloads_IGES_691309310007 (rev1).iges \| 3.7 MB STP Downloads_STP_691309310007 (rev1).stp \| 1.5 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins7	PCB/Cable/PanelPCB	ModularityNo	TypeHorizontal	Design Kit –	–Check availability
691309310008	SPEC8, Pluggable, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691309310008_1 (rev1).pdf \| 332.8 KB IGS 691309310008 (rev1).iges \| 4.2 MB STP 691309310008 (rev1).stp \| 1.6 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins8	PCB/Cable/PanelPCB	ModularityNo	TypeHorizontal	Design Kit –	–Check availability
691309310012	SPEC12, Pluggable, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 3D_691309310012 (rev1).pdf \| 456.2 KB IGS Downloads_IGES_691309310012 (rev1).iges \| 5.9 MB STP Downloads_STP_691309310012 (rev1).stp \| 2.3 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins12	PCB/Cable/PanelPCB	ModularityNo	TypeHorizontal	Design Kit –	–Check availability
